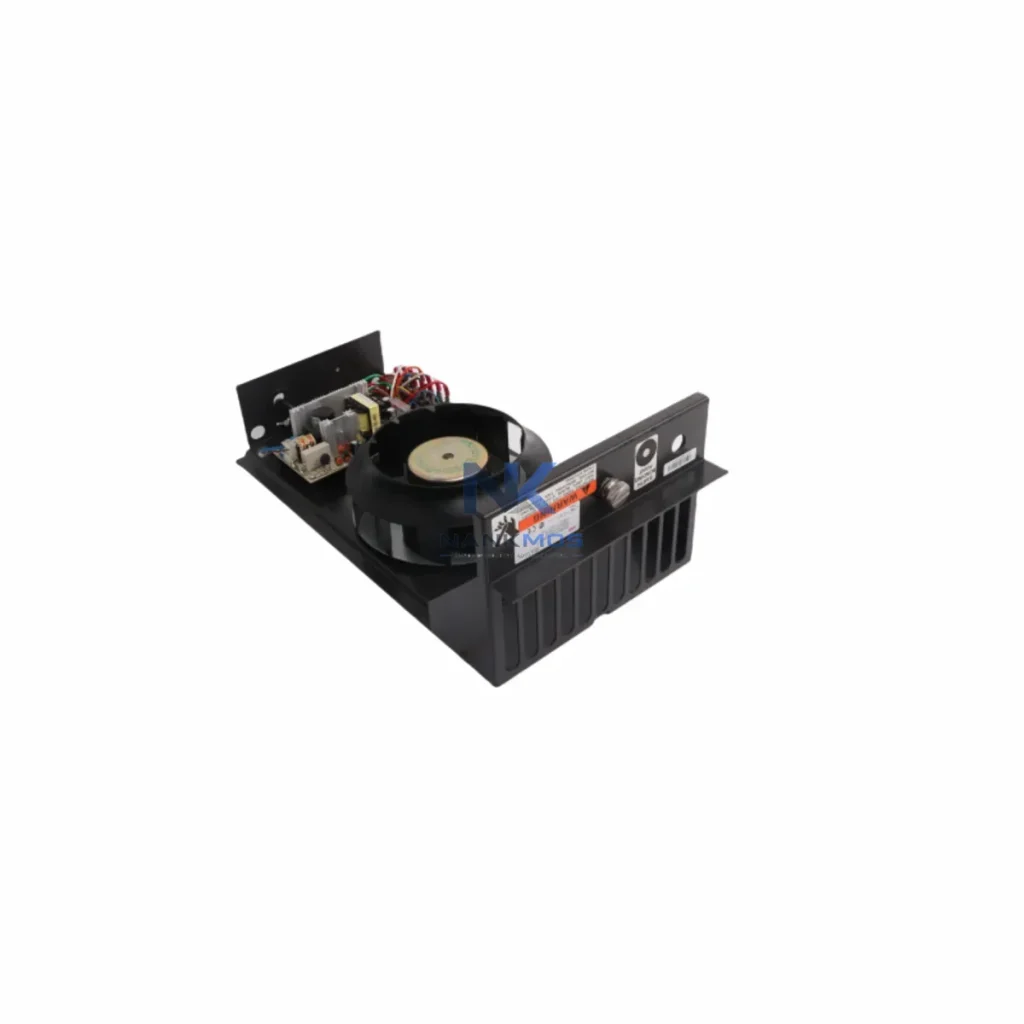

ABB IPFAN14 Cooling Fan Module

Product Details

IPFAN14 Product Description

The ABB IPFAN14 is a dedicated thermal management module engineered for sustained operation within ABB's IP Series Distributed Control System (DCS) architecture. Designed to maintain optimal operating temperatures across densely populated control cabinets, the IPFAN14 ensures that CPU modules, I/O racks, power supply units, and communication gateways remain within their rated thermal envelopes — even under continuous industrial duty cycles. Its role in the control architecture is not merely supplementary; it is a foundational element of system reliability, directly influencing uptime, signal integrity, and long-term hardware longevity across every layer of the automation platform.

In modern industrial control environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and advanced manufacturing — thermal stability is a prerequisite for deterministic control performance. The IPFAN14 addresses this requirement with a form factor and airflow specification precisely matched to the IP Series rack geometry, enabling seamless Contextual Integration within existing cabinet layouts without requiring additional mounting hardware or airflow baffling modifications.

The IPFAN14 operates as a silent enabler across every functional layer of the ABB IP Series automation platform. At the control layer, ABB IP Series CPU modules — such as the IPCI01 and IPCI02 processor cards — generate sustained thermal loads during real-time scan cycle execution. Without adequate forced-air cooling, these processors are susceptible to thermal throttling, which directly degrades scan time consistency and deterministic response. The IPFAN14 eliminates this risk by maintaining stable airflow across the CPU slot array.

At the I/O layer, analog input modules such as the IPAI08 (8-channel 4–20 mA input) and digital output modules like the IPDO16 rely on stable junction temperatures to preserve signal accuracy and switching reliability. Thermal drift in analog I/O circuits is a well-documented source of measurement offset; the IPFAN14's continuous airflow suppresses this drift, supporting tighter process control tolerances.

The power supply layer — typically served by ABB IPPS24 or IPPS48 redundant power supply modules — is among the highest heat-generating components in any DCS rack. The IPFAN14 ensures that power supply thermal dissipation does not cascade into adjacent I/O or CPU modules, preserving the integrity of the entire rack's power distribution architecture.

At the communication layer, PROFIBUS DP gateways and Modbus TCP communication modules — including the ABB IPGW01 gateway card — require stable operating temperatures to maintain deterministic fieldbus cycle times. Temperature-induced clock drift in communication ASICs can introduce latency jitter that disrupts time-critical control loops. The IPFAN14 mitigates this risk across multi-protocol architectures.

For installations incorporating HMI layer components such as the ABB CP600 series operator panels or remote I/O nodes connected via IPRIO expansion racks, the IPFAN14's thermal management extends system-wide reliability by ensuring that the primary control rack — the thermal anchor of the entire architecture — operates within specification at all times.

In redundant control architectures, where dual CPU configurations using paired IPCI01 modules operate in hot-standby mode, the IPFAN14 is doubly critical: a thermal fault in the primary rack that forces an unplanned switchover to the standby CPU introduces process disturbance. Proactive thermal management via the IPFAN14 reduces this risk to near zero under normal operating conditions.

The module also supports modular expansion scenarios where additional I/O racks — connected via IPBUS backplane extension cables — are added to an existing IP Series installation. As rack density increases, so does aggregate thermal load; the IPFAN14's airflow capacity is rated to accommodate fully populated 16-slot IP Series racks, ensuring that expansion does not compromise thermal margins.

Power Generation & Utilities: In combined-cycle power plants and hydroelectric facilities, DCS cabinets operate continuously in high-ambient-temperature electrical rooms. The IPFAN14 sustains CPU and I/O module performance across 24/7 duty cycles, supporting turbine governor control, excitation system monitoring, and grid synchronization logic without thermal-induced faults.

Petrochemical & Refinery Processing: Process control systems in refinery environments manage hundreds of PID loops simultaneously. Thermal stability in the DCS rack directly affects loop execution consistency. The IPFAN14 ensures that ABB IP Series racks in these environments maintain rated scan times even during peak summer ambient conditions in non-air-conditioned substations.

Water & Wastewater Treatment: Municipal water treatment facilities rely on continuous DCS operation for dosing control, pump sequencing, and SCADA integration. The IPFAN14 supports long-interval maintenance cycles by extending the operational lifespan of CPU and power supply modules, reducing unplanned downtime in critical infrastructure applications.

Mining & Metallurgy: Underground and surface mining control systems face extreme dust and temperature challenges. While the IPFAN14 operates within sealed IP20 cabinets, its role in maintaining internal cabinet temperatures below critical thresholds is essential for protecting sensitive DCS electronics from accelerated aging in high-ambient mining environments.

Packaging & Discrete Manufacturing: High-speed packaging lines with dense I/O configurations — managing servo drives, vision systems, and conveyor sequencing — generate significant heat in compact control panels. The IPFAN14 enables IP Series DCS racks to be deployed in these space-constrained, thermally challenging environments without derating.

Q1: Is the IPFAN14 compatible with all IP Series rack configurations, including expanded 16-slot racks with redundant power supplies? Yes. The IPFAN14 is designed to the IP Series rack mechanical and electrical specification, supporting both standard 8-slot and expanded 16-slot configurations. In redundant power supply installations using dual IPPS24 or IPPS48 modules, the IPFAN14's airflow capacity is sufficient to manage the combined thermal output of both power supply units alongside a fully populated I/O and CPU complement. No derating or supplementary cooling is required under standard industrial ambient conditions (≤ 40°C).

Q2: How does the IPFAN14 integrate with the IP Series rack diagnostic system, and can fan failure be detected without opening the cabinet? The IP Series rack architecture includes a rack health monitoring function accessible via the system's engineering workstation or DCS operator station. Fan module status — including rotation fault detection — is reported through the rack's internal diagnostic bus and surfaced as a system alarm in the ABB control platform. This allows maintenance teams to identify IPFAN14 degradation or failure remotely, enabling planned replacement during scheduled maintenance windows rather than emergency interventions. The 12-Month Warranty covers fan motor and bearing failures detected through this diagnostic pathway.

Q3: What is the recommended replacement interval for the IPFAN14, and how does NANKMOS support long-term spare parts availability? ABB recommends proactive fan module replacement at 3–5 year intervals under continuous industrial duty, or upon detection of reduced airflow via rack diagnostics. NANKMOS maintains verified stock of the IPFAN14 with pre-shipment functional testing, ensuring that replacement units are available for immediate dispatch to minimize system downtime. All units supplied by NANKMOS carry a 12-Month Warranty from the verified shipment date, with full traceability documentation provided for quality assurance and maintenance records. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
