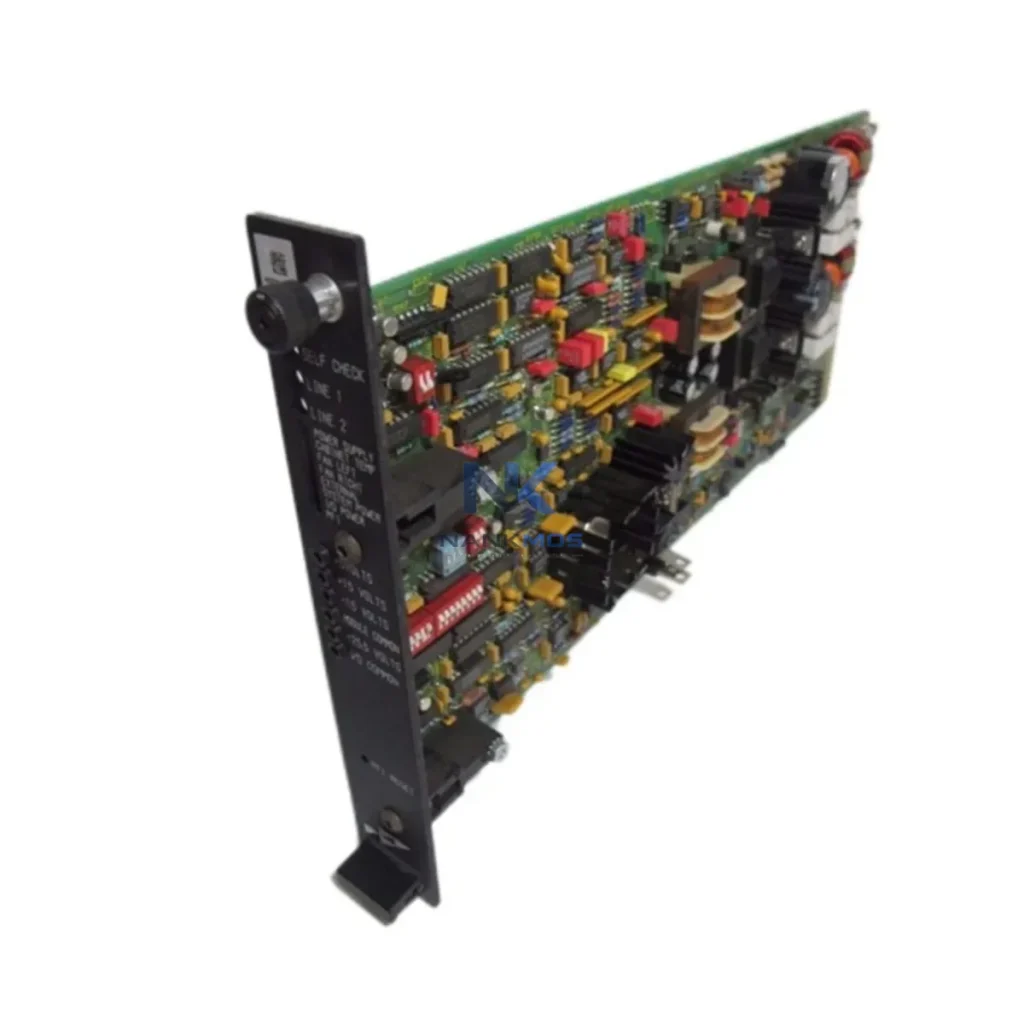

ABB IPMON01 Power Monitor Module

Product Details

IPMON01 Product Description

The ABB IPMON01 is a dedicated power monitoring module engineered for the INFI 90 Distributed Control System, delivering real-time electrical parameter acquisition, Modbus protocol communication, and seamless integration into smart factory data architectures. Designed for continuous operation in demanding industrial environments, the IPMON01 bridges the gap between field-level power measurement and upper-level SCADA, HMI, and energy management platforms — forming a critical node in the connected factory data chain.

In modern industrial facilities, power quality monitoring is no longer a standalone function. The IPMON01 integrates directly into the INFI 90 backplane, enabling voltage, current, frequency, and power factor data to flow from the field device layer through the DCS controller network to supervisory systems without protocol conversion bottlenecks. This native integration eliminates the data silos that commonly arise when legacy power meters rely on isolated RS-485 loops disconnected from the plant-wide automation backbone.

The IPMON01 operates as a data acquisition node within the INFI 90 control architecture, collecting real-time power parameters from field-level electrical panels and motor control centers. These measurements are transmitted across the INFI 90 Plant Loop to the IMMFP12 or IMMFP02 multi-function processors, which aggregate data from multiple I/O modules and route it upstream to the INFI 90 operator workstation or a third-party SCADA platform via the INFI-NET communication network.

In a typical smart factory deployment, the IPMON01 works alongside the IMDSI02 digital input module and IMASI02 analog input module to provide a complete picture of both power quality and process status. When a motor drive — such as an ABB ACS880 variable frequency drive — draws abnormal current, the IPMON01 captures the deviation in real time and forwards the alarm condition through the INFI 90 network to the SCADA historian. Operators monitoring the system through an ABB 800xA or a third-party HMI panel receive immediate notification, enabling rapid response before process disruption occurs.

For facilities integrating edge computing layers, the IPMON01 data stream can be forwarded from the INFI 90 gateway to an industrial edge server running IEC 61850 or OPC-UA translation services. This enables power consumption data to feed directly into energy dashboards, MES platforms, and cloud-based analytics tools without requiring manual data extraction. The IMCPM02 communication processor module within the INFI 90 rack facilitates this upstream data routing, ensuring low-latency delivery of power metrics to supervisory systems.

Remote diagnostic capability is a key advantage of the IPMON01 in networked INFI 90 environments. Maintenance engineers can query module status, review historical power trend data, and configure alarm thresholds remotely through the INFI 90 engineering workstation without requiring physical access to the control cabinet. This capability is particularly valuable in substations, offshore platforms, and remote pump stations where on-site intervention is costly and time-consuming.

The IPMON01 also supports integration with the INFI 90 IMRIO02 remote I/O module for distributed power monitoring across geographically separated plant sections. Combined with the INFI 90 NTCL02 termination unit, the module provides a clean, noise-immune signal path from the power measurement point to the control room, maintaining data integrity across long cable runs in electrically noisy industrial environments.

Many industrial facilities face persistent challenges with power data visibility: isolated meters that do not communicate with the DCS, protocol mismatches between legacy Modbus devices and modern Ethernet-based SCADA systems, and alarm events that go undetected because power monitoring is disconnected from the main control loop. The IPMON01 directly addresses these issues by embedding power measurement within the INFI 90 control architecture itself.

Protocol unification is achieved through the IPMON01's native INFI 90 bus interface, which eliminates the need for standalone Modbus-to-Ethernet gateways that introduce additional failure points and communication latency. Data that previously existed in isolated RS-485 loops is now part of the unified INFI 90 data highway, accessible to every authorized node on the network — from the local operator panel to the enterprise energy management system.

Production line transparency is enhanced by the IPMON01's continuous monitoring capability. Rather than relying on periodic manual readings, plant managers receive live power consumption data for each monitored circuit, enabling real-time load balancing, peak demand management, and early detection of equipment degradation. Alarm tracking is fully integrated into the INFI 90 alarm management framework, ensuring that power anomalies are logged, timestamped, and routed to the appropriate response team without manual intervention.

System expansion is straightforward: additional IPMON01 modules can be added to the INFI 90 rack as monitoring requirements grow, with no changes required to the existing network infrastructure. This scalability makes the IPMON01 a long-term investment for facilities planning phased smart factory upgrades.

Q1: What communication protocols does the ABB IPMON01 support?The IPMON01 communicates natively over the INFI 90 backplane bus and supports Modbus RTU via RS-485 for integration with third-party SCADA and energy management systems. This dual-protocol capability ensures compatibility with both legacy DCS architectures and modern industrial IoT platforms.

Q2: How does the IPMON01 ensure network stability in high-noise industrial environments?The module is designed for installation within the INFI 90 rack enclosure, which provides electrical isolation and shielding from electromagnetic interference. The INFI 90 Plant Loop communication protocol includes error detection and retransmission mechanisms that maintain data integrity even in environments with significant electrical noise from variable frequency drives, contactors, and high-voltage switching equipment.

Q3: Can the IPMON01 support remote diagnostics and firmware updates?Yes. Through the INFI 90 engineering workstation, maintenance personnel can remotely access module diagnostics, review communication status, and configure monitoring parameters without physical access to the module. This remote diagnostic capability reduces maintenance costs and minimizes downtime in facilities where the control cabinet is located in restricted or hazardous areas.

Q4: What warranty and pre-shipment testing does the IPMON01 include?Every ABB IPMON01 supplied by NANKMOS is covered by a 12-Month Warranty and undergoes functional testing prior to shipment to verify communication integrity, parameter measurement accuracy, and backplane interface operation. In-stock units are available for immediate dispatch, with lead time confirmation provided at the time of order. Contact [email protected] or +86 18359268345 for availability and RFQ.
