ABB IRB460/ 3HAC025007-001 3HAC028017-001 lRB360 CR82350032

Product Details

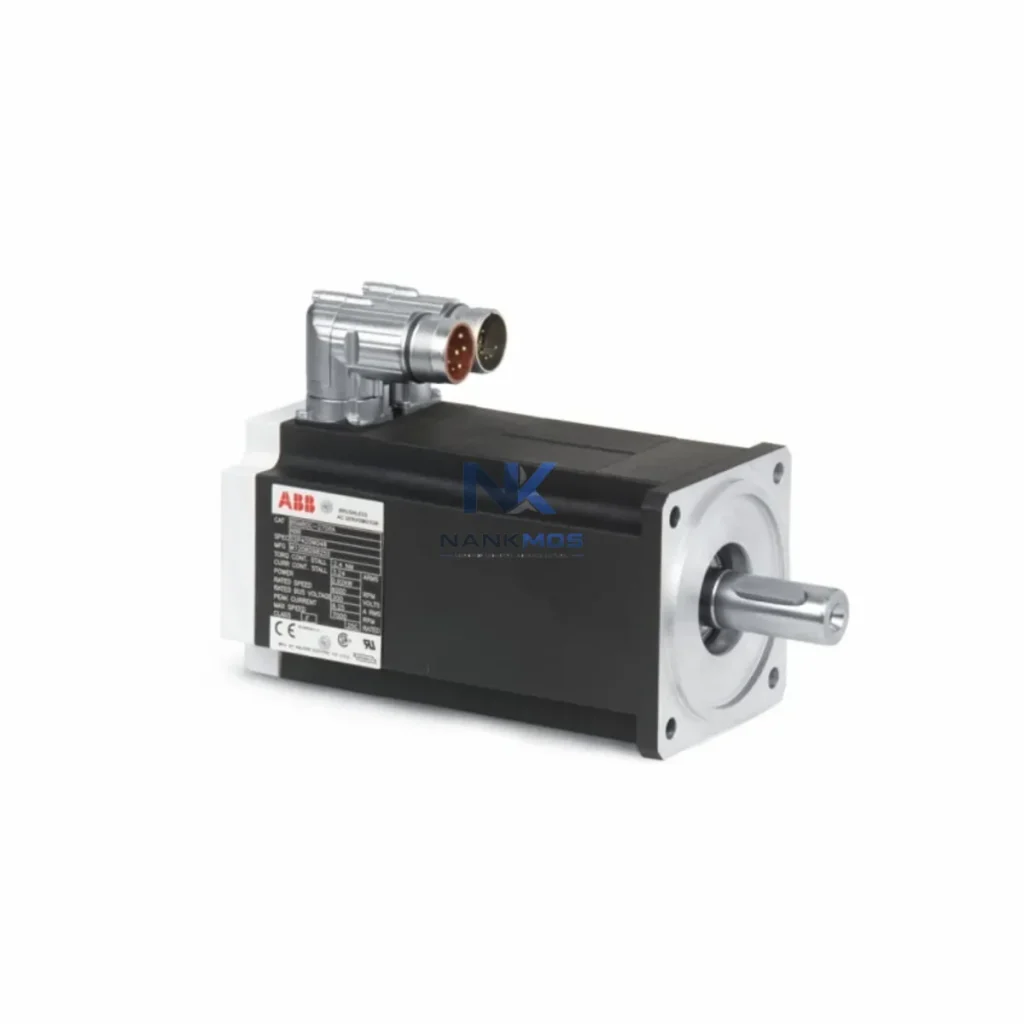

IRB460/3HAC025007-001 3HAC028017-001 lRB360 CR82350032 B63G5J-02450 Product Description

The ABB 3HAC025007-001 is a precision servo drive motor engineered for the IRB460 and IRB360 robot series, operating within ABB's IRC5 controller ecosystem. In modern smart factory environments, this drive motor functions as a critical node in the motion control data chain — translating digital command signals from the IRC5 controller into precise mechanical output, while feeding real-time encoder feedback, torque data, and fault status back upstream to SCADA and HMI systems. Its role extends beyond mechanical actuation: it is an active participant in the plant-wide data loop that enables predictive maintenance, remote diagnostics, and production transparency.

Within a connected automation architecture, the 3HAC025007-001 interfaces directly with the ABB IRC5 drive unit (DSQC661 or DSQC662 series), receiving motion profiles via the internal servo bus. The IRC5 controller aggregates axis data across all six robot joints and transmits consolidated status packets to upstream systems through EtherNet/IP or PROFINET gateways — enabling real-time visualization on Wonderware, Ignition SCADA, or ABB Ability™ dashboards. This seamless data path from motor encoder to cloud dashboard is the backbone of Industry 4.0 robot cell integration.

In palletizing and high-speed pick-and-place lines where the IRB460 excels, the 3HAC025007-001 drive motor works in concert with the ABB DSQC1000 main computer and DSQC643 I/O module to synchronize robot motion with conveyor PLC signals — typically Siemens S7-1500 or Allen-Bradley ControlLogix — via PROFIBUS DP or EtherNet/IP. The IRB360 FlexPicker variant (cross-referenced as CR82350032 / B63G5J-02450) similarly relies on this motor family for delta-arm axis control, where microsecond-level response times are essential for vision-guided sorting applications integrated with Cognex or Keyence camera systems.

A complete smart factory data chain built around the ABB 3HAC025007-001 begins at the motor encoder level. Position and velocity pulses are captured by the IRC5 axis computer (DSQC1000) and processed through the drive unit (DSQC661) before being forwarded to the robot controller's main CPU. From there, the IRC5 communicates with the plant PLC — commonly a Siemens S7-300/S7-1500 or Rockwell ControlLogix L8x — via PROFINET or EtherNet/IP, passing cycle counts, fault codes, and production throughput data in real time.

At the field level, the IRB460 robot cell typically integrates with remote I/O modules such as the ABB DSQC652 digital I/O board or a Phoenix Contact Axioline F remote I/O station, collecting conveyor sensor signals, gripper feedback, and safety relay status. These signals are aggregated by the IRC5 and forwarded to the SCADA layer. In food and beverage palletizing lines, the IRB360 FlexPicker — driven by the same 3HAC025007-001 motor family — connects to a Siemens ET 200SP distributed I/O rack for high-speed product detection, with vision data from Cognex In-Sight cameras feeding directly into the robot's path planning algorithm.

Edge gateway devices such as the Moxa MGate MB3480 or Advantech WISE-5231 can bridge legacy PROFIBUS DP signals from older IRC5 installations to modern MQTT or OPC-UA data streams, enabling integration with MES platforms and cloud analytics dashboards. This protocol conversion layer is essential for brownfield factories upgrading to Industry 4.0 without replacing existing robot hardware. The 3HAC025007-001, as a long-lifecycle ABB component, is specifically valued in these hybrid architectures where motor reliability and data continuity must coexist.

For power infrastructure, the IRC5 drive cabinet is typically fed by a Phoenix Contact QUINT-PS or Siemens SITOP PSU300M industrial power supply, ensuring clean DC bus voltage to the servo drive modules. Upstream, an industrial managed switch — such as the Hirschmann RS20 or Cisco IE-3400 — provides the Ethernet backbone connecting the IRC5, SCADA server, and HMI terminals (Siemens TP1500 Comfort or ABB CP600 panel) into a unified ring topology with redundancy. This network architecture ensures that motor fault events on the 3HAC025007-001 are captured, timestamped, and escalated to the operator HMI within milliseconds.

Protocol Fragmentation: Many robot cells running IRB460 or IRB360 systems operate alongside legacy PROFIBUS DP devices and newer EtherNet/IP equipment. The IRC5 controller's built-in fieldbus options, combined with external protocol gateways, allow the 3HAC025007-001's operational data to be unified into a single data namespace — eliminating the protocol silos that prevent cross-system fault correlation.

Data Islands and Production Blind Spots: Without proper motor-level data integration, drive faults on the 3HAC025007-001 may only surface as robot E-stops, with no upstream visibility into root cause. By routing IRC5 diagnostic data through OPC-UA servers to SCADA platforms like Ignition or Wonderware, maintenance teams gain access to historical torque trends, temperature excursions, and encoder drift — enabling condition-based maintenance before unplanned downtime occurs.

Remote Monitoring and Alarm Tracking: ABB Ability™ Connected Services, when paired with the IRC5 controller, enables remote access to robot health KPIs including motor load, axis wear indicators, and predictive service alerts. For sites without ABB cloud connectivity, third-party edge solutions using the Moxa UC-8112 industrial computer can replicate this functionality by polling IRC5 data via EtherNet/IP and publishing to local MQTT brokers or Grafana dashboards.

System Scalability: As production lines expand — adding IRB460 palletizing cells or IRB360 FlexPicker stations — the IRC5 multi-move architecture allows coordinated motion across multiple robots sharing a single controller. Each additional 3HAC025007-001 motor axis integrates into the existing data chain without requiring new SCADA configurations, making the system inherently scalable for phased factory expansion.

Q1: What communication protocols does the ABB IRC5 controller support for SCADA integration? The IRC5 controller natively supports EtherNet/IP, PROFINET, DeviceNet, and PROFIBUS DP via optional fieldbus adapter modules. For OPC-UA and MQTT integration, ABB's PC SDK or third-party OPC servers (such as Kepware KEPServerEX) can be used to bridge IRC5 data to modern SCADA and MES platforms. Communication latency for real-time axis data is typically under 4ms on a properly segmented industrial Ethernet network.

Q2: Is the 3HAC025007-001 compatible with both IRB460 and IRB360 robot variants? Yes. The 3HAC025007-001 and its cross-reference 3HAC028017-001 are used across the IRB460 palletizing robot and IRB360 FlexPicker delta robot families. Additional cross-reference part numbers CR82350032 and B63G5J-02450 apply to specific regional or OEM variants. All units shipped by NANKMOS are verified against ABB's compatibility matrix prior to dispatch.

Q3: How is remote diagnostics handled for drive motor faults in an IRC5 robot cell? The IRC5 controller logs all axis fault events — including overcurrent, encoder loss, and thermal overload on the 3HAC025007-001 — with timestamps and error codes accessible via the FlexPendant or remote RobotStudio connection. For unmanned facilities, ABB Ability™ or custom SCADA alarm rules can push fault notifications via email or SMS. NANKMOS also provides pre-shipment functional testing documentation for each unit to confirm baseline performance before installation.

Q4: What warranty and supply assurance does NANKMOS provide for the 3HAC025007-001? All ABB 3HAC025007-001 units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Stock is maintained in verified inventory with global shipping capability. Each unit undergoes outgoing quality inspection and is shipped with test records. For urgent production line requirements, expedited dispatch is available — contact [email protected] or +86 18359268345 for lead time confirmation.
