IRB16003HAC021455-001 IRB46003HAC043963-001 3HAC043963-001 Product Description

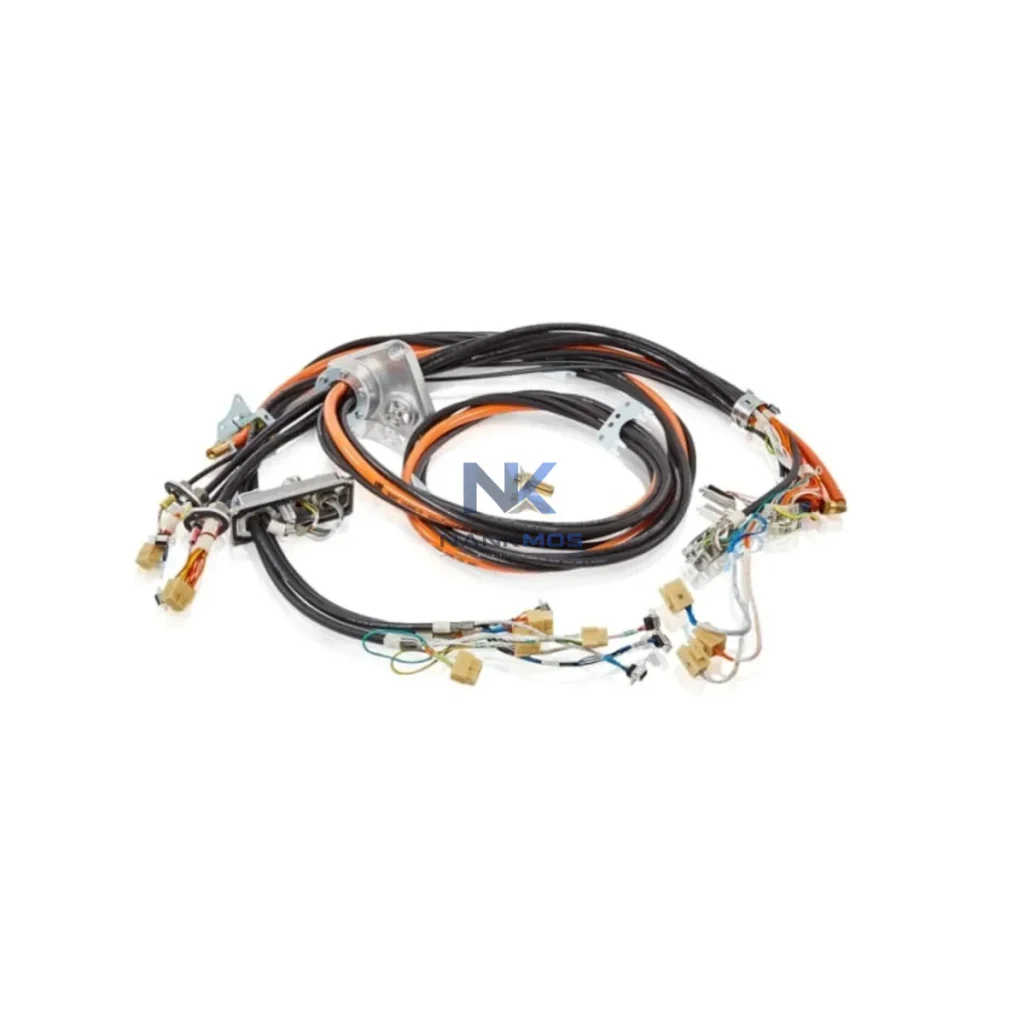

The ABB 3HAC043963-001 cable harness is not a standalone consumable — it is a precision-engineered signal backbone that sustains the operational integrity of the entire IRB 4600 robotic cell. In a fully integrated automation platform, the harness connects the IRC5 controller cabinet to the robot's internal servo drive chain, ensuring that motor command signals, encoder feedback, and brake control lines maintain consistent electrical continuity across all six axes.

At the control layer, the IRC5 single-cabinet or dual-cabinet controller (including the IRC5 Compact variant) generates motion commands that are transmitted through the drive module to each axis motor. The 3HAC043963-001 harness serves as the physical medium for this signal flow — any degradation in conductor shielding or connector seating directly impacts servo loop stability and positioning repeatability. Engineers integrating this harness into a refurbished or replacement scenario should verify compatibility with the DSQC 661 or DSQC 662 drive units installed in the IRC5 rack.

At the I/O and feedback layer, the harness carries resolver or encoder signals from each joint motor back to the axis computer board (typically the DSQC 400 series or equivalent). Signal integrity at this layer is critical for accurate joint angle reporting, especially in high-speed pick-and-place or arc welding applications where positional drift of even fractions of a degree can result in process deviation. The shielded construction of the 3HAC043963-001 suppresses induced EMI from adjacent servo drives and external welding power sources.

At the power and brake layer, the harness integrates brake release circuits for each axis. These circuits must maintain reliable continuity to prevent uncontrolled axis drop during emergency stop or power-off sequences. In safety-critical deployments — such as collaborative zones or overhead gantry configurations — the brake wiring integrity provided by this harness directly supports the functional safety architecture of the cell.

For system engineers designing or maintaining a complete IRB 4600 robotic workcell, the 3HAC043963-001 is typically deployed alongside complementary components including the 3HAC026254-001 motor cable set for external axis routing, the 3HAC14550-2 SMB battery unit for axis calibration data retention, the 3HAC025338-001 teach pendant cable for operator interface continuity, and the 3HAC029157-001 power cable assembly for controller-to-manipulator power distribution. Together, these assemblies form the complete electrical integration layer between the IRC5 controller and the IRB 4600 manipulator body.

At the communication layer, the IRC5 controller supports DeviceNet, PROFIBUS-DP, EtherNet/IP, and PROFINET fieldbus protocols through optional communication boards. While the 3HAC043963-001 harness operates at the internal signal level rather than the fieldbus level, its reliability directly enables the controller to maintain deterministic communication with upstream PLC systems — such as ABB AC500 series PLCs or Siemens S7-300/S7-400 controllers — that coordinate multi-robot cell sequencing and production line synchronization.

In HMI and supervisory integration scenarios, operators monitoring the robotic cell through ABB's FlexPendant or through SCADA systems connected via OPC-UA rely on accurate axis position data that originates from the encoder feedback carried by this harness. Degraded harness performance manifests as erratic position reporting, servo fault codes, or axis calibration drift — all of which are diagnosable through the IRC5 event log and the RobotStudio offline programming environment.

Automotive Manufacturing & Body-in-White: In high-volume automotive stamping and welding lines, the IRB 4600 is deployed for spot welding, material handling, and press tending. The 3HAC043963-001 harness sustains the signal fidelity required for TCP (Tool Center Point) accuracy in resistance spot welding applications, where positional repeatability of ±0.05 mm is a process requirement. Replacement of this harness during scheduled maintenance shutdowns prevents unplanned downtime in continuous production environments.

Arc Welding & Fabrication: In MIG/TIG arc welding cells, the cable harness must withstand elevated ambient temperatures, weld spatter proximity, and continuous flexing through the robot's full range of motion. The 3HAC043963-001's pre-routed, system-matched design ensures that conductor routing within the robot arm does not create stress concentration points that lead to premature wire fatigue — a common failure mode in non-OEM replacement harnesses.

Palletizing & Logistics: In end-of-line palletizing applications within food, beverage, and consumer goods facilities, the IRB 4600 operates in high-cycle, multi-shift environments. The harness supports reliable brake engagement and encoder feedback across millions of operational cycles, reducing the risk of axis calibration loss that would require production stoppage for recalibration.

Semiconductor & Electronics Assembly: In cleanroom-adjacent or ESD-sensitive environments, the shielded construction of the 3HAC043963-001 minimizes radiated emissions from the robot's internal wiring, supporting compliance with EMC requirements in sensitive manufacturing zones.

Petrochemical & Process Industries: In hazardous area deployments where the IRB 4600 is integrated into Ex-rated enclosures or used in Zone 2 classified environments, the integrity of internal wiring assemblies is subject to regulatory inspection. OEM-specification harnesses such as the 3HAC043963-001 support compliance documentation and simplify audit processes.

Q1: Is the 3HAC043963-001 compatible with all IRB 4600 variants, including the IRB 4600-20/2.50 and IRB 4600-45/2.05? The 3HAC043963-001 is designed for the IRB 4600 platform family. Compatibility across specific payload and reach variants (20/2.50, 40/2.55, 45/2.05, 60/2.05) should be confirmed against the robot's serial number and the ABB spare parts catalog for your specific manipulator revision. NANKMOS technical support can assist with cross-referencing your robot's build specification to confirm fitment before shipment.

Q2: How does replacing this harness affect the robot's calibration and axis reference data? The 3HAC043963-001 harness replacement does not inherently reset axis calibration data, as calibration values are stored in the SMB (Serial Measurement Board) battery-backed memory unit (e.g., 3HAC14550-2). However, if the harness replacement involves disconnecting encoder or resolver connectors, a fine calibration verification using the IRC5 calibration routine and a calibration pendulum or Levelmeter 2000 is recommended post-installation to confirm that axis zero positions remain within specification.

Q3: What warranty and supply continuity does NANKMOS provide for the 3HAC043963-001? All 3HAC043963-001 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects, signal continuity failures, and connector assembly integrity. Each unit undergoes pre-shipment functional inspection. NANKMOS maintains inventory buffer stock for IRB 4600 series harness assemblies to support urgent maintenance requirements, with global logistics options including express air freight for time-critical production recovery scenarios. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
