IRB26001-63HAC029896-024 IRB26001-63HAC069630-001 3HAC030006-001 Product Description

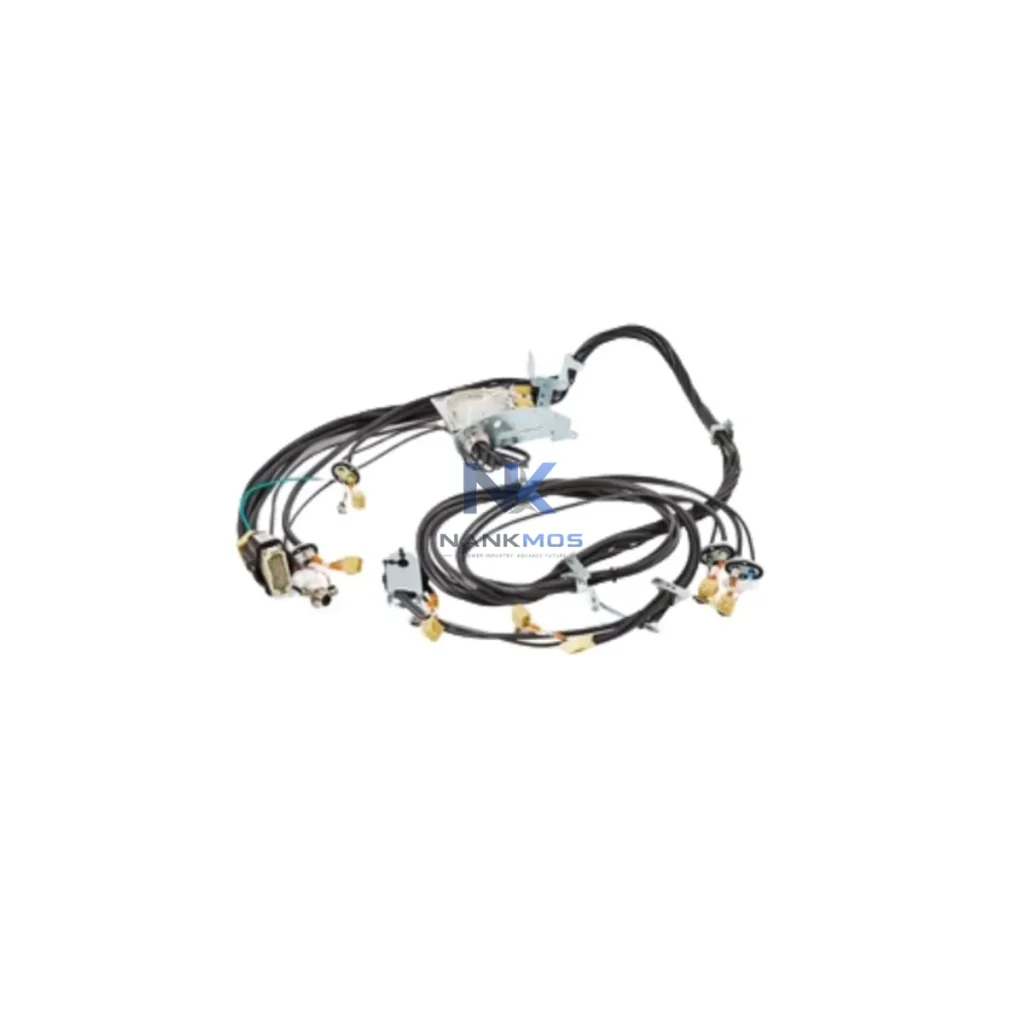

The ABB 3HAC030006-001 is a factory-matched internal cable harness engineered specifically for the IRB 2600 industrial robot series. As a critical interconnect component within the robot arm's motion and signal infrastructure, this harness ensures uninterrupted servo feedback, power delivery, and I/O signal integrity across all six axes of the IRB 2600 platform. Designed and manufactured to ABB OEM specifications, the 3HAC030006-001 maintains the electrical and mechanical tolerances required for high-cycle, high-precision robotic applications in demanding industrial environments.

In modern automated production lines, the internal cable harness is not a peripheral accessory — it is a foundational element of the robot's control architecture. Signal degradation, intermittent continuity, or mechanical fatigue in the arm cable directly impacts servo loop stability, axis repeatability, and ultimately the reliability of the entire robotic cell. The ABB 3HAC030006-001 is engineered to eliminate these failure modes, providing a direct OEM-grade replacement that restores full system performance without requiring recalibration of the IRC5 controller or re-parameterization of the drive modules.

Every unit supplied by NANKMOS undergoes pre-shipment continuity testing and visual inspection to confirm connector integrity, shielding continuity, and harness geometry. Backed by a 12-Month Warranty and supported by contextual integration guidance, this component is ready for immediate deployment in maintenance, retrofit, and new-build robotic installations.

The ABB 3HAC030006-001 cable harness operates as the neural pathway of the IRB 2600 robot, connecting the mechanical arm to the broader automation architecture managed by the IRC5 controller. Understanding its role within the full system stack is essential for engineers planning maintenance windows, robot cell upgrades, or multi-robot line expansions.

At the control layer, the ABB IRC5 Controller (single or dual cabinet) governs all motion commands, safety logic, and I/O coordination for the IRB 2600. The 3HAC030006-001 harness is the physical link between the IRC5's drive modules and the robot's servo motors — any degradation in harness continuity directly affects the controller's ability to close the servo loop accurately. Engineers integrating the IRC5 with ABB DSQC 662 or DSQC 679 I/O boards should verify harness integrity as part of any drive module replacement or controller firmware upgrade procedure.

At the drive and power layer, the IRB 2600 relies on axis drive units within the IRC5 cabinet — including the ABB DSQC 601 and DSQC 602 drive modules — to deliver precisely regulated motor phase currents to each axis. The 3HAC030006-001 harness carries these motor power conductors alongside resolver feedback lines in a single routed assembly, minimizing installation complexity and reducing the risk of cross-coupling interference between power and signal conductors.

At the feedback and signal layer, resolver signals from each axis motor are routed through the 3HAC030006-001 back to the ABB DSQC 668 measurement board or equivalent axis computer. Resolver signal integrity is critical for accurate position feedback; a harness with compromised shielding or intermittent continuity will manifest as axis jitter, position drift, or servo error alarms on the FlexPendant. Pairing the 3HAC030006-001 replacement with a verified ABB 3HAC026254-001 (SMB battery unit) ensures that position data is retained across power cycles without introducing additional diagnostic variables.

At the communication layer, the IRB 2600 cell typically integrates with plant-level PROFINET, DeviceNet, or EtherNet/IP networks via the IRC5's fieldbus adapter slots — such as the ABB DSQC 688 PROFINET adapter or DSQC 658 DeviceNet module. While the 3HAC030006-001 does not directly interface with fieldbus protocols, its role in maintaining servo loop stability ensures that robot motion responses to PLC commands via the fieldbus remain deterministic and repeatable.

At the HMI and programming layer, the ABB FlexPendant (IRC5) provides real-time axis status, error logging, and manual jogging capability. During harness replacement, the FlexPendant's event log is the primary diagnostic tool for confirming that resolver feedback errors and motor current alarms have been resolved after installation of the 3HAC030006-001. Engineers should perform a full axis calibration sequence using the FlexPendant after harness replacement to confirm positional accuracy across the robot's full working envelope.

At the mechanical and installation layer, the 3HAC030006-001 is routed through the IRB 2600's upper arm and wrist assembly, following a defined cable management path that accommodates the robot's full range of motion without exceeding the harness's minimum bend radius. Proper routing and securing of the harness using the OEM cable clamps and strain relief fittings — including ABB 3HAC14550-1 cable clamp kits where applicable — is essential for achieving the rated service life in high-cycle applications.

Automotive Body Shop & Welding Lines: The IRB 2600 is widely deployed in automotive spot welding, arc welding, and material handling cells. In these environments, the 3HAC030006-001 harness is subjected to continuous flexing, thermal cycling, and exposure to weld spatter. Scheduled harness replacement as part of a preventive maintenance program — typically aligned with the robot's 8,000-hour service interval — prevents unplanned downtime in high-throughput body shop lines where a single robot stoppage can halt an entire production sequence.

Electronics & Semiconductor Assembly: In precision assembly and inspection cells, the IRB 2600's repeatability depends directly on resolver signal quality. The 3HAC030006-001's full EMI shielding is particularly valuable in semiconductor fab environments where high-frequency switching noise from adjacent servo drives and power supplies can induce resolver signal errors if harness shielding is compromised.

Food & Beverage Packaging Lines: Hygienic production environments require robot components that can withstand washdown cycles and humidity. The 3HAC030006-001's sealed connector interfaces and robust outer jacket make it suitable for IRB 2600 installations in food-grade packaging and palletizing cells, where harness integrity directly affects product placement accuracy and line OEE.

Petrochemical & Energy Sector: In hazardous area robotic installations — including inspection, valve actuation, and sample handling applications — the reliability of the robot's internal wiring is a safety-critical parameter. The 3HAC030006-001 provides the OEM-specified electrical isolation and shielding required to maintain safe operation in environments with elevated EMI from variable frequency drives, transformers, and high-voltage switchgear.

Metal Fabrication & Machine Tending: CNC machine tending cells using the IRB 2600 for part loading and unloading operate in environments with metallic dust, coolant mist, and vibration. The 3HAC030006-001's mechanical robustness and OEM connector retention forces ensure reliable signal continuity even under the vibration loads typical of machine tool environments.

Q1: Is the ABB 3HAC030006-001 compatible with all IRB 2600 variants, and does replacement require IRC5 controller reconfiguration? The 3HAC030006-001 is designed for the IRB 2600 series, including the 12 kg/1.65 m and 20 kg/1.65 m payload variants. As a direct OEM replacement harness, it does not require changes to the IRC5 controller's drive parameters or axis configuration files. After installation, a standard axis calibration procedure using the FlexPendant is recommended to confirm positional accuracy, but no software reconfiguration of the IRC5 is required. Engineers should verify the specific robot serial number and arm variant against ABB's spare parts documentation to confirm harness applicability before installation.

Q2: What pre-installation checks should be performed to confirm the 3HAC030006-001 is the correct root cause of servo errors before replacement? Before replacing the 3HAC030006-001, engineers should use the IRC5 FlexPendant event log to identify specific error codes — particularly resolver feedback errors (e.g., 50024, 50025 series) and motor current alarms — that are consistent with harness degradation rather than drive module or motor failure. A continuity and insulation resistance test on the existing harness using a calibrated multimeter and megohmmeter will confirm whether the harness is the fault source. NANKMOS provides contextual integration guidance to support fault isolation and replacement planning for IRB 2600 maintenance teams.

Q3: What warranty and supply continuity does NANKMOS provide for the 3HAC030006-001, and how quickly can replacement units be shipped for emergency maintenance situations? NANKMOS supplies the ABB 3HAC030006-001 with a 12-Month Warranty covering manufacturing defects and electrical performance. Each unit is pre-tested for continuity, shielding integrity, and connector retention before shipment. For emergency maintenance situations, NANKMOS maintains stock inventory to support expedited global shipping, minimizing robot downtime in critical production environments. Contact [email protected] or +86 18359268345 for availability confirmation and lead time for your specific delivery location.
