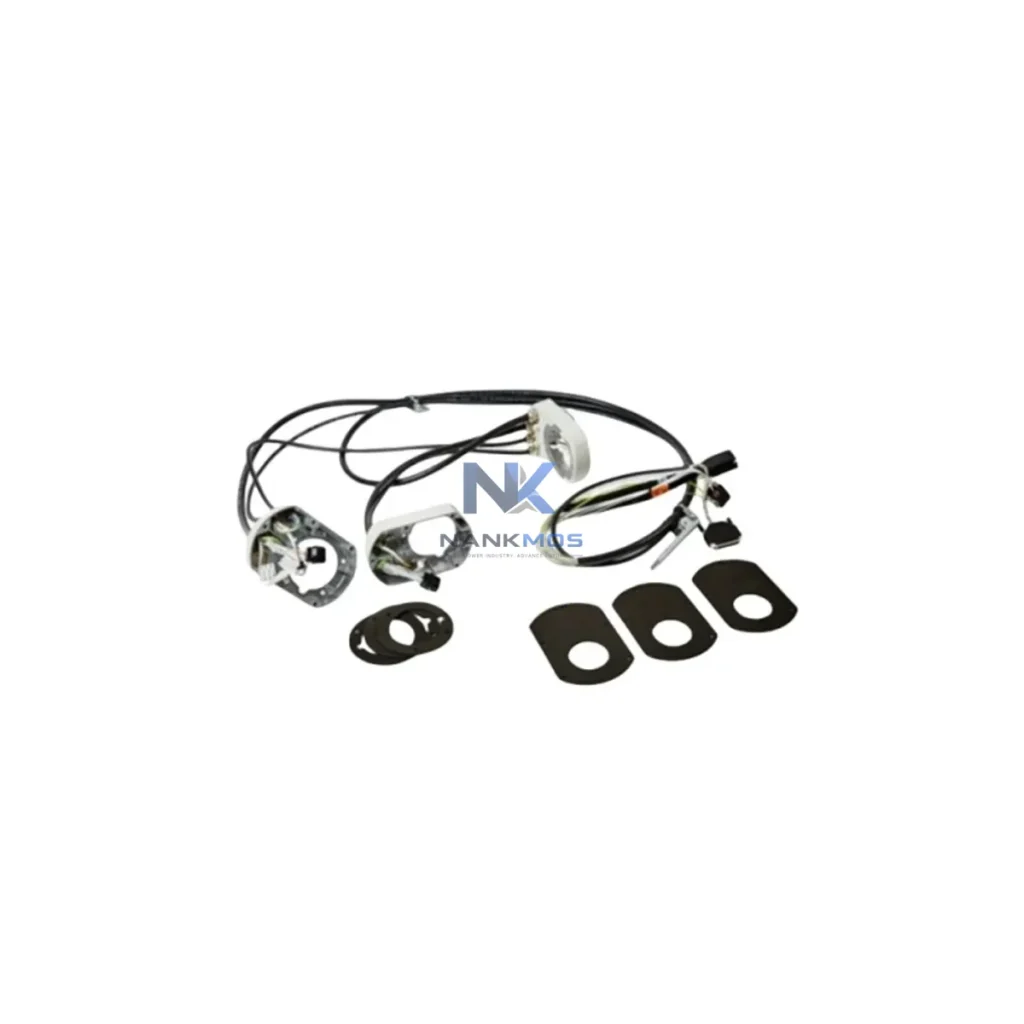

IRB44001-33HAC5958-1 IRB24003HAC9328-1 IRB24001-33HAC050554-001 Product Description

The ABB 3HAC050554-001 is a factory-engineered, system-ready cable assembly purpose-built for the IRC5 robot controller platform and IRB 2400 series manipulators. Designed to meet ABB's stringent signal integrity and mechanical durability standards, this cable assembly serves as a critical interconnect element within the layered control architecture of modern industrial automation cells. Whether deployed in a standalone workcell or integrated into a multi-robot production line, the 3HAC050554-001 ensures consistent electrical performance, reliable signal transmission, and long-term mechanical stability across demanding industrial environments.

Within the IRC5 control architecture, the 3HAC050554-001 cable assembly operates at the intersection of the control layer and the execution layer, forming the physical signal backbone between the IRC5 controller module and the IRB 2400 manipulator's axis drive system. Understanding its role requires viewing the complete automation stack as an integrated system rather than a collection of isolated components.

At the control layer, the IRC5 Main Computer (DSQC 639 or DSQC 1000) issues motion commands through the drive system. The 3HAC050554-001 cable carries resolver feedback and axis signals from the manipulator back to the controller, enabling closed-loop position control with sub-millimeter repeatability. Any degradation in this cable path — whether from connector wear, shielding failure, or mechanical fatigue — directly impacts axis accuracy and may trigger SMB (Serial Measurement Board) fault codes.

At the I/O and communication layer, the IRC5 platform integrates digital and analog I/O through DSQC 651 or DSQC 652 I/O modules mounted within the controller cabinet. These modules communicate over the internal DeviceNet or EtherNet/IP backplane, coordinating with the axis drive signals carried by the 3HAC050554-001 to synchronize end-effector actions with robot motion. Pairing this cable with a properly configured DSQC 378B fieldbus adapter ensures seamless integration with upstream PLC systems such as ABB AC500 or Siemens S7-300.

At the power layer, the IRC5 Drive Module (DSQC 668 or DSQC 669) supplies regulated DC bus power to each axis drive unit. The 3HAC050554-001 works in conjunction with the axis power cables (such as 3HAC031683-001 for the IRB 2400 power cable set) to form a complete electrical harness. Replacing only the signal cable without inspecting the power cable set is a common maintenance oversight that can lead to recurring drive faults.

At the HMI and programming layer, the FlexPendant (3HAC028357-001) provides the operator interface for jogging, program execution, and fault diagnostics. When axis errors related to cable integrity appear on the FlexPendant, the 3HAC050554-001 is frequently identified as the root cause during ABB RobotStudio offline diagnostics or on-site service routines. Maintaining a spare 3HAC050554-001 in the site inventory significantly reduces mean time to repair (MTTR) during unplanned downtime events.

At the protection and redundancy layer, installations requiring high availability — such as automotive body-in-white welding lines or semiconductor wafer handling cells — often deploy dual-cabinet IRC5 configurations with redundant signal paths. In these architectures, the 3HAC050554-001 may be installed in both primary and secondary manipulator harness positions, with the SMB board (3HAC17326-1) monitoring signal continuity in real time. Proactive cable replacement at scheduled maintenance intervals (typically every 20,000 operating hours or per ABB service bulletin) is recommended to prevent unplanned production stops.

Related components commonly deployed alongside the 3HAC050554-001 in a complete IRC5 / IRB 2400 system include: the DSQC 639 Main Computer, DSQC 668 Drive Module, DSQC 651 Digital I/O Module, 3HAC17326-1 SMB Board, 3HAC031683-001 IRB 2400 Power Cable, DSQC 378B Fieldbus Adapter, 3HAC028357-001 FlexPendant, DSQC 652 Analog I/O Module, and the IRC5 Teach Pendant Cable 3HAC14550-2. Sourcing these components from a single verified supplier ensures cross-component compatibility and simplifies warranty administration.

Automotive Manufacturing: In body-in-white (BIW) welding and assembly lines, IRB 2400 robots equipped with 3HAC050554-001 cable assemblies perform spot welding, arc welding, and material handling tasks with cycle times under 10 seconds. The cable's shielded construction resists electromagnetic interference from welding power sources, maintaining signal integrity in high-noise environments.

Electronics and Semiconductor: In PCB assembly and semiconductor packaging lines, the IRB 2400's precision motion — enabled by reliable axis signal cables — supports pick-and-place, dispensing, and inspection tasks. The 3HAC050554-001 ensures the resolver feedback accuracy required for sub-0.1mm positioning repeatability in cleanroom-compatible workcells.

Food and Beverage / Packaging: In high-speed packaging lines, IRB 2400 robots handle product sorting, case packing, and palletizing. The 3HAC050554-001 cable assembly is routed through cable tracks or festoon systems, where its flexible construction and robust connector design withstand continuous flexing over millions of operating cycles.

Petrochemical and Energy: In hazardous area installations where IRC5 controllers are housed in pressurized or purged enclosures, the 3HAC050554-001 serves as the signal link between the protected controller cabinet and the manipulator operating in Zone 2 classified areas. Proper cable gland selection and conduit routing are critical in these applications.

Metal Fabrication and Foundry: In arc welding and plasma cutting applications, the cable assembly's shielding performance is critical for maintaining axis control signal quality in the presence of high-frequency welding interference. Regular inspection of the 3HAC050554-001 connector seating is recommended as part of the preventive maintenance schedule in these environments.

Q1: Is the 3HAC050554-001 compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller? The 3HAC050554-001 is designed for the standard IRC5 single-cabinet and dual-cabinet configurations paired with the IRB 2400 and IRB 4400 manipulator series. Compatibility with the IRC5 Compact (designed for smaller manipulators such as IRB 120 and IRB 140) and the IRC5 Panel Mounted Controller depends on the specific axis configuration and cable length variant. Always verify the cable part number against the robot's mechanical unit spare parts list (available in ABB's Product Manual for the specific IRB model) before ordering. Our technical team can assist with cross-referencing if the exact variant is uncertain.

Q2: What are the recommended installation and routing practices to maximize the service life of the 3HAC050554-001 in a high-cycle application? For high-cycle applications exceeding 50,000 cycles per day, ABB recommends routing the 3HAC050554-001 through a properly sized cable track (e-chain) with a minimum bend radius of 10x the cable outer diameter. Avoid sharp bends at connector entry points and ensure the cable is not under tension at any point in the robot's working envelope. Inspect connector seating and cable jacket condition at every 2,000-hour preventive maintenance interval. In welding applications, apply cable protection sleeves at areas exposed to weld spatter. Maintaining a documented cable replacement log supports warranty claims and facilitates predictive maintenance scheduling.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for IRC5 platform components? The 12-Month Warranty covers manufacturing defects, connector integrity, and electrical performance from the date of shipment. Each 3HAC050554-001 unit is pre-tested for continuity, insulation resistance, and connector seating before dispatch. In the event of a warranty claim, NANKMOS provides express replacement shipping to minimize production downtime. For long-term spare parts planning, NANKMOS maintains buffer stock of IRC5 platform components — including signal cables, I/O modules, drive units, and SMB boards — to support multi-year maintenance contracts and emergency procurement requirements. Contact [email protected] for volume pricing and consignment stock arrangements.
