IRB44003HAC5697-1 IRB44004-63HAB7705-1 IRB44003HAC069662-001 Product Description

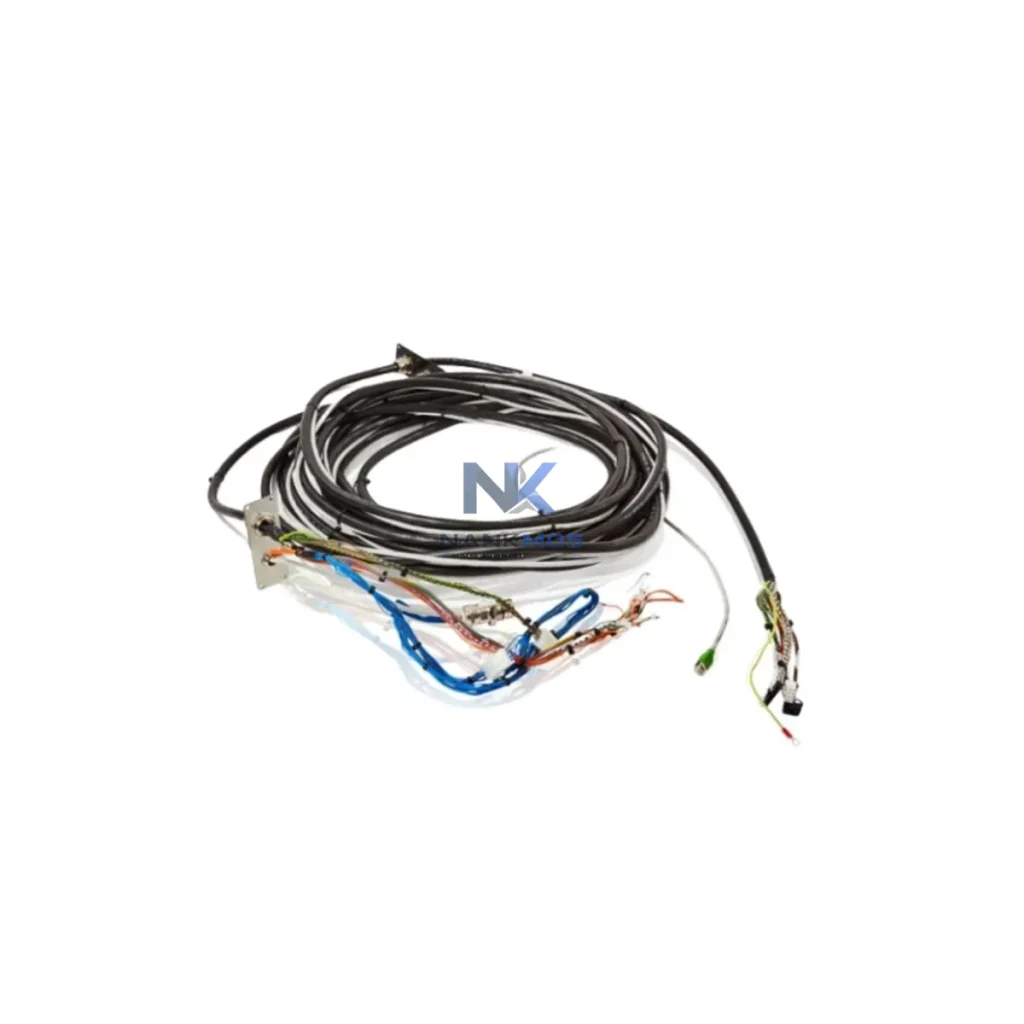

The ABB 3HAC5697-1 is a factory-engineered cable unit designed specifically for the IRB 4400 industrial robot, serving Axis 4-6 motion control with high-integrity signal and power routing. In modern smart manufacturing environments where energy efficiency and uptime are non-negotiable, this cable assembly plays a critical role in maintaining clean electrical pathways between the robot controller and end-of-arm tooling. By eliminating signal degradation, reducing resistive losses, and ensuring stable power delivery across all six axes, the 3HAC5697-1 directly contributes to lower energy consumption per production cycle and improved overall equipment effectiveness (OEE).

Sourced from ABB's original manufacturing lines in Sweden, every unit undergoes rigorous functional testing before shipment. NANKMOS maintains verified inventory of the 3HAC5697-1 with a committed 12-month warranty, supporting global industrial buyers in automotive, electronics assembly, food processing, and general manufacturing sectors.

The ABB 3HAC5697-1 cable unit does not operate in isolation — it is a precision link within a broader energy-aware automation architecture. In a typical IRB 4400 deployment, the robot is governed by the ABB IRC5 controller, which coordinates motion profiles, torque limits, and regenerative braking cycles. The 3HAC5697-1 ensures that power commands from the IRC5 reach the Axis 4-6 servo motors with minimal line loss, preserving the integrity of every motion instruction.

Upstream of the robot controller, ABB ACS880 series variable frequency drives (VFDs) regulate motor speed and torque in real time, enabling energy recovery during deceleration phases. The cable unit's low-resistance conductors support this regenerative loop by maintaining stable current flow between the drive output stage and the robot's internal servo amplifiers. When paired with ABB ACSM1 servo drive modules, the 3HAC5697-1 enables sub-millisecond response to position feedback signals from the robot's resolver or encoder system.

On the I/O and sensing layer, ABB AC500 PLC modules manage discrete and analog signals that govern robot cell sequencing. The 3HAC5697-1 carries these control signals without cross-talk or voltage drop, ensuring that safety interlocks, gripper actuators, and vision system triggers operate with deterministic timing. Complementing this, ABB PSTX soft starters on auxiliary motors within the same production cell reduce inrush current during startup, lowering peak demand on the facility's power distribution network.

For energy monitoring, ABB B23 power measurement units installed at the robot cell panel provide real-time kWh consumption data, which feeds into the plant's SCADA system via Modbus TCP or PROFINET. This data loop allows energy managers to correlate cable condition with consumption trends — a degraded cable unit will show increased resistive losses before mechanical failure occurs, enabling predictive maintenance scheduling. The ABB FlexPendant HMI on the IRC5 controller displays axis load and temperature data, giving operators immediate visibility into thermal stress on the Axis 4-6 cable bundle.

In multi-robot welding lines, the 3HAC5697-1 is often deployed alongside ABB DSQC series I/O modules and ABB SafeMove2 safety controllers, which enforce speed and zone limits that directly reduce unnecessary motor torque — and therefore unnecessary energy draw. Communication between the robot controller and the plant MES is typically handled via ABB Ability™ Connected Services or OPC-UA gateways, enabling remote diagnostics that can flag cable wear before it impacts cycle time.

Cable integrity is one of the most overlooked variables in industrial energy optimization programs. A worn or improperly routed cable unit on a high-cycle robot like the IRB 4400 introduces micro-interruptions in servo feedback, forcing the controller to issue corrective torque commands that consume additional energy and generate excess heat. Over thousands of cycles per shift, this inefficiency compounds into measurable increases in electricity consumption and accelerated wear on servo drive output stages.

The ABB 3HAC5697-1, when maintained in good condition, eliminates this source of energy waste. Its shielded construction suppresses electromagnetic interference from adjacent welding equipment or high-frequency drives, preventing false encoder signals that would otherwise trigger unnecessary axis corrections. This directly stabilizes the robot's motion rhythm — or production takt — reducing cycle time variance and improving throughput consistency without increasing motor power.

From a thermal management perspective, the 3HAC5697-1's conductor geometry is optimized for the IRB 4400's duty cycle. Proper conductor sizing means lower I²R losses at the operating current levels typical of Axis 4-6 movements, which translates to less heat dissipated within the cable bundle and lower ambient temperature in the robot's wrist assembly. Cooler operating conditions extend the service life of adjacent components including the wrist gearbox seals, encoder bearings, and servo motor windings — reducing unplanned downtime and the energy cost of emergency maintenance responses.

Proactive replacement of the 3HAC5697-1 at recommended service intervals — rather than waiting for failure — is a cornerstone of predictive maintenance strategies in high-OEE facilities. NANKMOS supports this approach by maintaining ready stock of the 3HAC5697-1 and its related assemblies, including the 3HAB7705-1 and 3HAC069662-001 variants, enabling same-week dispatch to minimize production interruption. All units ship with pre-shipment continuity and insulation resistance test records, giving maintenance engineers confidence in the replacement part before installation.

Q1: How does replacing the 3HAC5697-1 improve energy efficiency on the IRB 4400?A worn cable unit increases resistive losses in the Axis 4-6 power circuit, forcing the IRC5 controller to compensate with higher torque commands. Replacing the 3HAC5697-1 with a new OEM unit restores nominal conductor resistance, reducing servo drive output current and lowering per-cycle energy consumption. In high-duty-cycle applications, customers have reported measurable reductions in robot cell kWh draw after cable replacement.

Q2: Is the 3HAC5697-1 compatible with both the S4C+ and IRC5 controller platforms?Yes. The 3HAC5697-1 is designed for the ABB IRB 4400 robot platform and is compatible with both the legacy S4C+ and the current IRC5 controller variants. The cable unit's connector pinout and shielding specification meet the requirements of both controller generations. If your installation uses a non-standard cable routing bracket, please confirm the cable length variant before ordering.

Q3: What is the recommended replacement interval, and how is the unit tested before shipment?ABB recommends inspecting Axis 4-6 cable assemblies at each major service interval (typically every 20,000–40,000 operating hours depending on duty cycle and environment). NANKMOS performs a pre-shipment continuity test and insulation resistance check on every 3HAC5697-1 unit. Test records are available upon request. Units that do not meet OEM specification are quarantined and not shipped.

Q4: What warranty and supply continuity does NANKMOS provide for the 3HAC5697-1?Every 3HAC5697-1 supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. We maintain buffer stock to support urgent replacement orders and can arrange express international shipping to minimize production downtime. For high-volume or scheduled maintenance programs, contact us to discuss blanket order arrangements and priority allocation.
