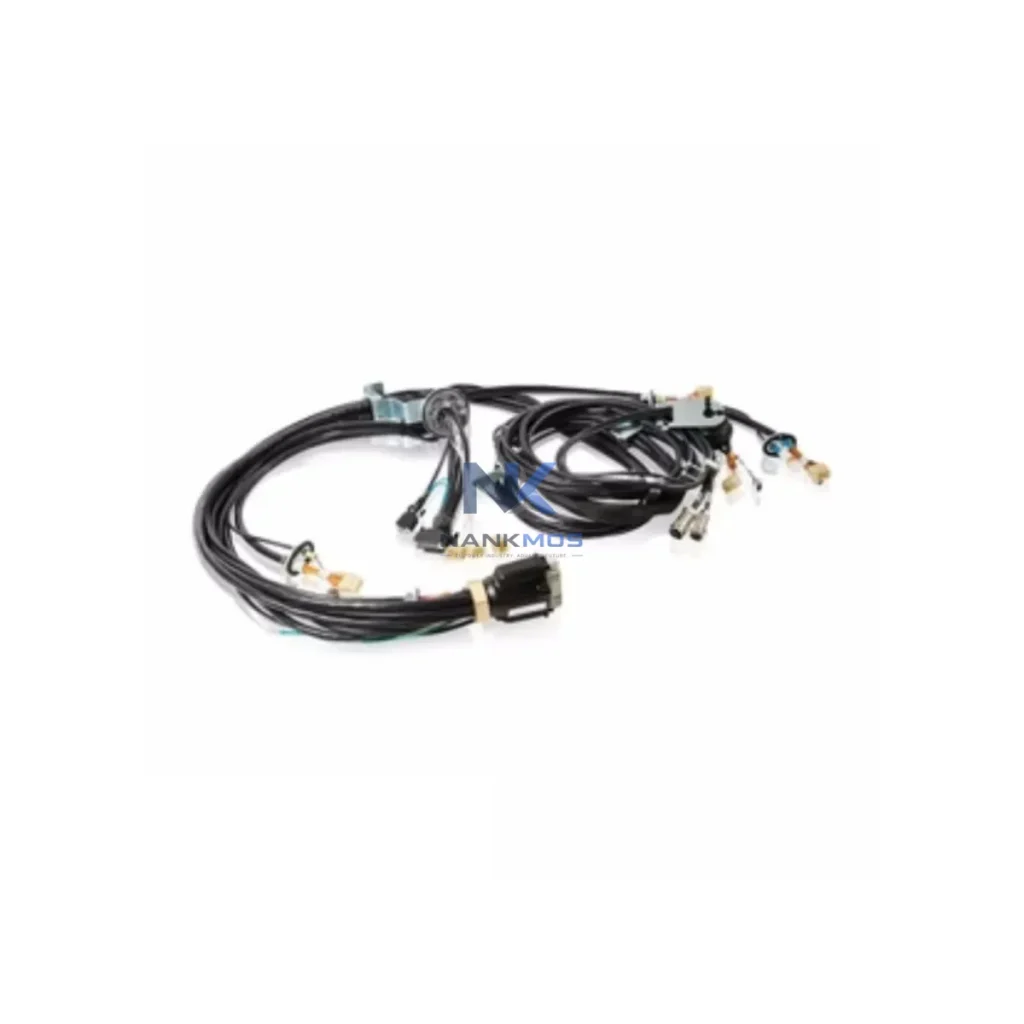

IRB46001-63HAC043964-001 3HAC029896-024 3HAC069630-001 Product Description

The ABB 3HAC043964-001 is a factory-engineered cable harness designed specifically for the IRB 4600 industrial robot series. As a critical power and signal routing component, it plays a direct role in energy-efficient motor control, drive signal integrity, and thermal load management across high-cycle automation environments. Whether deployed in automotive body welding, semiconductor handling, or petrochemical process lines, this harness ensures that every watt delivered to the robot's servo axes is routed with precision — minimizing resistive losses, reducing electromagnetic interference, and supporting stable production throughput.

In a fully integrated smart factory, the ABB 3HAC043964-001 cable harness functions as the nervous system between the IRC5 controller and the IRB 4600's six servo axes. The IRC5 controller issues motion commands through the DSQC servo drive modules, and the harness carries both the power supply lines and the encoder feedback signals that allow the drive to perform closed-loop torque and speed regulation. When the harness is in optimal condition, the servo drive can execute precise current limiting — reducing reactive power draw during acceleration phases and recovering energy during deceleration through regenerative braking circuits.

The harness also interfaces with the robot's I/O signal backbone, which connects to field-level sensors, safety relays, and the ABB SafeMove safety module. In energy-optimized production cells, the I/O network carries load status signals to the plant's SCADA system, enabling operators to monitor per-axis power consumption in real time. When integrated with a power monitoring module such as the ABB CP600 HMI panel or a third-party energy meter on the MCC panel, the data collected through these signal lines can be used to identify axes operating above their nominal current draw — an early indicator of mechanical friction, misalignment, or harness degradation.

For facilities running ABB OmniCore or IRC5 MultiMove configurations, the 3HAC043964-001 is part of a coordinated cable management system that also includes the upper arm harness 3HAC029896-024 and the base cable assembly 3HAC069630-001. Together, these three harness assemblies form a complete power and signal chain from the controller cabinet to the tool flange. Replacing any one of these components with a non-OEM alternative introduces impedance mismatches that can cause servo drive fault codes, increase heat dissipation in the drive module, and reduce the accuracy of the robot's dynamic model — all of which translate to higher energy consumption per cycle.

Cable harness integrity is one of the most overlooked variables in industrial energy audits. A degraded or incorrectly routed harness increases the resistance in the motor power circuit, forcing the servo drive to compensate by increasing output current. This additional current draw raises the thermal load on both the drive module and the motor windings, shortening insulation life and increasing cooling system demand — a compounding energy penalty that accumulates over thousands of production cycles.

By maintaining the ABB 3HAC043964-001 in service-ready condition, production engineers can ensure that the IRB 4600 operates within its rated power envelope. This directly supports line takt optimization: when each robot axis responds to motion commands with the expected torque-to-current ratio, the PLC's motion sequencer can schedule axis movements with tighter timing windows, reducing idle dwell time between pick-and-place cycles. In high-volume lines running three shifts, even a 2–3% improvement in cycle efficiency translates to measurable reductions in kWh consumption per unit produced.

Predictive maintenance strategies further amplify these gains. By logging encoder signal quality and drive current trends through the SCADA system, maintenance teams can detect harness wear before it causes an unplanned stop. A scheduled harness replacement during a planned maintenance window costs a fraction of the energy and production loss associated with an emergency shutdown — particularly in continuous-process industries such as petrochemical or semiconductor fabrication, where line restarts involve extended warm-up and calibration sequences.

NANKMOS stocks the 3HAC043964-001 with full outgoing inspection, including continuity testing, insulation resistance verification, and connector seating checks. Each unit ships with documentation confirming it has passed functional testing against ABB's original harness specification. This ensures that the replacement harness performs identically to the factory-installed unit from the first power-on cycle, with no break-in period or drive parameter re-tuning required.

Q1: How does replacing the cable harness improve energy efficiency on the IRB 4600? A worn or damaged harness increases circuit resistance and degrades encoder signal quality, causing the servo drive to draw excess current to maintain position accuracy. Replacing the 3HAC043964-001 with a new OEM unit restores the designed impedance profile, allowing the IRC5 drive modules to operate at rated efficiency and reducing unnecessary heat generation in the servo circuit.

Q2: Is the 3HAC043964-001 compatible with all IRB 4600 variants and the IRC5 controller? Yes. The 3HAC043964-001 is an ABB OEM part designed for the IRB 4600 series across standard payload variants. It is fully compatible with the IRC5 single-cabinet and IRC5 panel-mounted controller configurations. If your installation uses an OmniCore controller, please confirm the harness routing specification with your ABB service documentation before ordering.

Q3: What is the recommended replacement interval, and how is the harness tested before shipment? ABB recommends inspecting internal cable harnesses during each scheduled preventive maintenance interval (typically every 8,000–10,000 operating hours). NANKMOS performs outgoing inspection on every unit, including continuity, insulation resistance, and connector integrity checks. Each harness ships with a test record confirming it meets OEM specification.

Q4: What warranty and supply lead time should I expect? All units supplied by NANKMOS carry a 12-month quality warranty covering manufacturing defects and functional performance. Stock is maintained for immediate dispatch, with standard lead times of 3–7 business days for international shipments. Expedited shipping is available for urgent production line requirements.
