IRB46003HAC043090-001 IRB76003HAC057543-0033HAC14040-1 3HNM13622-1 Product Description

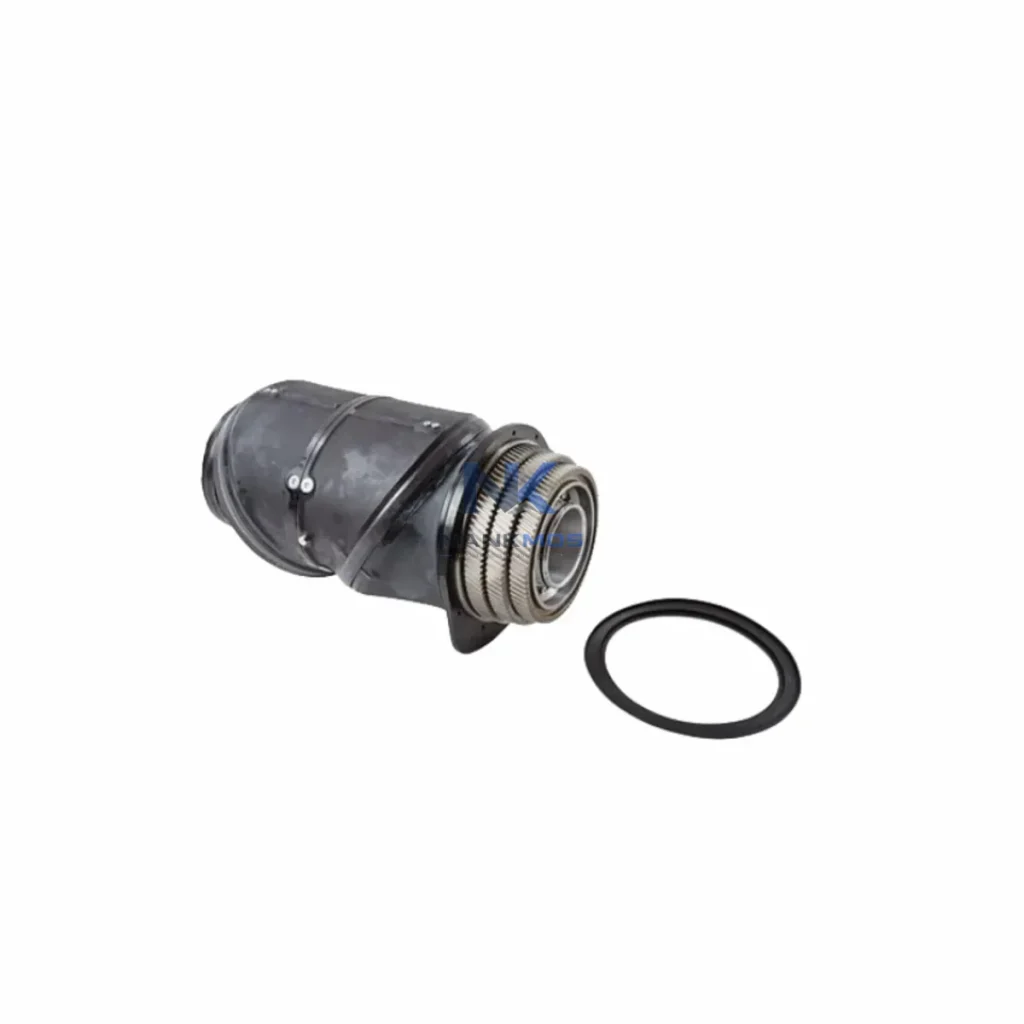

The ABB 3HAC043090-001 Hollow Wrist — also cross-referenced as 3HAC057543-003, 3HAC14040-1, and 3HNM13622-1 — is a precision mechanical joint component engineered for the ABB IRB4600 and IRB7600 robot series. In modern smart factory environments, the hollow wrist is far more than a passive mechanical link: it serves as the physical conduit through which tool cabling, sensor wiring, pneumatic lines, and fieldbus signal cables are routed directly to the end-effector, enabling seamless data flow from the robot tool tip back to the controller and upstream automation systems.

As manufacturing sites evolve toward fully connected production lines, the integrity of the hollow wrist directly impacts the reliability of real-time data transmission between the robot's wrist-mounted sensors, force-torque transducers, vision systems, and the ABB IRC5 robot controller. Any mechanical wear or misalignment in the hollow wrist assembly can introduce signal noise, cable fatigue, or intermittent communication faults that propagate through the entire automation data chain — from the robot tool to the PLC, SCADA, and MES layers above.

In a fully integrated smart factory, the ABB IRB4600 or IRB7600 robot equipped with the 3HAC043090-001 hollow wrist sits at the center of a multi-layer data architecture. At the field level, wrist-mounted sensors — including force-torque sensors, proximity switches, and vision cameras — generate real-time process signals that travel through the hollow bore of this wrist assembly, protected from mechanical stress and cable fatigue by the precision-engineered internal channel.

These signals feed directly into the ABB IRC5 robot controller, which processes motion data, I/O states, and tool feedback in real time. The IRC5 communicates upstream via DSQC 652 or DSQC 1030 I/O modules, passing structured data over PROFINET or EtherNet/IP to the plant's Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller. From there, data flows to the SCADA layer — typically a Wonderware System Platform or Ignition SCADA installation — where production KPIs, cycle times, torque trends, and alarm states are visualized in real time.

Remote I/O nodes such as the ABB AC500 remote I/O or Siemens ET 200SP distributed I/O modules extend the data network to peripheral devices on the production line, including conveyor drives, ABB ACS880 variable frequency drives, and pneumatic valve islands. An industrial edge gateway — such as the ABB Ability Edge or a Moxa MGate protocol converter — bridges legacy serial devices and modern Ethernet-based systems, ensuring that even older field instruments contribute to the plant's unified data stream.

HMI panels mounted at the robot cell — often ABB CP600 or Siemens TP1200 Comfort panels — provide operators with live robot status, wrist axis load data, and maintenance alerts. When the hollow wrist approaches its service interval, predictive maintenance algorithms running on the SCADA or MES platform generate work orders automatically, minimizing unplanned downtime. This closed-loop data architecture — from the robot wrist sensor through the IRC5 controller, PLC, SCADA, and MES — is only possible when the mechanical integrity of the 3HAC043090-001 hollow wrist is maintained to OEM specification.

One of the most common and underdiagnosed causes of data gaps in robot-integrated automation lines is mechanical degradation of the hollow wrist assembly. When the internal bore of the wrist becomes worn, misaligned, or damaged, the cables routed through it — carrying DeviceNet, PROFIBUS, or EtherNet/IP signals — are subjected to repeated flexion stress, leading to intermittent signal loss, CRC errors, and communication timeouts that are often misdiagnosed as network or controller faults.

Replacing the ABB 3HAC043090-001 hollow wrist with a genuine OEM component eliminates this root cause, restoring clean signal paths from the end-effector to the IRC5 controller. This directly resolves issues including: protocol inconsistency between the robot tool and the controller I/O bus; data island formation where the robot cell becomes isolated from the SCADA network due to cable faults; loss of remote monitoring capability for wrist-axis torque and position data; reduced production line transparency caused by missing or corrupted robot cycle data; alarm tracking failures where wrist-related faults are not correctly propagated to the MES alarm management system; and limitations on system expansion, since a degraded wrist assembly restricts the addition of new wrist-mounted sensors or communication modules.

Every 3HAC043090-001 unit supplied by NANKMOS undergoes pre-shipment functional verification, ensuring dimensional accuracy, bore integrity, and compatibility with the IRB4600 and IRB7600 axis 5/6 drive train. Units are shipped with full traceability documentation and are backed by a 12-month warranty, supporting your maintenance planning and spare parts inventory strategy.

Q1: Will replacing the hollow wrist affect the robot's fieldbus communication performance?A: Yes — positively. A worn or damaged hollow wrist introduces cable stress that causes intermittent fieldbus errors on DeviceNet, PROFIBUS, or EtherNet/IP networks. Replacing with a genuine 3HAC043090-001 OEM part restores the protected cable routing path, eliminating signal degradation at the source and stabilizing communication between the robot tool and the IRC5 controller.

Q2: Is the 3HAC043090-001 compatible with both IRB4600 and IRB7600 robot variants?A: Yes. The 3HAC043090-001 is the primary hollow wrist reference for the IRB4600 series, while 3HAC057543-003 covers IRB7600 applications. Both cross-references are stocked and can be confirmed against your robot's serial number and axis configuration. Contact NANKMOS with your robot model and manufacture date for exact fitment verification.

Q3: How does NANKMOS verify the hollow wrist before shipment?A: Each unit undergoes dimensional inspection, bore integrity check, and mechanical fit verification against OEM tolerances. Units are tested for smooth axis rotation and correct bearing preload before packaging. A 12-month warranty is included, covering manufacturing defects and dimensional non-conformance.

Q4: Can I expand my robot cell's sensor network after replacing the hollow wrist?A: Absolutely. A correctly installed 3HAC043090-001 hollow wrist provides a clean, protected internal cable channel with sufficient capacity for additional sensor cables, pneumatic lines, or fieldbus extensions. This supports future integration of wrist-mounted vision systems, force-torque sensors, or additional I/O modules without requiring external cable management modifications.
