IRB46003HAC043134-004 3HAC044361-003 IRB46003HAC044361-002 Product Description

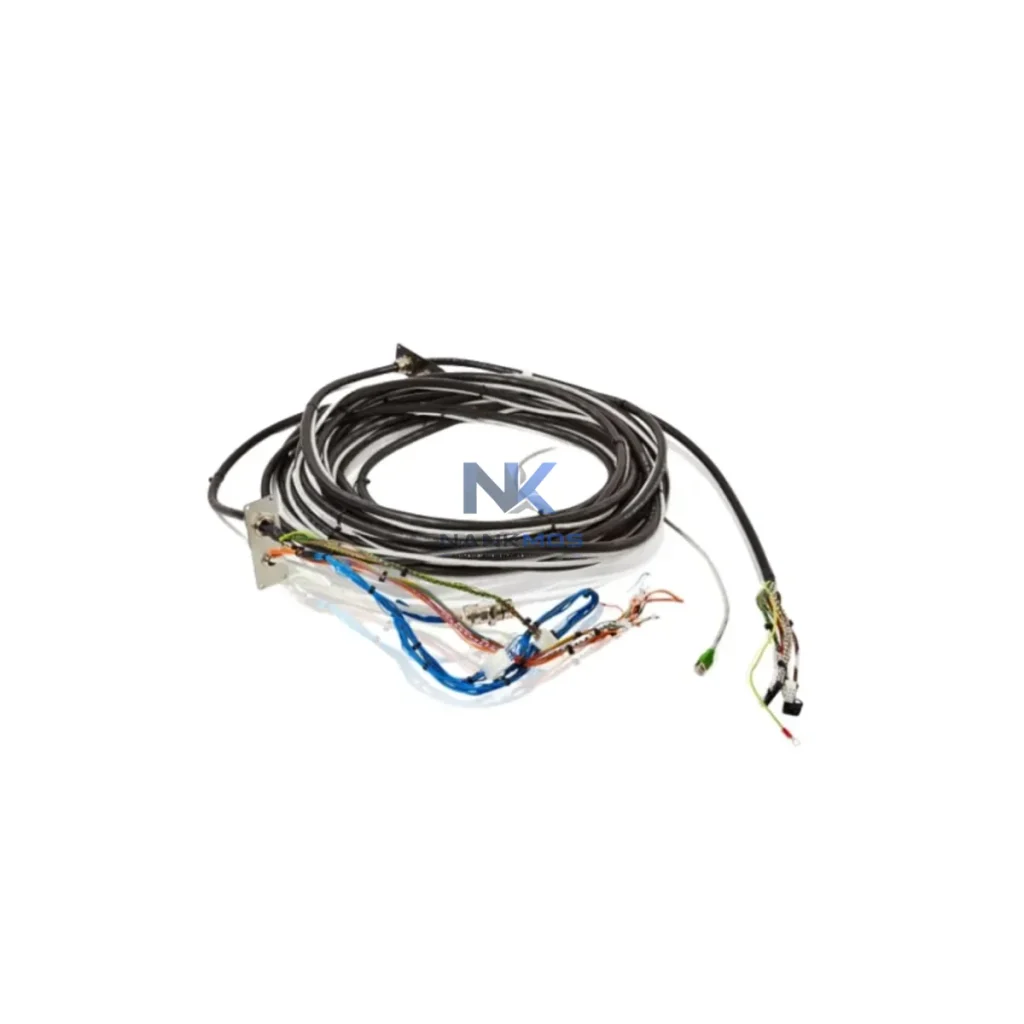

The ABB 3HAC044361-002 is a factory-engineered, system-matched cable harness designed specifically for the IRB 4600 industrial robot series. As a precision wiring component within ABB's integrated robotics platform, this harness serves as the critical signal and power conduit linking the robot's control layer to its mechanical execution layer. In modern automated production environments — spanning automotive assembly, electronics manufacturing, food processing, and precision machining — the integrity of internal robot cabling directly determines system uptime, motion accuracy, and long-term maintenance efficiency. The 3HAC044361-002 is engineered to meet these demands with OEM-grade reliability and full contextual integration into the ABB IRC5 control architecture.

The ABB 3HAC044361-002 cable harness does not function in isolation — it is a foundational element within a layered automation architecture. In a fully integrated IRB 4600 deployment, this harness interconnects with the ABB IRC5 Controller (single or dual cabinet) at the control layer, ensuring that motion commands, I/O signals, and safety interlocks are transmitted with zero signal degradation across the robot's six-axis kinematic chain.

At the I/O layer, the harness interfaces with ABB DSQC651 and DSQC652 I/O boards housed within the IRC5 cabinet, routing discrete and analog signals to the robot's wrist and arm axes. The power layer relies on the ABB DSQC609 power supply unit to maintain stable voltage delivery through the harness to servo drives and encoder feedback circuits. For multi-robot cell configurations, the harness supports integration with ABB DSQC688 fieldbus adapters, enabling EtherNet/IP or DeviceNet communication across the production cell.

At the execution layer, the 3HAC044361-002 directly supports the ABB IRB 4600-20/2.50 and IRB 4600-45/2.05 payload variants, maintaining consistent signal integrity across all axis motors and resolvers. The harness is also compatible with ABB SafeMove2 safety controller integration, ensuring that safety-rated speed and position monitoring signals are transmitted without interruption. For HMI-layer connectivity, the system pairs with ABB FlexPendant (IRC5) for real-time diagnostics, axis calibration, and harness-related fault tracing during commissioning and maintenance cycles.

In redundant architecture designs, the cable harness supports parallel deployment alongside ABB DSQC663 axis computer boards, enabling rapid fault isolation and module-level replacement without full system shutdown. Terminal block modules and ABB DSQC377B panel boards within the IRC5 cabinet further extend the harness's role in structured wiring management, reducing commissioning time and improving long-term serviceability across multi-shift production environments.

Automotive Manufacturing: In body-in-white welding and assembly lines, the IRB 4600 with 3HAC044361-002 harness delivers consistent TCP accuracy across high-cycle spot welding and material handling tasks. The harness's OEM signal integrity ensures that weld controller feedback loops remain stable across thousands of daily cycles, reducing unplanned downtime in high-throughput automotive plants.

Electronics & Semiconductor Assembly: Precision pick-and-place and PCB handling applications demand sub-millimeter repeatability. The 3HAC044361-002 maintains encoder signal fidelity across all six axes, supporting the fine motion resolution required in cleanroom-compatible IRB 4600 deployments for semiconductor back-end processes.

Food & Beverage Processing: In hygienic packaging and palletizing lines, the cable harness supports continuous operation in temperature-variable environments. Its OEM construction ensures compatibility with washdown-adjacent installations where signal reliability directly impacts product throughput and line OEE.

Petrochemical & Energy: In hazardous-area adjacent control cabinets and process automation cells, the harness supports stable I/O signal routing between the IRC5 controller and field-mounted actuators, contributing to safe and reliable process control in refinery and pipeline automation projects.

Metal Fabrication & Welding: Arc welding and plasma cutting cells using the IRB 4600 depend on uninterrupted torch control signals. The 3HAC044361-002 ensures that welding parameter signals — wire feed, voltage, and current feedback — are transmitted without noise or interruption, supporting consistent weld quality across batch production runs.

Q1: Is the ABB 3HAC044361-002 compatible with all IRB 4600 variants and IRC5 controller generations? The 3HAC044361-002 is engineered as an OEM-matched harness for the IRB 4600 series. It is compatible with IRC5 single and dual cabinet configurations across standard IRB 4600 payload variants (20 kg and 45 kg). For specific axis or revision compatibility, cross-reference the ABB spare parts catalog or contact our engineering team with your robot serial number for confirmation prior to ordering.

Q2: How does replacing the cable harness affect system calibration and axis configuration? Cable harness replacement on the IRB 4600 requires axis calibration verification post-installation, as encoder feedback paths are re-established through the new harness. ABB recommends using the FlexPendant calibration routine (fine calibration or revolution counter update) after harness replacement. Our team provides pre-shipment continuity testing and documentation to support faster recommissioning and minimize production downtime.

Q3: What does the 12-Month Warranty cover, and what is the global supply lead time? The 12-Month Warranty covers manufacturing defects, signal continuity failures, and connector integrity from the date of shipment. Warranty claims are processed with direct engineering support. For global orders, standard lead time is 3–7 business days from confirmed stock. Expedited shipping is available for critical maintenance scenarios. Contact [email protected] or +86 18359268345 for real-time stock confirmation and logistics coordination.
