ABB IRB4601-63HAC037534-001 IRB16001-63HAC070081-001 IRB1600

Product Details

IRB4601-63HAC037534-001 IRB16001-63HAC070081-001 IRB16001-63HAC021828-001 Product Description

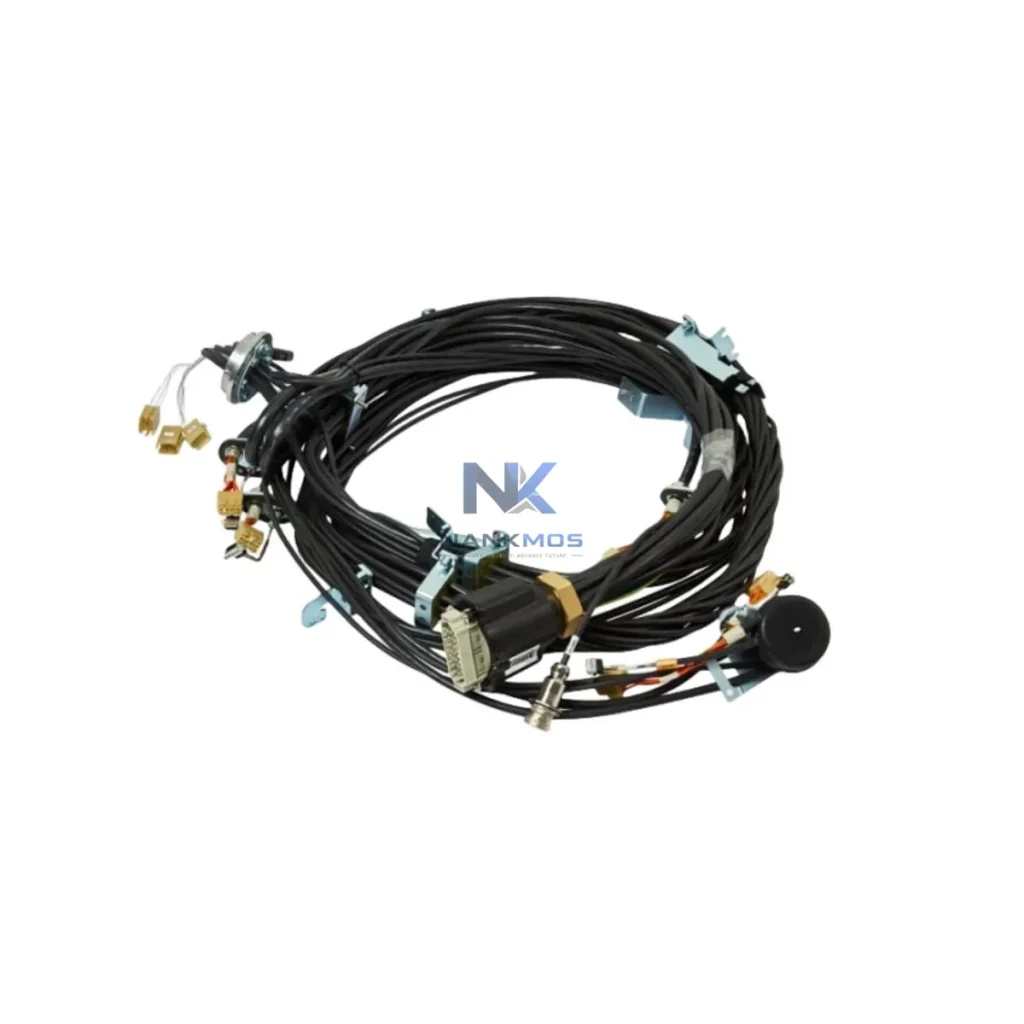

The ABB 3HAC037534-001 is a factory-engineered cable harness module designed for the ABB IRB4601 and IRB1600 robot series, delivering structured, low-resistance power and signal routing that directly supports energy-efficient motion control across automated production lines. As industrial facilities push toward leaner energy consumption and higher equipment utilization, the integrity of internal cable harness assemblies becomes a critical variable in overall drive efficiency and thermal management. The 3HAC037534-001 addresses this by providing OEM-grade conductor layout, shielded signal paths, and mechanically secured routing that minimizes resistive losses, reduces electromagnetic interference, and lowers the thermal burden on adjacent drive components.

In high-cycle robotic applications — including arc welding, material handling, assembly, and palletizing — cable harness degradation is one of the leading causes of unplanned downtime and energy waste. Loose or damaged harness assemblies introduce micro-interruptions in servo feedback loops, forcing the ABB IRC5 controller to compensate with increased drive output, which in turn elevates power draw and heat generation across the axis drive modules. By maintaining a correctly routed and fully intact 3HAC037534-001 harness, the robot's servo system operates within its designed efficiency envelope, reducing unnecessary energy consumption at the motor and drive level.

The ABB 3HAC037534-001 cable harness sits at the intersection of mechanical integrity and electrical performance within the IRB4601 and IRB1600 drive architecture. Its role extends beyond simple wire management — it is the structured conduit through which the ABB DSQC662 axis computer communicates servo position feedback, current demand signals, and brake control commands to each joint motor. When this harness is compromised, the downstream effect cascades through the entire motion control chain.

In a typical smart production cell, the IRC5 controller processes real-time torque and velocity commands from the ABB DSQC639 main computer board, translating them into precise current waveforms delivered through the ABB DSQC608 drive unit. The 3HAC037534-001 harness ensures that encoder feedback from each axis motor reaches the drive unit without signal degradation, allowing the drive to apply only the exact current required for the commanded motion profile. This precision directly reduces reactive power draw and prevents the thermal accumulation that shortens the service life of drive capacitors and IGBTs.

For facilities running energy monitoring through a SCADA platform or integrating with a Manufacturing Execution System (MES), stable harness performance enables consistent cycle-time data that feeds into energy-per-part calculations. The ABB JSDP-110 power supply module and associated 24VDC logic supply rails benefit from clean signal separation provided by the harness shielding, reducing noise-induced switching losses in the controller's internal power distribution. Similarly, the ABB DSQC643 I/O module relies on interference-free signal routing to maintain accurate digital and analog I/O states — a prerequisite for energy-aware conditional logic in RobotWare programs.

In multi-robot production lines where several IRB4601 units operate in coordinated motion, harness-related servo faults on a single robot can trigger line-wide safety stops, wasting the accumulated kinetic and thermal energy of the entire cell. Replacing a degraded harness with the OEM 3HAC037534-001 restores the robot to its rated motion efficiency and eliminates the fault-induced energy spikes that occur during emergency stops and restarts. Integration with ABB SafeMove2 safety supervision further benefits from reliable harness signal integrity, as speed and position monitoring functions depend on uninterrupted encoder data streams.

From an energy management perspective, the 3HAC037534-001 cable harness contributes to production line efficiency in three measurable ways: reducing drive compensation overhead, stabilizing thermal output, and enabling predictive maintenance scheduling.

Drive Compensation Overhead: A degraded or incorrectly routed cable harness introduces intermittent signal loss in the servo feedback loop. The IRC5 controller responds by increasing drive gain or applying corrective torque pulses, both of which consume additional energy beyond the theoretical motion requirement. A correctly installed 3HAC037534-001 eliminates this compensation overhead, keeping the robot's energy consumption aligned with its programmed motion profile and reducing per-cycle energy draw by maintaining servo loop stability.

Thermal Load Management: Resistive losses in damaged conductors generate localized heat within the robot arm's cable routing channels. This heat transfers to adjacent mechanical components and, in high-ambient-temperature environments such as foundry or petrochemical applications, can push the robot's thermal management system into active cooling cycles that consume additional power. The OEM-grade conductors in the 3HAC037534-001 maintain rated resistance values, keeping thermal output within the robot's passive dissipation capacity and reducing the load on any supplementary cooling infrastructure.

Predictive Maintenance and Uptime: Scheduled harness replacement based on cycle-count thresholds — rather than reactive replacement after fault — is a core element of energy-efficient maintenance strategy. A robot running with a marginal harness generates irregular energy consumption patterns that are difficult to baseline for SCADA energy monitoring. Replacing the 3HAC037534-001 on a planned schedule restores predictable energy signatures, making it easier for energy management systems to detect anomalies in other components and schedule maintenance before unplanned stops occur. This approach reduces the energy cost of restart sequences and keeps production line throughput — and energy-per-part metrics — stable over time.

For semiconductor and electronics assembly lines where the IRB1600 is commonly deployed in precision pick-and-place or dispensing applications, harness integrity also affects path accuracy. Servo position errors caused by signal degradation force the robot to execute correction moves that add cycle time and energy consumption. The 3HAC037534-001 restores the signal fidelity required for sub-millimeter path repeatability, supporting both energy efficiency and product quality simultaneously.

Q1: How does replacing the 3HAC037534-001 cable harness reduce energy consumption in IRB4601 applications? A degraded harness introduces resistive losses and signal noise that force the IRC5 drive system to apply corrective torque beyond the programmed motion requirement. Replacing it with the OEM 3HAC037534-001 restores rated servo loop efficiency, eliminating drive compensation overhead and reducing per-cycle energy draw to the designed baseline.

Q2: Is the 3HAC037534-001 compatible with both IRB4601 and IRB1600 robot variants? Yes. The 3HAC037534-001 is engineered for the ABB IRB4601 and IRB1600 series. For IRB1600 applications, cross-reference with companion harness assemblies 3HAC070081-001 and 3HAC021828-001 to ensure complete axis coverage. Always verify the robot's axis configuration and RobotWare version before installation.

Q3: What is the recommended replacement interval and how does it support predictive maintenance? ABB recommends harness inspection at scheduled maintenance intervals based on cumulative cycle count and operating environment. In high-cycle or high-temperature applications, proactive replacement before fault occurrence prevents unplanned downtime, eliminates energy-intensive restart sequences, and maintains stable energy consumption profiles for SCADA monitoring systems.

Q4: What does the 12-month warranty cover and what is the shipping lead time? The 3HAC037534-001 is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional performance. Each unit is function-verified before dispatch. Stock is maintained for immediate shipment — contact our team to confirm current availability and lead time for your region.
