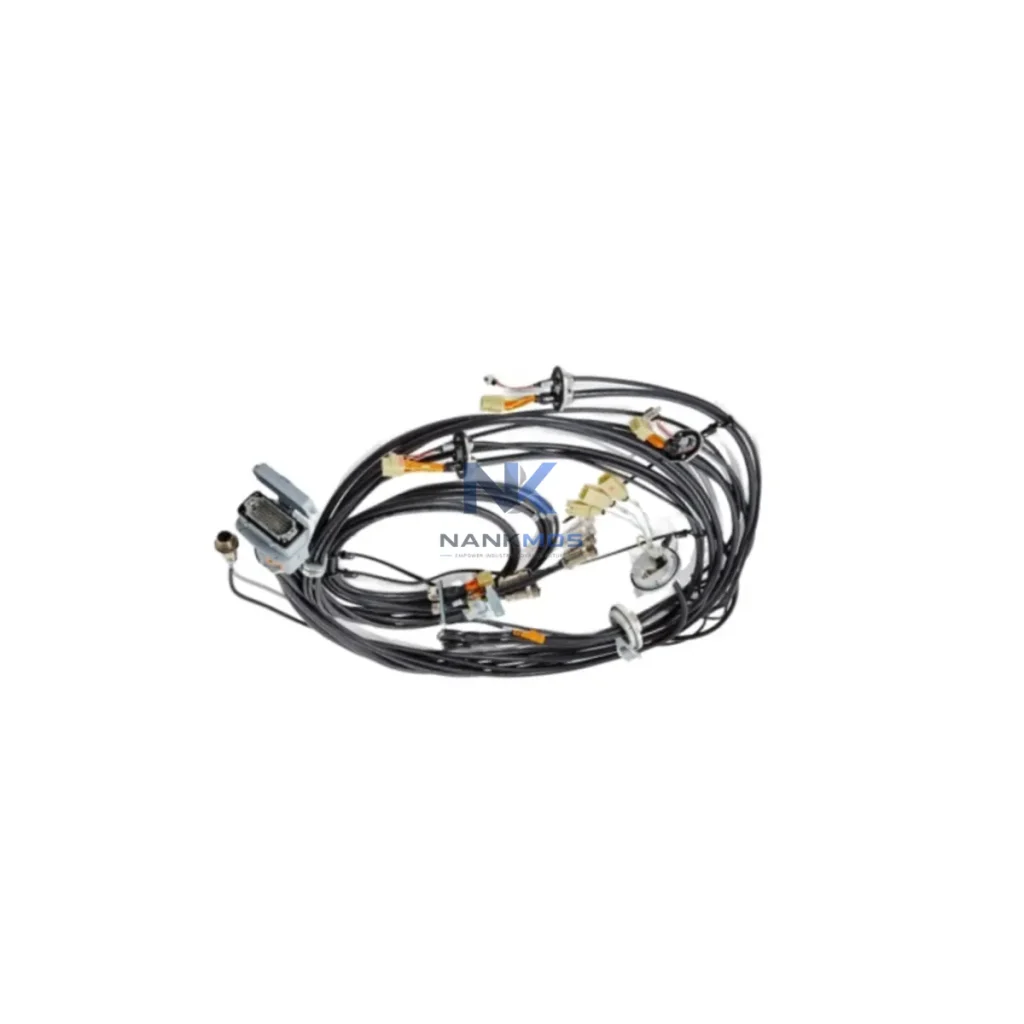

ABB IRB6600 3HAC14140-1 Robot Cable Harness

Product Details

IRB6600 3HAC14140-1 Product Description

The ABB 3HAC14140-1 is a factory-specification cable harness engineered for the IRB6600 industrial robot, specifically serving axes 5 and 6. In high-throughput manufacturing environments where energy efficiency, drive reliability, and production line uptime are non-negotiable, this harness plays a foundational role in maintaining clean signal and power delivery between the robot's servo drives and end-of-arm actuators. Sourced directly from ABB's robotics supply chain and pre-tested before shipment, the 3HAC14140-1 is a critical component for facilities operating under lean energy management strategies and predictive maintenance programs.

In a modern smart production line, energy efficiency is not achieved by a single component — it is the cumulative result of every signal path, every drive connection, and every feedback loop operating at rated specification. The ABB 3HAC14140-1 cable harness sits at the intersection of mechanical motion and electrical control, directly influencing how efficiently the ABB IRC5 controller can command the IRB6600's servo drives on axes 5 and 6.

When the harness degrades — through insulation breakdown, connector oxidation, or mechanical fatigue — the DSQC627 drive module or DSQC663 axis computer must compensate for signal noise, increasing processing overhead and generating unnecessary heat within the drive cabinet. This thermal load cascades into the robot's cooling system, increasing fan duty cycles and overall facility energy draw. Replacing the harness with the OEM 3HAC14140-1 restores the clean signal environment that ABB's servo control algorithms depend on.

The harness also interfaces directly with the SMB (Serial Measurement Board), typically the DSQC633 or DSQC643 unit, which handles resolver feedback from the axis 5 and 6 motors. Accurate resolver data is essential for the IRC5's energy-optimized motion planning — if feedback is corrupted by a failing harness, the controller cannot execute smooth velocity profiles, resulting in jerky motion, increased motor current draw, and elevated energy consumption per production cycle.

For facilities running ABB RobotWare with PowerPac or Weld applications, the 3HAC14140-1 ensures that the robot's I/O signal integrity is maintained across the full duty cycle. Integration with Profibus DP or EtherNet/IP communication modules — used to synchronize robot motion with upstream PLC logic from Siemens S7-1500 or Allen-Bradley ControlLogix platforms — depends on stable wiring at every node. A degraded axis harness introduces latency and noise that can disrupt the entire cell's cycle time synchronization.

In energy monitoring architectures where a power measurement module such as the ABB CP600 HMI panel or a third-party SCADA system tracks per-robot energy consumption, a faulty harness will appear as an anomalous energy spike on the IRB6600's consumption profile. Facilities using predictive maintenance dashboards will flag this as an early warning indicator — and the 3HAC14140-1 is the correct corrective action before the fault escalates to a drive module failure.

Unplanned robot downtime is one of the most energy-intensive events in a manufacturing facility. When an IRB6600 stops mid-cycle due to a cable harness fault, the entire production cell — including conveyors, peripheral actuators, cooling systems, and safety interlocks — continues to draw power while the robot is offline. The energy cost of a two-hour unplanned stop often exceeds the energy savings of an entire week of optimized production scheduling.

The ABB 3HAC14140-1 directly addresses this risk. By maintaining OEM-specification signal integrity on axes 5 and 6, it ensures that the IRB6600 can execute its programmed motion paths without servo fault interruptions. This translates to consistent production line takt time — the rhythm at which parts move through the cell — and eliminates the energy waste associated with restart sequences, re-homing cycles, and manual fault recovery procedures.

From a thermal management perspective, a properly functioning harness reduces the heat load on the IRC5 drive cabinet. Lower cabinet temperatures extend the service life of the DSQC series drive modules and reduce the energy consumed by the cabinet's internal cooling fans. In facilities with multiple IRB6600 units operating in parallel, this thermal efficiency gain compounds across the robot fleet.

For maintenance teams implementing condition-based monitoring, the 3HAC14140-1 replacement cycle can be integrated into the facility's CMMS (Computerized Maintenance Management System) alongside other predictive maintenance triggers. Pairing harness replacement schedules with motor current trend data from the IRC5's internal diagnostics — or from an external power quality analyzer connected to the robot's supply circuit — allows facilities to replace harnesses before they cause measurable efficiency losses rather than after a fault event.

NANKMOS maintains ready inventory of the ABB 3HAC14140-1 to support just-in-time maintenance strategies. Each unit is pre-tested for continuity, insulation resistance, and connector integrity before shipment, ensuring that the replacement harness performs to ABB specification from the moment it is installed. With a 12-month warranty covering manufacturing defects and performance conformance, facilities can integrate this component into their spare parts inventory with confidence.

Q1: How does replacing the 3HAC14140-1 cable harness reduce energy consumption on the IRB6600? A degraded harness introduces resistive losses and signal noise into the servo drive circuit, forcing the IRC5 controller to apply corrective current to maintain axis position accuracy. This overcurrent condition increases motor energy draw and generates excess heat in the drive cabinet. Replacing the harness with the OEM 3HAC14140-1 restores rated drive efficiency, reduces motor current to specification, and lowers the thermal load on the cabinet cooling system — resulting in measurable energy savings per production cycle.

Q2: Is the ABB 3HAC14140-1 compatible with both IRC5 and S4C+ controller platforms? The 3HAC14140-1 is the OEM-specified harness for the IRB6600 axes 5/6 circuit and is compatible with IRC5 single-cabinet and dual-cabinet configurations. Compatibility with S4C+ systems should be verified against the robot's serial number and controller revision. Contact NANKMOS with your robot's serial number for confirmation before ordering if you are operating an S4C+ platform.

Q3: What is the recommended replacement interval for the IRB6600 axis 5/6 cable harness? ABB recommends inspection of the axis harness at each scheduled preventive maintenance interval, typically every 3,500 to 5,000 operating hours depending on the application environment. In high-duty-cycle applications such as arc welding or foundry handling, where the harness is subject to elevated thermal and mechanical stress, proactive replacement at the first sign of insulation wear or connector resistance increase is recommended. NANKMOS stocks the 3HAC14140-1 for immediate dispatch to support planned maintenance windows.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process? Every ABB 3HAC14140-1 shipped by NANKMOS undergoes pre-shipment testing including electrical continuity verification across all conductors, insulation resistance measurement to confirm dielectric integrity, and physical inspection of all connectors and strain relief points. The 12-month warranty covers manufacturing defects and performance non-conformance under normal operating conditions as specified by ABB. Warranty claims are processed directly through NANKMOS — contact [email protected] with your order reference and fault description.
