IRB66203HAC10828-10 IRB66203HAC025007-004/005 3HAC025007-005 Product Description

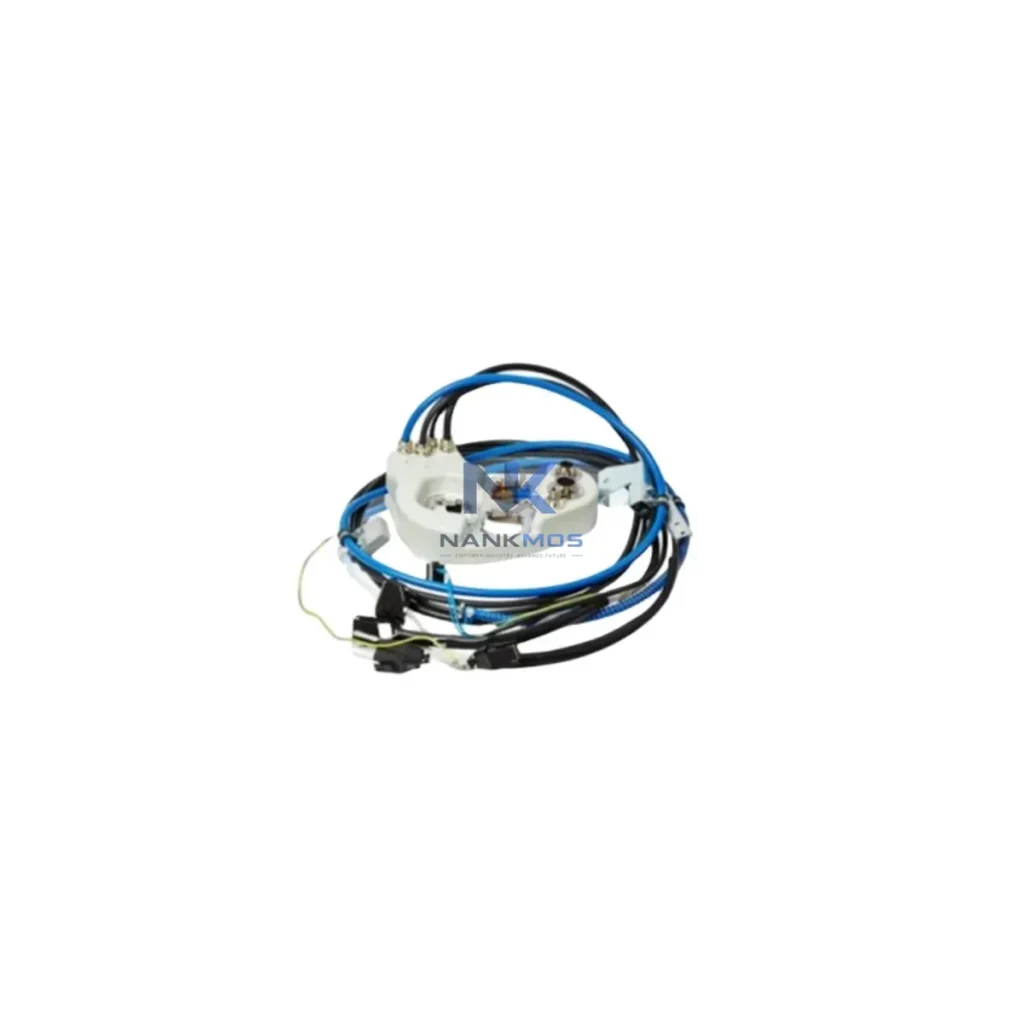

The ABB 3HAC025007-005 is a factory-engineered internal harness assembly designed specifically for the IRB 6620 industrial robot series, covering the complete Axis 1 through Axis 6 signal and power routing path. As a system-matched cable harness, it is not a standalone component — it is a critical structural element within ABB's layered robot control architecture, ensuring signal integrity, power continuity, and mechanical compliance across the full range of motion of the IRB 6620 manipulator arm. Sourced directly from ABB's certified supply chain and backed by a 12-Month Warranty, this harness is engineered for demanding industrial environments where uptime, signal stability, and long-term maintainability are non-negotiable.

In modern automated production systems, the internal harness is the nervous system of the robot. Every motion command issued by the IRC5 controller cabinet travels through this harness to reach the servo drives, encoders, and brake circuits embedded within each joint. A degraded or mismatched harness introduces signal noise, encoder feedback errors, and axis fault alarms — all of which cascade into unplanned downtime. The 3HAC025007-005 eliminates these risks by providing a fully validated, OEM-specification replacement that restores the robot to its original electrical and mechanical performance baseline.

The 3HAC025007-005 harness operates at the intersection of the control layer and the execution layer in a fully integrated ABB robot cell. Understanding its role requires viewing the IRB 6620 not as an isolated machine, but as a node within a broader automation platform. At the control layer, the IRC5 controller cabinet — which may include the DSQC 661 main computer board, DSQC 663 axis computer, and DSQC 609 power supply unit — generates motion trajectories and axis commands. These commands are transmitted through the drive module to the servo motors at each joint, with the 3HAC025007-005 harness serving as the physical medium for both power delivery and encoder feedback return signals.

At the I/O layer, the IRB 6620 cell typically integrates ABB's DSQC 652 digital I/O board or DSQC 378B field bus adapter to manage peripheral signals — tool changers, gripper solenoids, and safety interlocks. These signals are coordinated with the robot's motion state via the IRC5 system bus, and the harness must maintain electrical isolation and shielding integrity to prevent cross-talk between high-current motor lines and low-voltage encoder signals. At the communication layer, the IRC5 cabinet connects to the plant network via PROFIBUS-DP, DeviceNet, or EtherNet/IP through modules such as the DSQC 667 or DSQC 688, enabling real-time coordination with PLCs, SCADA systems, and MES platforms.

At the HMI layer, the FlexPendant teach pendant (3HAC028357-001 or equivalent) provides the operator interface for jogging, program editing, and fault acknowledgment. When an axis fault is triggered by a harness-related encoder error, the FlexPendant displays the specific fault code, allowing maintenance engineers to isolate the affected axis and initiate a targeted harness inspection or replacement. At the power layer, the DSQC 609 power supply and the drive module's capacitor bank ensure stable DC bus voltage during dynamic motion cycles — a stable power foundation that the 3HAC025007-005 harness depends on for consistent motor performance. At the protection layer, the robot's safety controller monitors brake circuit continuity through the harness; a broken brake wire triggers an immediate E-stop, making harness integrity a direct safety-critical parameter.

For multi-robot cells, the IRB 6620 may operate alongside IRB 6640 or IRB 6650S units sharing a common IRC5 MultiMove controller, where harness standardization across the fleet reduces spare parts complexity and accelerates maintenance response. The 3HAC025007-005 is also compatible with the predecessor 3HAC025007-004 revision in most installation contexts, providing backward compatibility for legacy IRB 6620 installations still operating on S4C+ controller platforms.

The IRB 6620 equipped with the 3HAC025007-005 harness is deployed across a wide spectrum of heavy-duty industrial applications. In automotive body-in-white manufacturing, the robot performs spot welding, seam sealing, and material handling tasks on production lines running at high cycle rates — environments where harness fatigue from continuous flexion is the primary failure mode, making OEM-specification replacement harnesses essential for predictable maintenance intervals. In the energy sector, IRB 6620 units are used for turbine blade grinding and generator component assembly, where the precision of encoder feedback — directly dependent on harness signal integrity — determines surface finish quality and dimensional accuracy.

In petrochemical and process industries, robots operating in Zone 2 classified areas require harnesses that maintain their electrical properties under elevated ambient temperatures and exposure to chemical vapors. The 3HAC025007-005's ABB-specified insulation materials are selected for chemical resistance and thermal stability, supporting continuous operation in these demanding environments. In metal fabrication and foundry applications, the IRB 6620 handles heavy castings and performs arc welding tasks where electromagnetic interference from welding power sources can corrupt encoder signals — the harness's shielded construction provides the necessary EMI rejection to maintain axis positioning accuracy. In packaging and palletizing lines, the robot's high payload capacity and long reach make it ideal for end-of-line operations, where the harness must withstand millions of motion cycles over the robot's service life.

For shipbuilding and offshore platform construction, IRB 6620 robots perform plasma cutting and heavy material positioning in large-format work envelopes, where the full Axis 1-6 harness routing must accommodate extreme joint angles without mechanical stress concentration. In semiconductor backend and flat panel display manufacturing support roles — such as large substrate handling — the robot's smooth motion profile, enabled by clean encoder feedback through the 3HAC025007-005 harness, ensures vibration-free transport of sensitive components.

Q1: Is the 3HAC025007-005 compatible with both IRC5 and S4C+ controller platforms? The 3HAC025007-005 is primarily specified for IRB 6620 robots operating with the IRC5 controller cabinet. In many installations, it is also mechanically and electrically compatible with IRB 6620 units running on the S4C+ platform, as the internal harness connector pinout and routing path are consistent across controller generations for this robot model. However, we recommend confirming the robot's serial number and controller revision with your ABB service documentation before ordering. Our technical team can assist with cross-referencing the correct harness revision for your specific installation.

Q2: What is the recommended replacement interval and how does the 12-Month Warranty apply? ABB recommends inspecting the internal harness during each scheduled preventive maintenance cycle, typically every 10,000 operating hours or as specified in the IRB 6620 product manual. Signs of harness degradation include intermittent encoder fault alarms, axis position errors at specific joint angles, and visible insulation wear at high-flex zones near Axis 2 and Axis 3. The NANKMOS 12-Month Warranty covers manufacturing defects and premature failure under normal operating conditions from the date of shipment. Warranty claims are processed through our technical support team at [email protected], with replacement units dispatched from stock to minimize your downtime.

Q3: How does harness replacement integrate with the robot's calibration and commissioning workflow? After installing the 3HAC025007-005 replacement harness, the IRB 6620 requires a full axis calibration sequence using the FlexPendant and ABB's calibration pendulum or CalibWare software to restore the robot's reference position data. The IRC5 controller's resolver measurement system re-establishes the zero-position reference for all six axes through the new harness. Our team provides pre-shipment continuity and insulation resistance testing on every harness unit, with test reports available upon request, ensuring that the harness arrives ready for installation without requiring incoming inspection. For complex multi-robot cell recommissioning, our engineering support team can provide remote guidance to minimize production restart time.
