IRB6640 3HAC034863-005 3HAC034863-005 IRB6650S 3HAC14140-1 Product Description

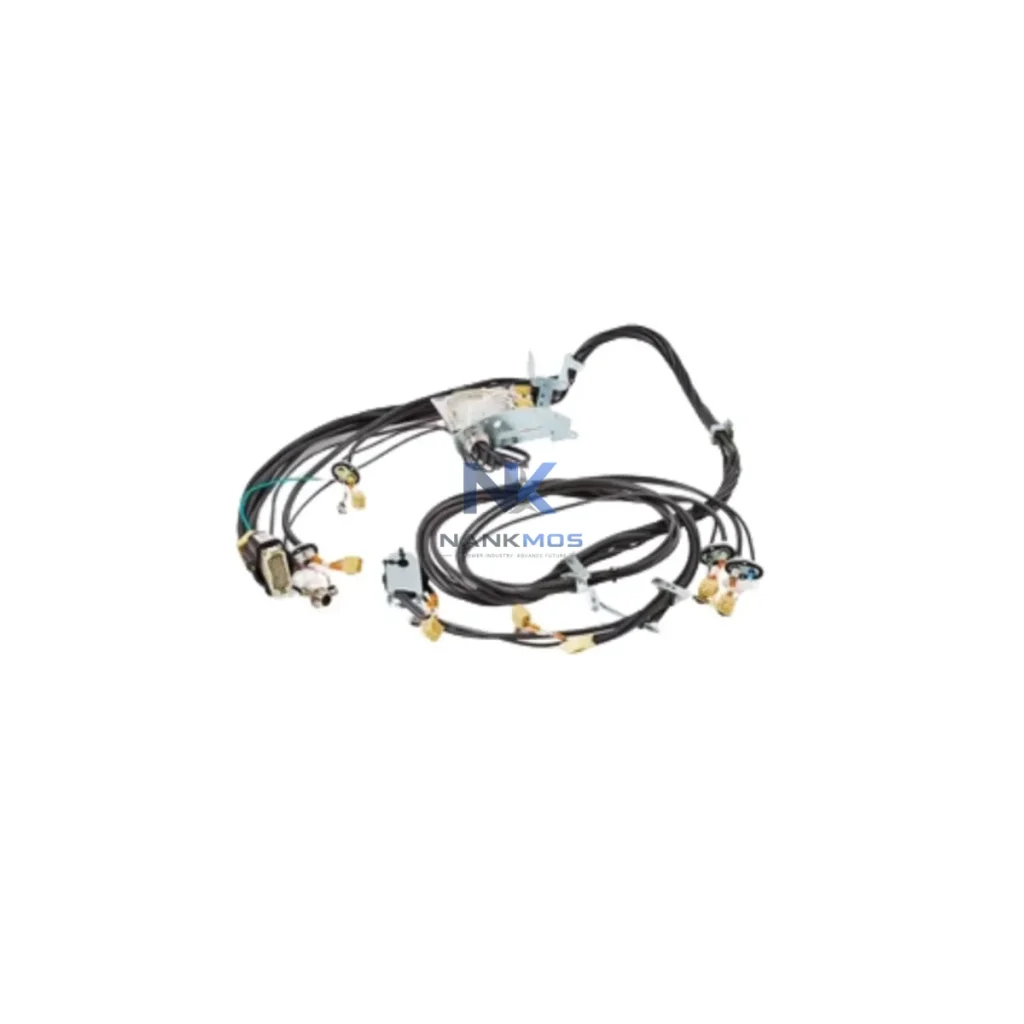

The ABB 3HAC034863-005 is a factory-engineered manipulator harness designed for the ABB IRB6640 and IRB6650S industrial robot series. As a critical structural and electrical interface within the robot arm, this harness directly influences signal integrity, power delivery efficiency, and thermal load management across the entire robotic cell. In smart manufacturing environments where energy consumption, uptime, and production rhythm are tightly monitored, the quality of the cable harness is not a peripheral concern — it is a core variable in energy-efficient automation strategy.

Sourced directly from ABB's original manufacturing supply chain and shipped with full pre-delivery testing, the 3HAC034863-005 is available from verified inventory with a 12-month warranty, ensuring long-term operational confidence for maintenance engineers and procurement teams alike.

In a fully integrated robotic cell, the ABB 3HAC034863-005 harness serves as the nervous system connecting the robot's mechanical axes to the ABB IRC5 controller — the central processing unit that governs motion profiles, torque limits, and energy recovery cycles. When the harness maintains low-resistance signal paths, the IRC5 can execute precise velocity ramping and regenerative braking commands without compensating for signal noise, directly reducing unnecessary motor drive activation cycles.

The harness interfaces with the ABB DSQC662 I/O module and DSQC679 teach pendant communication bus, ensuring that feedback from joint encoders and torque sensors reaches the controller with minimal latency. This is particularly important when the robot is coordinated with external Siemens SINAMICS S120 servo drives or ABB ACS880 variable frequency drives managing conveyor or positioner axes — any signal delay in the harness can cause drive desynchronization, forcing unnecessary re-acceleration cycles that spike energy consumption.

For facilities running ABB SafeMove2 safety supervision or integrating with Rockwell Automation ControlLogix PLCs via EtherNet/IP, the integrity of the manipulator harness is critical. A degraded harness introduces ground loop interference that can trigger false safety stops, causing production line halts that consume restart energy and disrupt the production rhythm. The 3HAC034863-005, with its OEM-grade shielding and connector seating, eliminates this failure mode.

Power monitoring systems such as the ABB B23 energy meter or Schneider Electric PowerLogic ION7650 installed at the robot cell distribution panel will show measurable reductions in peak demand when the harness is operating within specification — because the IRC5 controller's internal power management algorithms can execute planned deceleration and standby sequencing without interruption from wiring faults.

In high-throughput manufacturing environments — automotive body welding, semiconductor wafer handling, or petrochemical drum palletizing — the ABB IRB6640 robot operates in continuous multi-shift cycles. The manipulator harness is subject to millions of flex cycles annually, and harness degradation is one of the leading causes of unplanned downtime in mature robotic installations.

A failing harness does not always produce an immediate fault. Instead, it introduces intermittent signal noise that causes the IRC5 controller to issue micro-corrections to joint torque — corrections that consume additional servo energy, increase motor temperature, and shorten drive component life. Over a 12-month production cycle, this hidden energy drain can represent a measurable increase in per-unit energy cost.

Replacing a worn harness with the OEM 3HAC034863-005 restores the robot to its designed motion efficiency profile. Combined with ABB RobotStudio cycle time simulation and energy consumption analysis tools, maintenance teams can validate the energy savings before and after replacement — providing quantifiable ROI data for capital expenditure justification.

For facilities implementing predictive maintenance programs using ABB Ability™ Condition Monitoring or third-party SCADA platforms such as Ignition by Inductive Automation, harness condition can be correlated with motor current draw trends logged by the IRC5. A rising baseline current at a specific joint axis is a reliable early indicator of harness resistance increase — allowing planned replacement during scheduled maintenance windows rather than emergency shutdowns.

The 3HAC034863-005 is stocked and dispatched with full pre-shipment testing including continuity verification, insulation resistance measurement, and load simulation. This ensures that the replacement harness performs to specification from the first production cycle, with no burn-in period required. The included 12-month warranty covers manufacturing defects and provides procurement teams with the supply chain confidence needed for long-term maintenance planning.

Q1: How does the ABB 3HAC034863-005 contribute to energy savings in an IRB6640 robotic cell?A: The harness maintains low-resistance, low-noise signal paths between the robot axes and the IRC5 controller. This allows the controller's energy management algorithms to execute planned deceleration, regenerative braking, and standby sequencing without interruption from wiring faults — reducing unnecessary motor activation cycles and lowering per-shift energy consumption.

Q2: Is the 3HAC034863-005 compatible with both the IRB6640 and IRB6650S, and does it work with the OmniCore controller?A: Yes. The 3HAC034863-005 is designed for both the IRB6640 and IRB6650S manipulator platforms. Compatibility with the ABB OmniCore controller should be verified against your specific robot configuration and software version — contact our technical team with your robot serial number for confirmation.

Q3: What is the recommended replacement interval, and how can I identify harness degradation before failure?A: ABB recommends harness inspection at each major maintenance interval (typically every 10,000–20,000 operating hours depending on application). Early indicators include rising joint motor current baselines logged by the IRC5, intermittent axis fault codes, and visible jacket wear at high-flex routing points. Predictive monitoring via ABB Ability™ Condition Monitoring can automate this detection.

Q4: What does the 12-month warranty cover, and what is the lead time from order to delivery?A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. All units are pre-tested before dispatch. Standard in-stock orders are processed within 1–2 business days, with international logistics options available. Contact [email protected] or +86 18359268345 for expedited shipping arrangements.
