ABB IRB66601-63HAC028715-001 3HAC028715-001 3HAC044259-001

Product Details

IRB66601-63HAC028715-001 3HAC028715-001 3HAC044259-001 Product Description

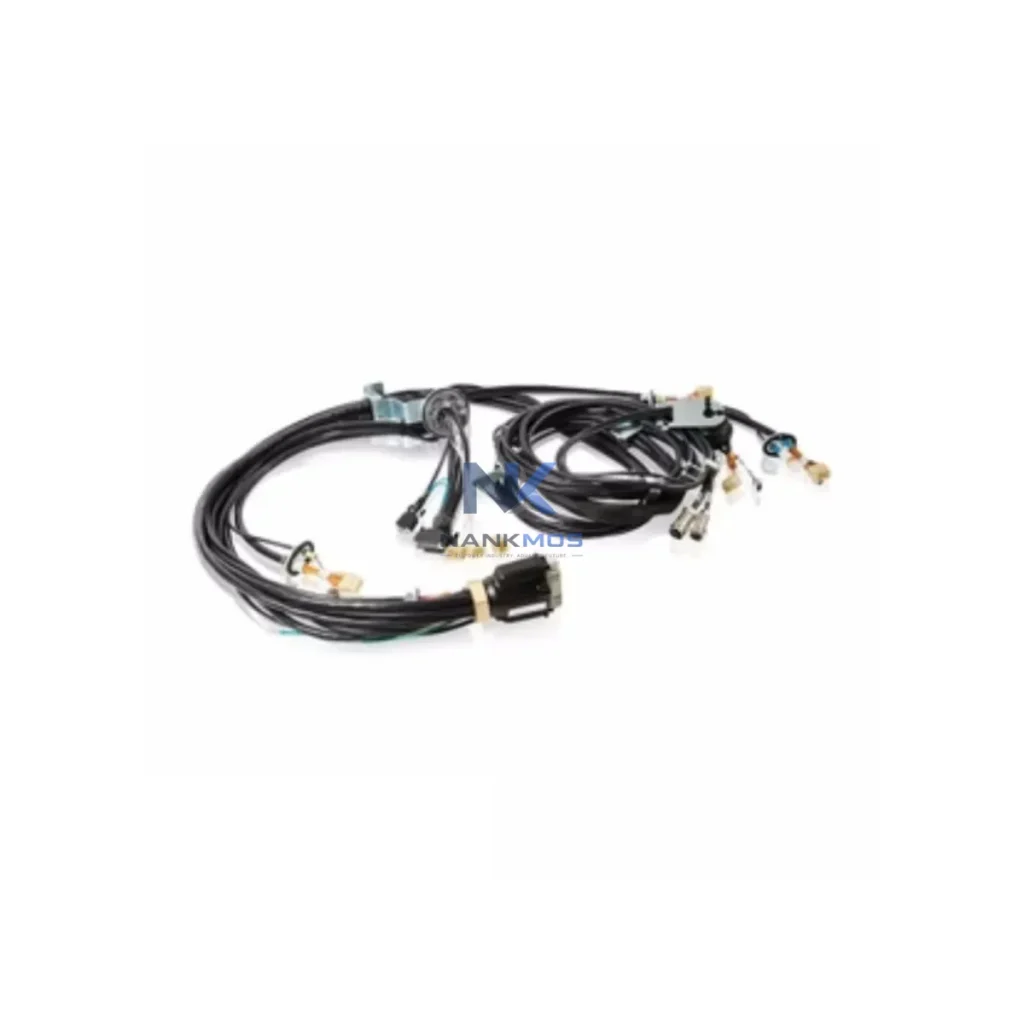

The ABB 3HAC028715-001 is a precision-engineered robot cable harness designed for the ABB IRB6660 articulated robot series — a high-payload, short-cycle workhorse widely deployed in automotive body-in-white, press tending, and heavy-duty material handling lines. Far beyond a simple wiring assembly, this harness forms the physical data and power backbone that connects the robot's six axes to the IRC5 controller, enabling uninterrupted signal transmission across motion, I/O, and fieldbus layers in demanding smart factory environments.

In modern automated production cells, every millisecond of signal latency and every byte of diagnostic data matters. The 3HAC028715-001 harness is engineered to carry both power and communication signals — including DeviceNet and EtherNet/IP — from the IRC5 controller cabinet through the robot base, upper arm, and wrist to the end-of-arm tooling interface. This continuous, shielded cable path ensures that axis encoder feedback, servo drive commands, and I/O status signals reach the controller with zero data corruption, even under high-cycle, high-torque operating conditions.

Understanding how the ABB 3HAC028715-001 fits into a connected factory architecture requires tracing the full data path from field device to enterprise system. At the cell level, the IRB6660 robot receives motion programs and I/O commands from the ABB IRC5 controller via the internal harness. The IRC5's DSQC 652 digital I/O board manages discrete signals — gripper open/close, part-present sensors, safety interlocks — all routed through the 3HAC028715-001 cable assembly to the robot's wrist connector.

On the fieldbus layer, the IRC5 communicates upstream to the cell PLC — typically an ABB AC500 PLC or a third-party Siemens S7-1500 — via EtherNet/IP or DeviceNet, depending on the plant's network topology. The robot's real-time position data, cycle counts, fault codes, and I/O states are continuously published to the PLC's data table, which in turn feeds the SCADA system (such as ABB Ability System 800xA or Wonderware InTouch) for production monitoring and OEE calculation.

For remote diagnostics, the IRC5 controller connects to the plant's industrial Ethernet backbone through a managed industrial switch — such as the ABB AF series or a Hirschmann MACH series switch — ensuring deterministic, low-latency communication even in electrically noisy press shop environments. The switch aggregates data from multiple robot cells and forwards it to the edge gateway (e.g., ABB Edgenius or a Moxa UC-8100 series IIoT gateway), where data is pre-processed and pushed to cloud-based analytics or on-premise MES platforms.

At the HMI layer, operators interact with the robot cell through an ABB FlexPendant or a panel-mounted Siemens TP1200 Comfort HMI, which displays live axis positions, program status, and alarm history sourced directly from the IRC5 via the internal harness data path. When a cable fault or signal anomaly is detected — such as encoder signal dropout on Axis 3 — the IRC5 generates a fault event that propagates through the EtherNet/IP network to the SCADA alarm management module, triggering an SMS or email notification to the maintenance team within seconds.

The 3HAC028715-001 also supports integration with ABB RobotStudio for offline programming and virtual commissioning, where the harness's electrical model is used to simulate cable flex fatigue and predict replacement intervals — a key capability for predictive maintenance programs in high-volume automotive plants running three-shift operations.

Many industrial sites operating ABB IRB6660 robots face a common set of connectivity and data visibility challenges that the 3HAC028715-001 directly addresses:

Protocol Fragmentation: Older press lines may use legacy DeviceNet while newer cells run EtherNet/IP. The 3HAC028715-001 harness, paired with the IRC5's configurable fieldbus adapter slots, supports both protocols simultaneously — eliminating the need for external protocol converters and reducing network latency between the robot and the cell PLC.

Data Silos and Production Transparency: Without a reliable internal harness, encoder feedback and I/O data from the robot's axes cannot be accurately transmitted to the controller, creating blind spots in the production data chain. A degraded or incorrect harness assembly leads to intermittent faults, false alarms, and unplanned downtime — all of which fragment the data flow between the robot, PLC, SCADA, and MES layers. The genuine ABB 3HAC028715-001 ensures signal integrity across all six axes, providing the clean, continuous data stream that SCADA and MES systems require for accurate OEE reporting.

Remote Monitoring Gaps: In multi-site manufacturing operations, maintenance engineers need remote visibility into robot health without dispatching technicians to the floor. The IRC5's built-in Remote Service capability — enabled by a stable harness data path — allows ABB's service platform to monitor robot condition data in real time, flagging wear indicators on axis motors and cable assemblies before they cause production stops.

Alarm Traceability: When a robot fault occurs, the ability to trace the alarm back to a specific axis, signal, or cable segment is critical for fast root-cause analysis. The 3HAC028715-001's structured wiring — with individually shielded signal pairs for each axis encoder — allows the IRC5 to pinpoint fault locations precisely, reducing mean time to repair (MTTR) and supporting the alarm management workflows in connected SCADA environments.

System Scalability: As production lines expand — adding robot cells, vision systems, or collaborative robot stations — the plant's industrial network must scale without disrupting existing data flows. The IRC5 + 3HAC028715-001 combination supports network expansion through additional EtherNet/IP nodes, PROFINET adapters, and edge gateway connections, making it a future-ready foundation for Industry 4.0 upgrades.

Q1: Does the ABB 3HAC028715-001 support both DeviceNet and EtherNet/IP simultaneously?Yes. The IRC5 controller supports multiple fieldbus adapters in parallel. The 3HAC028715-001 harness carries the internal signal infrastructure that enables the IRC5 to communicate over DeviceNet and EtherNet/IP concurrently, allowing the robot to integrate into mixed-protocol plant networks without additional hardware converters.

Q2: What is the communication latency between the IRB6660 and the cell PLC over EtherNet/IP?With a properly installed 3HAC028715-001 harness and a managed industrial switch, EtherNet/IP cycle times between the IRC5 and the cell PLC are typically 4–8 ms, well within the requirements of most press tending and material handling applications. Degraded or incorrect harness assemblies can introduce signal jitter that increases effective latency and triggers nuisance faults.

Q3: Can this harness support remote diagnostics and predictive maintenance integration?Yes. The 3HAC028715-001 provides the internal data path required for the IRC5's Remote Service and Condition Monitoring features. When connected to the plant's industrial Ethernet network via a managed switch and edge gateway, the IRC5 can stream axis health data, motor temperature readings, and cable flex cycle counts to ABB's cloud-based analytics platform or an on-premise MES system for predictive maintenance scheduling.

Q4: What warranty and quality assurance does NANKMOS provide for the ABB 3HAC028715-001?All ABB 3HAC028715-001 units supplied by NANKMOS carry a 12-month quality warranty covering manufacturing defects and signal integrity failures. Each unit undergoes pre-shipment functional testing to verify connector integrity, conductor continuity, and shielding effectiveness before dispatch. In-stock units are available for same-week global shipping, with RFQ responses provided within 24 hours.
