ABB IRB67003HAC043455-003 lRB46003HAC029236-003/06 3HNA02494

Product Details

IRB67003HAC043455-003 lRB46003HAC029236-003/06 3HNA024941-001 3HNA012283-001 Product Description

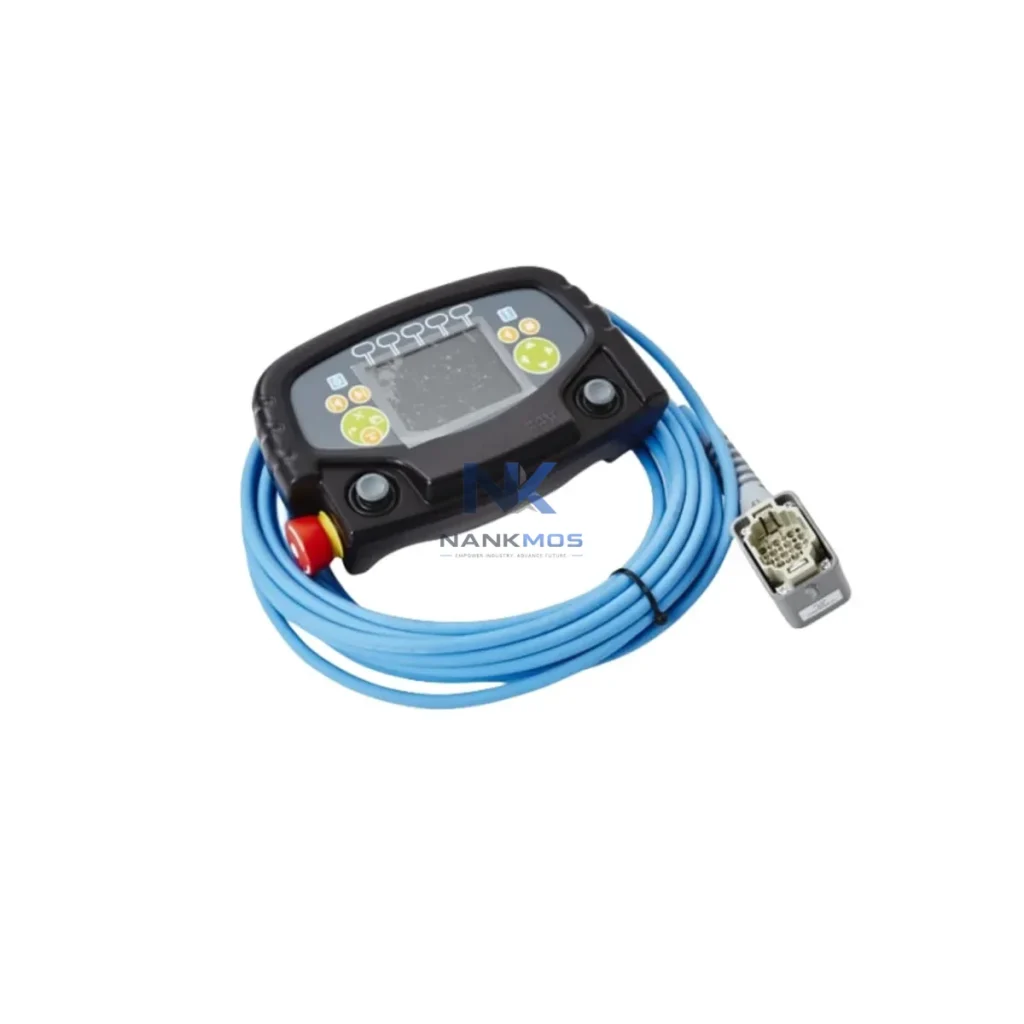

The ABB 3HAC043455-003 FlexPendant is a high-performance teach pendant and human-machine interface (HMI) engineered for ABB IRC5 robot controller systems. Designed to serve as the primary operator interface in advanced manufacturing environments, this unit bridges the gap between field-level robot execution and plant-wide data visibility. Whether deployed on IRB 6700 heavy-payload lines, IRB 4600 paint and assembly cells, or multi-robot workcells coordinated through ABB RobotStudio, the 3HAC043455-003 delivers real-time command, monitoring, and diagnostic capability directly at the machine level.

In modern smart factory architectures, the FlexPendant is far more than a jogging device. It functions as a live data node within the broader industrial communication chain — receiving motion parameters from the IRC5 controller, executing RAPID program logic, and surfacing operational status to SCADA and MES layers above. Its integration with ABB's IRC5 communication backbone enables seamless data exchange across Ethernet/IP and proprietary ABB fieldbus protocols, ensuring that every robot cycle, fault event, and production count is captured and transmitted upstream without latency gaps.

The 3HAC043455-003 FlexPendant sits at the intersection of robot-level execution and plant-level intelligence. In a typical smart factory deployment, the data flow begins at the IRC5 controller, where motion programs written in RAPID are executed and monitored. The FlexPendant provides the operator with a live window into this execution layer — displaying axis positions, I/O states, program pointers, and fault registers in real time.

From the IRC5 controller, process data is routed upward through the plant network. ABB's DSQC 1030 Ethernet switch module or compatible industrial managed switches aggregate robot cell traffic onto the factory backbone, where PROFINET or Ethernet/IP frames carry production metrics to SCADA platforms such as ABB Ability System 800xA or third-party supervisory systems. The FlexPendant's alarm and event log feeds directly into this chain, enabling operators and remote engineers to correlate robot faults with upstream production anomalies without leaving the control room.

For multi-robot workcells, the IRC5 Dual Cabinet configuration allows the 3HAC043455-003 to switch between robot instances, maintaining a single operator interface across complex coordinated motion tasks. This is particularly valuable in automotive body-in-white lines where IRB 6700 units perform spot welding while IRB 4600 robots handle sealing and painting in adjacent cells — all monitored through a unified HMI layer.

Remote I/O expansion is handled through ABB DSQC 652 digital I/O modules connected to the IRC5 backplane, with field signals from proximity sensors, safety light curtains, and pneumatic valve banks aggregated and made visible through the FlexPendant's I/O monitoring screens. This eliminates the need for separate diagnostic tools at the panel level and reduces mean time to repair (MTTR) when field faults occur.

At the edge layer, ABB's IRC5 OPC-UA server option enables the FlexPendant's runtime data — cycle times, error codes, joint torques, and program states — to be published to edge gateways and cloud analytics platforms. Combined with ABB RobotStudio's offline simulation environment, engineers can validate program changes against live production data before deploying updates through the FlexPendant, closing the loop between digital twin and physical execution.

Power integrity for the pendant and controller system is maintained through ABB DSQC 661 power supply modules, ensuring stable 24VDC delivery to all IRC5 I/O and communication cards. This end-to-end architecture — from field sensor through IRC5 controller, FlexPendant HMI, industrial switch, SCADA gateway, and MES integration — represents the complete connected factory data chain that the 3HAC043455-003 anchors at the operator interface level.

Many industrial sites operating ABB IRC5 robot systems face persistent data visibility challenges: robot faults are logged locally but never surfaced to SCADA; cycle time data exists in the IRC5 controller but is never extracted for OEE analysis; alarm histories are cleared during maintenance without being archived. The 3HAC043455-003 FlexPendant directly addresses these gaps by providing a structured, accessible interface to the IRC5's internal data registers.

Protocol fragmentation is a common barrier in mixed-vendor environments. Where legacy PLCs communicate over PROFIBUS and newer controllers use PROFINET or Ethernet/IP, the IRC5's fieldbus gateway options — including the DSQC 688 PROFINET device module — allow the FlexPendant's data to be normalized and forwarded to plant-wide historians without custom middleware. This eliminates data silos between robot cells and the broader automation network.

Remote monitoring is enabled through the IRC5's Remote Service connectivity, which allows ABB service engineers and in-house automation teams to access FlexPendant logs, error stacks, and program states from off-site locations. This capability is critical for multi-site manufacturers managing robot fleets across geographically distributed facilities, where on-site response time is a significant operational cost driver.

Production line transparency is achieved by mapping FlexPendant I/O states and program variables to SCADA tag databases, enabling real-time dashboards that display robot availability, fault frequency, and cycle completion rates alongside other line KPIs. Alarm tracking is enhanced by the FlexPendant's event log, which timestamps every fault, operator intervention, and program state change — providing the audit trail needed for root cause analysis and continuous improvement initiatives.

System expansion is straightforward: the IRC5 platform supports adding additional robot units, expanding I/O through DSQC modules, and integrating new communication protocols through software-configurable fieldbus adapters — all manageable through the FlexPendant interface without hardware redesign.

Q: What communication protocols does the ABB 3HAC043455-003 FlexPendant support for SCADA integration? A: The FlexPendant communicates natively with the IRC5 controller via ABB's proprietary pendant protocol and RAPID runtime interface. For SCADA integration, the IRC5 supports Ethernet/IP, PROFINET (via DSQC 688), and OPC-UA server options, allowing FlexPendant runtime data to be published to supervisory systems without additional middleware. All units shipped by NANKMOS are tested for communication handshake integrity before dispatch.

Q: Is the 3HAC043455-003 compatible with all IRC5 cabinet variants, and will it cause network latency issues in high-cycle applications? A: The 3HAC043455-003 is compatible with IRC5 Single Cabinet, Dual Cabinet, and Panel Mounted Controller (PMC) variants. Communication between the FlexPendant and IRC5 controller operates over a dedicated pendant bus, isolated from the plant Ethernet network, ensuring that high-cycle robot operations are not affected by network congestion on the factory backbone. Latency between pendant input and controller response is typically under 10ms in standard configurations.

Q: Can the FlexPendant be used for remote diagnostics, and what data is accessible remotely? A: When the IRC5 Remote Service option is enabled, authorized personnel can access error logs, program states, I/O status, and system event histories remotely via ABB's secure service platform. The FlexPendant's alarm and diagnostic data is included in this remote access scope, enabling off-site fault analysis and program validation without requiring physical presence at the robot cell.

Q: What warranty and pre-shipment testing does NANKMOS provide for the 3HAC043455-003? A: Every ABB 3HAC043455-003 FlexPendant supplied by NANKMOS carries a 12-month warranty covering hardware defects and communication failures. Prior to shipment, each unit undergoes functional verification including display integrity, pendant bus communication test, button and joystick response validation, and USB port functionality check. In-stock units are available for immediate dispatch with full documentation.
