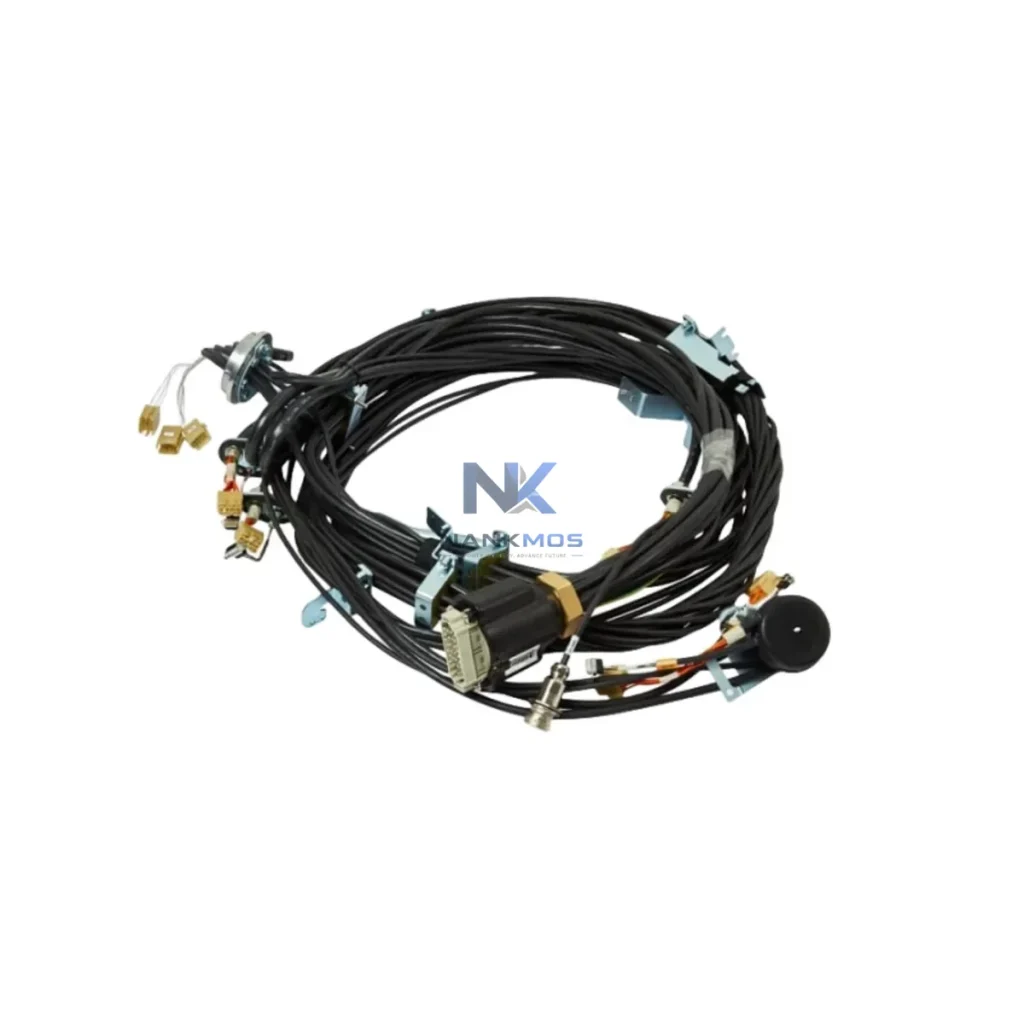

ABB IRB760053HAC14725-1 Industrial Network Interface

Product Details

IRB760053HAC14725-1 Product Description

The ABB 3HAC14725-1 is a precision-engineered industrial network interface cable designed to bridge the communication gap between ABB IRB 7600 robotic systems and the broader smart factory data infrastructure. Supporting EtherNet/IP, PROFIBUS-DP, and DeviceNet simultaneously, this CP/CS cable enables seamless, high-integrity data exchange across every layer of the automation stack — from field-level sensors and actuators through to SCADA platforms and enterprise MES systems.

In modern connected manufacturing environments, the reliability of the physical communication link is as critical as the logic running on the controller. The 3HAC14725-1 is factory pre-tested and ships with a 12-month warranty, ensuring that your IRC5 controller cabinet maintains uninterrupted network connectivity from day one of commissioning through the full production lifecycle.

The 3HAC14725-1 sits at the heart of the robot-to-network data chain. In a typical smart factory deployment, the ABB IRB 7600 manipulator receives motion commands and process parameters from the IRC5 controller. The IRC5 communicates upstream via PROFIBUS-DP to a Siemens S7-300 or S7-400 PLC managing the production cell, while simultaneously exposing real-time joint torque, speed, and alarm data over EtherNet/IP to a Rockwell ControlLogix supervisory controller or an Allen-Bradley PanelView HMI terminal.

Downstream, DeviceNet connectivity allows the IRC5 to poll distributed I/O nodes — such as ABB DSQC 651 digital I/O boards or third-party remote I/O modules — for gripper status, conveyor interlocks, and safety relay feedback. This multi-protocol architecture means a single 3HAC14725-1 cable assembly supports the full signal chain without requiring additional protocol converters or gateway hardware at the robot cabinet level.

At the SCADA layer, Wonderware System Platform or Ignition SCADA can subscribe to live robot state data via OPC-UA tags published through the EtherNet/IP interface, enabling real-time visualization of cycle times, fault codes, and production counts on operator dashboards. When an alarm condition is detected — such as an axis overload or communication timeout — the IRC5 pushes the event immediately to the SCADA historian, triggering automated notifications and logging the fault for remote diagnostic review.

For facilities deploying edge computing infrastructure, the 3HAC14725-1 supports integration with industrial edge gateways such as the Moxa MGate series or Advantech ADAM-3600, which aggregate robot data alongside signals from Keyence vision sensors, Sick safety scanners, and Endress+Hauser flow transmitters. The consolidated data stream is then forwarded to cloud analytics platforms or on-premise data historians for OEE calculation, predictive maintenance modelling, and digital twin synchronisation.

In multi-robot cells, the 3HAC14725-1 enables each IRB 7600 unit to participate in a coordinated PROFIBUS-DP segment alongside ABB ACS880 variable frequency drives controlling conveyor motors and positioning axes. The deterministic fieldbus timing ensures that robot motion, drive speed references, and I/O handshakes remain synchronised within the cycle time budget, eliminating the data latency that causes positional errors in high-speed pick-and-place or welding applications.

Many industrial sites operating legacy robot installations face a common set of connectivity challenges: protocol fragmentation across different generations of equipment, data islands where robot controllers cannot communicate with modern SCADA or MES platforms, and limited visibility into robot health metrics during unmanned shifts.

The 3HAC14725-1 directly addresses these issues by providing a single, OEM-certified cable assembly that restores full multi-protocol communication capability to the IRC5 cabinet. Where a damaged or missing CP/CS cable previously forced operators to rely on manual data entry or periodic USB downloads for production reporting, the 3HAC14725-1 re-establishes the live data link — enabling continuous alarm tracking, remote parameter backup via RobotStudio, and real-time KPI feeds to plant-level dashboards.

For sites expanding their automation footprint, the 3HAC14725-1 supports network topology scaling without reconfiguration. Adding a new IRB 7600 cell to an existing PROFIBUS-DP segment or EtherNet/IP ring simply requires connecting the new IRC5 cabinet with a 3HAC14725-1 and assigning a node address — no gateway reconfiguration or protocol bridging hardware is required. This plug-and-extend architecture reduces commissioning time and eliminates the risk of introducing network instability during production ramp-up.

Q1: Does the 3HAC14725-1 support simultaneous EtherNet/IP and PROFIBUS-DP communication?Yes. The CP/CS cable architecture of the 3HAC14725-1 allows the IRC5 controller to maintain concurrent connections on EtherNet/IP, PROFIBUS-DP, and DeviceNet without performance degradation. Each protocol operates on its dedicated physical and logical channel within the cable assembly.

Q2: What is the maximum PROFIBUS-DP transmission speed supported?The 3HAC14725-1 supports PROFIBUS-DP at speeds up to 12 Mbit/s, consistent with the IRC5 controller's native fieldbus specification. Network stability at maximum speed depends on segment length, termination quality, and the number of nodes on the bus — all standard PROFIBUS design parameters.

Q3: Can this cable be used for remote diagnostics and RobotStudio connectivity?Yes. With the EtherNet/IP interface active via the 3HAC14725-1, the IRC5 controller is accessible to ABB RobotStudio over the plant network for remote program backup, parameter monitoring, and fault log retrieval. This eliminates the need for a physical service laptop connection at the robot cabinet during routine diagnostic checks.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?Every 3HAC14725-1 unit shipped by NANKMOS undergoes 100% electrical continuity and protocol interface testing prior to dispatch. The 12-month warranty covers manufacturing defects and electrical failures under normal operating conditions. Warranty claims are processed directly through NANKMOS with replacement or refund options available.
