ABB LD800HSE EX Foundation Fieldbus Linking Device

Product Details

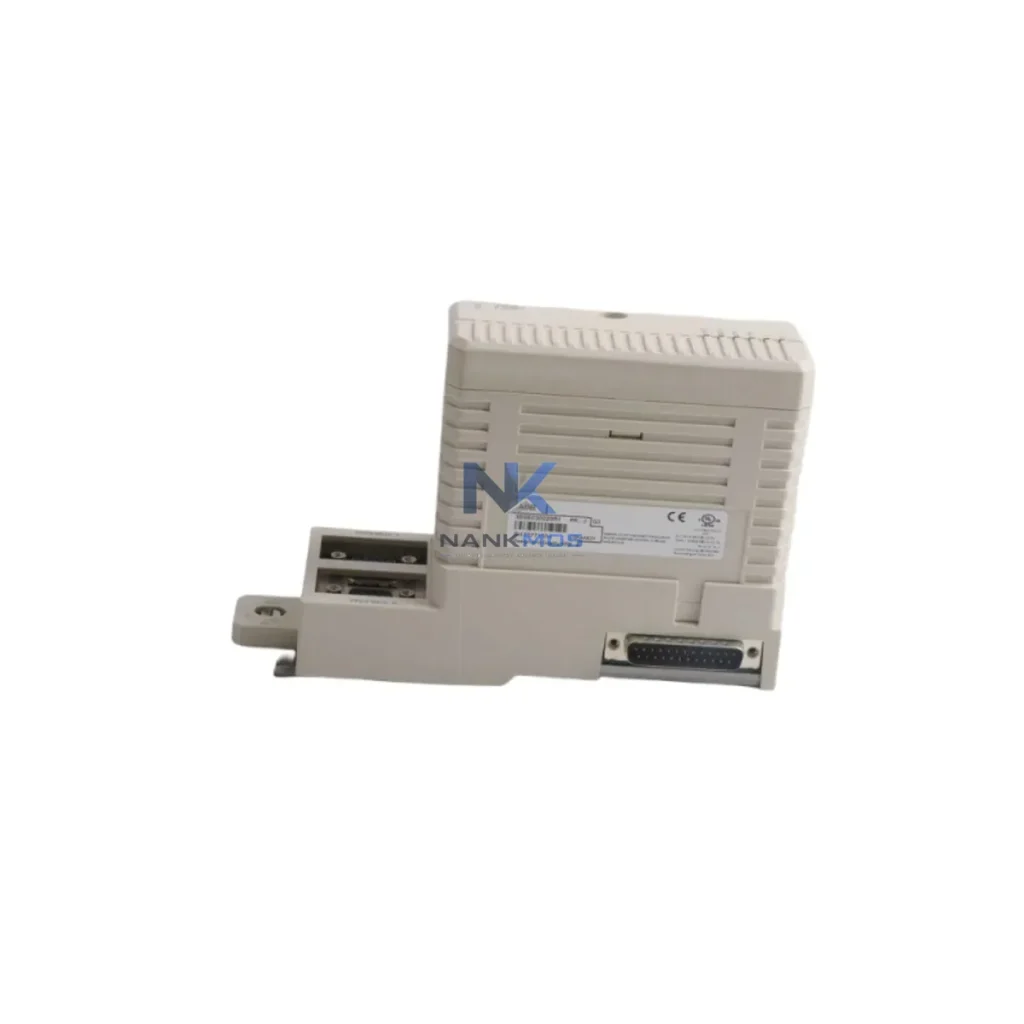

LD800HSE EX Product Description

The ABB LD800HSE EX is a high-speed Ethernet (HSE) Foundation Fieldbus Linking Device engineered for intrinsically safe (EX) field environments within ABB's 800xA Distributed Control System architecture. Designed to bridge the HSE backbone with H1 fieldbus segments, this device plays a critical role in maintaining signal integrity, enabling real-time diagnostics, and supporting modular expansion across multi-layer industrial control platforms. Its system-ready design ensures seamless integration into existing 800xA control cabinets, reducing commissioning time and long-term maintenance overhead.

Within a complete ABB 800xA automation architecture, the LD800HSE EX functions as the critical communication bridge between the high-speed Ethernet backbone and the H1 fieldbus segments that connect intelligent field instruments. Its deployment is most effective when coordinated with the full suite of 800xA platform components.

At the control layer, the ABB PM891 and PM864A process controllers serve as the primary CPU modules, executing control strategies and managing I/O communication across the backplane. These controllers communicate upstream via the ABB CI854 or CI858 PROFIBUS DP communication interface modules, which handle fieldbus master functions for non-FF segments. The LD800HSE EX complements this architecture by managing Foundation Fieldbus H1 segments independently, offloading fieldbus scheduling from the main CPU and improving deterministic communication performance.

For power distribution and redundancy, the ABB SD821 and SD822 power supply modules provide stable 24 VDC rails to the controller backplane and I/O modules. In high-availability installations, dual power feeds are routed through the ABB TB820 or TB840 termination units, ensuring uninterrupted operation during single-point power failures. The LD800HSE EX supports redundant power input, aligning with the overall redundancy philosophy of the 800xA platform.

At the I/O layer, ABB AI810 analog input modules and ABB AO810 analog output modules handle conventional 4–20 mA signals, while the LD800HSE EX manages digital communication with FF-capable field devices such as smart transmitters, valve positioners, and flow meters. This hybrid I/O architecture — combining conventional and fieldbus-connected instruments — is a hallmark of modern 800xA installations in process industries.

For HMI and supervisory integration, the 800xA Operator Workplace connects to the HSE network via standard Ethernet, receiving real-time process data from all H1 segments managed by the LD800HSE EX. Alarm management, trend logging, and asset monitoring functions are all supported through the 800xA Contextual Integration framework, which the LD800HSE EX is fully certified to operate within.

In cabinet-level signal conditioning, ABB NKTU01 or equivalent signal isolators and terminal modules ensure clean signal separation between EX-rated field circuits and the safe-area control cabinet. This is particularly important in petrochemical and offshore installations where the LD800HSE EX's intrinsic safety rating is a primary selection criterion.

The ABB LD800HSE EX is deployed across a wide range of process-intensive industries where Foundation Fieldbus communication and EX-rated hardware are standard requirements.

Oil, Gas & Petrochemical: In upstream and downstream processing facilities, the LD800HSE EX connects EX-rated pressure transmitters, temperature sensors, and control valves on H1 segments to the 800xA DCS backbone. Its intrinsic safety certification allows direct deployment in Zone 1 hazardous areas without additional barriers in many configurations, simplifying cabinet design and reducing installed cost.

Power Generation & Utilities: In combined-cycle power plants and utility substations, the LD800HSE EX supports real-time monitoring of boiler instrumentation, turbine control loops, and auxiliary systems. Its deterministic H1 communication ensures that critical control signals are delivered within defined cycle times, supporting the high-reliability requirements of power generation environments.

Chemical & Pharmaceutical Manufacturing: Batch and continuous process plants rely on Foundation Fieldbus for its ability to carry both process values and device diagnostics over a single cable pair. The LD800HSE EX enables advanced device management (ADM) functions within 800xA, allowing maintenance teams to perform remote calibration, fault diagnosis, and predictive maintenance without interrupting production.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the LD800HSE EX to integrate FF-capable analyzers, flow meters, and pump controllers into centralized SCADA and DCS architectures. Its wide operating temperature range and robust cabinet-mount design support outdoor and semi-outdoor installation environments.

Mining & Metals Processing: In mineral processing and smelting operations, the LD800HSE EX supports integration of FF instruments in high-vibration, high-dust environments. Combined with ABB's asset monitoring tools, it enables condition-based maintenance strategies that reduce unplanned downtime in continuous production lines.

Q1: How many H1 fieldbus segments can the LD800HSE EX support, and what is the maximum number of field devices per segment? The LD800HSE EX supports up to 4 independent H1 fieldbus segments. Each H1 segment can accommodate up to 16 field devices under standard Foundation Fieldbus specifications, though practical installations typically limit this to 8–12 devices per segment to maintain adequate bus cycle times and diagnostic bandwidth. Segment loading should be calculated using ABB's fieldbus engineering tools during system design to ensure deterministic performance.

Q2: Is the LD800HSE EX compatible with 800xA Contextual Integration and Asset Optimization applications? Yes. The LD800HSE EX is fully certified for use within the ABB 800xA Contextual Integration framework. It supports EDDL (Electronic Device Description Language) and FDT/DTM-based device management, enabling full integration with 800xA Asset Optimization, Alarm and Event Management, and Batch Management applications. Device diagnostics from all connected H1 instruments are surfaced directly in the 800xA operator environment without additional middleware.

Q3: What warranty and stock availability terms apply to the LD800HSE EX? All LD800HSE EX units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. Stock is maintained from verified, traceable sources to ensure authenticity and firmware consistency. Global shipping is available with standard lead times of 3–7 business days for in-stock units. For volume procurement or project-specific scheduling, contact our technical sales team for a dedicated supply plan.
