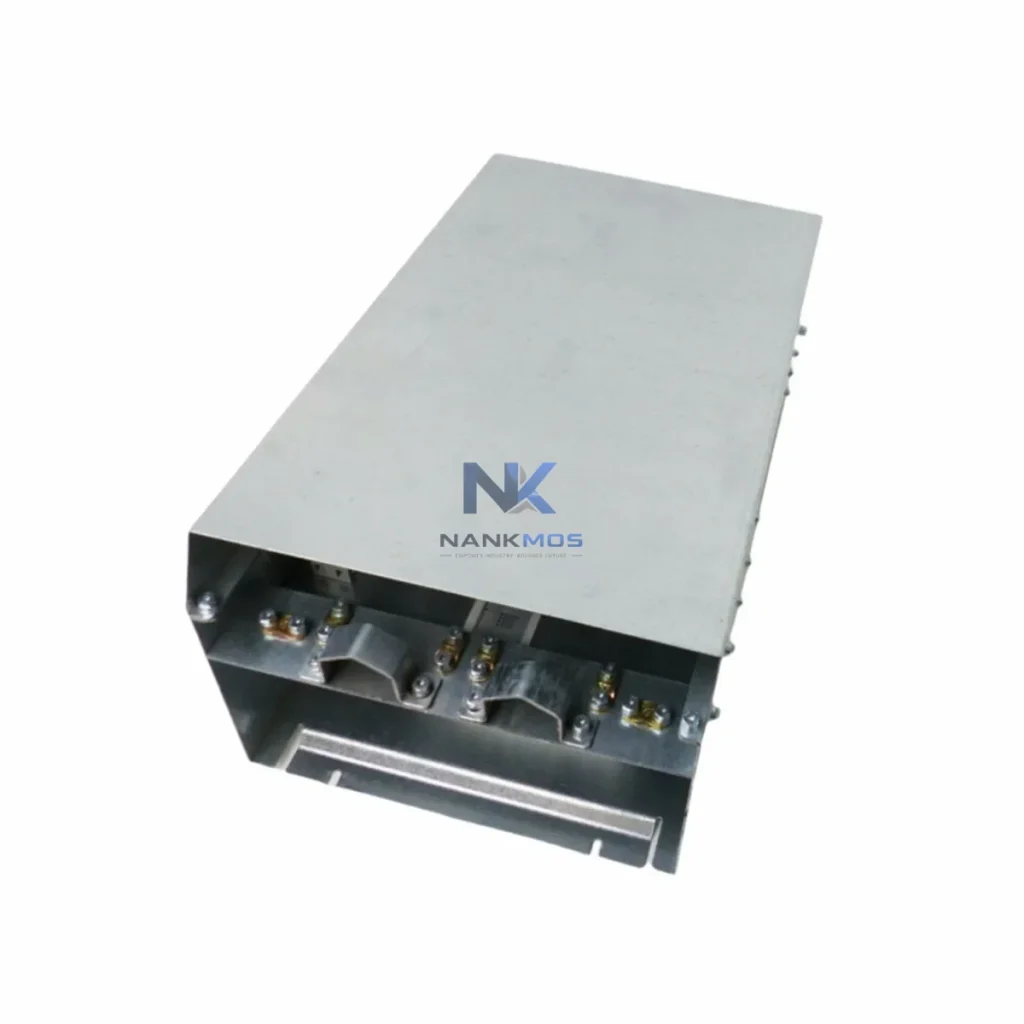

NBRA-659 Product Description

The ABB NBRA-659C Brake Chopper Unit is engineered as a system-level component within the ABB ACS880 drive architecture, not a standalone accessory. Its primary function is to clamp DC bus overvoltage generated during motor deceleration, transferring excess regenerative energy to an external braking resistor. This role is critical in high-inertia applications — crane hoists, centrifuges, winding machines, and test bench drives — where rapid deceleration cycles would otherwise trip the drive on overvoltage fault.

Within a complete ACS880 multidrive cabinet, the NBRA-659C operates in close coordination with the ACS880-104 common DC bus inverter modules, sharing the same DC bus rail and responding dynamically to bus voltage fluctuations. The ACQ580 supply unit or ACS880-07 regenerative supply unit governs the upstream AC-to-DC conversion, while the NBRA-659C handles transient overvoltage events that exceed the supply unit's regeneration capacity or occur in non-regenerative supply configurations.

At the I/O and control layer, the RDIO-01 digital I/O extension module and RAIO-01 analog I/O module provide auxiliary signal monitoring for braking resistor thermal status and chopper activation feedback, enabling the ACS880 drive control unit (ZCU-14 or ZCU-12) to log chopper events and integrate them into the drive's fault history and condition monitoring routines. This diagnostic integration reduces unplanned downtime by surfacing braking system anomalies before they escalate to drive trips.

For communication-layer integration, the ACS880 platform supports PROFIBUS-DP (RPBA-01), PROFINET (RPNI-01), EtherNet/IP (RENI-01), and Modbus TCP (RMBA-01) fieldbus adapter modules. While the NBRA-659C itself does not require a dedicated fieldbus connection, its operational status — chopper activation count, DC bus peak voltage, and resistor thermal load — is accessible through the drive's parameter set and can be transmitted upstream to a DCS or SCADA system via any of these communication adapters. This enables plant-level energy monitoring and predictive maintenance scheduling without additional hardware.

At the power layer, the NBRA-659C must be paired with a correctly rated external braking resistor. ABB's SACE braking resistor assemblies or third-party resistors meeting the ACS880 chopper's peak power and duty cycle requirements are compatible. Proper resistor sizing — based on braking torque, deceleration time, and cycle frequency — is essential to prevent thermal overload and ensure the 12-Month Warranty remains valid under normal operating conditions.

In multidrive common DC bus configurations, multiple ACS880-104 inverter modules may share a single NBRA-659C or a parallel pair of choppers, depending on the aggregate regenerative power. The NBRA-659C's modular form factor allows it to be installed alongside ACH580 HVAC drives, ACS580 general-purpose drives, or ACS880 multidrives within the same control cabinet, maintaining a consistent ABB hardware ecosystem that simplifies spare parts management, firmware compatibility, and long-term service contracts.

For HMI integration, the ABB CP600 series HMI panels or third-party SCADA terminals connected via the drive's fieldbus adapter can display real-time DC bus voltage trends, chopper activation events, and resistor temperature alarms. This visibility is particularly valuable in continuous process industries — paper mills, steel rolling lines, and chemical reactors — where braking system health directly impacts production continuity.

Manufacturing & Packaging Lines: In high-speed packaging machinery and conveyor systems with frequent start-stop cycles, the NBRA-659C prevents DC bus overvoltage trips during rapid deceleration, maintaining line throughput and reducing drive fault-related downtime. Its integration with the ACS880 drive's adaptive control algorithms ensures smooth torque transitions without mechanical shock.

Power Generation & Utilities: In power plant auxiliary systems — boiler feed pumps, induced draft fans, and cooling tower drives — the NBRA-659C provides reliable braking energy management during load shedding events. Its compatibility with the ACS880's functional safety options (FSO-12 safety functions module) supports SIL 2 / PLd safety architectures required in utility environments.

Petrochemical & Process Control: Compressor and pump drives in hazardous area installations often require ATEX-rated enclosures with internal ABB ACS880 drives. The NBRA-659C, installed within the drive cabinet, maintains the enclosure's integrity while providing essential braking capability for emergency stop sequences and controlled shutdown procedures.

Water & Wastewater Treatment: Pump station drives handling variable flow demands benefit from the NBRA-659C's ability to manage regenerative energy during pump deceleration, particularly in systems with significant static head where motor overhauling can generate substantial back-EMF.

Mining & Metals: Conveyor belt drives, hoist systems, and grinding mill drives in mining operations represent some of the most demanding braking applications. The NBRA-659C's robust IGBT switching topology and thermal management design support the high duty cycles and extended operating hours characteristic of continuous mining operations.

Marine & Offshore: Thruster drives and winch control systems on vessels using ABB's marine drive platforms benefit from the NBRA-659C's ability to handle the dynamic braking demands of variable-speed propulsion and deck machinery, where regenerative energy cannot always be returned to the vessel's power grid.

Q1: Is the ABB NBRA-659C compatible with all ACS880 frame sizes, and can it be retrofitted into an existing ACS880 installation? The NBRA-659C is designed for specific ACS880 frame sizes within the multidrive and single-drive cabinet configurations. Compatibility depends on the drive's DC bus voltage rating, the available mounting space within the cabinet, and the existing braking resistor wiring. For retrofit installations, it is essential to verify the drive's firmware version supports the NBRA-659C's gate driver interface and that the existing braking resistor meets the chopper's minimum resistance and peak power specifications. NANKMOS provides pre-shipment compatibility verification for all NBRA-659C orders, and our technical team can assist with frame-size matching based on your ACS880 drive's nameplate data.

Q2: How does the NBRA-659C integrate into a redundant drive architecture, and what happens if the chopper unit fails during operation? In critical applications requiring high availability, two NBRA-659C units can be installed in parallel on the same DC bus, with each unit sized to handle the full braking load independently. If one chopper fails, the ACS880 drive's fault management system detects the anomaly through DC bus voltage monitoring and can initiate a controlled deceleration using the remaining chopper or switch to a longer deceleration ramp to reduce regenerative energy. The drive's condition monitoring parameters (accessible via the ZCU control unit) log chopper activation events, enabling predictive replacement before failure. All NBRA-659C units supplied by NANKMOS are covered by a 12-Month Warranty from the date of dispatch, with replacement units available from stock to minimize system downtime.

Q3: What are the long-term maintenance requirements for the NBRA-659C, and how does NANKMOS support ongoing inventory availability? The NBRA-659C's primary maintenance requirements involve periodic inspection of the IGBT module's thermal interface, verification of the braking resistor's resistance value and thermal condition, and review of the drive's chopper activation log for abnormal frequency patterns that may indicate resistor undersizing or excessive braking duty cycles. ABB recommends capacitor inspection and IGBT health checks at intervals aligned with the drive's overall preventive maintenance schedule — typically every 3–5 years depending on operating environment and duty cycle. NANKMOS maintains stock of the NBRA-659C and compatible ACS880 spare parts to support both planned maintenance and emergency replacement requirements. Our global logistics network ensures dispatch within 3–5 business days, and all units are tested prior to shipment to verify electrical integrity and gate driver functionality.
