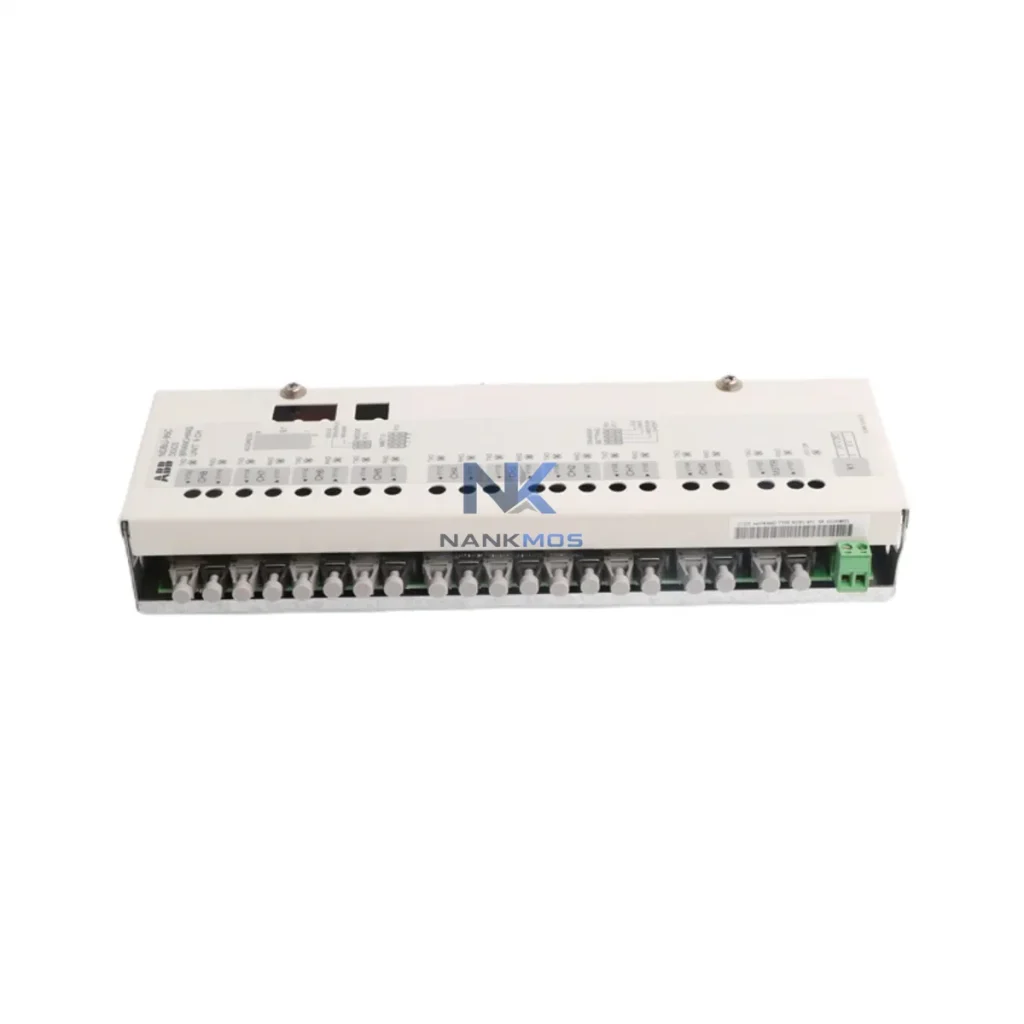

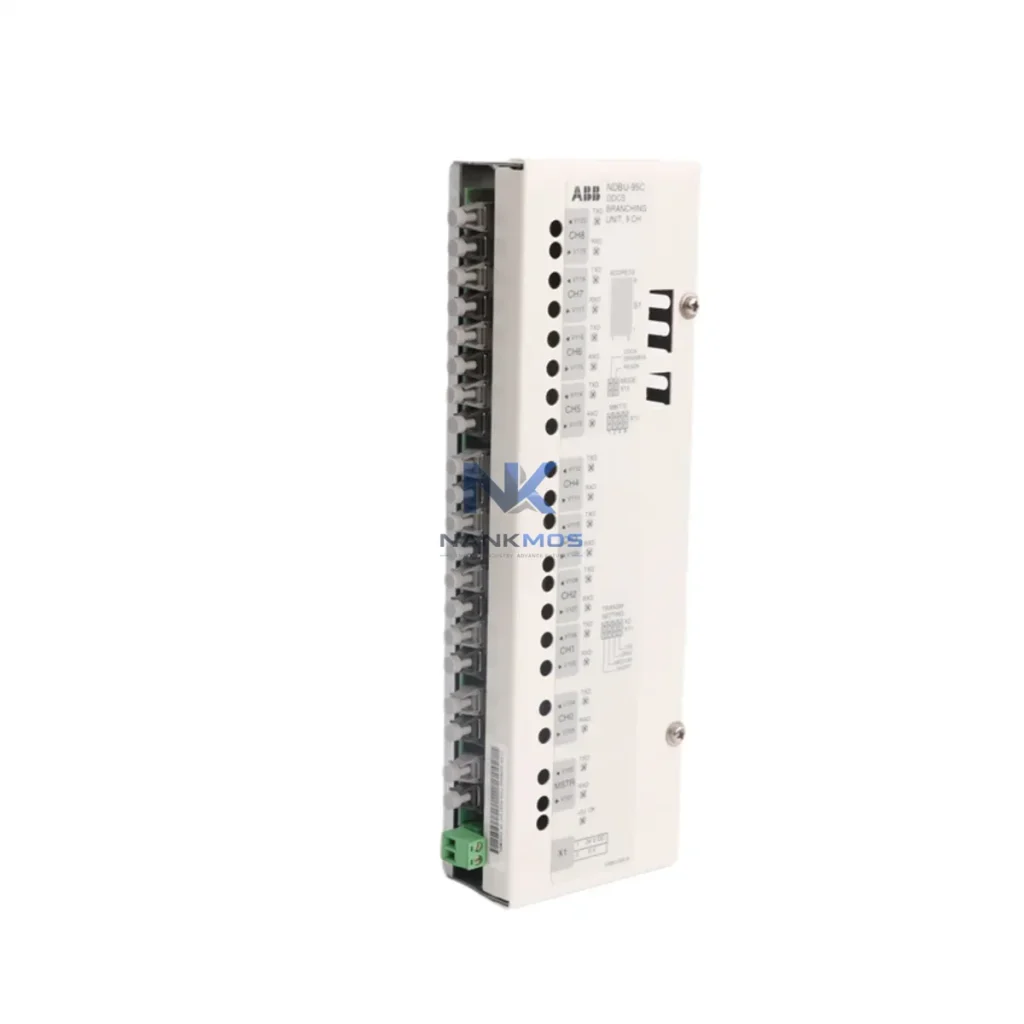

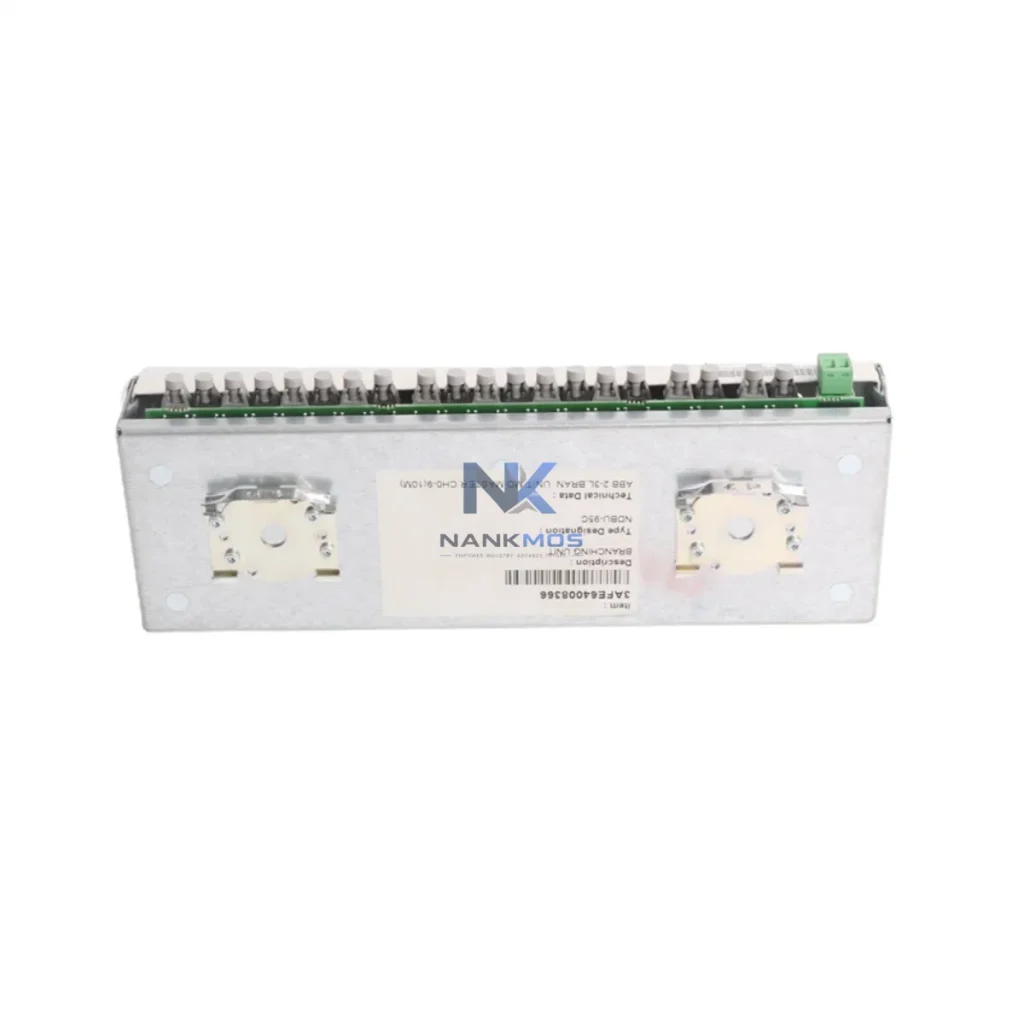

ABB NDBU-95C 3AFE64008366 DDCS Branching Unit

Product Details

NDBU-95C 3AFE64008366 Product Description

The ABB NDBU-95C (part number 3AFE64008366) is a dedicated DDCS (Distributed Drive Control System) fiber optic branching unit engineered for the ACS800 industrial drive platform. Within a multi-drive or multi-axis automation architecture, the NDBU-95C functions as the critical communication backbone node, distributing high-speed fiber optic DDCS signals between the master drive controller and up to four subordinate drive units or I/O extension modules. Its role is not peripheral — it is the structural enabler of synchronized, low-latency drive coordination across the entire control layer.

In modern industrial automation systems, the integrity of the communication layer directly determines the reliability of the control architecture. The NDBU-95C ensures that DDCS ring or star topology configurations maintain signal fidelity across all connected nodes, eliminating the electrical noise susceptibility inherent in copper-based fieldbus alternatives. This fiber optic isolation is particularly critical in high-power drive environments where EMI interference from ACS800 inverter stages, motor cables, and power bus transitions would otherwise compromise signal quality and trigger nuisance faults.

The NDBU-95C is most effectively deployed as part of a fully integrated ABB ACS800 drive ecosystem. In a typical multi-drive cabinet installation, the NDBU-95C connects directly to the RDCO-02 or RDCO-03 DDCS communication option board mounted on the ACS800 master drive unit. From the branching unit, individual DDCS fiber links extend to subordinate ACS800 single drives, enabling the master controller — typically an AC800M PLC or an ACS800 configured as master — to issue synchronized torque, speed, and position references across all drive axes simultaneously.

Within the control layer, the NAMC-11 or NAMC-51 application control boards resident in each ACS800 unit receive coordinated setpoints via the DDCS ring, ensuring that multi-motor winding, sectional drive, or coordinated conveyor applications maintain precise speed ratios without inter-drive communication latency. The NDBU-95C branching unit eliminates the need for individual point-to-point DDCS cabling between drives, reducing cabinet wiring complexity and improving long-term maintenance accessibility.

At the I/O layer, AIMA-01 or AINT-02 interface boards within the ACS800 cabinet provide analog and digital I/O expansion, while the NDBU-95C ensures that all I/O extension modules connected via DDCS remain synchronized with the master control cycle. For installations requiring fieldbus integration, NMBP-01 (Profibus-DP) or NMBA-01 (DeviceNet) adapter boards can be integrated alongside the NDBU-95C to bridge the DDCS architecture with plant-level SCADA or DCS systems.

Power supply integrity for the NDBU-95C and associated control boards is maintained through the APBU-44C or APBU-74C power branching units, which distribute 24 VDC auxiliary power across the drive cabinet. In redundant drive architectures, the NDBU-95C supports ring topology DDCS configurations where a single fiber break does not interrupt communication to the remaining drive nodes, providing inherent fault tolerance without additional hardware. Panel builders and system integrators working with ABB ACS800 multi-drive cabinets will recognize the NDBU-95C as a standard, non-negotiable component in any DDCS-based multi-axis deployment.

Paper & Pulp / Converting Lines: In sectional drive applications for paper machines, coating lines, and winding systems, the NDBU-95C enables the ACS800 master drive to distribute speed and tension references to all section drives simultaneously via DDCS. This eliminates web break events caused by inter-section speed deviations and supports dynamic draw control across the full machine width.

Mining & Minerals Processing: Conveyor drive systems in underground mining and open-pit ore handling rely on synchronized multi-motor drives to prevent belt slip and overload. The NDBU-95C DDCS branching unit ensures that all ACS800 drives on a conveyor train receive identical speed references within the same control cycle, maintaining belt tension balance under variable load conditions.

Steel & Metals Rolling Mills: Rolling mill stands require microsecond-level speed synchronization between drive sections to maintain strip thickness tolerances. The NDBU-95C fiber optic DDCS architecture provides the noise-immune, low-latency communication path required for inter-stand speed coordination in hot and cold rolling applications.

Marine Propulsion & Offshore: Vessel propulsion systems using ACS800 multi-drive configurations for shaft line or azimuth thruster control depend on the NDBU-95C to maintain DDCS communication integrity in high-EMI marine electrical environments. The fiber optic isolation eliminates ground loop interference from ship power distribution systems.

Water & Wastewater Treatment: Pump station multi-drive installations using ACS800 units for variable speed pumping benefit from NDBU-95C DDCS coordination for pressure-based flow balancing across parallel pump drives, reducing energy consumption and extending pump mechanical life.

Q1: How many ACS800 drives can the NDBU-95C support in a single DDCS ring? The NDBU-95C provides four DDCS fiber optic channels (CH1–CH4), allowing connection of up to four subordinate drive units or DDCS-capable I/O modules per branching unit. For larger multi-drive systems requiring more than four nodes, multiple NDBU-95C units can be cascaded within the DDCS ring topology, with the master RDCO board managing the full ring. ABB recommends a maximum of 12 nodes per DDCS ring for optimal cycle time performance.

Q2: Is the NDBU-95C compatible with ACS800 firmware versions and RDCO board variants? The NDBU-95C is compatible with RDCO-02 and RDCO-03 DDCS option boards across all standard ACS800 firmware revisions. It is not dependent on drive firmware version for basic DDCS branching functionality. However, advanced DDCS master-follower features such as torque reference chaining and speed ratio control require NAMC application firmware version 7.x or later on the ACS800 units. All NDBU-95C units supplied by NANKMOS are tested for DDCS signal integrity prior to shipment.

Q3: What is the warranty coverage and lead time for the NDBU-95C 3AFE64008366? All NDBU-95C units are covered by a 12-Month Warranty from the date of shipment, covering full functional performance under normal operating conditions. Units are sourced from verified supply channels, inspected, and function-tested before dispatch. Standard lead time for in-stock units is 3–7 business days for international shipment. For urgent project requirements or volume procurement, contact NANKMOS directly to confirm current stock availability and expedited shipping options.
