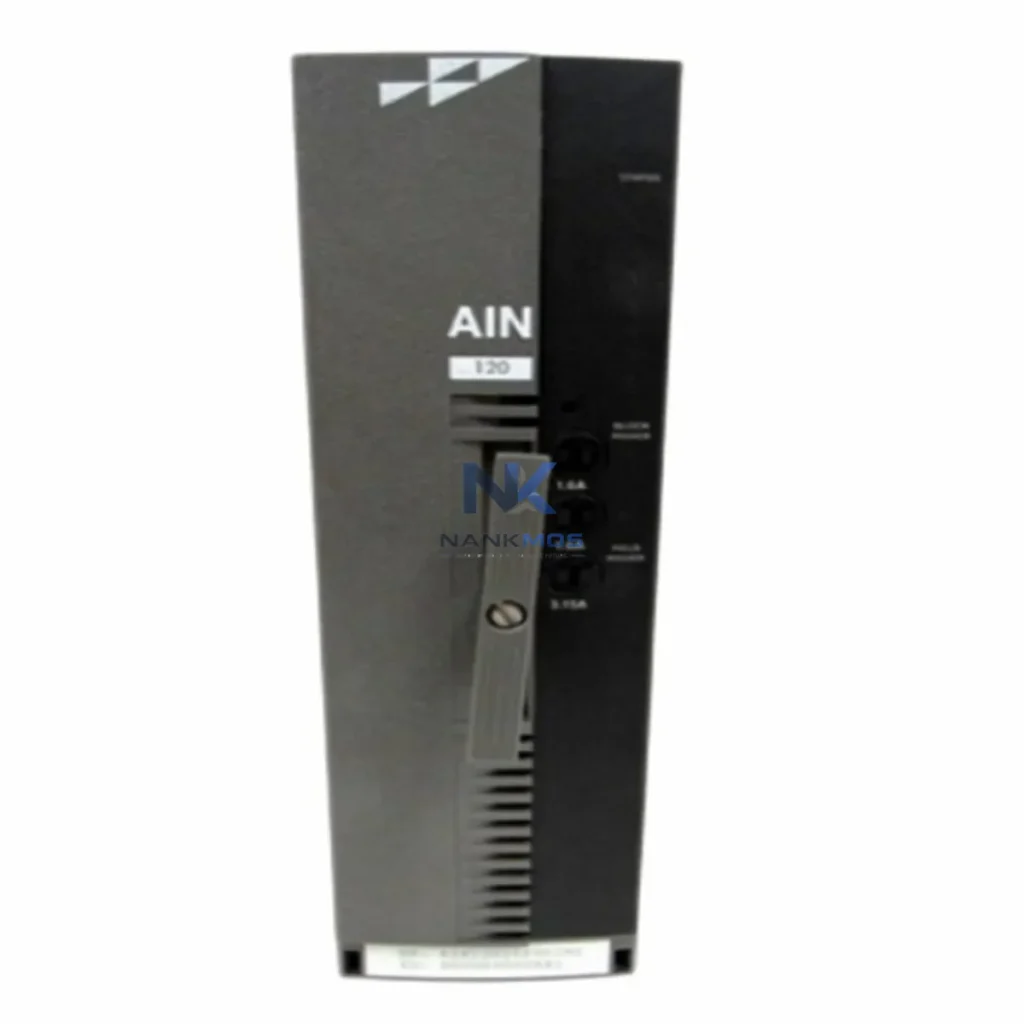

ABB P-HB-AIN-12010000 DCS Analog Input Module

Product Details

P-HB-AIN-12010000 Product Description

In modern smart factory environments, the integrity of field-level data determines the quality of every decision made upstream — from SCADA dashboards to MES reporting layers. The ABB P-HB-AIN-12010000 is a HART-enabled analog input block designed for the ABB Symphony Plus DCS platform, engineered to serve as a precision data acquisition node within distributed control architectures. It captures 4–20 mA analog signals from field instruments — pressure transmitters, temperature sensors, flow meters, and level detectors — and delivers structured process data across the Symphony Plus network backbone with deterministic timing and high channel density.

Where legacy analog wiring once created data silos and limited diagnostic visibility, the P-HB-AIN-12010000 bridges the gap between physical process variables and the digital control layer. Its HART communication capability allows simultaneous transmission of primary process values alongside secondary diagnostic parameters, enabling remote device interrogation without interrupting live process control. This dual-channel data path is foundational to any plant-wide remote diagnostics strategy.

The P-HB-AIN-12010000 sits at the origin point of the plant data chain. Field instruments — including Rosemount 3051 pressure transmitters, Endress+Hauser Promag flow meters, and Yokogawa EJA temperature sensors — output 4–20 mA signals that are received and digitized by this analog input block. Once digitized, the process values are passed through the ABB Symphony Plus S+ Controller (such as the ABB PM891 or PM803F processor modules) via the high-speed S+ backplane bus, where control logic executes in real time.

From the controller layer, structured process data is forwarded to the plant network via ABB AC800M communication interfaces or dedicated ABB CI854 PROFIBUS DP communication modules, enabling integration with upstream SCADA systems such as ABB System 800xA or third-party platforms like Wonderware InTouch and Ignition SCADA. Operators monitoring the HMI layer — whether on ABB Panel 800 operator stations or remote thin-client terminals — receive live process values with sub-second refresh rates, supporting real-time decision-making on the plant floor.

For facilities deploying edge intelligence, the analog data stream from the P-HB-AIN-12010000 can be aggregated by ABB Edge Gateways or third-party IIoT gateways supporting MQTT and OPC-UA protocols, enabling cloud-based data historians and predictive maintenance platforms to consume raw process data without modifying the DCS control layer. Industrial Ethernet switches — such as those in the ABB EthernetIP or Hirschmann MICE series — provide the network backbone that carries this data reliably across the plant floor.

In multi-loop control architectures, the P-HB-AIN-12010000 works alongside ABB AO890 analog output blocks and ABB DI890 digital input modules to form a complete I/O subsystem. Variable frequency drives receiving setpoint commands from the DCS — such as the ABB ACS880 series — depend on accurate analog input data from modules like the P-HB-AIN-12010000 to maintain precise motor speed control in pump, fan, and compressor applications. The HART diagnostic channel further enables the DCS to poll field device health status, valve position feedback, and sensor calibration data without requiring additional wiring or manual inspection rounds.

Many industrial sites operating legacy DCS infrastructure face a common set of challenges: protocol fragmentation between field devices and control systems, data islands that prevent plant-wide visibility, and limited remote diagnostic capability that forces costly on-site maintenance visits. The P-HB-AIN-12010000 directly addresses these pain points within the Symphony Plus ecosystem.

Protocol Unification: By supporting HART over standard 4–20 mA wiring, the module eliminates the need for separate HART multiplexers or protocol converters in most Symphony Plus installations. Field devices communicating via HART are natively interrogated through the DCS, consolidating protocol management within a single platform.

Eliminating Data Islands: Analog signals that previously terminated at local panel indicators are now digitized, tagged, and made available across the entire S+ network. Process historians, MES systems, and energy management platforms can subscribe to these data points, breaking down the information silos that limit production transparency.

Remote Monitoring and Alarm Tracking: HART secondary variables — including sensor temperature, loop current, and device status flags — are surfaced in the SCADA alarm management layer, enabling operators to detect instrument drift, wiring faults, and calibration deviations before they escalate to process upsets. This capability is central to any proactive maintenance or alarm rationalization program.

System Scalability: The modular backplane architecture of Symphony Plus allows additional P-HB-AIN-12010000 blocks to be added as process expansion demands grow, without requiring controller replacement or network reconfiguration. This scalability protects capital investment and shortens commissioning timelines for plant extensions.

Q1: Does the P-HB-AIN-12010000 support HART pass-through to the SCADA layer? Yes. When integrated with ABB System 800xA or compatible SCADA platforms, HART secondary variables and device diagnostics are passed through the Symphony Plus DCS to the operator interface, enabling full HART asset management without additional hardware.

Q2: What is the communication latency for analog input data on the Symphony Plus backplane? The S+ backplane bus is designed for deterministic, low-latency data transfer. Typical scan cycle times for analog input blocks are configurable within the controller task scheduler, supporting fast loop control applications with sub-100ms update rates depending on system configuration.

Q3: Is the P-HB-AIN-12010000 compatible with third-party SCADA systems beyond ABB 800xA? Yes. Data from the P-HB-AIN-12010000 is accessible via OPC-DA/UA servers running on the Symphony Plus DCS network, enabling integration with Wonderware, Ignition, Siemens WinCC, and other OPC-compliant SCADA platforms without protocol conversion hardware.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this module? Every P-HB-AIN-12010000 unit supplied by NANKMOS is function-tested prior to dispatch and covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch to support urgent project timelines and MRO replacement requirements.
