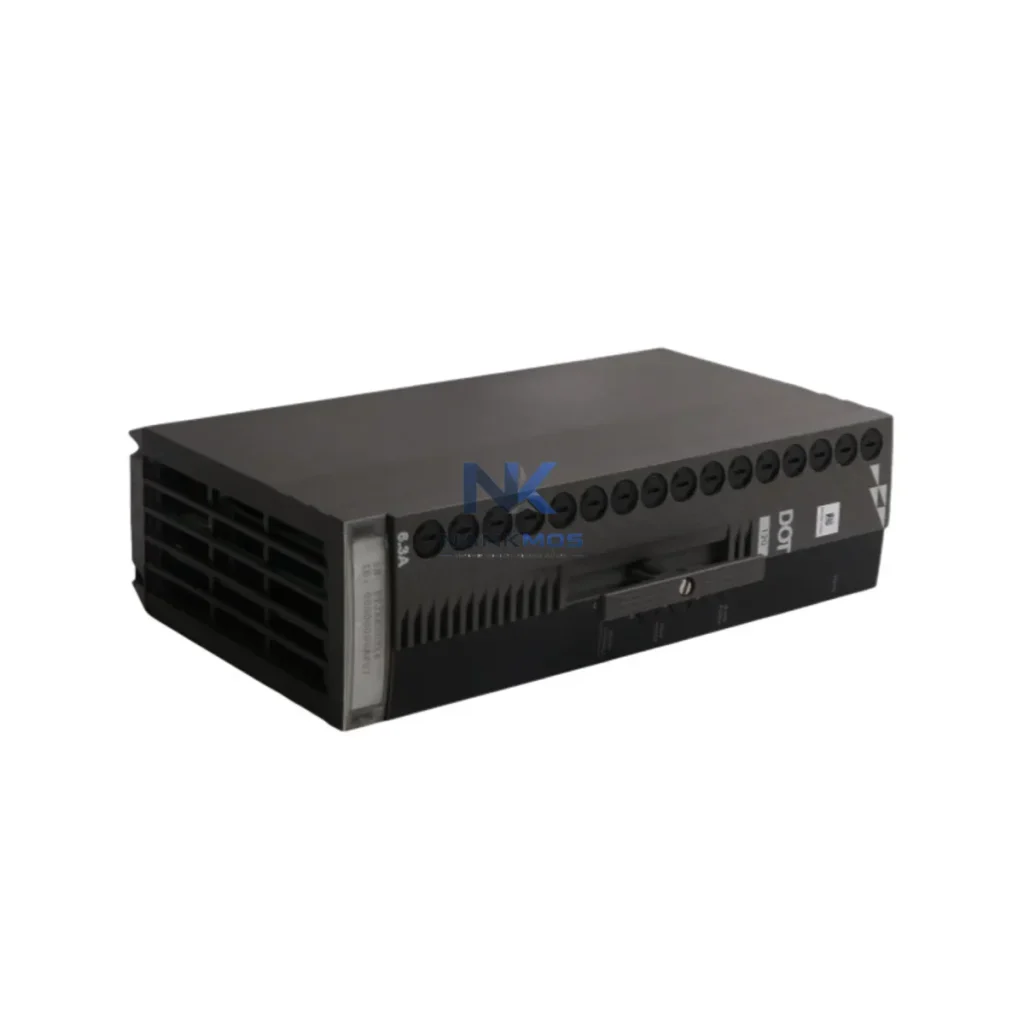

ABB P-HB-DOT-12010000 PHBDOT12010000

Product Details

P-HB-DOT-12010000 PHBDOT12010000 Product Description

The ABB P-HB-DOT-12010000 is a discrete digital output module engineered for deployment within the ABB Symphony Plus distributed control system architecture. Its role extends well beyond simple signal switching — it functions as a precision output interface that maintains system-wide signal integrity, deterministic response timing, and modular scalability across the full control hierarchy.

In a complete Symphony Plus automation platform, the P-HB-DOT-12010000 operates in close coordination with the AC800M High Integrity Controller, which serves as the primary CPU node managing process logic execution and I/O arbitration. The controller communicates with the output module via the Symphony Plus backplane bus, ensuring sub-millisecond command propagation to field actuators. Alongside the DO module, the P-HB-DIT-12010000 Digital Input Module provides the complementary discrete input layer, enabling bidirectional signal flow for interlock verification, status feedback, and closed-loop discrete control sequences.

Power distribution within the control cabinet is managed by the P-PW-AC-12010000 Power Supply Module, which delivers regulated 24 VDC to the I/O backplane and ensures that the P-HB-DOT-12010000 operates within its rated electrical envelope even during transient load events. For applications requiring high-availability architectures, the Symphony Plus platform supports redundant power supply configurations, and the DO module's backplane interface is designed to tolerate hot-swap replacement without process interruption — a critical feature in continuous process industries such as petrochemicals and power generation.

Signal marshalling between the P-HB-DOT-12010000 and field junction boxes is typically routed through Symphony Plus Termination Units (TUs) and HART Multiplexer Modules, which consolidate field wiring and enable asset management diagnostics without additional hardware overhead. In installations where galvanic isolation is required between the control system and field devices — common in hazardous area classifications or high-voltage proximity environments — ABB RRIO Signal Isolators are inserted in the signal path to maintain loop integrity and protect the module's output drivers.

At the communication layer, the Symphony Plus architecture integrates the P-HB-DOT-12010000 within a broader network topology that includes ABB Industrial Ethernet Switches (AF100 series) and PROFIBUS DP Gateway Modules, enabling the DCS to interface with third-party field devices, variable frequency drives, and motor control centers. This contextual integration capability ensures that the DO module's output commands can be coordinated with upstream SCADA systems, MES platforms, and historian servers without protocol conversion bottlenecks.

For operator visibility, the Symphony Plus HMI layer — typically implemented via ABB System 800xA Operations Workstations — provides real-time status monitoring of each output channel on the P-HB-DOT-12010000, including output state, diagnostic alarms, and forced output indicators. This transparency supports rapid fault isolation during commissioning and reduces mean time to repair (MTTR) during production incidents.

In redundant control architectures, the P-HB-DOT-12010000 can be paired with a Symphony Plus Redundancy Module to implement bumpless transfer between primary and standby I/O paths. This configuration is particularly valuable in safety-instrumented system (SIS) adjacent applications where output channel availability must be maintained above 99.9% across the plant lifecycle. The module's diagnostic registers are continuously polled by the AC800M controller, and any channel fault — open-circuit load, short-circuit condition, or supply undervoltage — is immediately surfaced to the operator console without requiring manual inspection of the field cabinet.

The P-HB-DOT-12010000 is deployed across a broad spectrum of industrial verticals where discrete output control is a foundational requirement of the automation architecture:

Power Generation & Utilities: In combined-cycle gas turbine (CCGT) and hydroelectric plants, the module drives solenoid valves, motor starters, and circuit breaker trip coils within the turbine control and balance-of-plant (BOP) systems. Its deterministic output timing ensures that protective relay sequences execute within the required response windows defined by IEC 61850 and NERC CIP compliance frameworks.

Oil, Gas & Petrochemical: Refinery and LNG terminal applications rely on the P-HB-DOT-12010000 to control shutdown valves (SDVs), blowdown valves, and pump motor contactors within emergency shutdown (ESD) and process control systems. The module's compatibility with Symphony Plus SIL-rated configurations supports IEC 61511 functional safety requirements without requiring a separate safety PLC layer.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the module to sequence pump stations, actuate chemical dosing valves, and control UV disinfection systems. The Symphony Plus platform's distributed I/O architecture allows the P-HB-DOT-12010000 to be deployed in remote pump stations while maintaining centralized supervisory control over fiber-optic Ethernet links.

Mining & Minerals Processing: Conveyor belt control, crusher motor sequencing, and flotation cell valve actuation in mineral processing plants benefit from the module's robust output drive capability and its ability to operate in high-vibration, high-dust environments when installed in appropriately rated enclosures.

Packaging & Discrete Manufacturing: High-speed packaging lines and automotive assembly systems integrate the P-HB-DOT-12010000 within Symphony Plus islands of automation to control pneumatic actuators, reject gates, and conveyor diverters. The module's fast output update rate supports the cycle times required by modern servo-coordinated packaging machinery.

Q1: Is the P-HB-DOT-12010000 compatible with both legacy Harmony and current Symphony Plus controllers? The P-HB-DOT-12010000 is designed for the Symphony Plus (S+) I/O platform and is fully compatible with AC800M and AC800M High Integrity controllers. For legacy Harmony DCI or MFC systems, ABB provides migration kits and adapter backplanes that allow Symphony Plus I/O modules to be integrated into existing Harmony racks, preserving field wiring investments while upgrading the control layer. Confirm your specific controller firmware version and backplane revision with your ABB system integrator prior to installation to ensure full feature compatibility.

Q2: What commissioning steps are required to verify output channel integrity after installation? After physical installation and backplane seating, the AC800M controller's I/O configuration tool (Control Builder M) should be used to perform a channel-by-channel force test, verifying that each of the 12 output channels actuates the correct field device and that the feedback status (where available) matches the commanded state. The module's built-in diagnostics will flag any open-circuit or short-circuit conditions during the force test, allowing wiring faults to be corrected before process startup. All P-HB-DOT-12010000 units supplied by NANKMOS have undergone pre-shipment functional verification, reducing on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and how is inventory availability maintained for long-term projects? The 12-Month Warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. For long-term projects requiring multi-year spare parts availability, NANKMOS maintains a dedicated inventory buffer of Symphony Plus I/O modules including the P-HB-DOT-12010000, with global logistics support to minimize lead times for replacement units. Customers with critical infrastructure requirements are encouraged to contact our technical team to establish a framework supply agreement that guarantees module availability across the full project lifecycle.
