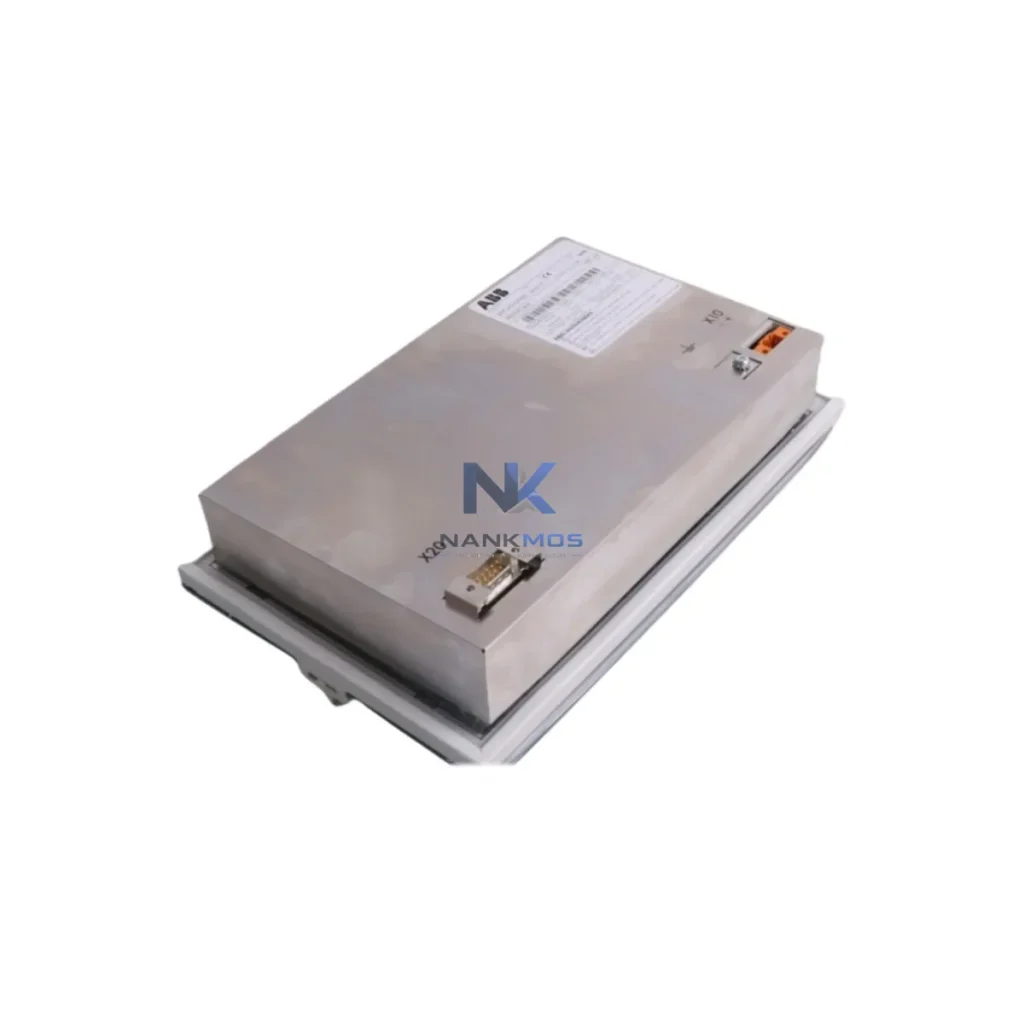

ABB REF542 PLUS 76A3NDNN36ESU31 Protection Relay

Product Details

REF542 PLUS 76A3NDNN36ESU31 Product Description

The ABB REF542plus 76A3NDNN36ESU31 is a configurable feeder protection relay engineered for deployment within the REF54x protection and control architecture. Designed to operate as a core protection layer component, this relay delivers comprehensive overcurrent, earth fault, and directional protection functions while maintaining full contextual integration with ABB's substation automation ecosystem. Its modular hardware platform supports flexible I/O expansion, binary signal routing, and direct communication with station-level SCADA and DCS environments, making it a reliable building block for both greenfield and retrofit control system projects.

Within a layered industrial control architecture, the REF542plus 76A3NDNN36ESU31 occupies the protection layer — interfacing upward to the station bus and downward to primary switchgear and field instrumentation. Its dual-port communication capability supports IEC 61850 GOOSE messaging and Modbus RTU simultaneously, enabling seamless contextual integration across heterogeneous control platforms. Engineers deploying this relay in power distribution, petrochemical, or water treatment substations benefit from its deterministic trip logic, configurable protection functions, and hardware-level interlocking capability that reduces dependency on external PLC logic for protection coordination.

The relay's signal architecture is built around a high-resolution analog input stage that accepts current transformer and voltage transformer inputs directly, eliminating the need for intermediate signal conditioning modules in most standard feeder configurations. This direct-input design reduces wiring complexity, minimizes signal chain latency, and improves overall protection system reliability — particularly in environments where electromagnetic interference from variable frequency drives, large motor starters, or high-voltage switching events can degrade signal fidelity in conventional relay installations.

From a system integration perspective, the REF542plus 76A3NDNN36ESU31 is designed to operate alongside complementary ABB components including the REF543, REF545, and REF546 protection relays within the same REF54x family, allowing engineers to standardize protection philosophy across an entire substation bay without introducing cross-vendor compatibility risks. The relay's configuration tool, CAP505, supports offline parameter editing, protection function library management, and disturbance record extraction — enabling engineering teams to maintain consistent relay settings databases across multiple substations and reduce commissioning time on repeat projects.

In redundant protection architectures, the REF542plus 76A3NDNN36ESU31 supports main-backup relay coordination through its binary input and output matrix, which can be configured to receive trip commands from upstream bus protection relays such as the REB500 or REF615 series, or to issue blocking signals to adjacent feeder relays during evolving fault conditions. This interlocking capability is essential in ring-bus and breaker-and-a-half substation configurations where protection selectivity must be maintained across multiple switching states without operator intervention.

The relay integrates naturally into ABB's COM600 station automation platform and MicroSCADA Pro environments, where it appears as a standard IED node on the station bus. Event logs, disturbance records, and real-time measurement data are accessible through the station HMI without requiring dedicated relay communication software at the operator workstation level. This architecture reduces the software licensing footprint at the station level and simplifies long-term maintenance by consolidating relay data access within the existing SCADA infrastructure.

For installations requiring power system quality monitoring alongside protection, the REF542plus 76A3NDNN36ESU31 can be configured to log voltage and current harmonics, power factor, and energy consumption data — functions that complement dedicated power quality analyzers such as the ABB PQM II or third-party Modbus-compatible meters connected to the same station bus. This dual-function capability reduces panel space requirements and simplifies the instrumentation layer in compact switchgear assemblies.

All units supplied by NANKMOS are pre-shipment tested against ABB factory acceptance criteria, verified for firmware version compatibility with current CAP505 configuration tool releases, and shipped with full parameter documentation. Each REF542plus 76A3NDNN36ESU31 is covered by a 12-Month Warranty from the date of delivery, with in-stock availability supporting urgent project timelines and emergency replacement requirements across global destinations.

The REF542plus 76A3NDNN36ESU31 achieves its full operational value when deployed as part of a coordinated automation platform rather than as a standalone protection device. In a typical medium-voltage distribution substation, this relay operates alongside REF543 and REF545 feeder protection relays in adjacent bays, with all IEDs connected to a common IEC 61850 station bus managed by the ABB COM600 gateway. The COM600 aggregates protection events, disturbance records, and real-time measurements from all bay-level IEDs and presents a unified data model to the MicroSCADA Pro station HMI, eliminating the need for individual relay communication interfaces at the operator level.

At the control layer, the REF542plus integrates with ABB AC500 PLCs or third-party Modbus-compatible controllers for interlocking logic that extends beyond the relay's internal binary I/O matrix. In installations where the REB500 bus protection relay is deployed for busbar protection, GOOSE messages from the REF542plus enable high-speed trip signal exchange between the bus IED and feeder IEDs without copper wiring between relay panels — a significant advantage in large switchgear rooms where inter-panel wiring represents a substantial installation cost and a long-term maintenance burden.

The power supply layer for REF542plus installations typically relies on ABB UPS modules or dedicated 24 VDC / 48 VDC station battery systems, ensuring relay availability during grid disturbances when protection functions are most critical. Signal isolation between the relay's binary inputs and external control circuits is provided by the relay's internal optocoupler input stage, supplementing any external signal isolators used in the field wiring layer. For installations requiring additional I/O expansion beyond the relay's native capacity, ABB RPBA-01 or RDCO communication adapter modules can extend the relay's integration into broader automation networks.

The REF542plus 76A3NDNN36ESU31 is deployed across a wide range of industrial and utility applications where feeder protection reliability and system integration depth are primary engineering requirements. In power generation facilities, this relay protects auxiliary power feeders supplying boiler feed pumps, cooling water systems, and plant lighting circuits, with protection settings coordinated against upstream generator protection relays and downstream motor protection relays to maintain selectivity across the full fault current range.

In petrochemical and oil and gas facilities, the relay's directional earth fault protection functions are particularly valuable in resistance-grounded or isolated-neutral distribution systems where conventional overcurrent protection cannot reliably detect high-impedance earth faults. Water treatment and municipal utility installations benefit from the relay's energy metering capability, which supports operational reporting requirements without additional dedicated metering hardware. Mining and mineral processing operations deploy the REF542plus in high-availability configurations with main-backup relay pairs, leveraging the relay's binary interlocking functions to implement automatic changeover logic between primary and backup feeders during planned maintenance or unplanned fault events.

Marine and offshore platform electrical systems use the REF542plus in compact switchgear assemblies where panel space is constrained and multi-function relay capability reduces the total number of devices required per switchboard section. Packaging and process manufacturing lines deploy this relay in motor control center (MCC) feeders where coordinated protection between the feeder relay and downstream motor protection relays must be maintained across variable load profiles driven by production scheduling changes.

Q1: Is the REF542plus 76A3NDNN36ESU31 compatible with existing REF54x substation architectures using CAP505 configuration databases? Yes. The REF542plus 76A3NDNN36ESU31 is fully compatible with CAP505 configuration tool databases used across the REF54x family. Existing protection function libraries, parameter sets, and disturbance record templates can be applied directly to this unit, reducing engineering time for replacement or expansion projects. Firmware version compatibility should be verified against the site's CAP505 release prior to commissioning.

Q2: Can this relay be integrated into a MicroSCADA Pro or COM600 station automation system alongside REF615 or REB500 IEDs from the ABB Relion series? Yes. The REF542plus communicates via IEC 61850 and Modbus RTU, both of which are supported by COM600 and MicroSCADA Pro. Mixed IED environments combining REF54x and Relion series relays are common in substation expansion projects where legacy and modern IEDs coexist on the same station bus. GOOSE message exchange between REF542plus and Relion IEDs requires IEC 61850 Edition 1 or Edition 2 compatibility verification at the engineering stage.

Q3: What warranty and supply assurance does NANKMOS provide for the REF542plus 76A3NDNN36ESU31? All REF542plus 76A3NDNN36ESU31 units supplied by NANKMOS carry a 12-Month Warranty from the confirmed delivery date, covering hardware defects and functional failures under normal operating conditions. Units are held in stock and undergo pre-shipment functional testing prior to dispatch. Expedited shipping is available for urgent replacement requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
