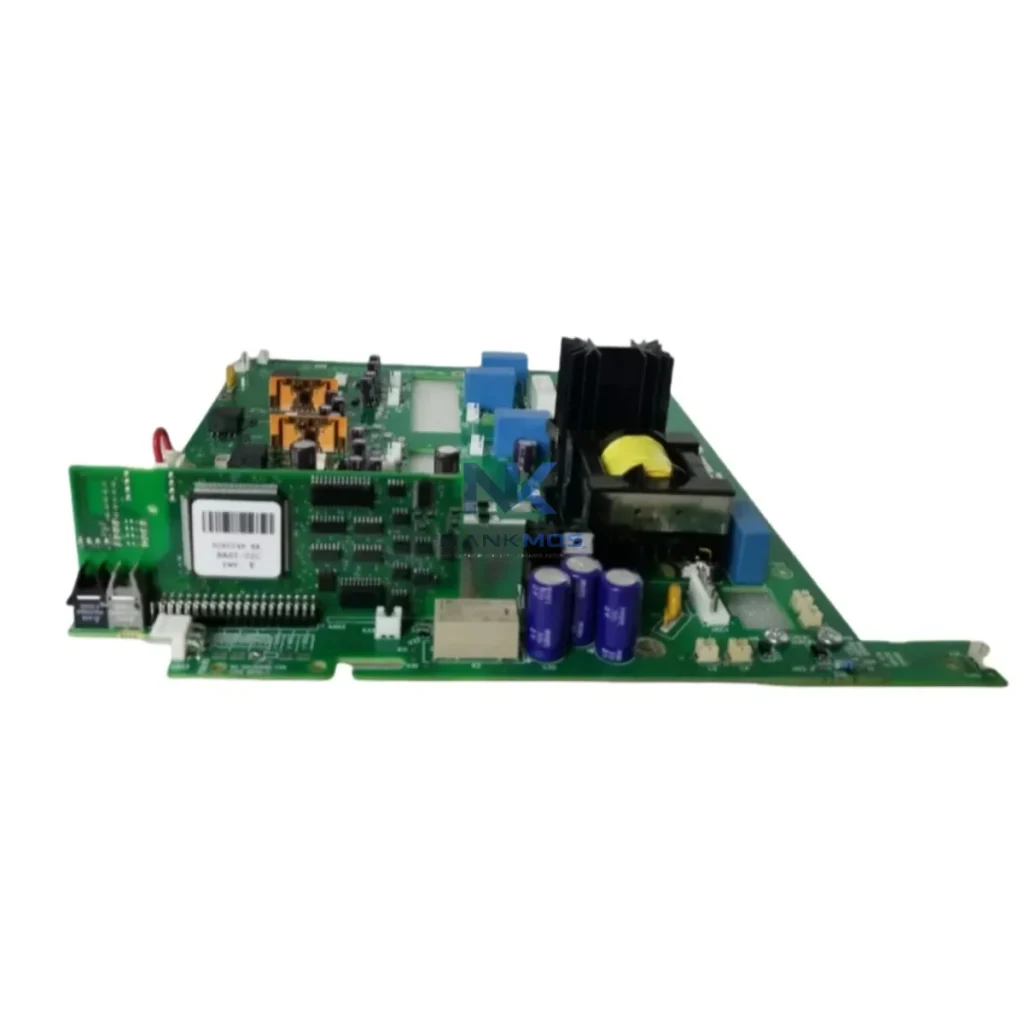

ABB RINT6621C Fiber Optic Interface Board

Product Details

RINT6621C Product Description

The ABB RINT6621C is a high-performance DDCS (Distributed Drives Communication System) fiber optic interface board engineered for ABB ACS800 series variable frequency drives. Designed to serve as the critical data link between field-level drive systems and upper-level control architectures, the RINT6621C enables seamless, high-speed, noise-immune communication across demanding industrial environments. Whether deployed in power generation facilities, petrochemical plants, water treatment stations, or marine propulsion systems, this interface board forms the backbone of a connected, transparent, and diagnostics-ready automation network.

In modern smart factory architectures, the ability to move real-time drive data from the motor control layer to SCADA, DCS, and MES platforms without signal degradation is non-negotiable. The RINT6621C addresses this requirement directly by converting drive-level DDCS signals into fiber optic transmissions that are immune to electromagnetic interference — a persistent challenge in high-voltage switchgear rooms and variable speed drive cabinets. This makes it an ideal fit for installations where copper-based fieldbus solutions introduce noise, ground loops, or distance limitations.

The RINT6621C sits at the intersection of drive-level intelligence and plant-wide data visibility. In a typical smart factory deployment, the data flow begins at the motor and mechanical load — where ABB ACS800 drives regulate speed, torque, and energy consumption for pumps, compressors, fans, and conveyors. The RINT6621C board, installed directly into the ACS800 option slot, captures real-time drive parameters including output frequency, motor current, DC bus voltage, fault codes, and thermal status, then transmits this data upstream via DDCS fiber optic links.

At the next layer, an ABB AC800M controller or a compatible DCS master node receives the DDCS data stream and acts as the protocol bridge toward higher-level systems. For sites running Profibus DP or PROFINET architectures, an ABB RPBA-01 Profibus adapter or RETA-01 Ethernet adapter may be used in parallel to extend drive data into Siemens S7-300/S7-400 PLC environments or Rockwell ControlLogix platforms. This cross-protocol capability ensures that the RINT6621C-equipped ACS800 drive can participate in multi-vendor automation networks without requiring proprietary SCADA middleware.

Remote I/O modules such as the ABB S800 I/O series collect analog and digital field signals — pressure transmitters, flow meters, temperature sensors, and limit switches — and feed them into the same control backbone. The RINT6621C's fiber optic link ensures that drive feedback and field I/O data arrive at the SCADA or DCS historian with sub-millisecond latency, enabling accurate process trending, alarm correlation, and energy audit reporting. Platforms such as ABB System 800xA, Wonderware InTouch, or Ignition SCADA can subscribe to these data points via OPC-DA or OPC-UA server interfaces exposed by the DCS gateway.

For edge computing deployments, an industrial edge gateway — such as an ABB Ability Edge device or a third-party IIoT gateway running MQTT or REST APIs — can aggregate DDCS-sourced drive data alongside Modbus RTU signals from legacy instrumentation, creating a unified data pipeline toward cloud analytics platforms. This architecture supports predictive maintenance workflows where vibration baselines, bearing temperature trends, and insulation resistance readings from the motor are correlated with drive load history to forecast failure windows before unplanned downtime occurs.

HMI panels installed at the drive control panel — typically running ABB CP600 series or Siemens TP700 Comfort panels — display real-time drive status, setpoint adjustments, and fault acknowledgment screens. The RINT6621C ensures that the data presented on these local HMIs is synchronized with the plant SCADA, eliminating discrepancies between local and remote views of drive health. Alarm events generated by the ACS800 — overcurrent trips, earth fault detection, motor thermal overload — are propagated through the DDCS link to the SCADA alarm management system, where they are timestamped, logged, and routed to maintenance personnel via SMS or email notification.

Industrial Ethernet switches — such as the ABB AF series or Hirschmann MACH series managed switches — provide the Layer 2 network infrastructure that carries PROFINET or EtherNet/IP traffic between PLCs, drives, and SCADA servers. The RINT6621C's fiber optic physical layer complements this Ethernet backbone by handling the drive-internal DDCS ring, keeping drive-to-drive synchronization traffic off the plant Ethernet and reducing network congestion in high-drive-count installations such as multi-motor paper machine drives or coordinated crane hoist systems.

Many industrial sites operating ABB ACS800 drives face a common set of integration challenges: drive data remains trapped at the local keypad or drive-mounted fieldbus adapter, invisible to the plant SCADA until a fault occurs. The RINT6621C resolves this data isolation by establishing a permanent, high-bandwidth DDCS fiber optic channel that continuously streams drive telemetry to the control room — transforming reactive fault response into proactive condition monitoring.

Protocol fragmentation is another persistent barrier. Sites that have evolved over decades often run a mixture of Profibus, Modbus RTU, DeviceNet, and proprietary drive protocols in parallel, creating integration complexity that slows commissioning and increases maintenance burden. By standardizing drive communication on the DDCS fiber optic backbone via the RINT6621C, engineers can consolidate drive data at a single DCS or SCADA gateway point, then re-publish it in the protocol required by each upstream system — whether that is OPC-UA for MES integration, MQTT for IIoT cloud forwarding, or Modbus TCP for legacy HMI compatibility.

Remote diagnostics capability is significantly enhanced when the RINT6621C is part of the network architecture. Maintenance engineers can access live drive parameters, fault history logs, and energy consumption data from a remote workstation or mobile device without requiring physical access to the drive cabinet — reducing travel time, improving safety compliance, and enabling faster root-cause analysis after process upsets. This is particularly valuable in offshore platforms, remote pumping stations, and unmanned substations where on-site intervention is costly and time-consuming.

System scalability is built into the RINT6621C's DDCS ring topology, which supports up to 12 drives per fiber optic ring without requiring additional master hardware. As production capacity expands and new ACS800 drives are added to the installation, the existing RINT6621C infrastructure accommodates the additional nodes with minimal reconfiguration — protecting the capital investment in the communication architecture and reducing the engineering cost of future expansions.

Q1: What is the maximum communication distance supported by the RINT6621C fiber optic link?A: The RINT6621C supports plastic optical fiber (POF) links up to approximately 10 meters and glass optical fiber (GOF) links up to several hundred meters, depending on fiber grade and connector quality. For long-distance drive-to-control-room runs in large facilities, glass fiber is recommended to maintain signal integrity and minimize bit error rates.

Q2: Is the RINT6621C compatible with ABB drives other than the ACS800 series?A: The RINT6621C is specifically designed for the ACS800 option slot and is optimized for DDCS communication within the ACS800 platform. Compatibility with other ABB drive families such as ACS880 or ACS580 requires verification against the respective drive's option board specifications, as those platforms may use different communication architectures such as FDCO or FENA adapters.

Q3: How does the RINT6621C ensure network stability in high-EMI environments?A: The fiber optic transmission medium used by the RINT6621C provides complete galvanic isolation between the drive and the control network, eliminating ground loop interference and making the communication link immune to electromagnetic noise generated by high-power switching devices, variable frequency drives, and nearby high-voltage equipment. This makes it inherently more stable than copper-based fieldbus solutions in electrically noisy industrial environments.

Q4: What pre-shipment testing and warranty coverage is provided?A: Every RINT6621C unit supplied by NANKMOS undergoes pre-shipment functional testing to verify fiber optic transceiver performance, DDCS communication integrity, and option board compatibility with ACS800 drive firmware. All units are covered by a 12-month warranty from the date of shipment, with technical support available for installation, commissioning, and fault diagnosis throughout the warranty period.
