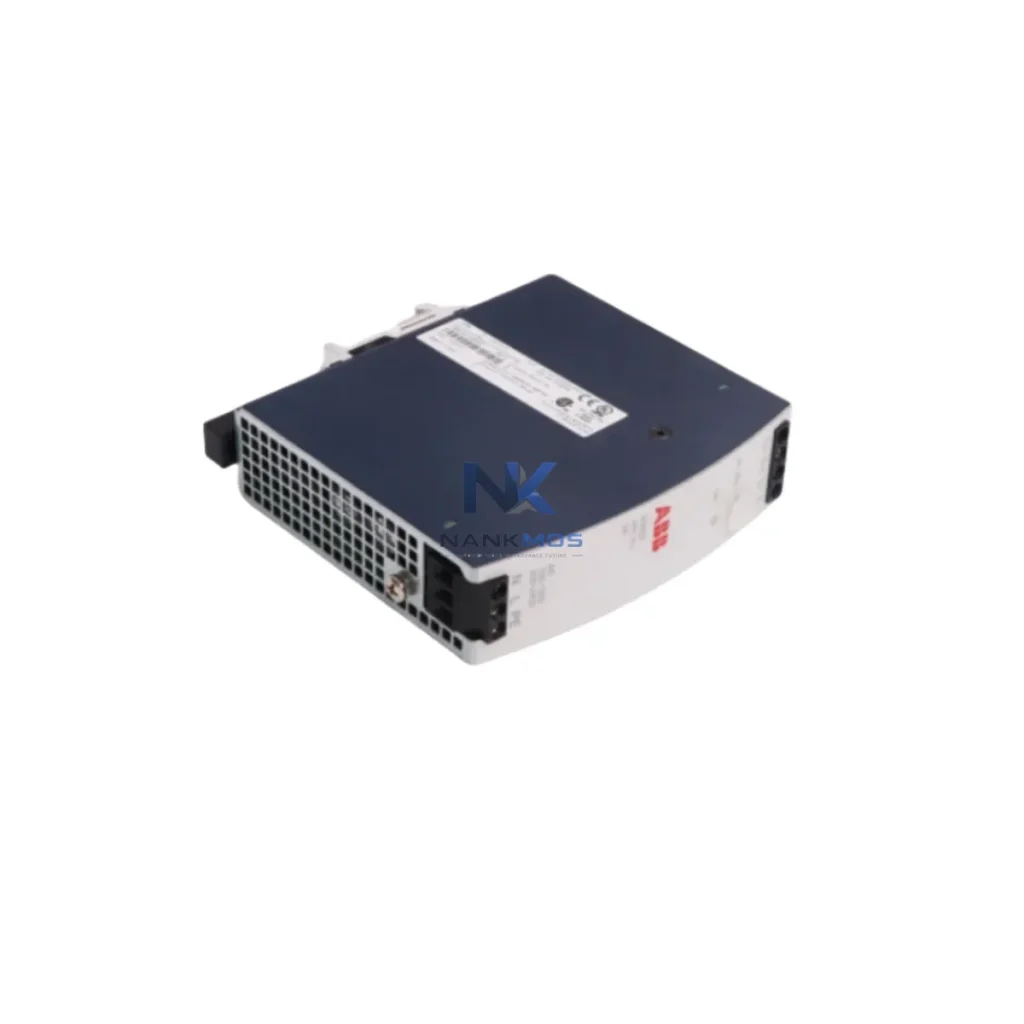

ABB SD832 Power Supply Module

Product Details

SD832 Product Description

The ABB SD832 is a dedicated 24 VDC power supply module engineered for seamless integration within the ABB AC800M Distributed Control System (DCS) platform. Designed to deliver stable, regulated power across the full control architecture, the SD832 supports continuous operation in demanding industrial environments including power generation, oil & gas, chemical processing, pulp & paper, and water treatment facilities. With pre-shipment functional testing, verified stock availability, and a 12-Month Warranty, the SD832 is a field-proven component for both greenfield deployments and brownfield system expansions.

Within the ABB AC800M control architecture, the SD832 occupies the foundational power layer — the tier upon which every other module's reliability depends. A stable, well-regulated 24 VDC rail is not merely a utility; it is the backbone that determines signal integrity across the entire I/O layer, communication layer, and CPU layer simultaneously.

At the control layer, the PM864A and PM866 CPU modules rely on the SD832's regulated output to maintain deterministic scan cycle execution. Any ripple or transient on the power rail translates directly into CPU watchdog events or redundancy switchovers — outcomes the SD832 is specifically designed to prevent through its active power factor correction and tight output regulation. In redundant controller configurations, a pair of SD832 units operating in parallel N+1 mode ensures that a single power supply failure triggers zero process interruption.

At the I/O layer, the AI810 analog input module, AO810 analog output module, DI810 digital input module, and DO810 digital output module all draw their operating power from the SD832 via the TB820 ModuleBus backplane. The TB820 distributes both power and ModuleBus communication signals across the S800 I/O rack, making the SD832's output stability directly responsible for the accuracy of 4–20 mA analog signals and the response latency of digital I/O channels. Field signal drift caused by power supply noise is a common root cause of process alarms in DCS environments — the SD832 eliminates this variable.

At the communication layer, CI854 PROFIBUS DP master modules and CI801 PROFINET interface modules are sensitive to power quality during network initialization and cyclic data exchange. The SD832 provides the clean power envelope required for these communication interface modules to maintain stable fieldbus cycles without spurious disconnections or CRC errors. In architectures where the AC800M controller manages both PROFIBUS field devices and PROFINET I/O stations simultaneously, the SD832's load regulation performance becomes a critical system parameter.

For HMI and supervisory integration, the AC800M platform typically interfaces with Panel 800 operator terminals or third-party SCADA systems via OPC DA/UA. The SD832 supports the controller's ability to maintain continuous OPC server availability by ensuring the PM8xx CPU never experiences a power-related reset — a scenario that would force OPC clients to re-establish connections and potentially lose historical trend data.

In safety-instrumented system (SIS) adjacent architectures, where the AC800M operates alongside ABB's AC800M HI high-integrity controllers, consistent power supply performance across both platforms is essential for maintaining the integrity of safety function response times. The SD832's parallel redundancy capability aligns with the power architecture requirements of SIL 2 process applications.

All SD832 units supplied by NANKMOS undergo pre-shipment functional testing covering output voltage accuracy, load regulation, ripple measurement, and inrush current verification. Stock is maintained in-warehouse for immediate dispatch, supporting both planned capital projects and urgent unplanned maintenance requirements. 12-Month Warranty coverage applies from the date of shipment.

Power Generation & Utilities: In combined-cycle power plants and hydroelectric facilities, the AC800M platform manages turbine control, excitation systems, and balance-of-plant automation. The SD832 provides the power layer stability required for continuous 24/7 operation across multi-rack controller configurations, where any power interruption would trigger turbine trip sequences and costly restart procedures.

Oil & Gas Processing: Offshore platforms and onshore gas processing terminals deploy AC800M controllers for separator control, compressor anti-surge, and emergency shutdown coordination. In these environments, the SD832's wide-range AC input (85–264 VAC) accommodates variable generator output quality, while its N+1 redundancy capability satisfies the power architecture requirements of SIL 2 safety loops.

Chemical & Petrochemical: Continuous process plants operating exothermic reactors, distillation columns, and heat exchanger networks require DCS power supplies that maintain output stability across wide ambient temperature ranges. The SD832's 0–55 °C operating range and IP20 panel-mount design integrate directly into climate-controlled control room marshalling cabinets.

Water & Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants use AC800M controllers for pump sequencing, dosing control, and SCADA integration. The SD832 supports the low-maintenance, long-lifecycle power architecture these facilities require, with NANKMOS's 12-Month Warranty providing procurement teams with documented warranty coverage for asset management records.

Pulp & Paper / Packaging Lines: High-speed production lines with coordinated drive systems, web tension control, and quality measurement systems demand power supplies that deliver consistent output under rapidly varying load conditions. The SD832's active load regulation ensures that drive reference signals transmitted via the AC800M's analog output modules remain within calibrated accuracy bands throughout production shifts.

Q1: Can the SD832 be used in a redundant power configuration with the AC800M, and what is the recommended wiring topology? Yes. Two SD832 units can be connected in parallel to the same TB820 backplane power input, providing N+1 redundancy. Each unit should be fed from an independent AC source (separate MCBs or UPS outputs) to eliminate common-cause power failures. The SD832's diode-ORing output architecture prevents reverse current flow between units, allowing hot-swap replacement of a failed module without interrupting the rack's power supply. This configuration is recommended for all AC800M deployments in continuous process applications where unplanned downtime is not acceptable.

Q2: Is the SD832 compatible with both the S800 I/O rack and the AC800M controller rack, and are there any firmware or hardware revision dependencies? The SD832 is designed for the ABB S800 I/O rack system and powers the TB820 ModuleBus backplane. It is not installed directly in the AC800M CPU rack (which uses a separate internal power supply). Compatibility is maintained across all standard S800 I/O rack configurations regardless of AI810, AO810, DI810, or DO810 module population. No firmware dependencies apply to the SD832 itself, as it is a passive power module from the software perspective. Hardware revision compatibility should be verified against the specific rack assembly drawing for legacy installations predating 2010.

Q3: What does NANKMOS's 12-Month Warranty cover for the SD832, and what is the typical lead time for replacement units? NANKMOS's 12-Month Warranty covers manufacturing defects, output voltage out-of-specification failures, and component-level failures under normal operating conditions as defined in the ABB SD832 product specification. Warranty claims are processed with a target response time of 2 business days from fault confirmation. Replacement units are dispatched from in-warehouse stock, with standard international shipping lead times of 3–7 business days depending on destination. For critical process applications requiring faster response, expedited shipping options are available. Contact [email protected] or +86 18359268345 to initiate a warranty claim or confirm current stock availability.
