ABB SMIO-01C/68631343 Control Board

Product Details

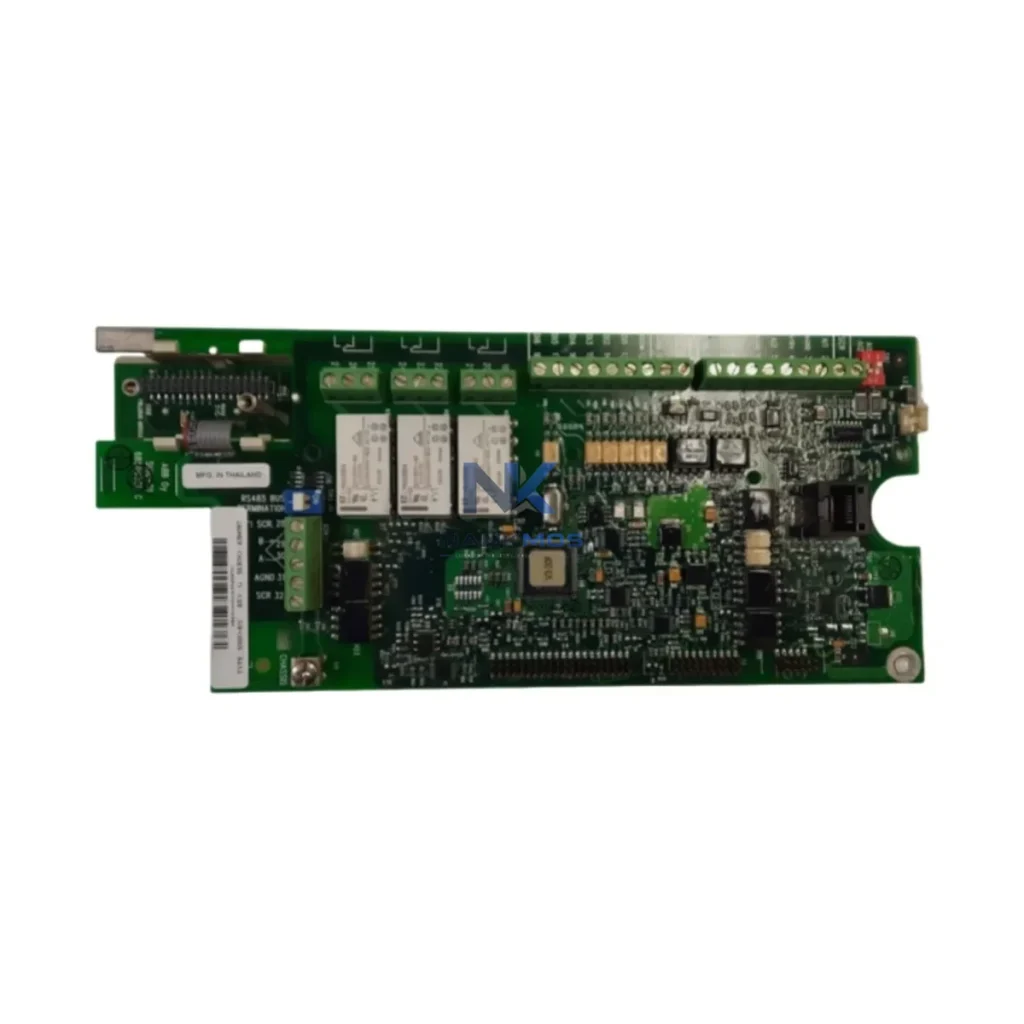

SMIO-01C/68631343 Product Description

The ABB SMIO-01C (SKU: SMIO-01C/68631343) is a high-performance control board engineered for the ACS880 industrial drive series, purpose-built to deliver precision energy control across demanding smart production environments. Designed and manufactured in Germany to ABB's exacting industrial standards, this board serves as the intelligence layer between the drive system and the broader automation network — enabling real-time load management, motor efficiency optimization, and seamless integration with energy management systems. Whether deployed in continuous process industries, discrete manufacturing, or utility-scale power generation, the SMIO-01C provides the control backbone that modern energy-aware production lines depend on.

The SMIO-01C is engineered to function as a critical node within a power-aware automation architecture. In a typical smart factory deployment, the board interfaces directly with the ABB ACS880 drive's control layer, receiving setpoint commands from a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller via PROFINET or EtherNet/IP. This tight integration allows the PLC to dynamically adjust motor speed and torque in response to real-time production demand — eliminating the fixed-speed operation that accounts for a significant share of industrial energy waste.

On the power monitoring side, the SMIO-01C works in concert with ABB's PSTX soft starter modules and CM-series power measurement relays to provide continuous visibility into active power draw, power factor, and harmonic distortion. These signals are fed upstream to a Schneider Electric PowerLogic energy management system or directly into a SCADA platform such as Wonderware System Platform or Ignition by Inductive Automation, where energy KPIs are tracked against production output targets.

For servo-driven axes and coordinated motion applications, the SMIO-01C complements ABB's MicroFlex e190 servo drives and ACH580 HVAC drives, enabling a unified energy control strategy across both variable-speed and position-controlled axes. The board's I/O expansion capability supports connection to Phoenix Contact Axioline F I/O modules and Beckhoff EtherCAT terminals, allowing granular energy metering at the machine level without additional gateway hardware.

HMI visualization is typically handled through ABB CP600 operator panels or Siemens SIMATIC HMI TP1200 Comfort panels, where operators can monitor real-time energy consumption, set load-shedding thresholds, and acknowledge drive fault conditions — all from a single interface. Communication to higher-level MES or ERP systems is facilitated through OPC-UA data bridges, ensuring that energy data captured at the SMIO-01C level is available for enterprise-wide reporting and carbon accounting.

In production line applications, uncontrolled motor energy consumption is one of the largest contributors to operational cost and carbon footprint. The ABB SMIO-01C addresses this directly by enabling the ACS880 drive to implement load-adaptive speed control — matching motor output precisely to the mechanical demand of the process at any given moment. This eliminates the throttling losses and heat generation associated with fixed-speed operation, reducing motor energy consumption by 20–50% in variable-torque applications such as pumps, fans, compressors, and conveyor systems.

Thermal load management is another key benefit. By preventing motor overloading and enabling smooth acceleration and deceleration ramps, the SMIO-01C significantly reduces heat buildup in both the motor windings and the drive cabinet. Lower thermal stress translates directly into extended component life, reduced cooling system load, and fewer unplanned shutdowns — all of which contribute to improved Overall Equipment Effectiveness (OEE).

Production line rhythm stability is maintained through the board's fast response to load disturbances. When upstream or downstream process conditions change — such as a conveyor jam, a pump cavitation event, or a sudden load spike on a press — the SMIO-01C enables the ACS880 to respond within milliseconds, preventing the cascade failures that disrupt production schedules and waste energy through restart cycles. This predictive responsiveness, combined with integration into condition monitoring platforms, supports a shift from reactive maintenance to predictive maintenance strategies, further reducing downtime and energy waste associated with emergency repairs.

For facilities pursuing ISO 50001 energy management certification or internal sustainability targets, the SMIO-01C provides the granular, drive-level energy data needed to establish baselines, track improvements, and demonstrate compliance. Every unit shipped from NANKMOS is pre-shipment tested under load conditions to verify control accuracy, communication integrity, and thermal performance before dispatch.

Q1: What energy savings can I expect from deploying the ABB SMIO-01C in my ACS880 drive system? Actual savings depend on the application and baseline operating conditions, but variable-torque applications such as pumps and fans typically achieve 20–50% reduction in motor energy consumption when transitioning from fixed-speed to variable-speed control with the SMIO-01C. Constant-torque applications such as conveyors and compressors typically see 10–30% savings through optimized acceleration profiles and load matching.

Q2: Is the SMIO-01C compatible with my existing PLC and SCADA infrastructure? Yes. The SMIO-01C supports PROFIBUS DP, PROFINET IO, EtherNet/IP, Modbus RTU/TCP, and CANopen, making it compatible with the major PLC platforms including Siemens SIMATIC, Allen-Bradley ControlLogix/CompactLogix, Mitsubishi MELSEC, and Omron NJ/NX series. SCADA integration via OPC-UA or direct Modbus TCP is supported without additional gateway hardware in most configurations.

Q3: Can the SMIO-01C replace an existing control board in my ACS880 drive, and what is the replacement process? The SMIO-01C is a direct replacement board for compatible ACS880 drive variants. The replacement process involves powering down the drive, discharging the DC bus, removing the existing control board, installing the SMIO-01C, and restoring drive parameters from backup or re-commissioning via the ACS880 control panel or Drive Composer PC tool. NANKMOS recommends verifying the exact drive variant and firmware version before ordering to ensure full compatibility.

Q4: What warranty and testing assurance does NANKMOS provide for the SMIO-01C? Every ABB SMIO-01C unit supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units are pre-shipment tested under simulated load conditions to verify control board integrity, I/O functionality, and communication port operation before dispatch. In-stock units are available for immediate shipment, with lead times confirmed at the time of order.
