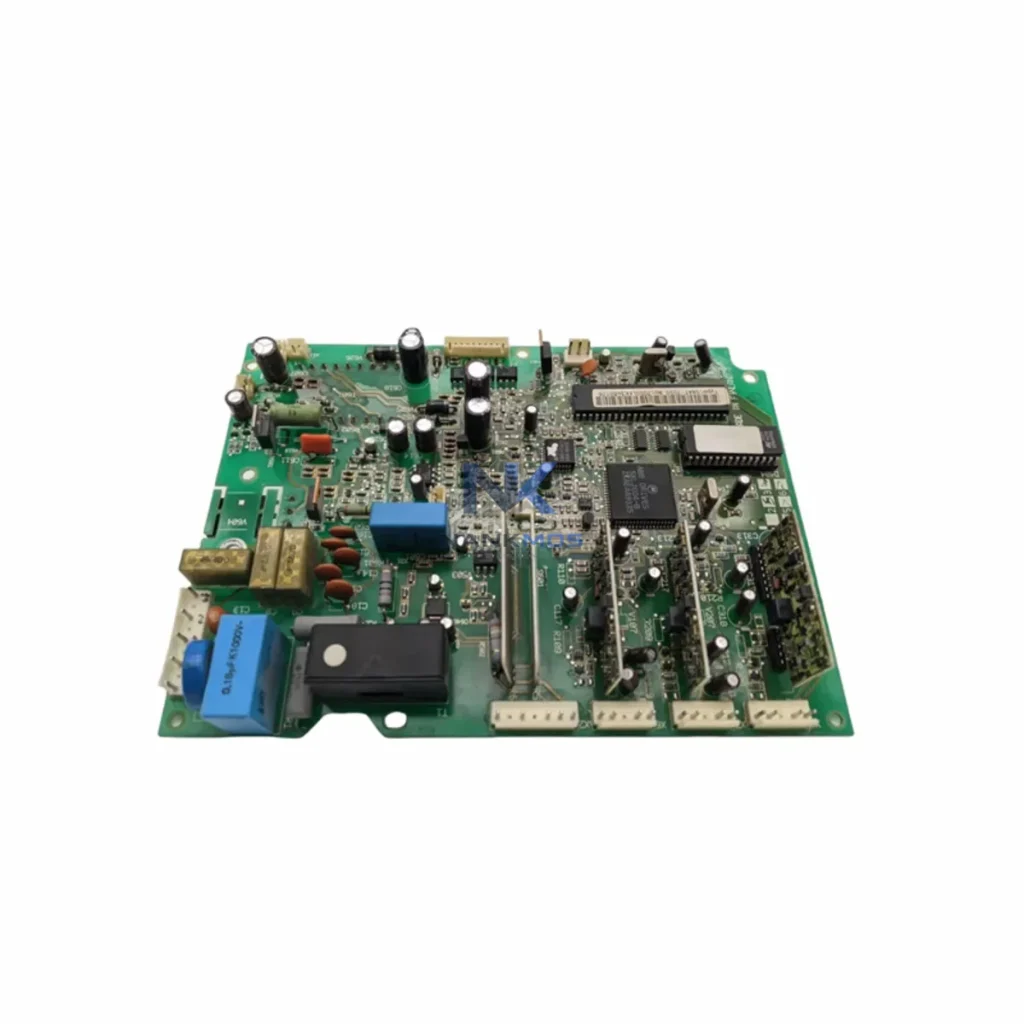

ABB SNAT-7600 SNAZ-7600D Communication Gateway

Product Details

SNAT-7600 SNAZ-7600D Product Description

The ABB SNAT7600 / SNAZ7600D is a high-performance industrial network interface module engineered for ACS600 variable speed drive systems. Designed to bridge the communication gap between field-level drive hardware and upper-level control architectures, this gateway enables seamless data exchange across Profibus-DP, Modbus RTU, Modbus TCP, and ABB DDCS fieldbus topologies. In smart factory environments where real-time visibility, remote diagnostics, and system-wide transparency are non-negotiable, the SNAT7600 / SNAZ7600D delivers the connectivity backbone that keeps automation running without interruption.

In a modern smart factory, the data chain begins at the field device level. Sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into remote I/O modules or directly into the ACS600 drive's control board. The ABB SNAT7600 / SNAZ7600D sits at the critical junction between the drive and the plant network, translating drive-native DDCS fiber optic signals into Profibus-DP or Modbus frames that upstream controllers can consume without custom engineering.

At the PLC layer, controllers such as ABB AC500 series PLCs or Siemens S7-300/400 systems poll the SNAT7600 cyclically over Profibus-DP, reading speed references, torque feedback, fault codes, and energy consumption data in real time. This eliminates the need for dedicated analog wiring between the drive and the controller, reducing panel complexity and improving signal integrity across long cable runs in large industrial facilities.

Moving up the architecture, industrial Ethernet switches — including managed switches supporting PROFINET or Modbus TCP — aggregate data from multiple drive nodes and route it toward SCADA servers or DCS platforms. The SNAZ7600D variant extends this capability by supporting Modbus TCP over standard Ethernet, making it directly compatible with Wonderware, Ignition SCADA, Siemens WinCC, and ABB System 800xA environments without additional protocol converters.

At the HMI layer, operators gain live visibility into drive status, output frequency, motor current, and fault history through graphical dashboards. When paired with ABB Panel Builder HMI terminals or third-party touchscreens running on Modbus TCP, the SNAT7600 / SNAZ7600D enables operators to acknowledge alarms, adjust setpoints, and monitor energy trends without leaving the control room. This real-time feedback loop is essential for process industries where unplanned drive trips translate directly into production losses.

For multi-drive installations, the DDCS fiber optic ring topology supported by the SNAT7600 allows up to 12 ACS600 drives to be daisy-chained on a single optical loop, with each drive individually addressable from the master controller. This architecture is commonly deployed alongside ABB NDBU-95 branching units and NAMC-11 control boards, forming a distributed drive network that scales from single-pump stations to complex multi-motor process lines in pulp and paper, water treatment, and oil and gas applications.

Edge gateway devices — such as ABB Edge Connect or third-party IIoT gateways running MQTT or OPC-UA — can subscribe to Modbus TCP data streams from the SNAZ7600D, forwarding normalized process data to cloud analytics platforms or MES systems. This enables predictive maintenance workflows where drive vibration trends, thermal load patterns, and fault frequency data are analyzed over time to schedule maintenance before failures occur, reducing unplanned downtime and extending equipment service life.

Power supply stability is equally critical in these architectures. Dedicated 24 VDC industrial power supplies with redundant outputs ensure that the SNAT7600 / SNAZ7600D and its associated communication infrastructure remain online during grid fluctuations, protecting data integrity across the entire network chain. Every unit shipped from NANKMOS undergoes outgoing functional testing to verify protocol handshake, data mapping accuracy, and communication stability before dispatch.

Many industrial sites operate with legacy ACS600 drives that were installed before plant-wide networking became standard practice. These drives run in isolation — no remote visibility, no fault logging, no integration with SCADA or MES — creating data islands that prevent production teams from making informed decisions. The ABB SNAT7600 / SNAZ7600D directly addresses this challenge by retrofitting network connectivity onto existing ACS600 hardware without requiring drive replacement or major panel modifications.

Protocol fragmentation is one of the most common barriers to plant-wide transparency. Sites with mixed Profibus and Modbus infrastructure often require separate gateways for each protocol family. The SNAT7600 / SNAZ7600D resolves this by supporting both Profibus-DP and Modbus RTU/TCP within the same module family, allowing engineers to standardize on a single communication platform across multiple drive generations.

Remote monitoring and alarm tracking become straightforward once the SNAT7600 is integrated. Drive fault codes, warning states, and process variables are continuously mapped to the Profibus or Modbus register space, where SCADA systems can log them with timestamps, trigger alarm notifications, and generate trend reports. Maintenance teams can diagnose drive issues remotely — identifying overcurrent trips, thermal overloads, or communication timeouts — without dispatching technicians to the field for initial assessment.

System scalability is built into the DDCS ring architecture. As production lines expand, additional ACS600 drives can be added to the fiber optic ring without reconfiguring the upstream Profibus or Modbus network. This modular expansion path protects the initial network investment and reduces commissioning time for future capacity additions.

Q1: What is the typical communication latency of the SNAT7600 over Profibus-DP? Under standard Profibus-DP cyclic polling at 1.5 Mbit/s, the SNAT7600 delivers process data updates within 1–5 ms per node, depending on the number of slaves on the bus and the master's polling cycle configuration. This latency is well within the requirements of most drive speed and torque control loops managed at the PLC level.

Q2: Is the SNAZ7600D compatible with third-party SCADA platforms such as Ignition or Wonderware? Yes. The SNAZ7600D communicates via standard Modbus TCP, which is natively supported by all major SCADA platforms including Ignition (Inductive Automation), Wonderware (AVEVA), Siemens WinCC, and ABB System 800xA. No custom drivers or middleware are required for basic process variable mapping and alarm integration.

Q3: Can the SNAT7600 be used to connect ACS600 drives to a modern IIoT edge gateway? Yes. When the SNAZ7600D variant is used, its Modbus TCP interface can be polled by IIoT edge gateways supporting OPC-UA or MQTT bridging. This enables drive data — including speed, current, power, and fault status — to be forwarded to cloud analytics or MES platforms for predictive maintenance and energy optimization workflows.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SNAT7600 / SNAZ7600D? All ABB SNAT7600 / SNAZ7600D units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and communication functionality. Each unit undergoes outgoing inspection including protocol handshake verification, DDCS fiber link testing, and Modbus/Profibus register mapping checks before dispatch. In-stock units typically ship within 3–5 business days. For volume orders or urgent requirements, contact [email protected] or call +86 18359268345.
