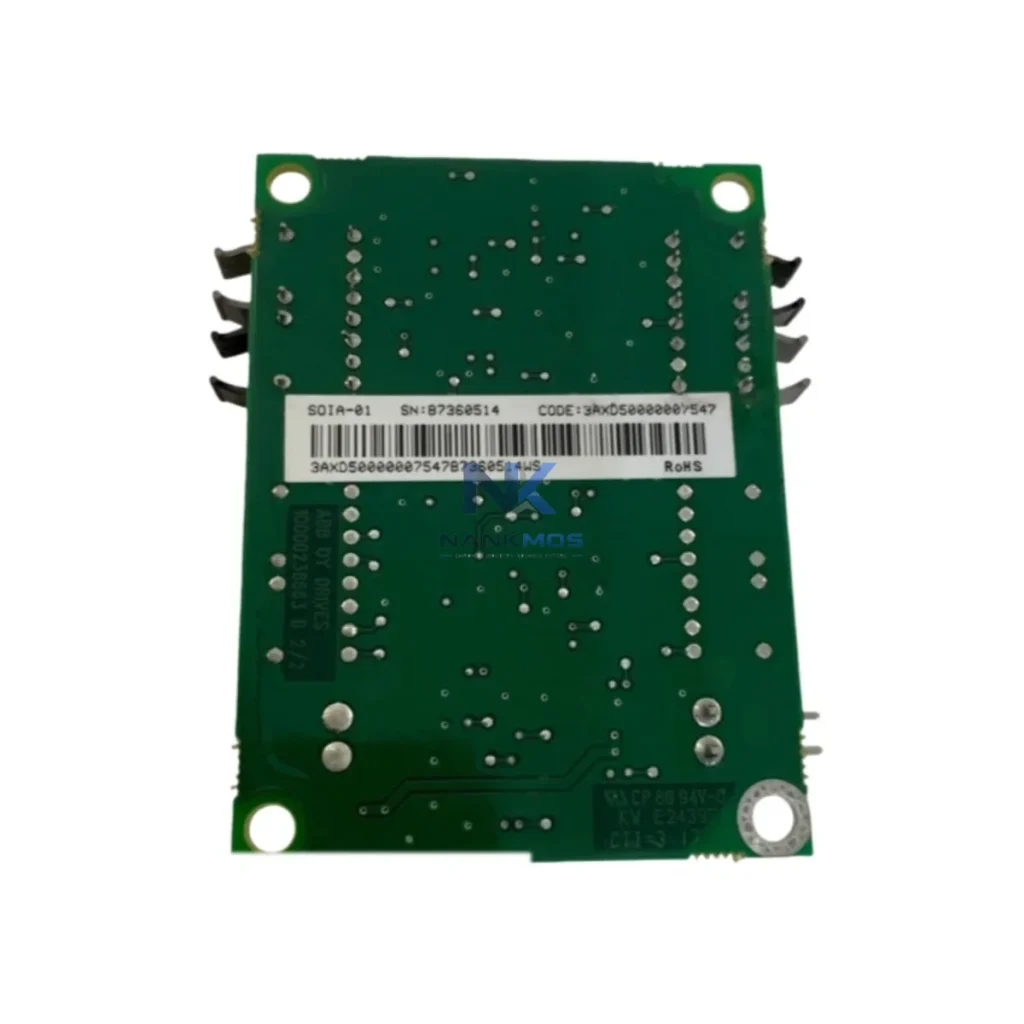

ABB SOIA-01 3AXD50000007547 Fieldbus Adapter Board

Product Details

SOIA-01 3AXD50000007547 Product Description

The ABB SOIA-01 (3AXD50000007547) is a high-performance fieldbus adapter board engineered for the ACS800 series of AC drives, delivering seamless integration into industrial data networks and smart factory communication architectures. As a dedicated DDCS (Distributed Drives Communication System) optical adapter, the SOIA-01 bridges the gap between drive-level signal processing and upper-level control systems — enabling real-time data exchange, remote diagnostics, and full network transparency across the automation layer.

In modern smart manufacturing environments, the ability to connect variable frequency drives directly into a unified communication backbone is critical. The SOIA-01 fulfills this role by providing a reliable optical DDCS link between the ACS800 drive and master controllers, enabling high-speed, noise-immune data transmission across the factory floor. Whether deployed in a standalone drive application or as part of a multi-drive system coordinated by an ABB AC800M controller or ADVANT Master, the SOIA-01 ensures that every drive parameter, fault code, and operational status is continuously visible to the SCADA layer.

The SOIA-01 sits at the heart of a layered industrial data architecture. At the field level, the ACS800 drive — equipped with the SOIA-01 adapter — receives speed references, torque commands, and control words from a master PLC or drive controller via the DDCS optical link. This eliminates analog signal degradation and ensures deterministic, high-integrity communication even in electrically noisy environments such as motor control centers and high-power switchgear rooms.

In a typical smart factory deployment, the SOIA-01-equipped ACS800 connects upstream to an ABB AC800M process controller or a legacy ADVANT Master station via MASTERBUS. The controller aggregates drive status data — including output frequency, motor current, DC bus voltage, and active fault codes — and forwards this information to the plant SCADA system, such as ABB System 800xA or a third-party platform like Wonderware InTouch or Ignition SCADA. Operators at the HMI level gain full visibility into drive performance without requiring physical access to the drive cabinet.

For multi-drive applications — such as coordinated conveyor systems, winding lines, or pump stations — the SOIA-01 enables DRIVEBUS topology, where one master ACS800 drive communicates with multiple follower drives in a ring or star configuration. This architecture is commonly paired with ABB RDCO-02 or RDCO-03 DDCS communication modules on follower drives, ensuring synchronized speed and torque control across the entire drive chain.

Remote I/O expansion is also supported within this architecture. Field-level sensors, limit switches, and process transmitters feed data into remote I/O modules — such as ABB S800 I/O or compatible third-party units — which are then polled by the master controller and correlated with drive data for comprehensive process monitoring. Edge gateways, such as ABB Edge Computing devices or industrial protocol converters, can further translate DDCS data into OPC-UA or MQTT streams for cloud-based analytics and predictive maintenance platforms.

Industrial Ethernet switches with managed VLAN support segment the drive network from the enterprise IT layer, maintaining cybersecurity boundaries while allowing authorized SCADA and MES systems to access real-time drive data. The SOIA-01's fiber optic interface inherently provides galvanic isolation, making it ideal for installations where ground loops or EMI interference would compromise copper-based communication links.

Many industrial sites operating ACS800 drives face persistent challenges: drives run in isolation, fault histories are lost after power cycles, and maintenance teams rely on manual inspection rather than real-time data. The SOIA-01 directly addresses these data gaps by integrating the drive into the plant communication network.

Protocol Fragmentation: Sites with mixed communication environments — where some devices speak PROFIBUS, others Modbus RTU, and drives use proprietary DDCS — often struggle with data silos. The SOIA-01 resolves the drive-side protocol challenge by providing a standardized DDCS optical interface, which can then be bridged to open protocols via ABB fieldbus adapter modules (RPBA-01 for PROFIBUS, RCAN-01 for CANopen, or RETA-01 for Ethernet/IP) installed in parallel option slots.

Remote Monitoring Gaps: Without network connectivity, drive faults are only discovered after production stops. With the SOIA-01 in place, fault codes, warning messages, and operational parameters are continuously streamed to the SCADA system, enabling proactive alarm management and reducing unplanned downtime.

Production Line Transparency: In multi-drive conveyor or processing lines, speed mismatches between drives cause product defects and mechanical stress. The DRIVEBUS topology enabled by the SOIA-01 allows the master controller to enforce synchronized speed references across all follower drives, with real-time feedback confirming compliance.

System Scalability: As production capacity grows, additional ACS800 drives can be added to the DDCS network without rewiring the control architecture. The SOIA-01's optical ring topology supports network expansion with minimal disruption to existing installations.

Shipment Testing & Warranty: Every SOIA-01 unit supplied by NANKMOS undergoes pre-shipment functional verification. All units are covered by a 12-month warranty, with stock available for immediate dispatch to support urgent maintenance and retrofit projects.

Q1: What communication protocol does the ABB SOIA-01 use, and is it compatible with standard industrial networks?The SOIA-01 uses ABB's proprietary DDCS (Distributed Drives Communication System) protocol over a fiber optic physical layer. DDCS is not a standard open protocol, but it can be integrated into broader industrial networks by pairing the ACS800 with additional fieldbus adapter boards (such as RPBA-01 for PROFIBUS-DP or RETA-01 for EtherNet/IP) that translate between DDCS and open protocols at the drive level.

Q2: Can the SOIA-01 support real-time remote diagnostics and SCADA integration?Yes. When connected via DDCS to an ABB AC800M or ADVANT master controller, the SOIA-01 enables continuous streaming of drive parameters — including speed, current, voltage, fault codes, and control status — to SCADA systems such as ABB System 800xA. This supports real-time alarm management, trend logging, and remote diagnostics without requiring on-site access to the drive.

Q3: How many drives can be connected in a DDCS network using the SOIA-01?The DDCS DRIVEBUS topology supports up to 12 drives in a ring configuration, with one master drive (equipped with SOIA-01 or equivalent) coordinating follower drives. For larger networks, MASTERBUS allows connection of multiple drive groups to a central process controller, significantly expanding system scalability.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SOIA-01?NANKMOS provides a 12-month warranty on all ABB SOIA-01 units. Each unit is subject to pre-shipment functional inspection to verify communication interface integrity and board condition. Stock is maintained for immediate availability, supporting both planned procurement and emergency replacement scenarios.
