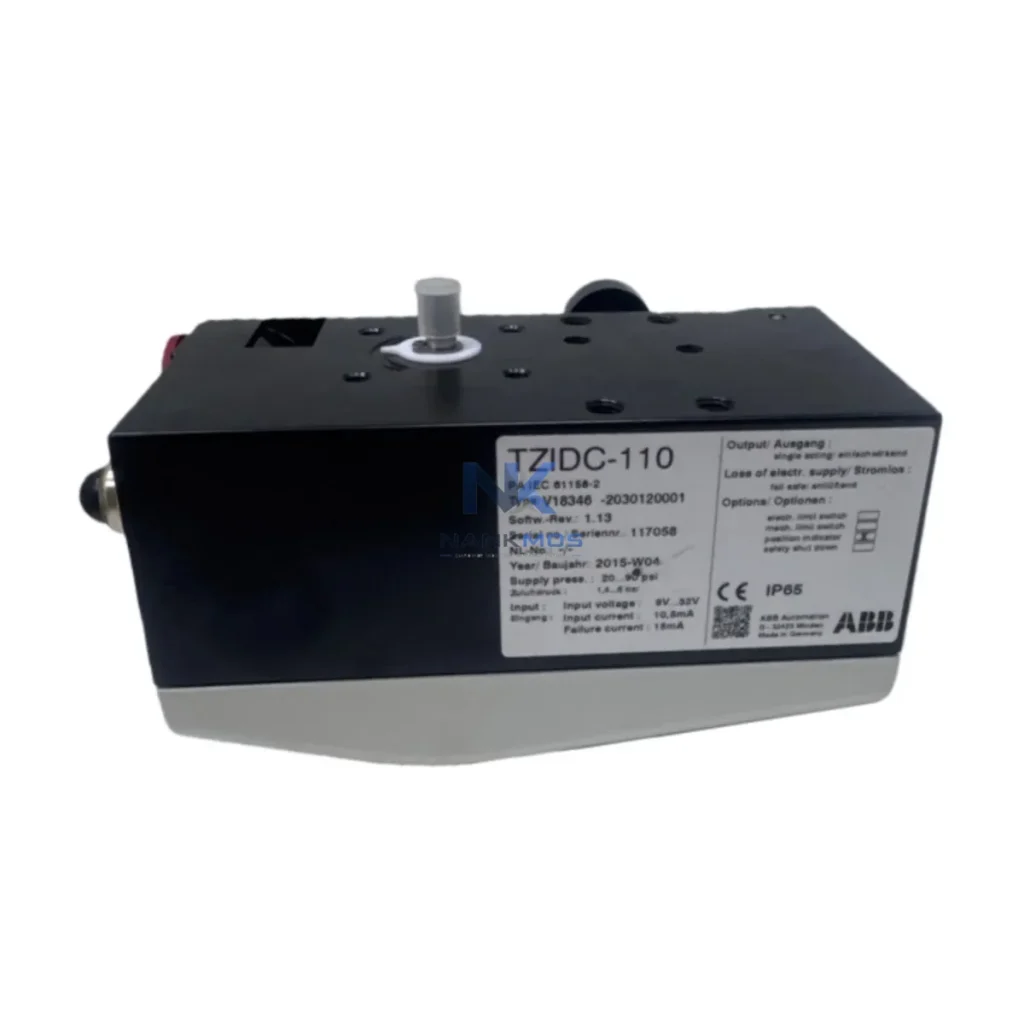

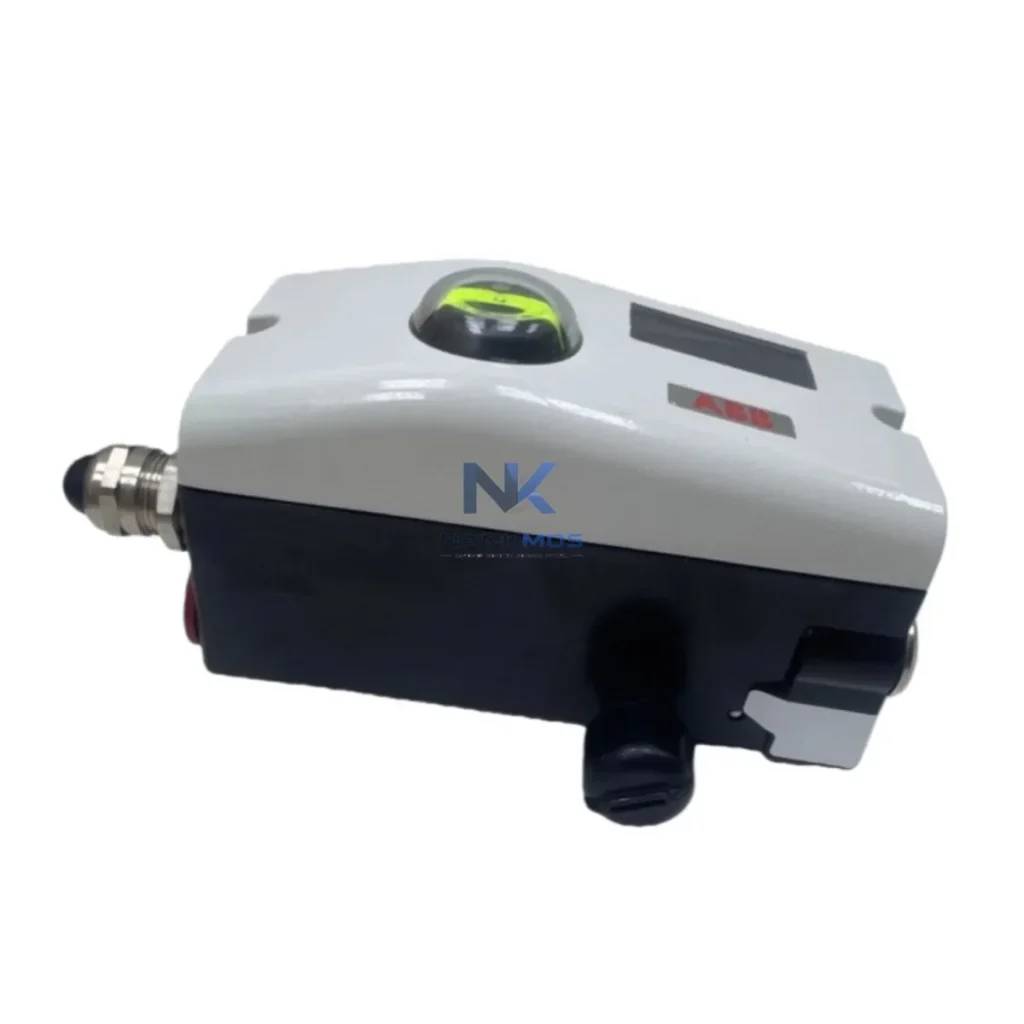

ABB TZIDC-110 Digital Positioner

Product Details

TZIDC-110 Product Description

The ABB TZIDC-110 is an intelligent digital positioner engineered for energy-conscious industrial environments where precise valve actuation directly impacts production efficiency and operational energy budgets. As part of ABB's proven TZIDC series, the TZIDC-110 delivers sub-1% positioning accuracy, adaptive self-calibration, and seamless integration with HART and PROFIBUS PA communication protocols — making it a cornerstone component in modern energy management architectures across oil & gas, chemical processing, power generation, and advanced manufacturing facilities.

In today's competitive industrial landscape, uncontrolled valve positioning translates directly into wasted energy, unstable process conditions, and accelerated equipment wear. The TZIDC-110 addresses these challenges by continuously monitoring actuator position and adjusting pneumatic output with minimal air consumption, reducing the parasitic energy load that conventional positioners impose on compressed-air systems. When deployed alongside ABB's AC500 PLC platform, the TZIDC-110 participates in closed-loop energy control strategies that dynamically match valve throughput to real-time process demand — eliminating the chronic over-pressurization that inflates utility costs on high-throughput production lines.

Effective energy management on a modern production line is never the result of a single device — it emerges from the coordinated interaction of multiple intelligent components. The ABB TZIDC-110 is designed to operate as an active participant in this ecosystem rather than a passive actuator endpoint.

At the field level, the TZIDC-110 communicates position feedback and diagnostic data upstream via HART protocol to power monitoring modules such as the ABB EQ meters or third-party power analyzers integrated into the plant's energy management system (EMS). This real-time telemetry allows energy engineers to correlate valve position with instantaneous power draw across associated pump motors and compressors — identifying inefficient operating windows where partial valve opening forces drive motors into high-slip, low-efficiency zones.

When paired with ABB ACS880 variable-speed drives controlling the pumps or fans that the TZIDC-110 regulates, the combination enables a coordinated load-management strategy: the drive reduces motor speed while the positioner simultaneously adjusts valve opening to maintain process setpoint, collectively cutting energy consumption by 20–40% compared to throttle-only or speed-only control approaches. This synergy is orchestrated through the ABB AC500 PLC, which executes the supervisory control logic and communicates setpoints to both the drive and the positioner over PROFIBUS DP/PA.

For facilities running ABB Symphony Plus or equivalent DCS platforms, the TZIDC-110 integrates natively as a PROFIBUS PA field device, surfacing its internal diagnostics — including actuator travel accumulation, supply pressure variance, and temperature excursions — directly into the DCS historian. Operators viewing the ABB CP600 HMI panels can monitor valve health trends alongside energy KPIs, enabling proactive maintenance scheduling before efficiency degradation becomes measurable on the utility bill.

On the I/O side, the TZIDC-110's binary input can be wired to safety interlock signals from the plant's safety PLC or emergency shutdown (ESD) system, ensuring that in fault conditions the valve moves to its fail-safe position without consuming additional pneumatic energy. Proximity sensors or limit switches mounted on the actuator provide independent position confirmation to the ABB S800 I/O modules, creating a redundant feedback path that the SCADA system uses for alarm management and energy audit logging.

In multi-axis valve control applications — common in batch chemical reactors or continuous distillation columns — multiple TZIDC-110 units share a PROFIBUS PA segment with ABB FieldIT sensors and ABB HART multiplexers, allowing a single communication cable to carry diagnostic and control data for an entire valve bank. This topology dramatically reduces wiring costs and simplifies the integration of valve energy data into the plant's ISO 50001-aligned energy management system.

Production line energy optimization is fundamentally a problem of matching energy supply to process demand with the highest possible temporal resolution. Valves that respond slowly, drift from setpoint, or require frequent manual recalibration introduce energy waste at every process transition — startup, grade change, shutdown, and emergency stop. The ABB TZIDC-110 eliminates these inefficiencies through three core mechanisms.

Adaptive Self-Calibration: The TZIDC-110 continuously monitors its own mechanical signature — actuator friction, spring rate, and supply pressure — and adjusts its internal control parameters without operator intervention. This means the positioner maintains its energy-optimal operating point even as seals wear and actuator characteristics drift over thousands of operating hours. Facilities that previously scheduled quarterly manual calibration of conventional positioners report a measurable reduction in compressed-air consumption after migrating to the TZIDC-110, because the device no longer hunts around setpoint during the intervals between manual adjustments.

Minimal Steady-State Air Consumption: Unlike older relay-based positioners that bleed a continuous pilot flow to maintain position, the TZIDC-110's piezoelectric pilot valve design achieves near-zero steady-state air consumption when the valve is stationary at setpoint. On a plant with hundreds of control valves, this characteristic alone can reduce compressed-air system load by several kilowatts — directly translating to lower compressor energy bills and reduced heat rejection from the compressor aftercoolers.

Predictive Maintenance Integration: The TZIDC-110 logs actuator travel, reversal count, and supply pressure statistics internally and makes this data available to the plant's SCADA or asset management system via HART Device Description (DD) or PROFIBUS PA GSD file. Maintenance teams using ABB Asset Vision or equivalent condition monitoring platforms can set energy-based maintenance triggers — for example, scheduling valve packing replacement when travel accumulation reaches a threshold that correlates with increased friction and higher air consumption — rather than relying on fixed calendar intervals. This predictive approach keeps valves operating in their energy-efficient design envelope and reduces unplanned downtime that disrupts production line rhythm and forces energy-intensive restart sequences.

The net result is a production line where valve control contributes positively to the facility's energy intensity metrics: lower kWh per unit of output, reduced peak demand charges from smoother motor loading, and a documented audit trail of valve performance data that supports ISO 50001 energy management certification. Stock is maintained for prompt dispatch, and every TZIDC-110 unit undergoes factory functional testing and loop calibration verification before shipment, backed by a 12-month warranty covering manufacturing defects and performance conformance.

Q1: How much energy can the TZIDC-110 save compared to a conventional pneumatic positioner? In steady-state operation, the TZIDC-110's piezoelectric pilot design consumes less than 0.05 Nm³/h of instrument air at setpoint — typically 60–80% less than conventional I/P relay positioners. When combined with coordinated variable-speed drive control via ABB ACS880 drives, system-level energy savings of 20–40% on pump and fan circuits are achievable, depending on process load profile and operating hours.

Q2: Is the TZIDC-110 compatible with my existing PROFIBUS PA or HART infrastructure? Yes. The TZIDC-110 supports both HART (4–20 mA) and PROFIBUS PA communication natively. It integrates with ABB AC500 PLCs, ABB Symphony Plus DCS, Siemens S7 series controllers, and any SCADA platform with standard HART or PROFIBUS PA driver support. The device ships with a certified GSD file for PROFIBUS PA and a full HART DD for asset management system integration.

Q3: What is the recommended replacement or upgrade path from older ABB positioners? The TZIDC-110 is a direct functional replacement for earlier ABB TZID-C and TZIDC-100 series positioners and is mechanically compatible with standard NAMUR VDI/VDE 3845 actuator mounting brackets. No pneumatic replumbing is required in most installations. Firmware configuration is performed via the local pushbutton interface or remotely through a HART communicator or PROFIBUS PA configuration tool, making field commissioning straightforward without specialist tooling.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every TZIDC-110 unit is factory-tested for full-stroke positioning accuracy, HART/PROFIBUS PA communication integrity, supply pressure response, and temperature performance before dispatch. The 12-month warranty covers manufacturing defects, electronic component failure, and any deviation from published positioning accuracy specifications under normal operating conditions. Warranty claims are supported with full traceability to the unit's factory test record. In-stock units are available for immediate shipment to minimize production line downtime.
