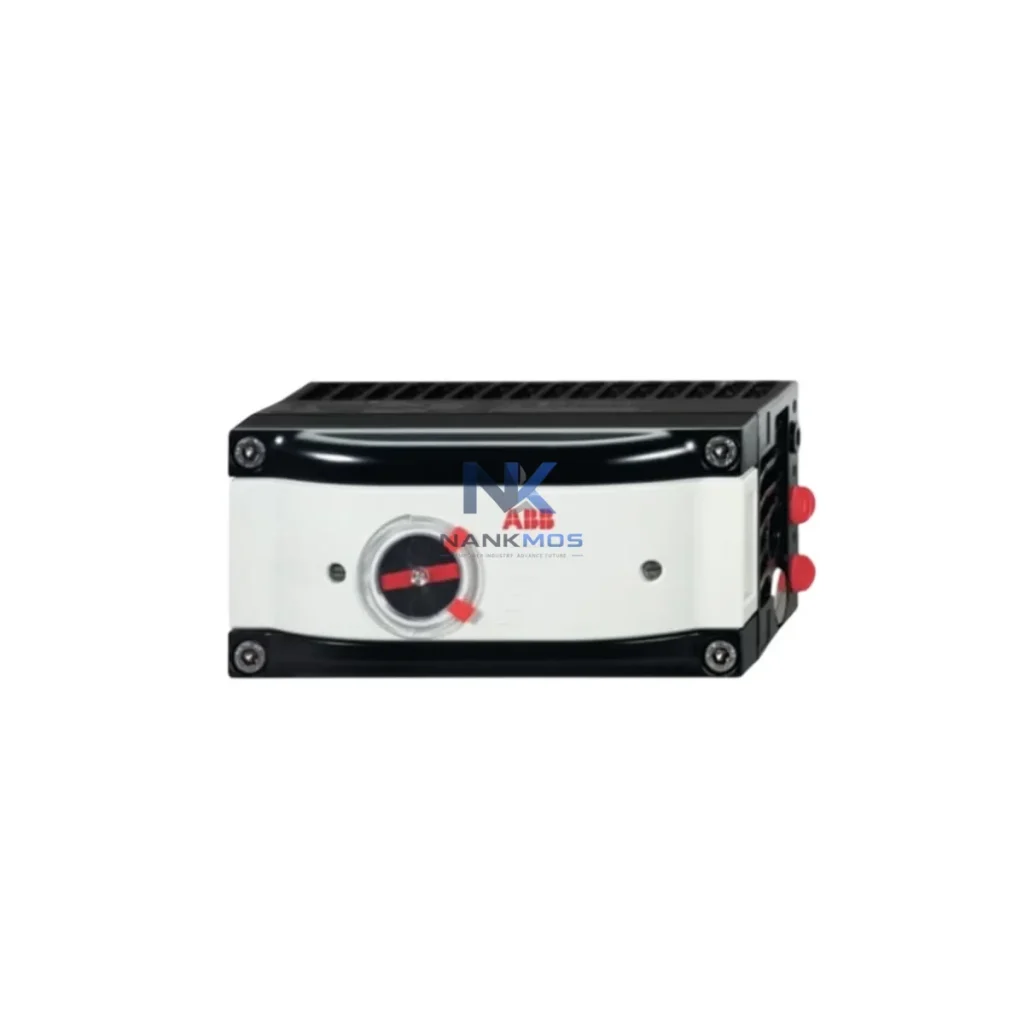

ABB TZIDC-200 V18348-10161310110 Digital Positioner

Product Details

TZIDC-200 V18348-10161310110 Product Description

The ABB TZIDC-200 V18348-10161310110 is a precision digital positioner engineered for seamless integration within layered industrial control architectures. Designed to operate as a critical node in the final control element layer, this unit bridges the command signals from the control layer to the physical actuation layer with exceptional accuracy, repeatability, and diagnostic transparency. Whether deployed in continuous process control, batch manufacturing, or safety-instrumented systems, the TZIDC-200 V18348-10161310110 delivers the signal fidelity and system coherence demanded by modern automation platforms.

In a fully integrated automation architecture, the positioner does not function in isolation. It receives 4–20 mA analog or HART digital command signals originating from the DCS or PLC control layer — such as an ABB System 800xA controller or AC500 PLC — and translates those commands into precise pneumatic output to drive linear or rotary valve actuators. The TZIDC-200 supports HART communication protocol, enabling bidirectional data exchange with asset management systems and field device integration tools, making it fully compatible with ABB's Asset Vision Professional and third-party HART masters. This communication capability ensures that the positioner is not a passive endpoint but an active, diagnostics-capable node within the control network.

From a system architecture perspective, the TZIDC-200 V18348-10161310110 contributes to multiple control layers simultaneously. At the I/O layer, it receives standardized analog signals from marshalling panels or remote I/O modules such as the ABB S900 or CI840A interface modules. At the communication layer, its HART capability allows integration with fieldbus segment couplers and asset management gateways. At the execution layer, it directly governs valve stroke position with sub-1% accuracy, ensuring that process variables such as flow rate, pressure differential, and temperature remain within tight control bands. At the diagnostic layer, it continuously monitors supply pressure, actuator travel, friction, and hysteresis, reporting device health data upstream to the control system or maintenance platform.

The positioner's modular design supports both single-acting and double-acting pneumatic actuators, making it adaptable across a wide range of valve body configurations — globe valves, butterfly valves, ball valves, and rotary plug valves — without requiring hardware redesign. Its compact enclosure meets IP66/NEMA 4X ingress protection standards, enabling installation in outdoor, washdown, and chemically aggressive environments typical of petrochemical, water treatment, and offshore applications. The unit operates reliably across an ambient temperature range of -40°C to +85°C, ensuring performance continuity in both arctic and tropical deployment zones.

For engineering teams designing redundant control architectures, the TZIDC-200 V18348-10161310110 supports partial stroke testing (PST) functionality, which is essential for SIL-rated safety loops. PST allows the valve to be exercised through a defined partial travel range during normal operation, verifying mechanical integrity without interrupting the process. This capability, combined with the positioner's SIL 2 capability per IEC 61508, makes it a qualified component for safety-instrumented systems in accordance with IEC 61511 requirements in oil and gas, chemical, and power generation facilities.

The TZIDC-200 V18348-10161310110 achieves its highest value when deployed as part of a cohesive, multi-layer automation platform. In a typical DCS-based architecture, the control layer is anchored by an ABB System 800xA controller or an AC500 PLC, which generates the 4–20 mA setpoint signal transmitted through the I/O layer. Remote I/O modules such as the ABB S900 field I/O or CI840A communication interface relay the signal to the field junction box, where the TZIDC-200 receives it and executes the valve positioning command.

At the communication layer, HART-enabled field device multiplexers or HART-over-PROFIBUS gateways — such as the ABB CI873 PROFIBUS gateway — allow the positioner's diagnostic data to be aggregated into the asset management system without interrupting the primary 4–20 mA control loop. This architecture ensures that device health, valve signature data, and partial stroke test results are continuously available to maintenance engineers through ABB's Asset Vision Professional or compatible HART asset management tools.

For power distribution within the control cabinet, 24 VDC loop power supplies and ABB TRIO power supply modules provide stable, regulated power to the I/O marshalling panels feeding the positioner's input circuit. Surge protection devices and signal isolators — such as the ABB RINSTRUM or equivalent galvanic isolators — protect the 4–20 mA loop from ground loops and transient interference, preserving signal integrity across long cable runs in electrically noisy industrial environments.

In safety-critical applications, the TZIDC-200 is often paired with solenoid valve manifolds and ABB TZIDC safety modules to form a complete SIL 2 final element assembly. The positioner's internal diagnostics continuously monitor actuator friction, hysteresis, and supply pressure deviation, generating early warning alerts that allow maintenance teams to schedule corrective action before a process upset occurs. This predictive maintenance capability reduces unplanned downtime and extends the operational life of both the positioner and the associated valve assembly.

For HMI integration, operator workstations running ABB Ability™ System 800xA or third-party SCADA platforms receive real-time valve position feedback from the TZIDC-200 via the HART communication channel, enabling operators to monitor valve health, travel deviation, and diagnostic alerts directly from the process graphic displays. This closed-loop visibility between the HMI layer and the final control element layer is essential for high-availability process plants where valve performance directly impacts product quality and safety.

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing facilities, the TZIDC-200 V18348-10161310110 is deployed on critical control valves in feed preheating trains, distillation column reflux loops, and compressor anti-surge circuits. Its SIL 2 capability and partial stroke testing support make it a qualified component for emergency shutdown (ESD) valve assemblies, where proof-test intervals must be minimized without process interruption. The ATEX Zone 1 certification ensures safe operation in potentially explosive atmospheres present in tank farms, loading terminals, and offshore platforms.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the positioner governs steam control valves, feedwater control valves, and fuel gas modulating valves. Its wide ambient temperature tolerance and robust IP66 enclosure allow installation in turbine halls and boiler houses where temperature gradients and vibration levels are extreme. HART diagnostics enable condition-based maintenance programs aligned with planned outage schedules, reducing the risk of valve-related forced outages.

Water and Wastewater Treatment: Municipal and industrial water treatment plants deploy the TZIDC-200 on chemical dosing valves, filter backwash control valves, and effluent flow control stations. The IP66/NEMA 4X rating ensures reliable operation in wet, corrosive environments, while HART communication allows remote diagnostics from the plant SCADA system, reducing the need for manual field inspections in unmanned pump stations and remote treatment facilities.

Pharmaceutical and Food & Beverage: In hygienic process applications, the positioner's precise positioning accuracy and low hysteresis support the tight flow control tolerances required for CIP/SIP cleaning cycles, sterile filling lines, and batch reactor feed control. Its compatibility with stainless steel actuator assemblies and sanitary valve bodies makes it suitable for FDA-regulated and GMP-compliant manufacturing environments.

Mining and Metallurgy: In mineral processing plants and smelting facilities, the TZIDC-200 controls slurry flow valves, reagent dosing valves, and cooling water modulating valves. Its robust construction and wide temperature range ensure reliable operation in dusty, high-vibration environments where conventional positioners experience accelerated wear and signal drift.

Q1: Is the TZIDC-200 V18348-10161310110 compatible with existing ABB System 800xA DCS architectures and HART multiplexer networks? Yes. The TZIDC-200 V18348-10161310110 is fully compatible with ABB System 800xA DCS platforms via standard 4–20 mA analog I/O channels. Its HART communication capability allows integration with HART multiplexers and HART-over-PROFIBUS gateways connected to the 800xA asset management layer. No additional hardware adapters are required for standard HART revision 5, 6, or 7 networks. Device Description (DD) files are available for import into ABB Asset Vision Professional and compatible HART asset management tools, enabling full parameter access and diagnostic visibility from the engineering workstation.

Q2: What commissioning and calibration procedures are required when installing the TZIDC-200 in a new or replacement application? Commissioning the TZIDC-200 requires an auto-calibration sequence initiated via the local pushbutton interface or remotely via a HART communicator or asset management software. During auto-calibration, the positioner automatically determines the valve travel limits, actuator type (single or double-acting), and action direction (air-to-open or air-to-close). The process typically takes 2–5 minutes per device. For SIL-rated applications, a proof test procedure must be performed after installation to verify partial stroke test functionality and confirm the safety function response time meets the SIL 2 requirements defined in the safety requirements specification (SRS). Full commissioning documentation, including calibration records and proof test reports, should be retained for functional safety audit purposes.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory supply for the TZIDC-200 V18348-10161310110? The 12-Month Warranty covers manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. Warranty claims are supported by NANKMOS with replacement unit dispatch or repair service, subject to inspection and fault confirmation. For long-term inventory planning, NANKMOS maintains dedicated stock of the TZIDC-200 V18348-10161310110 to support MRO procurement programs, planned maintenance shutdowns, and emergency replacement requirements. Pre-shipment functional testing is performed on every unit, including input signal response verification, pneumatic output calibration check, and HART communication confirmation, ensuring that each unit arrives ready for installation without additional bench testing. Contact [email protected] or +86 18359268345 for volume pricing, lead time confirmation, and technical pre-sales support.
