ABB V18345-1010121001 Valve Positioner

Product Details

V18345-1010121001 Product Description

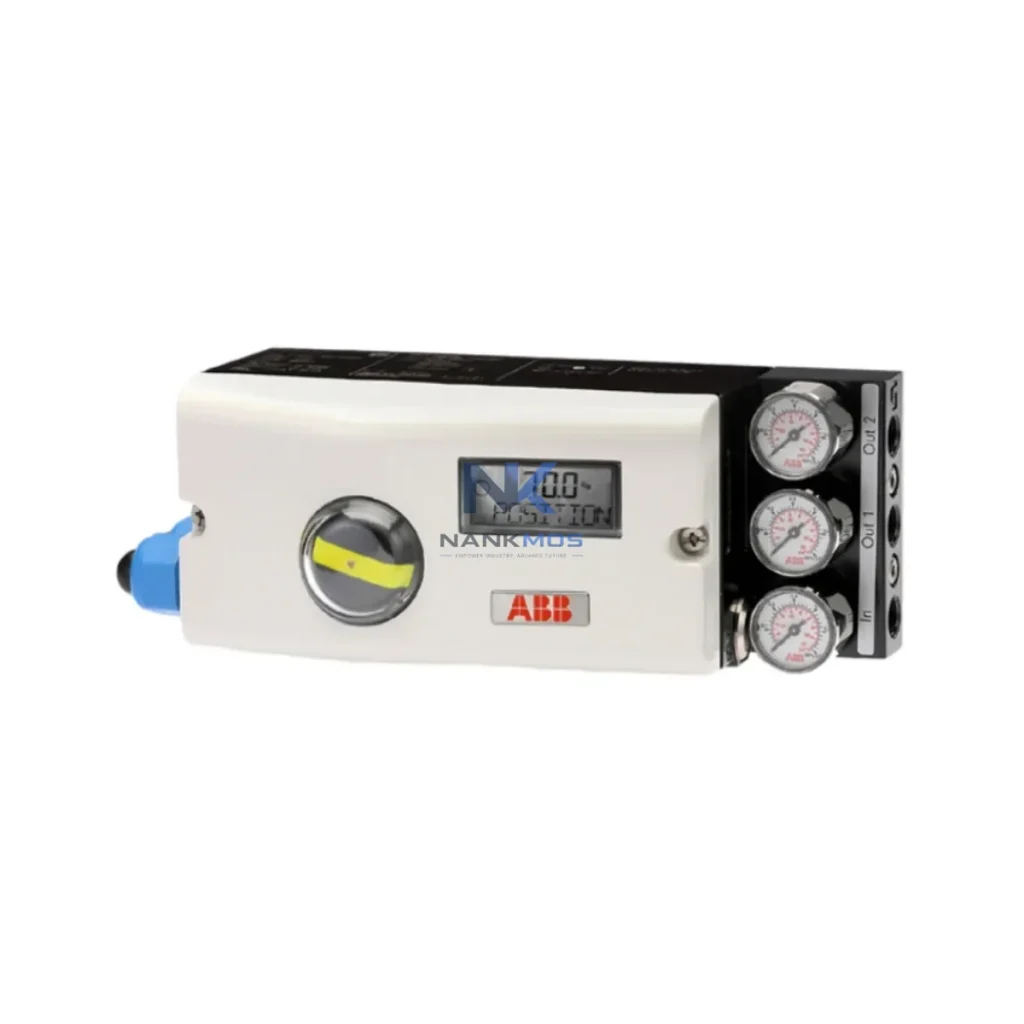

The ABB V18345-1010121001 is a high-performance TZIDC intelligent valve positioner engineered for seamless integration into modern smart factory data architectures. Built on the HART (Highway Addressable Remote Transducer) communication protocol, this positioner serves as a critical node in the industrial data chain — bridging field-level control valves with upstream PLC controllers, DCS platforms, SCADA systems, and edge computing gateways. Whether deployed in petrochemical processing, pharmaceutical manufacturing, energy management, or semiconductor fabrication, the V18345-1010121001 delivers precision actuation control with full digital transparency across the automation network.

In a connected factory environment, data integrity begins at the field device. The ABB V18345-1010121001 captures real-time valve position feedback, actuator travel data, and diagnostic signals — transmitting them via HART protocol over standard 4–20 mA analog loops without requiring additional wiring infrastructure. This dual-channel capability allows simultaneous analog control and digital communication, making it fully compatible with HART-enabled I/O modules, remote I/O racks, and HART multiplexers commonly used in distributed control architectures.

In a fully integrated smart factory, the ABB V18345-1010121001 operates as the terminal data node in a multi-layer automation architecture. At the field level, the positioner receives a 4–20 mA setpoint signal from a Siemens S7-1500 PLC or an ABB AC500 controller, translating the command into precise pneumatic actuation for control valves managing flow, pressure, or temperature. Simultaneously, the HART channel transmits live diagnostic data — including valve travel deviation, actuator friction, and zero/span calibration status — upstream to the control layer.

This diagnostic stream is captured by a HART-enabled remote I/O module (such as the Pepperl+Fuchs KFD2-HMM series or equivalent multiplexer) and forwarded to the plant's DCS backbone. In ABB System 800xA or Emerson DeltaV environments, the V18345-1010121001 integrates natively via HART Device Type Manager (DTM) files, enabling full asset management visibility from the operator workstation. Engineers can remotely perform auto-calibration, stroke testing, and partial valve stroke tests (PVST) without interrupting the process — a critical capability for SIL-rated safety loops.

At the network layer, an industrial Ethernet switch (such as the Hirschmann RS20 or Moxa EDS-308 series) aggregates data from multiple HART segments and routes it to the plant SCADA server. The SCADA platform — whether Wonderware InTouch, Ignition by Inductive Automation, or ABB Ability™ — receives structured valve health data for real-time visualization on HMI dashboards. Operators can monitor valve signature curves, detect early-stage stiction or hysteresis, and trigger maintenance workflows before unplanned shutdowns occur.

For facilities implementing IIoT edge architectures, the V18345-1010121001 data stream can be routed through an edge gateway (such as the Advantech ADAM-3600 or Siemens SINEMA Remote Connect) to cloud-based analytics platforms. This enables predictive maintenance models to analyze valve wear patterns across entire production lines, correlating positioner data with upstream flow transmitters, pressure sensors, and variable frequency drives (VFDs) controlling pump and compressor loads. The result is a closed-loop data ecosystem where every actuator event is logged, timestamped, and available for root-cause analysis.

In hazardous area installations — common in oil & gas upstream and downstream facilities — the V18345-1010121001's ATEX/IECEx certification ensures safe operation in Zone 1 and Zone 2 environments. Paired with an intrinsically safe HART barrier or galvanic isolator in the control room marshalling cabinet, the positioner maintains full digital communication integrity without compromising explosion protection. This makes it a preferred choice for wellhead control panels, compressor station automation, and refinery distillation column valve management.

Protocol Fragmentation: Many legacy plants operate mixed environments where pneumatic positioners with no digital output coexist alongside modern HART and FOUNDATION Fieldbus devices. The ABB V18345-1010121001 resolves this by retrofitting existing pneumatic actuators with full HART digital capability — no rewiring required. A single positioner upgrade converts a "dumb" control valve into a fully communicating smart field device, eliminating the data gap between the field and the control room.

Data Silos and Production Transparency: Without positioner-level diagnostics, valve health data remains invisible to SCADA and MES systems. The V18345-1010121001 breaks down these silos by continuously publishing valve position, actuator load, and deviation alerts to the HART network. Plant managers gain real-time production transparency — knowing exactly which valves are operating within specification and which require attention — without dispatching field technicians for manual inspection rounds.

Remote Monitoring and Alarm Tracking: In geographically distributed facilities such as pipeline networks or offshore platforms, remote diagnostics are essential. The V18345-1010121001 supports remote configuration and alarm acknowledgment via HART handheld communicators (e.g., Emerson 475 Field Communicator) or through the DCS asset management interface. Alarm events — including travel limit violations, supply pressure drops, and actuator stall conditions — are automatically logged with timestamps for compliance reporting and maintenance scheduling.

System Scalability: As production lines expand, the V18345-1010121001's HART multi-drop capability allows multiple positioners to share a single communication segment, reducing infrastructure costs. Combined with ABB's modular TZIDC platform, engineers can standardize on a single positioner family across linear and rotary valve applications — simplifying spare parts management, technician training, and system documentation across multi-site operations.

Q1: What is the communication latency of the HART protocol used in the V18345-1010121001? HART protocol operates at 1200 baud, with a typical command-response cycle of 250–500 ms per device in point-to-point mode. For real-time control, the 4–20 mA analog signal provides continuous, latency-free setpoint execution, while HART digital communication handles diagnostic polling in the background. This dual-channel design ensures control performance is never compromised by diagnostic traffic.

Q2: Is the V18345-1010121001 compatible with non-ABB DCS and SCADA platforms? Yes. The HART protocol is an open, internationally recognized standard (IEC 61158), and the V18345-1010121001 is compatible with any HART-enabled I/O system, including Siemens PCS 7, Honeywell Experion PKS, Yokogawa CENTUM VP, and Emerson DeltaV. DTM/FDT-compliant device description files are available for integration with third-party asset management tools.

Q3: How is network stability maintained in electrically noisy industrial environments? The HART signal is superimposed on the 4–20 mA loop using frequency-shift keying (FSK) modulation, which is inherently resistant to common-mode electrical noise. The V18345-1010121001 is designed to operate reliably in environments with high electromagnetic interference (EMI) from VFDs, motor starters, and high-voltage switchgear. For additional noise immunity, shielded twisted-pair cabling and proper grounding practices are recommended per IEC 61000-4 guidelines.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every ABB V18345-1010121001 unit supplied by NANKMOS undergoes pre-shipment functional testing, including HART communication verification, pneumatic stroke calibration, and IP protection inspection. The 12-month warranty covers manufacturing defects, communication failures, and actuator mechanism faults from the date of shipment. Warranty claims are supported with full documentation, and replacement units are dispatched from in-stock inventory to minimize downtime at your facility.
