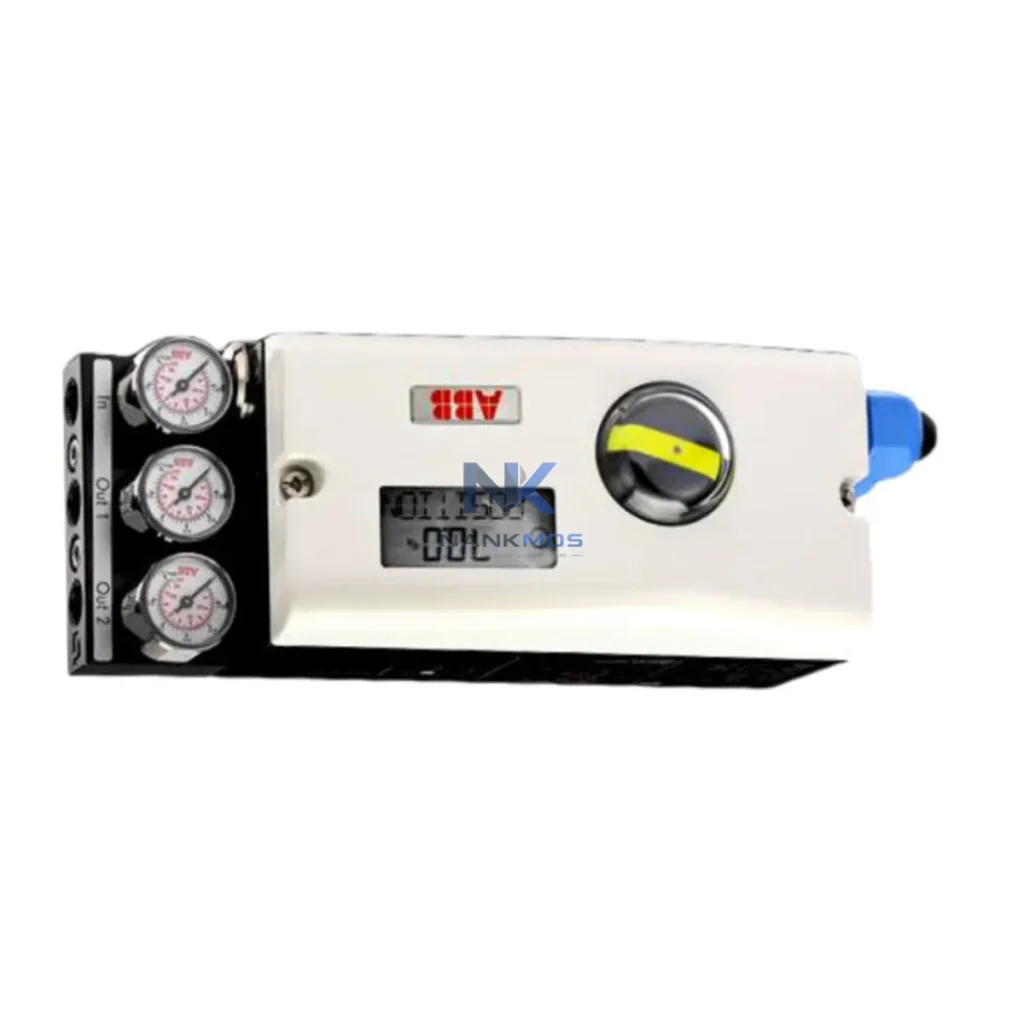

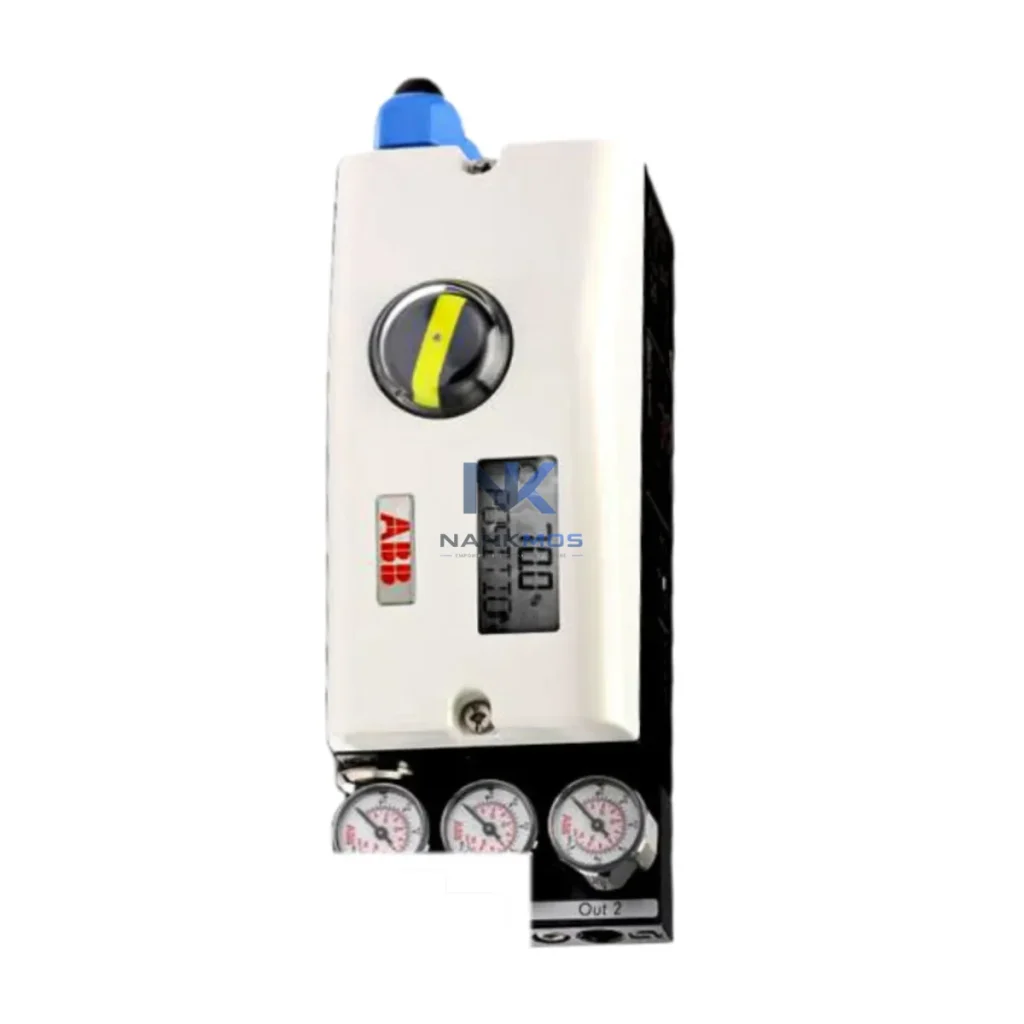

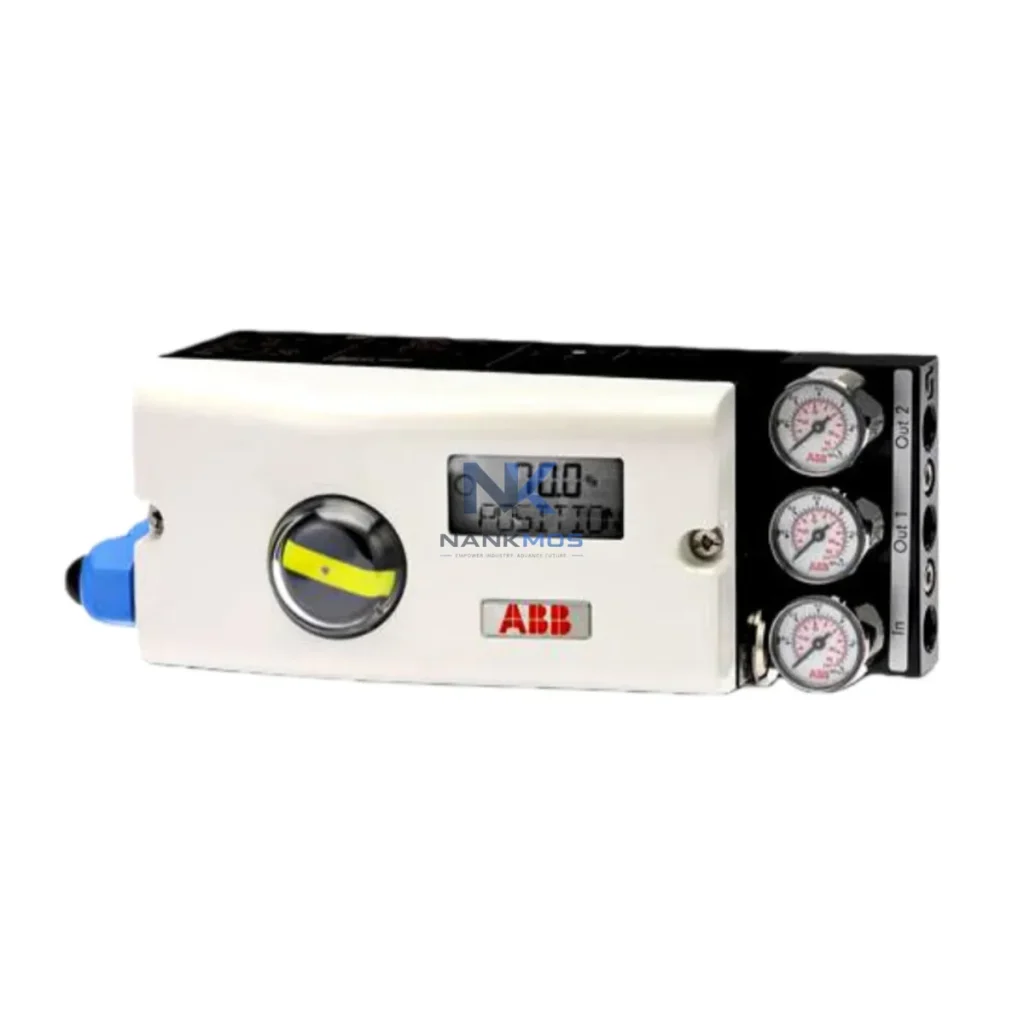

ABB V18347-2041150001 Electro-Pneumatic Positioner

Product Details

V18347-2041150001 Product Description

The ABB V18347-2041150001 is a high-performance electro-pneumatic positioner from ABB's TZIDC series, engineered to serve as a critical node in the industrial data chain of modern smart factories. Combining HART communication protocol with precision valve positioning, this unit bridges the gap between field-level actuators and upper-level control systems — enabling seamless data flow from the process layer all the way to SCADA dashboards, MES platforms, and cloud-based analytics environments. Whether deployed in chemical processing, oil and gas, power generation, or advanced discrete manufacturing, the V18347-2041150001 delivers the connectivity, reliability, and diagnostic depth that Industry 4.0 demands.

In a connected factory architecture, the V18347-2041150001 does not operate in isolation. It functions as an intelligent field device that continuously transmits real-time valve position data, actuator health metrics, and process feedback signals upstream through HART-enabled I/O modules and field junction boxes to the DCS or PLC layer. When integrated with an ABB AC500 PLC or a Siemens S7-300/S7-400 controller via a HART multiplexer or gateway module, the positioner's diagnostic data — including travel deviation, friction coefficient, and zero/span calibration status — becomes immediately accessible to the control room operator without any manual field inspection.

The data journey enabled by the ABB V18347-2041150001 begins at the valve actuator itself. As the positioner receives a 4–20 mA setpoint signal from the control system, it simultaneously transmits HART diagnostic frames back upstream. These frames carry valve signature data, partial stroke test results, and actuator performance trends — information that is captured by a HART field communicator or a dedicated HART-to-Modbus gateway installed in the marshalling cabinet.

From the gateway layer, data is forwarded to the plant's primary control infrastructure. In many installations, this means an ABB System 800xA DCS or a Honeywell Experion PKS platform, where the positioner appears as a fully addressable field device with its own device tag, health status, and alarm register. Operators can view real-time valve travel, input signal vs. output position deviation, and accumulated cycle counts directly on the HMI screen — without leaving the control room.

For facilities running a hybrid architecture, the V18347-2041150001 integrates equally well with Siemens ET 200SP remote I/O stations connected via PROFIBUS DP or PROFINET, using a HART-over-PROFIBUS module to relay positioner data to the S7-1500 PLC. This configuration is particularly common in modular skid-mounted process units where the positioner must report to both a local Siemens TP1200 Comfort HMI panel and a central SCADA server running Wonderware InTouch or Ignition by Inductive Automation.

At the edge layer, an ABB Edge Controller or a third-party Moxa MGate HART-to-Ethernet gateway can aggregate positioner data from multiple V18347-2041150001 units across a production line, pre-process the diagnostic streams, and push structured JSON or OPC-UA data packets to the plant historian or cloud analytics platform. This edge-to-cloud pipeline enables predictive maintenance algorithms to flag valve stiction, seat leakage, or actuator spring degradation weeks before a failure event occurs — dramatically reducing unplanned downtime.

Power continuity for the positioner loop is typically ensured by a Phoenix Contact QUINT 24VDC industrial power supply with integrated diagnostics, while network-level redundancy is maintained through a managed industrial Ethernet switch — such as the Hirschmann RS20 or Moxa EDS-510E — that supports RSTP ring topology for zero-downtime failover. The complete data chain, from valve actuator through field gateway, PLC, HMI, SCADA, and historian, forms a transparent, auditable record of every process event associated with the V18347-2041150001 positioner.

One of the most persistent challenges in brownfield automation environments is protocol fragmentation. A plant may operate legacy pneumatic positioners alongside newer HART-enabled devices, with no unified pathway for diagnostic data to reach the SCADA layer. The ABB V18347-2041150001 directly addresses this by supporting HART communication over the existing 4–20 mA wiring infrastructure — no new cable runs required. A single HART multiplexer can poll dozens of V18347-2041150001 units simultaneously, consolidating their data into a single Modbus TCP or OPC-UA feed for the control system.

Data silos are another common pain point. When positioner health data exists only in a handheld field communicator's memory and never reaches the plant historian, maintenance teams lose the ability to trend valve performance over time. By integrating the V18347-2041150001 into the plant's asset management system — such as ABB Asset Vision or Emerson AMS Device Manager — every calibration event, partial stroke test result, and alarm acknowledgment is automatically logged with a timestamp, creating a complete audit trail that satisfies both internal quality standards and external regulatory requirements.

Remote monitoring capability is especially valuable for unmanned substations, offshore platforms, and geographically distributed pipeline stations. With the V18347-2041150001 connected through a HART gateway to a cellular or fiber-optic WAN link, maintenance engineers can perform remote diagnostics, adjust positioner parameters, and initiate partial stroke tests from a central engineering workstation — eliminating costly site visits and reducing mean time to repair (MTTR). Alarm rationalization is also simplified: the positioner's built-in deviation alarm and travel limit alerts are mapped directly to the SCADA alarm management system, ensuring that every abnormal valve condition triggers the correct operator response workflow.

For production lines undergoing digital transformation, the V18347-2041150001 serves as a low-risk entry point into smart factory connectivity. Its HART interface is compatible with virtually every modern DCS and PLC platform, and its FDT/DTM device driver is available for immediate download, enabling plug-and-play integration into existing engineering environments without custom programming.

Q1: What is the communication latency of the HART protocol used by the V18347-2041150001?HART communication operates at 1200 baud, with a typical command-response cycle of 250–500 ms per device. For real-time control, the 4–20 mA analog signal provides instantaneous response, while HART digital communication handles diagnostic data retrieval in the background without interfering with the control loop. In multi-drop HART configurations, polling intervals are managed by the HART master to balance update rates across all connected devices.

Q2: Is the V18347-2041150001 compatible with PROFIBUS, PROFINET, or EtherNet/IP networks?The V18347-2041150001 natively supports HART over 4–20 mA. Integration with PROFIBUS DP, PROFINET, or EtherNet/IP networks is achieved through a HART-to-fieldbus gateway or a HART-capable remote I/O module (such as Siemens ET 200SP with HART module or Pepperl+Fuchs FieldConnex). This approach preserves the positioner's full diagnostic capability while making its data available on any major industrial network architecture.

Q3: How is network stability ensured in high-vibration or electrically noisy industrial environments?The V18347-2041150001 is designed to IP66/NEMA 4X protection standards and operates reliably across an ambient temperature range of -40°C to +85°C. HART signal integrity is maintained through standard loop wiring practices, including proper shielding, grounding, and the use of HART-compliant barriers in intrinsically safe installations. For network-level redundancy, the upstream Ethernet infrastructure should implement RSTP or MRP ring topology on managed industrial switches to ensure sub-50 ms failover in the event of a link fault.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?Every ABB V18347-2041150001 unit supplied by NANKMOS undergoes full functional testing prior to shipment, including input signal response verification, HART communication handshake confirmation, and mechanical travel calibration. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Each unit ships with a test report and is traceable to its production batch. For urgent requirements, expedited shipping and same-day dispatch are available for in-stock units.
