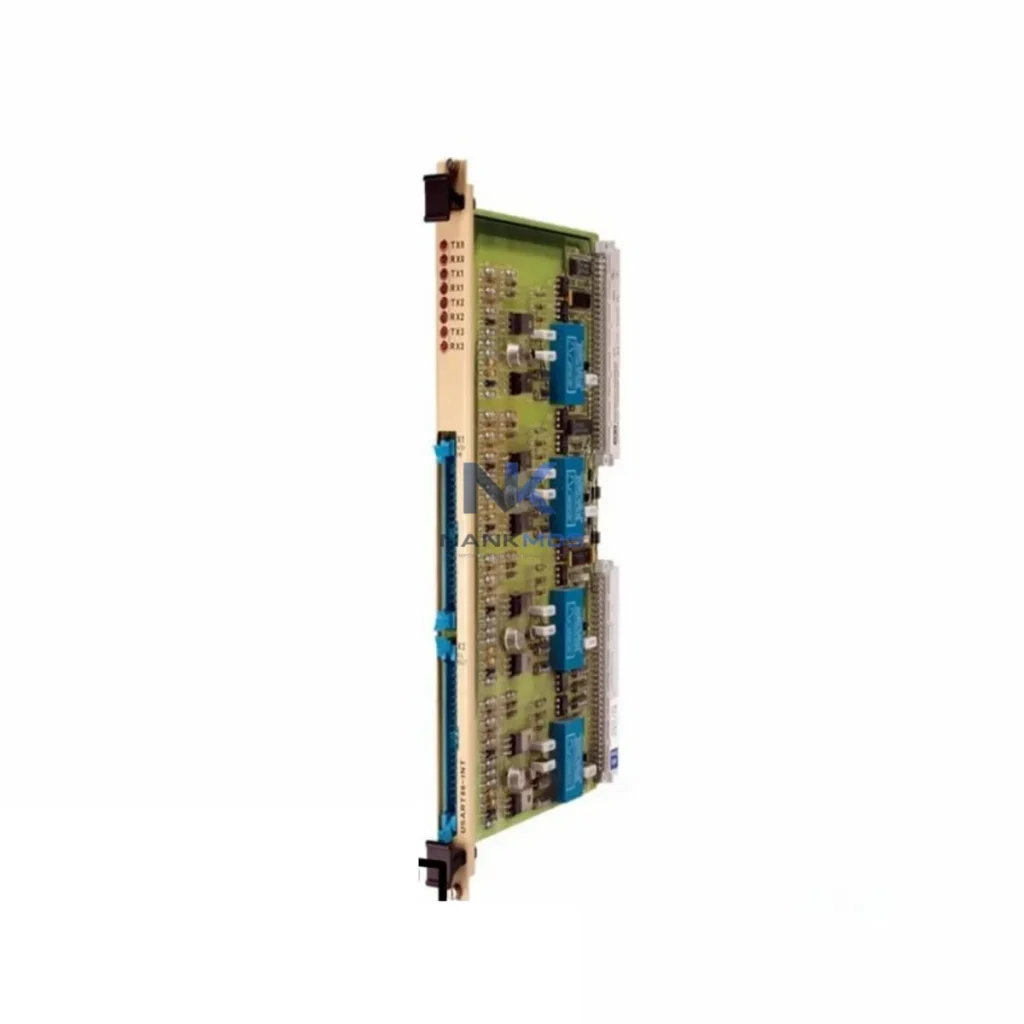

ABB YPQ103C YT204001-BG Analog Input Module

Product Details

YPQ103C YT204001-BG Product Description

The ABB YPQ103C YT204001-BG is a precision analog input module engineered for the ABB Symphony Plus Distributed Control System (DCS), purpose-built to serve as a critical data acquisition node in smart factory environments. Designed to capture, condition, and transmit real-world process signals — including 4–20 mA current loops, thermocouple inputs, and RTD measurements — this module forms the foundational layer of a connected industrial data chain. From field-level sensors through to enterprise SCADA platforms, the YPQ103C YT204001-BG ensures that every analog signal is accurately digitized, time-stamped, and made available across the plant network with minimal latency and maximum reliability.

In modern process industries — including oil & gas, power generation, chemical processing, and pulp & paper — the integrity of analog signal acquisition directly determines the quality of control decisions made at every layer of the automation hierarchy. The YPQ103C YT204001-BG addresses this requirement by delivering high-resolution analog-to-digital conversion within the Symphony Plus I/O subsystem, feeding clean, calibrated data upward through the DCS controller to the operator HMI and beyond.

The YPQ103C YT204001-BG sits at the heart of a layered industrial data architecture. At the field level, process sensors — including pressure transmitters, flow meters, temperature probes, and level sensors — generate continuous analog signals that are wired directly into the module's input terminals. These signals are conditioned and digitized within the Symphony Plus I/O rack, where the YPQ103C YT204001-BG operates alongside companion modules such as the ABB YPQ104C digital output module and the ABB YPC111C analog output module, forming a complete mixed I/O subsystem capable of both reading and actuating field devices.

Once digitized, the process data is transmitted across the Symphony Plus internal communication bus to the ABB AC800M controller — the central processing unit of the Symphony Plus DCS. The AC800M executes control logic in real time, comparing live analog values against setpoints and issuing corrective output commands within milliseconds. This tight control loop is what enables the Symphony Plus platform to maintain process stability in demanding applications such as boiler combustion control, distillation column management, and turbine speed regulation.

Above the controller layer, data flows upward to the supervisory network via an ABB S900 remote I/O gateway or an ABB CI854 PROFIBUS DP communication interface, which bridges the DCS backplane to plant-wide Ethernet infrastructure. This connectivity allows the YPQ103C YT204001-BG's acquired data to be consumed by ABB System 800xA — the integrated operations platform that unifies process control, asset management, and operator visualization into a single environment. Operators at the HMI workstation can view real-time analog trends, configure alarm thresholds, and drill down to individual channel diagnostics without leaving the 800xA environment.

For plants deploying edge computing strategies, the analog data stream from the YPQ103C YT204001-BG can be routed through an ABB Ability Edge gateway or a third-party industrial edge device, enabling local data preprocessing, anomaly detection, and OPC-UA publishing to cloud-based analytics platforms. This edge-to-cloud pathway supports predictive maintenance workflows, where historical analog trends are analyzed to detect early signs of sensor drift, valve wear, or heat exchanger fouling — long before a process upset occurs.

In multi-network plant environments, the data chain may also pass through an ABB AF100 fieldbus interface or a Hirschmann industrial Ethernet switch to segment traffic between the process control network (PCN) and the plant information network (PIN), ensuring that real-time control traffic is isolated from business-layer data flows. This network segmentation is essential for cybersecurity compliance and for maintaining deterministic communication latency in the control loop.

Variable-speed drives and ABB ACS880 frequency inverters connected to motor-driven pumps and compressors also feed status and speed feedback signals into the analog input layer, where the YPQ103C YT204001-BG captures these signals and makes them available to the DCS for closed-loop speed control and energy optimization. This integration between the drive layer and the DCS I/O layer is a hallmark of the Symphony Plus architecture's holistic approach to plant-wide automation.

Protocol Fragmentation: Many brownfield plants operate a mix of legacy 4–20 mA wiring, HART-enabled smart instruments, and newer PROFIBUS DP field devices. The YPQ103C YT204001-BG's HART pass-through capability allows HART device parameters — including device diagnostics, secondary variables, and configuration data — to be accessed through the Symphony Plus DCS without requiring a separate HART multiplexer, eliminating a common protocol integration gap.

Data Silos and Process Transparency: When analog signals are acquired locally but not propagated to the supervisory layer, operators lose visibility into field conditions. The YPQ103C YT204001-BG, integrated with the Symphony Plus communication infrastructure, ensures that every acquired analog value is available in real time at the HMI, in the historian, and in the SCADA dashboard — breaking down data silos and enabling full process transparency across shifts and locations.

Remote Monitoring and Alarm Tracking: In geographically distributed plants or unmanned substations, remote access to analog I/O data is critical. Through the Symphony Plus network and OPC-UA connectivity, the YPQ103C YT204001-BG's channel data can be monitored remotely via web-based SCADA clients or mobile operator interfaces, with alarm notifications delivered in real time to on-call engineers — reducing response times and minimizing unplanned downtime.

System Expansion and Scalability: As production capacity grows, additional YPQ103C YT204001-BG modules can be added to existing Symphony Plus racks without disrupting live control operations. The modular architecture of the Symphony Plus I/O system supports hot-swap capability and online configuration changes, allowing engineering teams to expand the analog input count incrementally as new field devices are commissioned.

Q1: What communication protocols does the ABB YPQ103C YT204001-BG support? The YPQ103C YT204001-BG communicates natively over the Symphony Plus internal I/O bus and supports HART pass-through for smart field device diagnostics. At the supervisory level, data is accessible via PROFIBUS DP through the CI854 interface module, and via OPC-UA through the System 800xA connectivity server — making it compatible with a wide range of SCADA, historian, and MES platforms.

Q2: How does this module support remote diagnostics and predictive maintenance? The module provides channel-level diagnostic data — including open-circuit detection, over-range alarms, and signal quality indicators — that are surfaced in the Symphony Plus DCS and accessible remotely via OPC-UA clients. Combined with HART device diagnostics passed through the module, maintenance teams can assess field instrument health without physical site visits, supporting condition-based maintenance strategies.

Q3: Is the ABB YPQ103C YT204001-BG compatible with ABB System 800xA and third-party SCADA systems? Yes. The module is fully integrated with ABB System 800xA through the Symphony Plus DCS architecture. For third-party SCADA systems — including Wonderware, Ignition, and Siemens WinCC — connectivity is achieved via OPC-DA or OPC-UA servers hosted on the Symphony Plus communication infrastructure, ensuring broad interoperability without custom protocol development.

Q4: What quality assurance and warranty coverage is provided? Every ABB YPQ103C YT204001-BG unit supplied by NANKMOS undergoes pre-shipment functional testing to verify analog input accuracy, channel isolation, and communication integrity. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch, with expedited shipping options for urgent maintenance and shutdown requirements.
