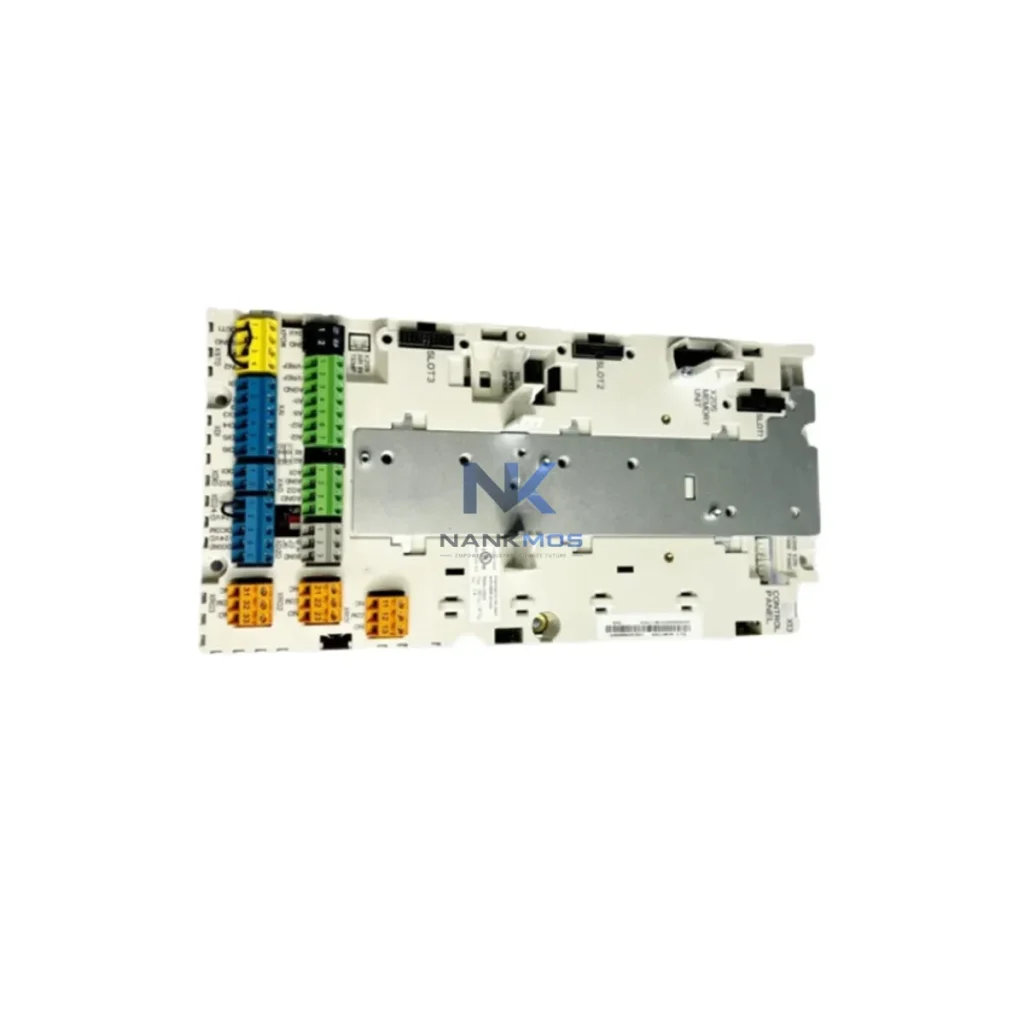

ABB ZCU-12 3AXD50000005751 Drive Control Unit

Product Details

ZCU-12 3AXD50000005751 Product Description

The ABB ZCU-12 (part number 3AXD50000005751) is the central drive control unit of the ACS880 single drive platform, engineered to deliver deterministic motor control, real-time diagnostics, and seamless integration across multi-axis and multi-drive automation architectures. As the computational and communication core of the ACS880 drive, the ZCU-12 coordinates signal processing, fieldbus communication, I/O expansion, and application programming within a unified control layer — making it a foundational component for engineers designing scalable, high-availability industrial drive systems.

In modern control architecture, the ZCU-12 does not operate in isolation. It functions as the intelligence layer within a broader ecosystem that spans the control tier, I/O tier, communication tier, power tier, HMI tier, execution tier, protection tier, and maintenance tier. Understanding how the ZCU-12 interacts with each of these layers is essential for system architects responsible for commissioning, redundancy planning, and long-term asset management.

The ZCU-12 achieves its full architectural value when deployed within a coordinated automation platform. At the control layer, it interfaces directly with ABB AC500 PLCs or third-party controllers via PROFIBUS DP or PROFINET, enabling closed-loop speed and torque regulation with deterministic cycle times. Engineers integrating the ZCU-12 into multi-drive systems typically pair it with the RDCU-12C remote drive control unit for cabinet-mounted or multi-drive configurations where the control unit must be separated from the power unit.

At the I/O layer, the ZCU-12 supports ABB FIO-01 digital I/O extension modules and FAIO-01 analog I/O modules, expanding the drive's signal handling capacity without requiring additional PLCs. This is particularly valuable in process control applications where analog feedback from pressure transmitters, flow meters, or temperature sensors must be processed directly at the drive level to reduce communication latency.

For encoder-based motion control, the FEN-01 TTL encoder interface module and FEN-11 absolute encoder interface module connect directly to the ZCU-12 expansion slot, enabling precise shaft position feedback for winding, hoisting, and positioning applications. In high-accuracy servo-class applications, this encoder integration eliminates the need for a separate motion controller, reducing cabinet footprint and wiring complexity.

At the communication layer, the ZCU-12 supports ABB FPBA-01 PROFIBUS adapter, FENA-21 EtherNet/IP and PROFINET dual-port adapter, and FSCA-01 CANopen adapter modules. These fieldbus options allow the ACS880 drive to participate in distributed control architectures alongside Siemens S7 PLCs, Rockwell ControlLogix systems, or Schneider Modicon platforms — making the ZCU-12 a genuinely interoperable component in mixed-vendor environments.

At the power layer, the ZCU-12 coordinates with the ACS880 power unit's IGBT gate driver boards and DC bus monitoring circuits. In multi-drive configurations using a common DC bus, the ZCU-12 manages energy flow coordination between regenerative and motoring drives, supporting energy recovery and reducing overall system power consumption. The APBU-44C or APBU-74C power distribution units are commonly deployed alongside ZCU-12-based drives in these architectures.

At the HMI layer, the ZCU-12 supports the ABB ACS-AP-I assistant control panel and ACS-AP-W WLAN panel, enabling local parameter access, fault diagnostics, and drive commissioning without a laptop. For remote monitoring, the ZCU-12 integrates with ABB Ability Drive Monitoring via the FENA-21 module, providing cloud-based condition monitoring, predictive maintenance alerts, and energy reporting across entire drive fleets.

At the protection layer, the ZCU-12 implements configurable motor thermal protection (PTC/PT100 via FAIO-01), overcurrent protection, earth fault detection, and stall protection — all managed through the drive's internal firmware without requiring external protection relays for standard motor protection functions. This integrated protection architecture reduces panel wiring and simplifies fault tracing during commissioning.

Manufacturing & Assembly Lines: In automotive and general manufacturing, the ZCU-12 controls conveyor drives, roller tables, and transfer systems within coordinated multi-axis lines. Its PROFINET connectivity allows tight synchronization with robot controllers and vision systems, ensuring precise part positioning and throughput consistency across high-speed production cells.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the ZCU-12 provides energy-optimized variable speed control with integrated process PID, reducing auxiliary power consumption and extending pump and fan service life. Its redundancy-ready architecture supports hot-standby drive configurations in critical utility applications.

Oil, Gas & Petrochemical: In hazardous area installations, the ZCU-12 is deployed in Ex-rated drive enclosures controlling compressor trains, pipeline pumps, and agitator drives. Its fieldbus integration with DCS platforms such as Honeywell Experion or Emerson DeltaV enables seamless process variable feedback and remote trip functionality without additional signal conditioning hardware.

Water & Wastewater Treatment: Municipal water treatment facilities use ZCU-12-based ACS880 drives for variable speed control of submersible pumps, aeration blowers, and sludge mixers. The drive's built-in energy optimizer and sleep/wake functionality reduce energy costs during low-demand periods, while the 12-month warranty and in-stock availability ensure rapid replacement in critical infrastructure applications.

Mining & Minerals Processing: In conveyor, crusher, and mill drive applications, the ZCU-12 manages high-inertia load starting, regenerative braking, and load-sharing between parallel drives on common conveyor systems. Its robust diagnostic capability — including real-time current waveform monitoring and fault history logging — reduces unplanned downtime in remote mining operations where maintenance access is limited.

Marine & Offshore: In vessel propulsion assist, thruster control, and deck machinery applications, the ZCU-12 meets the deterministic control and environmental tolerance requirements of marine-grade drive systems. Its compatibility with DNV-approved ACS880 marine drive variants makes it a preferred control unit for shipbuilders and retrofit projects requiring classification society compliance.

Q1: Is the ZCU-12 (3AXD50000005751) compatible with all ACS880 single drive frame sizes, and can it be used as a direct replacement for earlier RDCU-12C control units? The ZCU-12 is the standard control unit for ACS880 single drives across frame sizes R1 through R11. It is not a direct pin-compatible replacement for the RDCU-12C, which is designed for multi-drive and cabinet-mounted configurations where the control unit is physically separated from the power unit. For ACS880 single drive replacement, the ZCU-12 (3AXD50000005751) is the correct unit. Always verify the drive firmware version using ABB Drive Composer before replacement to ensure parameter set compatibility and avoid commissioning delays.

Q2: What fieldbus option modules are compatible with the ZCU-12, and how does fieldbus selection affect system architecture design? The ZCU-12 supports a full range of ABB fieldbus adapter modules installed in its option slot 1 or slot 2 positions, including FPBA-01 (PROFIBUS DP), FENA-21 (EtherNet/IP + PROFINET dual-port), FSCA-01 (CANopen), FDNA-01 (DeviceNet), and FMBA-01 (Modbus RTU). Fieldbus selection should align with the plant's existing PLC communication infrastructure to minimize gateway hardware and reduce cycle time. In new installations, PROFINET via FENA-21 is recommended for its real-time performance, network diagnostics, and compatibility with both Siemens and ABB PLC platforms.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the ZCU-12 before dispatch? Every ZCU-12 (3AXD50000005751) supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects, component failure, and functional non-conformance under normal operating conditions. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication port integrity check, I/O signal verification, and firmware version confirmation. Units are packaged in anti-static ESD-safe materials with humidity indicators to ensure safe transit. Expedited global shipping is available for critical maintenance and unplanned downtime scenarios, with same-day dispatch for in-stock units.
