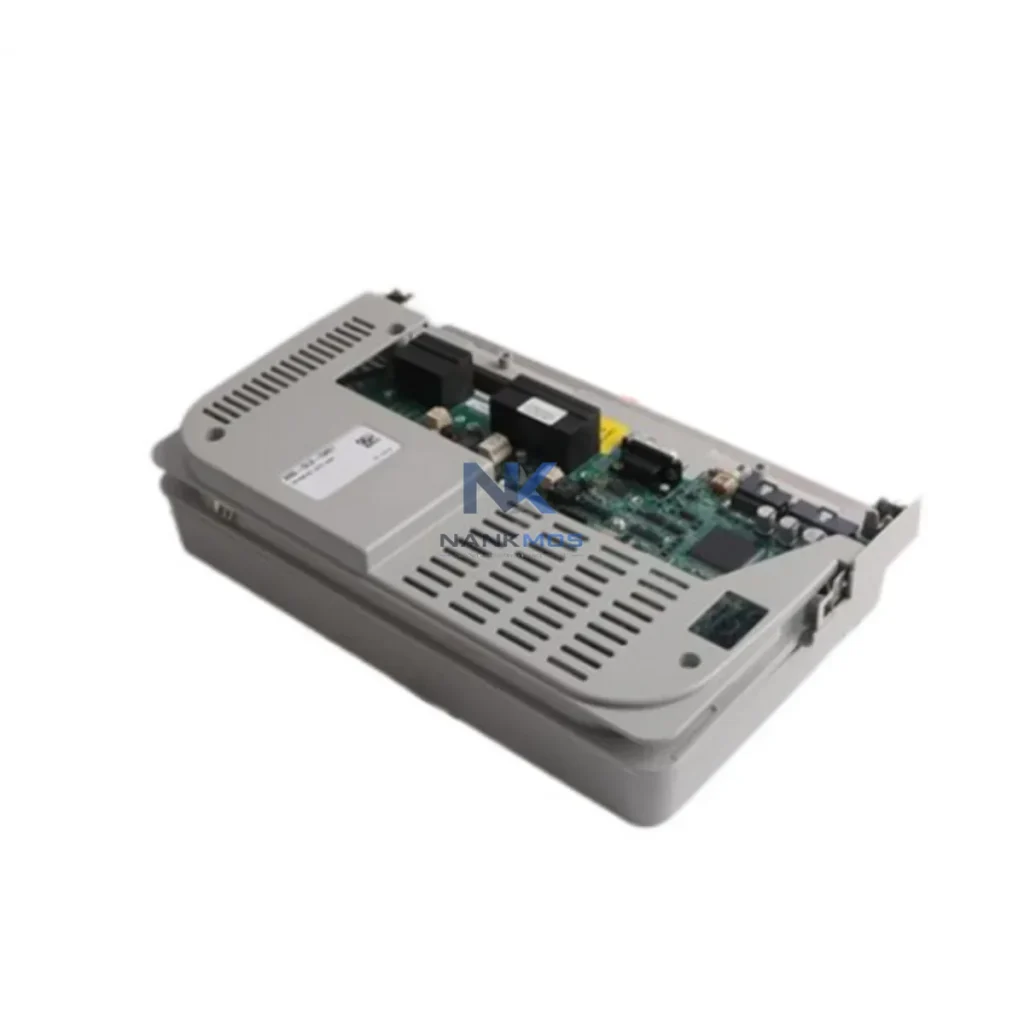

Allen-Bradley 1305-BA01A-HA2 Variable Speed Drive

Product Details

1305-BA01A-HA2 Product Description

The Allen-Bradley 1305-BA01A-HA2 is a compact, system-matched AC variable speed drive engineered for seamless integration within Rockwell Automation's 1305 Series control architecture. Designed to operate as a precision execution-layer component, this drive delivers reliable motor speed regulation, energy-efficient operation, and deterministic response across a wide range of industrial automation environments. Whether deployed in standalone motor control applications or embedded within a multi-axis, multi-zone production line, the 1305-BA01A-HA2 is built to sustain continuous duty cycles while maintaining full compatibility with upstream control and communication layers.

In modern industrial control architecture, the variable speed drive does not function in isolation. It serves as the critical bridge between the control layer — typically a Programmable Logic Controller such as the Allen-Bradley MicroLogix 1100 or CompactLogix L-series CPU — and the physical execution layer comprising motors, conveyors, pumps, fans, and compressors. The 1305-BA01A-HA2 accepts analog reference signals (0–10 VDC or 4–20 mA) from the PLC's analog output module, translating control commands into precise PWM-modulated voltage waveforms that govern motor torque and speed with high repeatability. This signal chain integrity is fundamental to maintaining process consistency across shift changes, load variations, and environmental fluctuations.

From a system architecture perspective, the 1305-BA01A-HA2 is most effectively deployed alongside complementary components that reinforce control coherence. On the power supply layer, a 1606-XLP or 1606-XLS series power supply ensures stable 24 VDC auxiliary power to the drive's control board and I/O interface, preventing nuisance trips caused by voltage sag during motor start transients. On the I/O layer, a 1769-IF4 analog input module or 1734-IE4C POINT I/O analog module can be used to feed process feedback — such as pressure transmitter or flow meter signals — back to the PLC, enabling closed-loop PID control through the drive's speed reference input. This feedback architecture is essential in pump and fan applications where process variable regulation is required rather than simple open-loop speed control.

Communication stability is another dimension where the 1305-BA01A-HA2 integrates cleanly into the broader automation platform. While the 1305 Series drives communicate primarily via hardwired analog and digital I/O, they can be paired with a 1203-USB or 1203-GU6 communication adapter to enable DriveExplorer or Studio 5000 Logix Designer parameter access for commissioning and diagnostics. In networked architectures, an upstream 1756-ENBT or 1756-EN2T EtherNet/IP communication module in the ControlLogix backplane can coordinate drive enable/disable commands, fault acknowledgment, and speed reference updates through the PLC's ladder logic or function block programs, maintaining deterministic control loop timing across the network.

For installations requiring enhanced protection and signal conditioning, the 1305-BA01A-HA2 benefits from the addition of a 1321-3R line reactor on the input side to reduce harmonic distortion and protect the drive's rectifier bridge from line voltage transients. On the output side, a 1321-M02 motor terminator or output filter mitigates reflected wave voltage stress on motor windings, particularly in applications where cable runs between the drive and motor exceed 30 meters. These passive components are standard practice in engineered drive systems and contribute directly to extended motor and drive service life, reducing unplanned maintenance intervals and supporting the 12-Month Warranty coverage terms.

The HMI layer also plays a role in the operational ecosystem of the 1305-BA01A-HA2. A PanelView Plus 7 or PanelView Component C600 terminal connected to the PLC via EtherNet/IP or DH-485 provides operators with real-time visibility into drive status, output frequency, motor current, and fault history. This operator interface layer reduces diagnostic time during troubleshooting and supports structured maintenance workflows by surfacing drive fault codes directly on the panel without requiring a laptop or handheld programmer at the drive enclosure.

The 1305-BA01A-HA2 achieves its highest operational value when deployed as part of a coherent, layered automation platform rather than as a standalone component. In a typical CompactLogix-based control cabinet, the drive receives its run/stop command from a 1769-OB16 digital output module and its speed reference from a 1769-OF4 analog output module, both residing in the CompactLogix I/O chassis managed by an L30ER or L33ER CPU. Feedback from the driven process — motor current, output frequency, or process variable — is returned to a 1769-IF4 analog input module, closing the control loop within the PLC's PID instruction.

Power distribution to the control cabinet is typically managed through a 1606-XLP72E or 1606-XLS240E power supply, which provides regulated 24 VDC to the PLC backplane, I/O modules, and drive control terminals simultaneously. A 1321-3R3-B line reactor upstream of the 1305-BA01A-HA2 input terminals reduces total harmonic distortion (THD) to acceptable levels for facilities with sensitive instrumentation or shared transformer capacity. For multi-drive installations, a common DC bus or individual line reactors per drive are both viable architectures depending on the facility's power quality requirements.

In networked plant environments, a Stratix 5700 or Stratix 2000 managed industrial Ethernet switch provides the EtherNet/IP backbone connecting the CompactLogix CPU, PanelView Plus 7 HMI, and any remote I/O adapters such as the 1734-AENT POINT I/O EtherNet/IP adapter. While the 1305-BA01A-HA2 itself communicates via hardwired I/O in standard configurations, its integration into this networked architecture is achieved through the PLC's I/O scan, ensuring that drive status and control commands are synchronized with the plant-wide control strategy at every PLC scan cycle.

The Allen-Bradley 1305-BA01A-HA2 is well-suited to a broad spectrum of industrial applications where compact, reliable motor speed control is required within an established Rockwell Automation control architecture.

In manufacturing and assembly lines, the drive controls conveyor belt speed, indexing table rotation, and parts transfer mechanisms, synchronizing motion with upstream and downstream PLC-controlled stations to maintain production throughput and minimize inter-station buffer accumulation. In HVAC and building automation within industrial facilities, the 1305-BA01A-HA2 regulates fan and pump motor speed in response to pressure or temperature setpoints, delivering significant energy savings compared to fixed-speed motor starters while maintaining process stability.

In water and wastewater treatment plants, the drive is applied to dosing pump control, aeration blower speed regulation, and sludge transfer pump management, where precise flow control directly impacts treatment efficiency and regulatory compliance. In food and beverage processing lines, the drive's clean V/Hz control characteristic supports hygienic conveyor and mixer applications where smooth acceleration and deceleration profiles are required to prevent product spillage or mechanical shock to sensitive packaging machinery.

In petrochemical and process industries, the 1305-BA01A-HA2 is deployed in utility pump and compressor applications within control panels that also house Allen-Bradley safety relays, 800F series pushbutton stations, and 1492-J series terminal blocks, forming a complete, integrated motor control center (MCC) solution that is straightforward to commission, document, and maintain over a multi-year operational lifecycle.

Q1: Is the 1305-BA01A-HA2 compatible with CompactLogix and ControlLogix PLC platforms for closed-loop speed control? Yes. The 1305-BA01A-HA2 accepts a 0–10 VDC or 4–20 mA analog speed reference signal from any PLC analog output module, including the 1769-OF4 (CompactLogix) and 1756-OF8 (ControlLogix). The drive's digital input terminals accept 24 VDC run/stop, direction, and fault reset commands from the PLC's digital output modules. This hardwired interface provides deterministic, scan-cycle-synchronized control without requiring a dedicated drive communication network, making it straightforward to integrate into existing Rockwell Automation control architectures with minimal engineering overhead.

Q2: What protective components are recommended for long-term reliability in a panel installation? For sustained reliability, a 1321-3R series input line reactor is recommended upstream of the drive to limit harmonic current injection and protect the drive's input rectifier from line transients. A metal oxide varistor (MOV) or surge protective device (SPD) at the panel's incoming power terminals provides additional protection against lightning-induced surges. On the output side, if motor cable runs exceed 30 meters, a 1321-M02 output filter or dV/dt filter is recommended to limit reflected wave voltage stress on motor windings. These measures collectively support the 12-Month Warranty coverage and extend the operational service interval beyond the warranty period.

Q3: What is the stock availability and lead time for the 1305-BA01A-HA2, and what does the 12-Month Warranty cover? The 1305-BA01A-HA2 is maintained in stock at NANKMOS and is available for immediate shipment following order confirmation. Each unit undergoes pre-shipment functional testing to verify output voltage, frequency response, and digital I/O operation prior to dispatch. The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions as specified in the product datasheet. Warranty service is coordinated directly through NANKMOS. For stock confirmation, lead time inquiries, or bulk order pricing, contact [email protected] or call +86 18359268345.
