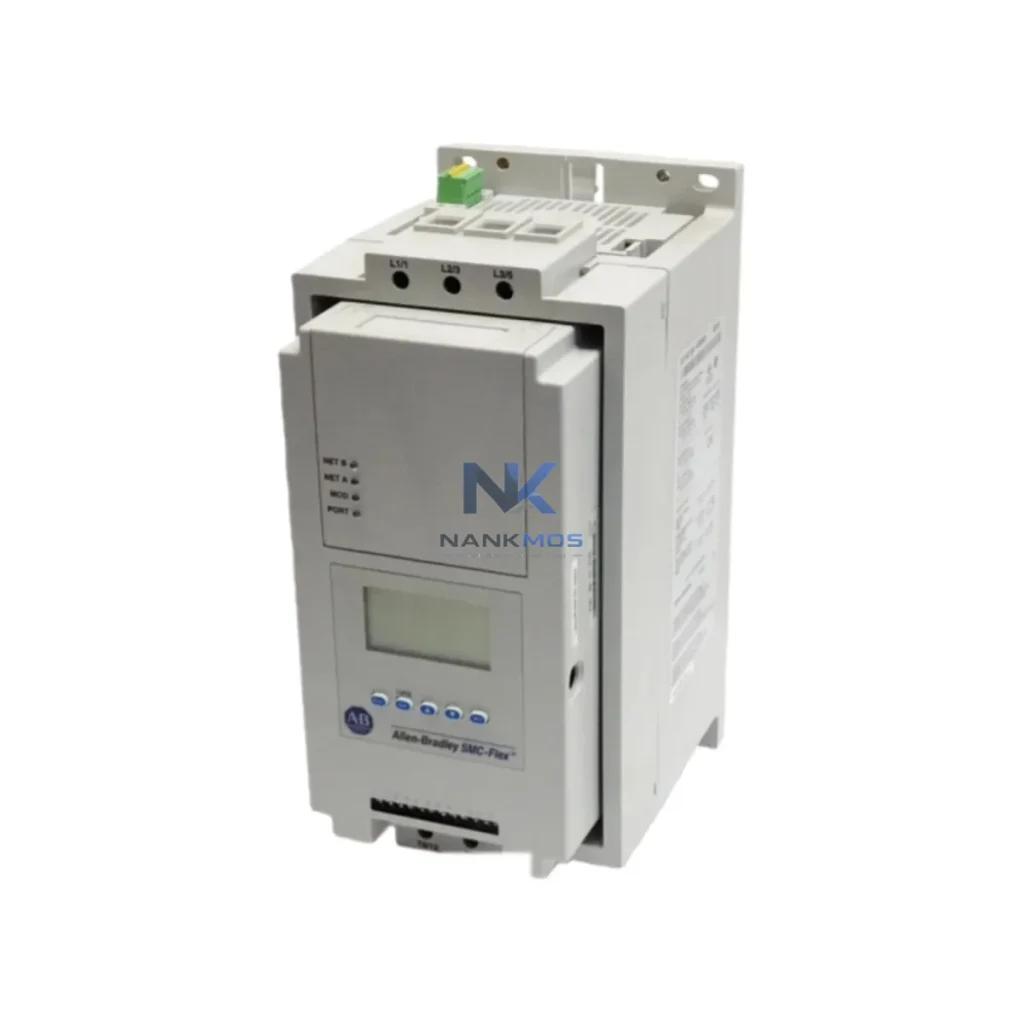

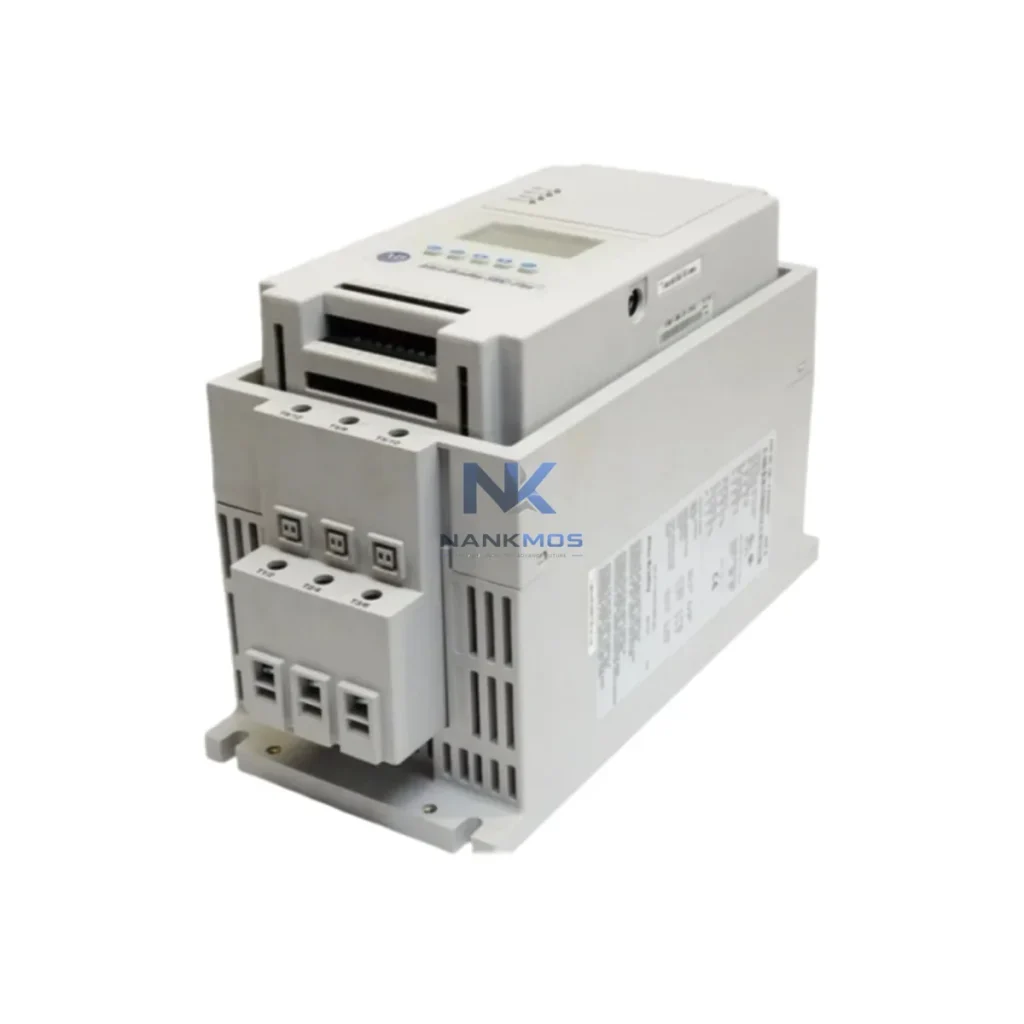

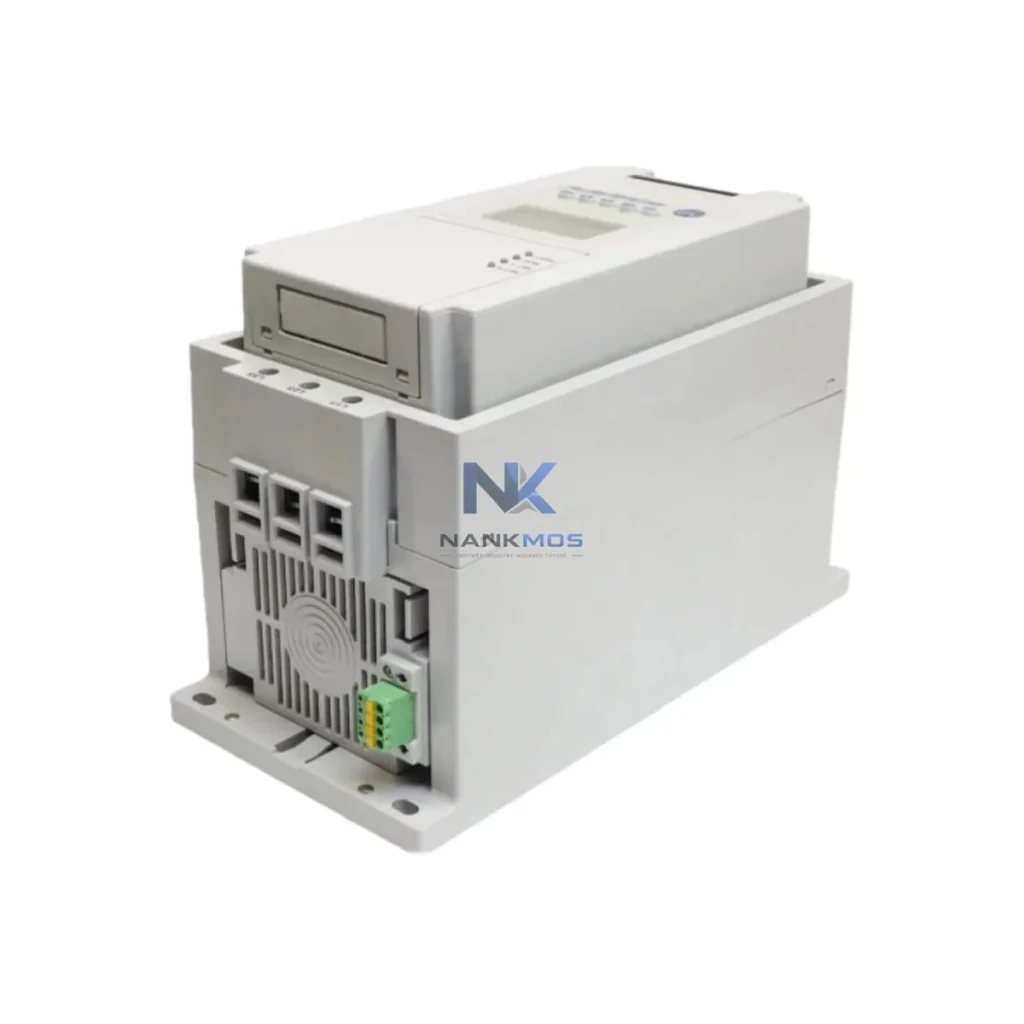

Allen-Bradley 150-F43NBDD Smart Motor Controller

Product Details

150-F43NBDD Product Description

The Allen-Bradley 150-F43NBDD is a high-performance SMC-Flex Series B Smart Motor Controller engineered for seamless integration into modern industrial data architectures. Designed to bridge field-level motor assets with upper-layer control and monitoring systems, this unit delivers reliable soft-start motor management while simultaneously serving as a critical node in the plant-wide communication network. Whether deployed in a discrete manufacturing cell, a process automation loop, or a multi-drive coordinated system, the 150-F43NBDD provides the connectivity backbone that smart factories demand.

At the heart of its network capability, the 150-F43NBDD supports both DeviceNet and EtherNet/IP protocols, enabling direct integration with Rockwell Automation's ControlLogix and CompactLogix PLC platforms. This dual-protocol architecture allows plant engineers to map motor status, current draw, fault codes, and control commands directly into the PLC data table — eliminating the need for discrete hardwired I/O and dramatically reducing panel wiring complexity. Real-time motor data flows continuously from the 150-F43NBDD through the DeviceNet or EtherNet/IP backbone to the controller, where it can be processed, logged, and acted upon within milliseconds.

In a typical smart factory deployment, the 150-F43NBDD sits at the field device layer, feeding live operational data upward through the network stack. A 1756-EN2T EtherNet/IP communication module installed in the ControlLogix chassis serves as the network bridge, aggregating data from multiple SMC-Flex controllers across the production floor. From there, the data is passed to a FactoryTalk View SE SCADA/HMI server, where operators gain real-time visibility into motor load, thermal status, start count, and fault history. This end-to-end data chain — from motor terminals to the SCADA dashboard — is what transforms a conventional motor starter into an intelligent, network-aware asset.

The 150-F43NBDD also integrates naturally with remote I/O expansion systems. When paired with a 1734 POINT I/O adapter or a 1769 CompactLogix remote I/O rack, engineers can extend digital and analog signal collection from sensors, limit switches, and pressure transmitters located near the motor load. These field signals are then consolidated with the SMC-Flex's own diagnostic data and transmitted over a single EtherNet/IP cable to the control room — reducing field cabling costs and simplifying troubleshooting. For sites using legacy serial devices, a 1761-NET-DNI DeviceNet Interface or a protocol gateway such as the ProSoft Technology MVI56E-MNET can bridge older Modbus RTU instruments into the same DeviceNet segment, ensuring no data island is left behind.

Remote diagnostics is one of the most compelling use cases for the 150-F43NBDD in smart factory environments. Because the controller continuously broadcasts motor health parameters over the network, maintenance teams can configure alarm thresholds in the PLC or SCADA system to trigger automatic notifications when current exceeds rated limits, when thermal capacity approaches trip levels, or when a fault event is logged. Integration with FactoryTalk AssetCentre or a third-party CMMS platform allows these fault records to be automatically converted into work orders, closing the loop between real-time diagnostics and planned maintenance workflows. This capability is especially valuable in remote or unmanned substations where physical inspection is costly and infrequent.

For facilities deploying edge computing architectures, the 150-F43NBDD's EtherNet/IP output can be consumed directly by an industrial edge gateway — such as the Rockwell Automation Logix Edge or a third-party device running MQTT/Sparkplug B — enabling local data preprocessing and cloud forwarding without routing all traffic through the central PLC. This edge-to-cloud pathway supports predictive maintenance analytics, energy consumption benchmarking, and OEE (Overall Equipment Effectiveness) calculation at the machine level. Variable frequency drives such as the PowerFlex 525 or PowerFlex 755, when installed alongside the 150-F43NBDD in the same motor control center (MCC), can share the same EtherNet/IP network segment, allowing a unified drive and starter management view within a single SCADA screen.

The 150-F43NBDD's parameter configuration and firmware management are handled through Studio 5000 Logix Designer or the DriveExplorer utility, both of which support online parameter editing without interrupting motor operation. This live configuration capability is critical during commissioning and fine-tuning phases, where engineers need to adjust ramp times, current limits, and network node addresses without shutting down the production line. All parameter changes are logged with timestamps, supporting audit trail requirements in regulated industries such as food and beverage, pharmaceutical, and water treatment.

Every Allen-Bradley 150-F43NBDD unit supplied by NANKMOS undergoes a comprehensive pre-shipment functional test, verifying communication handshake on both DeviceNet and EtherNet/IP interfaces, soft-start ramp performance, and fault relay operation. Units are shipped with original or equivalent packaging and are backed by a 12-month warranty covering manufacturing defects and communication interface failures. Inventory is maintained in stock for immediate dispatch, with global logistics support for air freight, sea freight, and express courier delivery to meet urgent project timelines.

In a fully connected smart factory, the 150-F43NBDD anchors the motor control layer of the data flow architecture. Signal acquisition begins at the motor terminals, where current transformers and thermistor inputs feed real-time load and temperature data into the SMC-Flex's internal processor. This data is immediately available on the DeviceNet or EtherNet/IP network, where a 1756-DNB DeviceNet Scanner module in the ControlLogix chassis polls the controller at configurable scan rates — typically 10 ms to 100 ms — ensuring that the PLC always holds a current snapshot of motor health.

Upstream from the PLC, a FactoryTalk Historian server collects time-stamped motor data at configurable intervals, building a historical database that supports trend analysis, energy auditing, and predictive maintenance modeling. Operators monitoring the plant from a central control room interact with this data through a FactoryTalk View SE HMI display, where custom faceplates show motor current, run status, fault history, and soft-start ramp curves in real time. For mobile access, the same data can be published to a FactoryTalk Remote Access session or an MQTT broker, allowing maintenance engineers to check motor status from a tablet or smartphone anywhere on the plant floor.

When the 150-F43NBDD is deployed in a motor control center alongside PowerFlex 525 variable frequency drives, both device types share the same EtherNet/IP ring topology, managed by an Allen-Bradley Stratix 5700 industrial managed switch. The switch enforces VLAN segmentation between the control network and the enterprise IT network, ensuring that motor control traffic is isolated from business system traffic while still allowing authorized data to pass through a DMZ firewall to the MES or ERP layer. This architecture supports the IEC 62443 industrial cybersecurity standard, which is increasingly required in critical infrastructure and regulated manufacturing environments.

At the edge, a Rockwell Automation Logix Edge gateway or a compatible third-party OPC-UA server aggregates data from multiple 150-F43NBDD units and other field devices — including Allen-Bradley 1734 POINT I/O modules, Balluff IO-Link sensors, and Endress+Hauser flow transmitters — into a unified data model. This edge node performs local analytics, such as calculating motor efficiency ratios and detecting abnormal current signatures that may indicate bearing wear or rotor imbalance, before forwarding summarized results to a cloud analytics platform. The result is a complete, closed-loop data chain from motor shaft to enterprise dashboard, with the 150-F43NBDD serving as the foundational connectivity node.

Protocol fragmentation is one of the most common challenges in brownfield automation sites, where legacy Modbus RTU motor starters coexist with newer EtherNet/IP devices. The 150-F43NBDD's native DeviceNet and EtherNet/IP support eliminates the need for external protocol converters in Rockwell-centric environments, while protocol gateways can bridge any remaining legacy devices into the same network segment. This unified protocol approach reduces the number of communication interfaces that maintenance teams must learn and support, lowering both training costs and troubleshooting time.

Data islands — isolated devices that cannot share operational data with the broader control system — are eliminated when the 150-F43NBDD replaces conventional hardwired motor starters. Instead of a motor that simply runs or stops, the SMC-Flex becomes a data-generating asset that continuously reports its operational state to the PLC, SCADA, and historian systems. This transformation from a passive load to an active network node is the fundamental shift that enables smart factory transparency: every motor start, every fault event, and every thermal excursion is recorded, timestamped, and available for analysis.

Remote monitoring and alarm management are significantly enhanced by the 150-F43NBDD's network integration. Rather than relying on local indicator lights or manual inspection rounds, plant engineers can configure SCADA alarm rules that trigger SMS or email notifications when motor parameters exceed defined thresholds. Alarm acknowledgment and fault reset can be performed remotely through the SCADA system, reducing the time between fault detection and corrective action — a critical advantage in continuous process industries where unplanned downtime carries significant financial penalties.

System scalability is built into the 150-F43NBDD's network architecture. As production capacity expands, additional SMC-Flex controllers can be added to the existing EtherNet/IP network without requiring new communication infrastructure. The Stratix 5700 switch's modular port expansion and the ControlLogix chassis's scalable I/O capacity mean that a single control system can grow from a handful of motors to hundreds, all managed through the same SCADA interface and historian database. This scalability protects the initial network investment and simplifies future plant expansions.

Q1: What is the typical communication latency of the 150-F43NBDD on an EtherNet/IP network? The 150-F43NBDD supports configurable Requested Packet Interval (RPI) settings on EtherNet/IP, with typical values ranging from 10 ms to 500 ms depending on network load and application requirements. For most motor control applications, a 20 ms RPI provides sufficient real-time responsiveness while minimizing network bandwidth consumption. DeviceNet scan rates are similarly configurable and are set through the DeviceNet Scanner module in the ControlLogix chassis.

Q2: Is the 150-F43NBDD compatible with non-Rockwell SCADA systems such as Ignition or Wonderware? Yes. Because the 150-F43NBDD communicates over standard EtherNet/IP and DeviceNet protocols, its data can be accessed by any SCADA or HMI platform that supports these protocols — including Inductive Automation Ignition (via the Allen-Bradley EtherNet/IP driver), AVEVA Wonderware (via the DAServer for EtherNet/IP), and Siemens WinCC (via OPC-UA bridging). This protocol openness ensures that the 150-F43NBDD can be integrated into mixed-vendor automation environments without proprietary middleware.

Q3: How does the 150-F43NBDD support remote diagnostics and predictive maintenance? The 150-F43NBDD continuously broadcasts motor diagnostic data — including RMS current, thermal capacity used, number of starts, last fault code, and time since last fault — over the network. This data can be logged by a FactoryTalk Historian or any OPC-compliant historian, enabling trend analysis and anomaly detection. When integrated with a predictive maintenance platform, historical current signatures can be compared against baseline profiles to detect early-stage mechanical faults such as bearing degradation or rotor eccentricity, allowing maintenance to be scheduled before a failure occurs.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 150-F43NBDD? Every 150-F43NBDD unit supplied by NANKMOS undergoes a comprehensive functional test prior to shipment, including verification of DeviceNet and EtherNet/IP communication handshake, soft-start ramp performance across the full current range, and fault relay operation. All units are covered by a 12-month warranty against manufacturing defects and communication interface failures. In-stock units are available for immediate dispatch, with express air freight options available for urgent project requirements. Contact [email protected] or +86 18359268345 for availability and pricing.
