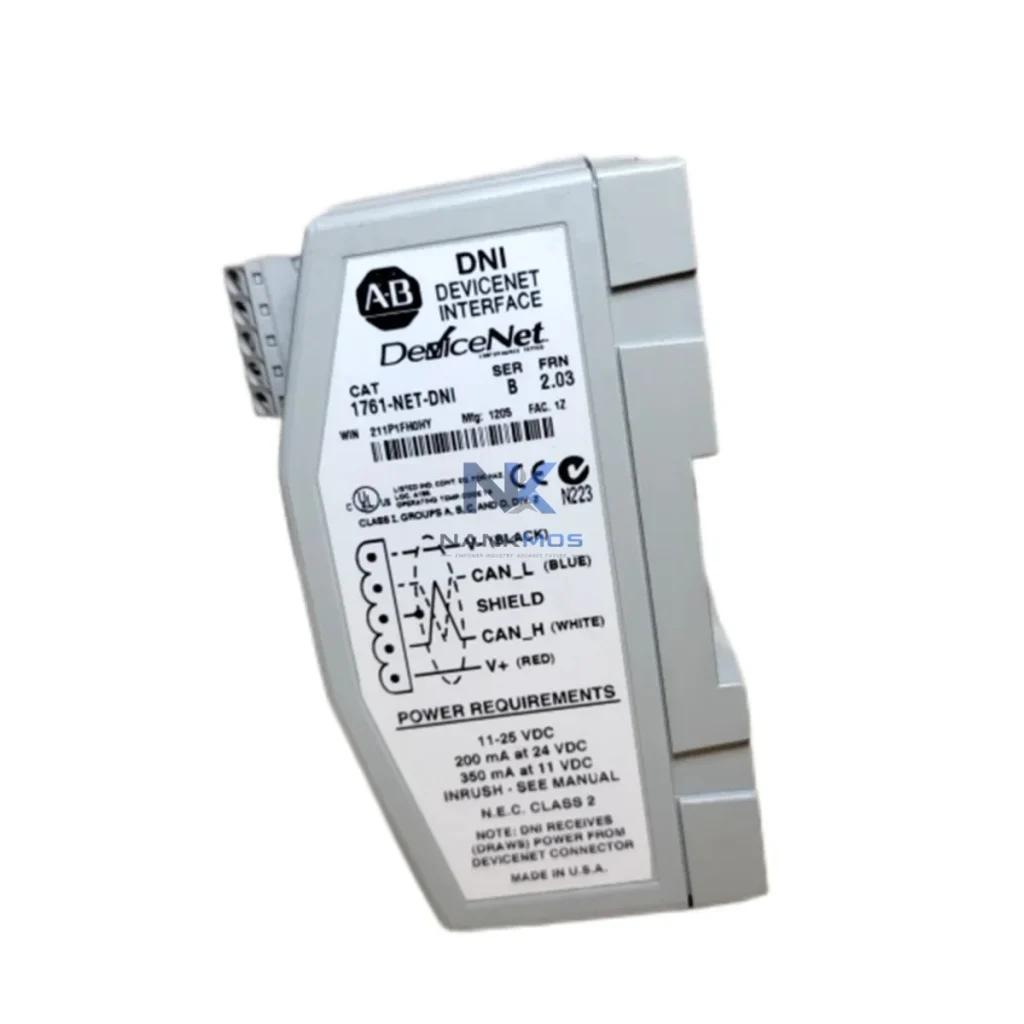

Allen-Bradley 1761-NET-DNI Communication Adaptor

Product Details

1761-NET-DNI Product Description

The Allen-Bradley 1761-NET-DNI is a dedicated DeviceNet Network Interface adaptor engineered to extend MicroLogix and SLC 500 series controllers into fully networked, multi-node DeviceNet architectures. Designed for seamless contextual integration within Rockwell Automation's control ecosystem, this adaptor bridges the gap between compact programmable controllers and the broader DeviceNet field bus, enabling deterministic I/O scanning, distributed device management, and real-time diagnostics across production-line environments. Whether deployed in discrete manufacturing, material handling, or process control applications, the 1761-NET-DNI delivers the communication reliability and architectural consistency demanded by modern industrial automation platforms.

Unlike generic protocol converters, the 1761-NET-DNI is purpose-built for Allen-Bradley's MicroLogix 1000, 1100, 1200, and 1500 families, as well as SLC 500 fixed and modular controllers. It connects via the DH-485 serial port, requiring no additional communication module slot, which preserves valuable rack space in compact control cabinets. The adaptor supports both Group 2 Only Slave and UCMM (Unconnected Message Manager) modes, allowing it to participate in both simple polled I/O and explicit messaging transactions — a critical capability for systems requiring on-demand parameter reads, configuration writes, and diagnostic polling without interrupting cyclic I/O traffic.

From a system architecture perspective, the 1761-NET-DNI occupies the communication layer between the controller tier and the field device tier. It enables the MicroLogix or SLC 500 CPU to act as a DeviceNet master or slave node, depending on the network topology. In master configurations, the controller can scan up to 63 DeviceNet nodes, collecting I/O data from distributed devices such as Allen-Bradley 1734 POINT I/O modules, 1756-DNB DeviceNet Bridge modules in ControlLogix racks, PowerFlex 40 and PowerFlex 400 variable frequency drives, SMC-3 smart motor controllers, and 855E EtherNet/IP-enabled stack lights. This multi-device coordination capability transforms a standalone MicroLogix controller into a fully networked automation node capable of supervising complex field architectures.

The 1761-NET-DNI achieves its full architectural value when deployed as part of a cohesive Rockwell Automation control platform. In a typical MicroLogix-based control cabinet, the adaptor works in concert with the MicroLogix 1500 LRP CPU (1764-LRP) as the primary processing node, while 1762 MicroLogix Expansion I/O modules — including 1762-IQ16 discrete input and 1762-OW16 relay output modules — handle local signal termination. The 1761-NET-DNI then extends this local I/O architecture outward across the DeviceNet network, enabling the controller to supervise remote 1734 POINT I/O adapter modules (1734-ADN) mounted at distributed field panels, dramatically reducing home-run wiring costs and improving signal integrity across large plant footprints.

On the drive integration side, the 1761-NET-DNI enables direct DeviceNet communication with PowerFlex 40 (22B) and PowerFlex 400 (22C) variable frequency drives equipped with the 20-COMM-D DeviceNet communication option card. This allows the MicroLogix controller to issue speed references, read drive status words, monitor fault codes, and execute controlled start/stop sequences — all over the DeviceNet network without requiring dedicated analog or hardwired control signals. For motor protection, E3 Plus Electronic Overload Relays (193-EC*E) with DeviceNet interfaces can be integrated into the same network scan list, providing real-time current monitoring and thermal model data directly to the controller's data table.

At the HMI layer, a PanelView Component C400 (2711C-T4T) or PanelView Plus 600 (2711P-T6C20D) connected via DH-485 to the same MicroLogix controller provides operator visualization, while the 1761-NET-DNI simultaneously manages the DeviceNet field network — demonstrating the multi-port communication architecture that makes MicroLogix systems highly capable despite their compact form factor. For applications requiring network-level diagnostics, the 1770-KFD USB-to-DH-485 interface combined with RSNetWorx for DeviceNet software provides full node commissioning, I/O mapping verification, and live network health monitoring without interrupting production.

In larger hybrid architectures where a ControlLogix 1756 chassis serves as the supervisory controller, the 1761-NET-DNI-equipped MicroLogix subsystem can be integrated as a DeviceNet slave node under a 1756-DNB DeviceNet Bridge module, enabling the ControlLogix CPU to read and write data to the MicroLogix I/O domain as part of a unified plant-wide control strategy. This hierarchical architecture supports both standalone operation and coordinated multi-controller deployments, providing the flexibility required for phased automation upgrades and capacity expansions.

Discrete Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 1761-NET-DNI enables MicroLogix controllers to manage distributed tooling stations, pneumatic valve manifolds, and conveyor drive systems across DeviceNet segments. The adaptor's deterministic polling cycle ensures synchronized I/O updates across all network nodes, supporting high-speed assembly sequences where timing accuracy directly impacts product quality and throughput rates.

Material Handling & Intralogistics: Warehouse automation systems deploying MicroLogix controllers for zone control benefit from the 1761-NET-DNI's ability to integrate barcode scanners, photoelectric sensors, and motor drives on a single DeviceNet segment. The UCMM explicit messaging capability allows the controller to retrieve diagnostic data from intelligent field devices — such as drive fault histories and sensor calibration status — without interrupting the cyclic I/O scan that controls conveyor sequencing.

Water & Wastewater Treatment: Municipal water treatment facilities using MicroLogix-based pump station controllers leverage the 1761-NET-DNI to connect submersible pump drives, level transmitters with DeviceNet interfaces, and valve actuator position feedback modules. The adaptor's wide operating temperature range and robust DeviceNet physical layer compliance ensure reliable operation in humid, chemically aggressive environments typical of water treatment infrastructure.

Food & Beverage Processing: Packaging line controllers based on MicroLogix 1500 platforms use the 1761-NET-DNI to coordinate filling machine drives, checkweigher interfaces, and reject gate actuators across DeviceNet. The adaptor's compact form factor and DIN rail mounting simplify integration into hygienic stainless steel control enclosures, while its 24 VDC bus-powered operation eliminates the need for a separate power supply in the field junction box.

Mining & Bulk Material Handling: Conveyor drive systems in mining operations benefit from the 1761-NET-DNI's ability to integrate multiple PowerFlex drives and overload relays on a single DeviceNet segment, providing centralized speed control, load monitoring, and thermal protection management from a single MicroLogix controller — reducing the complexity and cost of distributed drive control panels.

Q1: Is the 1761-NET-DNI compatible with both MicroLogix and SLC 500 controllers, and what configuration software is required? Yes. The 1761-NET-DNI connects to any Allen-Bradley controller equipped with a DH-485 port, including the full MicroLogix 1000/1100/1200/1500 family and SLC 500 fixed and modular processors. Configuration is performed using RSNetWorx for DeviceNet software (version 4.0 or later) for network node commissioning and I/O mapping, while RSLogix 500 or RSLogix Micro is used for ladder logic programming of the controller's DeviceNet I/O data table. The adaptor's node address and data rate are set via rotary switches on the module body, providing hardware-level configuration that persists through power cycles without requiring software re-commissioning.

Q2: How does the 1761-NET-DNI support system redundancy and fault diagnostics in critical control architectures? The 1761-NET-DNI provides network-level fault detection through its onboard LED status indicators (Module Status, Network Status, and DH-485 Activity), which allow maintenance technicians to quickly isolate communication faults at the adaptor level without requiring a laptop connection. In the event of a DeviceNet network fault, the adaptor's configurable fault state behavior — set via RSNetWorx — determines whether the controller's I/O data table holds last state or transitions to a predefined safe state, supporting fail-safe architecture requirements. For applications requiring higher availability, the MicroLogix 1500 LRP's dual-port DH-485 capability allows a redundant programming terminal connection to remain active while the 1761-NET-DNI manages the DeviceNet network, ensuring uninterrupted diagnostic access during network troubleshooting.

Q3: What are the inventory availability, lead time, and warranty terms for the 1761-NET-DNI supplied by NANKMOS? NANKMOS maintains ready stock of the Allen-Bradley 1761-NET-DNI to support urgent replacement and new project deployment requirements. All units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures, with pre-shipment functional testing performed on every unit to verify DeviceNet communication integrity, DH-485 interface operation, and LED diagnostic functionality. Standard lead time for in-stock units is 3–7 business days for international shipments, with expedited options available for critical production line downtime situations. For volume procurement, OEM integration projects, or system-matched multi-component orders, contact NANKMOS at [email protected] or +86 18359268345 to discuss availability, pricing, and technical pre-sales support.
