Allen-Bradley 1606-XLB480E Switched Mode Power Supply

Product Details

1606-XLB480E Product Description

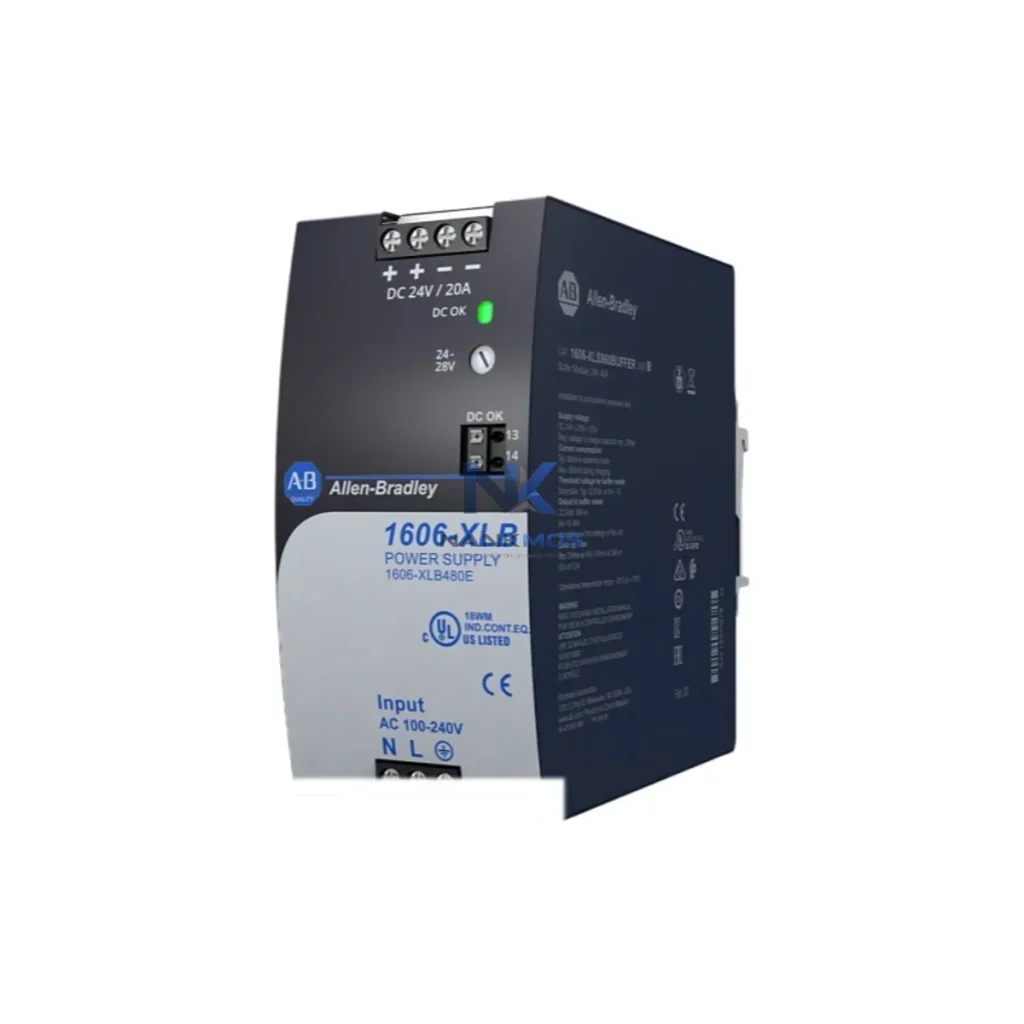

The Allen-Bradley 1606-XLB480E is a 480W, 24VDC DIN-rail mounted switched-mode power supply engineered for demanding industrial control architectures. Designed to deliver stable, regulated DC power across multi-tier automation platforms, the 1606-XLB480E serves as the foundational power layer in ControlLogix, CompactLogix, and distributed I/O systems where voltage stability, load transient response, and continuous uptime are non-negotiable. Its wide-range AC input (85–264VAC), high efficiency rating, and integrated diagnostics make it a preferred power infrastructure component for system integrators and OEM panel builders operating in power generation, petrochemical, water treatment, mining, and marine propulsion environments.

In a layered industrial control architecture, the power layer is not a passive component — it is the backbone that determines the reliability of every upstream module. The 1606-XLB480E is engineered to support the full control stack: from the CPU and backplane layer through I/O expansion, communication gateways, HMI panels, field instruments, and safety relays. Its 24VDC output with active current sharing capability allows parallel operation for redundant power configurations, ensuring that a single power supply failure does not interrupt process continuity in critical applications.

System architects integrating the 1606-XLB480E into a ControlLogix 1756 chassis will find it fully compatible with the 1756-PA75 and 1756-PB75 chassis power supplies as a supplemental or distributed panel power source. When paired with a 1756-L85E or 1756-L84E controller, the 1606-XLB480E provides clean, isolated 24VDC to field-side I/O modules such as the 1756-IB16 digital input module and 1756-OB16E digital output module, eliminating ground loops and reducing noise-induced diagnostic faults. For CompactLogix 5380 platforms using the 1769-L33ER or 1769-L36ERM controller, the 1606-XLB480E powers the 1769-IQ16 and 1769-OB16 I/O expansion modules with consistent voltage regulation across variable load conditions.

At the communication layer, stable 24VDC power from the 1606-XLB480E is critical for EtherNet/IP communication modules such as the 1756-EN2T and 1756-EN3TR, as well as DeviceNet scanner modules and PROFIBUS adapters. Voltage sags or ripple at the communication layer can cause intermittent packet loss, CIP connection timeouts, and false diagnostic alarms — all of which are eliminated when the power infrastructure is properly sized and regulated. The 1606-XLB480E's low output ripple and noise specification (typically <50mVpp) ensures that communication modules maintain deterministic cycle times and network stability.

For HMI and operator interface layers, the 1606-XLB480E reliably powers PanelView Plus 7 terminals and PanelView 800 graphic terminals, which require stable 24VDC with minimal transient response time. In panel designs where the HMI, PLC, and I/O share a common 24VDC bus, the 1606-XLB480E's active current limiting and overload protection prevent cascading failures when individual loads experience fault conditions. The power supply's built-in DC OK relay output integrates directly with the PLC's digital input module, enabling automated power fault detection and system-level alarm generation without additional monitoring hardware.

At the field device and actuator layer, the 1606-XLB480E powers solenoid valve banks, proximity sensors, photoelectric sensors, and 4–20mA transmitters across the I/O marshalling cabinet. Its high surge current capability (typically 200% of rated current for 5 seconds) accommodates the inrush demands of contactor coils and valve actuators without triggering nuisance shutdowns. For safety-rated architectures incorporating GuardLogix 5580 controllers and 1791DS safety I/O modules, the 1606-XLB480E provides the isolated 24VDC supply required for SIL 2 and SIL 3 safety loop integrity.

In redundant power architectures, two 1606-XLB480E units can be connected in parallel using the 1606-XLBRED redundancy module, providing N+1 power redundancy for mission-critical control panels. This configuration is widely deployed in continuous process industries — oil and gas compression stations, chemical reactor control panels, and water treatment SCADA cabinets — where unplanned downtime carries significant operational and safety consequences. The redundancy module provides automatic load sharing and seamless switchover, with the DC OK output of each supply monitored independently by the PLC for predictive maintenance alerting.

Pre-shipment testing of each 1606-XLB480E unit includes full-load burn-in, output voltage accuracy verification, ripple and noise measurement, and overload/short-circuit protection validation. Units are shipped with factory test documentation and are covered by a 12-Month Warranty from date of shipment. In-stock availability ensures rapid deployment for both new system builds and emergency replacement scenarios, minimizing engineering lead time and project schedule risk.

The 1606-XLB480E is designed to integrate seamlessly within a complete Rockwell Automation control architecture. In a typical ControlLogix 1756 system, the power supply feeds the 24VDC bus shared by the 1756-IB16 digital input module, 1756-OB16E digital output module, 1756-IF8 analog input module, and 1756-OF8 analog output module. The 1756-EN2T EtherNet/IP communication module and 1756-DNB DeviceNet scanner module both rely on stable 24VDC for deterministic network performance. For CompactLogix 5380 architectures, the 1606-XLB480E powers the 1769-L33ER controller's I/O expansion bus, including 1769-IQ16 digital inputs and 1769-OB16 digital outputs. In safety-rated panels, the supply supports GuardLogix 5580 and 1791DS safety I/O modules. The 1606-XLBRED redundancy module enables N+1 parallel operation for mission-critical installations. PanelView Plus 7 and PanelView 800 HMI terminals are powered from the same regulated 24VDC bus, ensuring consistent operator interface performance across all operating conditions.

The 1606-XLB480E is deployed across a broad range of industrial sectors where control system reliability and power quality are paramount. In power generation facilities, it supplies 24VDC to turbine control panels integrating ControlLogix CPUs, vibration monitoring I/O, and EtherNet/IP SCADA communication modules. In petrochemical and oil and gas installations, the supply powers distributed control panels in hazardous areas (ATEX Zone 2 rated), supporting SIL 2 safety loops and emergency shutdown system I/O. Water treatment and wastewater facilities use the 1606-XLB480E in SCADA-connected pump control panels, where the DC OK relay output provides real-time power health monitoring to the plant DCS. Mining and mineral processing operations rely on the supply for conveyor drive control panels, integrating PowerFlex 525 and PowerFlex 755 variable frequency drives with CompactLogix controllers. In marine propulsion and offshore platform control systems, the wide input voltage range and extended temperature rating ensure reliable operation under fluctuating generator output conditions. Packaging and material handling lines use the 1606-XLB480E to power high-density I/O panels with rapid scan cycle requirements, where output voltage stability directly impacts servo drive and motion controller performance.

Q1: Can the 1606-XLB480E be used in a redundant power configuration with an existing ControlLogix panel? Yes. Two 1606-XLB480E units can be connected in parallel using the 1606-XLBRED redundancy module, providing automatic load sharing and N+1 redundancy. Each supply's DC OK relay output should be wired to a separate digital input on the 1756-IB16 or equivalent module, enabling the ControlLogix controller to monitor individual supply health and generate predictive maintenance alarms before a failure occurs.

Q2: Is the 1606-XLB480E compatible with both ControlLogix and CompactLogix architectures, and does it support EtherNet/IP integration? The 1606-XLB480E is a 24VDC power infrastructure component compatible with any control architecture requiring regulated 24VDC — including ControlLogix 1756, CompactLogix 5380, Micro850, and third-party PLC platforms. While the supply itself does not communicate over EtherNet/IP, its DC OK relay output integrates directly with the PLC's digital input module, enabling power status monitoring within the EtherNet/IP-connected control system. This supports Contextual Integration of power health data into the plant SCADA or MES layer.

Q3: What is the warranty coverage and lead time for the 1606-XLB480E? Each 1606-XLB480E is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and performance deviations from published specifications. Units are maintained in stock and undergo pre-shipment testing including full-load burn-in, output voltage verification, and protection circuit validation prior to dispatch. This ensures rapid availability for both planned system builds and emergency replacement requirements, minimizing project schedule risk and unplanned downtime exposure.
