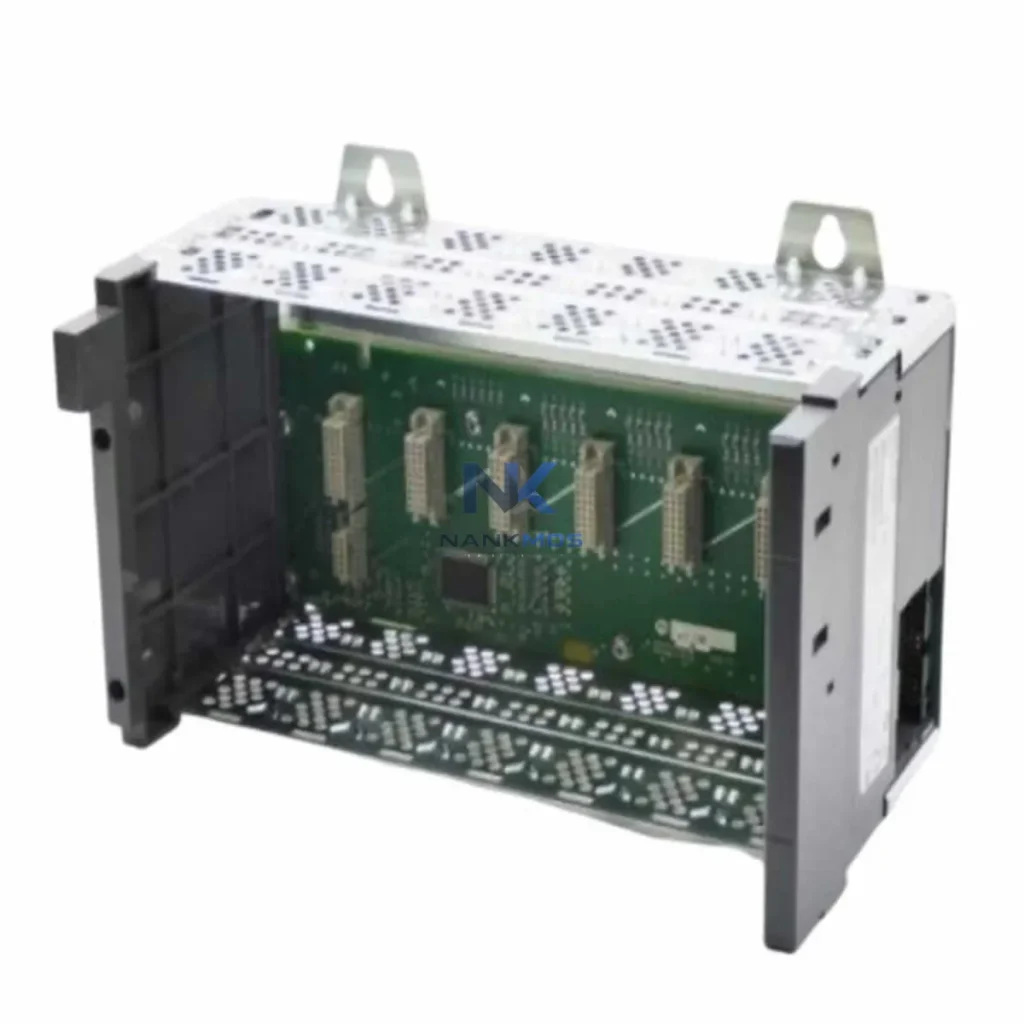

Allen-Bradley 1746-A13 PLC Chassis

Product Details

1746-A13 Product Description

The Allen-Bradley 1746-A13 is a 13-slot modular backplane chassis engineered for the SLC 500 control platform, providing the structural and electrical backbone for high-density I/O expansion, CPU integration, and multi-module communication within distributed industrial control architectures. Designed to accommodate the full range of SLC 500 series modules, the 1746-A13 enables system architects to consolidate control logic, analog and digital I/O, specialty function modules, and communication interfaces within a single rack assembly — reducing panel footprint while maximizing modularity and serviceability across the control lifecycle.

In demanding industrial environments where uptime, signal integrity, and long-term maintainability are non-negotiable, the 1746-A13 chassis delivers a proven platform for both greenfield deployments and brownfield expansions. Its 13-slot capacity supports configurations ranging from compact standalone controllers to fully redundant, multi-rack distributed control systems, making it one of the most versatile chassis options within the Rockwell Automation SLC 500 ecosystem.

The 1746-A13 chassis functions as the central integration node within the SLC 500 control platform, enabling system engineers to build layered, scalable automation architectures that span the full control hierarchy. At the CPU layer, the chassis accommodates Allen-Bradley 1747-L553 (SLC 5/05) and 1747-L543 (SLC 5/04) processors, which provide Ethernet/IP and Data Highway Plus connectivity respectively — enabling seamless integration with supervisory SCADA systems and plant-wide communication networks.

Power integrity is maintained through dedicated 1746-P4 or 1746-P7 power supply modules, which deliver regulated backplane voltage across all 13 slots while supporting hot-swap configurations in redundant power architectures. At the I/O layer, the chassis supports the full 1746 I/O module family, including 1746-IB16 (16-point 24VDC digital input), 1746-OB16 (16-point 24VDC digital output), 1746-NI4 (4-channel analog input), and 1746-NO4I (4-channel analog current output) — enabling precise signal acquisition and actuation across process and discrete manufacturing applications.

For communication-intensive deployments, the 1746-A13 supports installation of 1747-SDN DeviceNet Scanner modules and 1747-KE DH-485/RS-232 interface modules, extending the control architecture into field device networks and enabling integration with variable frequency drives, smart motor controllers, and distributed I/O adapters. In multi-rack configurations, the chassis connects to remote I/O racks via 1747-ASB Remote I/O Adapter modules, extending the control footprint across large-scale process cells without additional CPU overhead.

At the HMI layer, PanelView 800 and PanelView Plus 7 terminals interface directly with the SLC 5/05 processor via Ethernet/IP, providing operators with real-time process visualization, alarm management, and parameter adjustment capabilities. Signal isolation and conditioning modules installed within the chassis ensure clean signal transmission between field instruments and the control system, maintaining measurement accuracy in electrically noisy industrial environments.

The 1746-A13 chassis is deployed across a broad spectrum of industrial sectors where modular, maintainable PLC architecture is essential. In discrete manufacturing environments — including automotive assembly, packaging lines, and material handling systems — the chassis supports high-speed digital I/O processing with deterministic scan times, enabling precise sequencing and motion coordination across multi-axis production cells.

In process industries such as water and wastewater treatment, chemical processing, and oil and gas upstream operations, the 1746-A13 provides the analog I/O density required for continuous process variable monitoring, PID loop control, and alarm management. Its compatibility with HART-enabled analog modules allows integration with smart field instruments, supporting advanced diagnostics and predictive maintenance workflows without additional signal conditioning infrastructure.

Power generation and electrical substation applications leverage the chassis for protection relay interfacing, breaker status monitoring, and load management — where the SLC 500 platform's proven reliability and long service life align with the extended operational cycles typical of utility infrastructure. In mining and metallurgical applications, the chassis supports conveyor control, crusher sequencing, and process weight measurement systems, operating reliably in high-vibration, high-dust environments when installed within appropriately rated enclosures.

Shipboard automation and marine control systems utilize the 1746-A13 in engine room monitoring, ballast control, and auxiliary machinery management, where the chassis's wide operating temperature range and robust backplane design support continuous operation in demanding maritime environments. Across all sectors, the chassis's 13-slot capacity ensures sufficient module density for complete control cell implementation without requiring additional rack expansion in the majority of application scenarios.

Q1: Is the 1746-A13 compatible with all SLC 500 CPU and I/O modules?The 1746-A13 chassis is fully compatible with the complete SLC 500 module family, including all 1747-series CPU processors (SLC 5/01 through SLC 5/05), all 1746-series digital and analog I/O modules, and specialty function modules such as high-speed counter, motion control, and communication interface cards. System architects should verify slot addressing and power budget requirements when configuring high-density analog or specialty module combinations, as total backplane current draw must remain within the selected power supply's rated output capacity.

Q2: Can the 1746-A13 be used in a redundant control architecture?While the SLC 500 platform does not natively support CPU-level hot-standby redundancy in the manner of ControlLogix with 1756-RM redundancy modules, the 1746-A13 chassis can be deployed in redundant power supply configurations using dual 1746-P7 power supplies with automatic switchover. For applications requiring full CPU redundancy, system architects typically implement parallel SLC 500 racks with cross-communication via DH+ or DH-485 networks, or migrate to the ControlLogix 1756 platform for native redundancy support. NANKMOS provides pre-shipment testing and configuration verification for all chassis and module combinations to ensure system readiness prior to deployment.

Q3: What is the warranty coverage and lead time for the 1746-A13?All 1746-A13 chassis units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. Units are held in verified stock and undergo pre-shipment functional testing to confirm backplane integrity and slot connectivity before dispatch. Lead times are typically short for in-stock units, with expedited shipping available for urgent maintenance and production continuity requirements. For volume procurement, system integration projects, or long-term supply agreements, contact NANKMOS directly to discuss availability, pricing, and project-specific support arrangements.
