Allen-Bradley 1746-A7 PLC Chassis / Rack

Product Details

1746-A7 Product Description

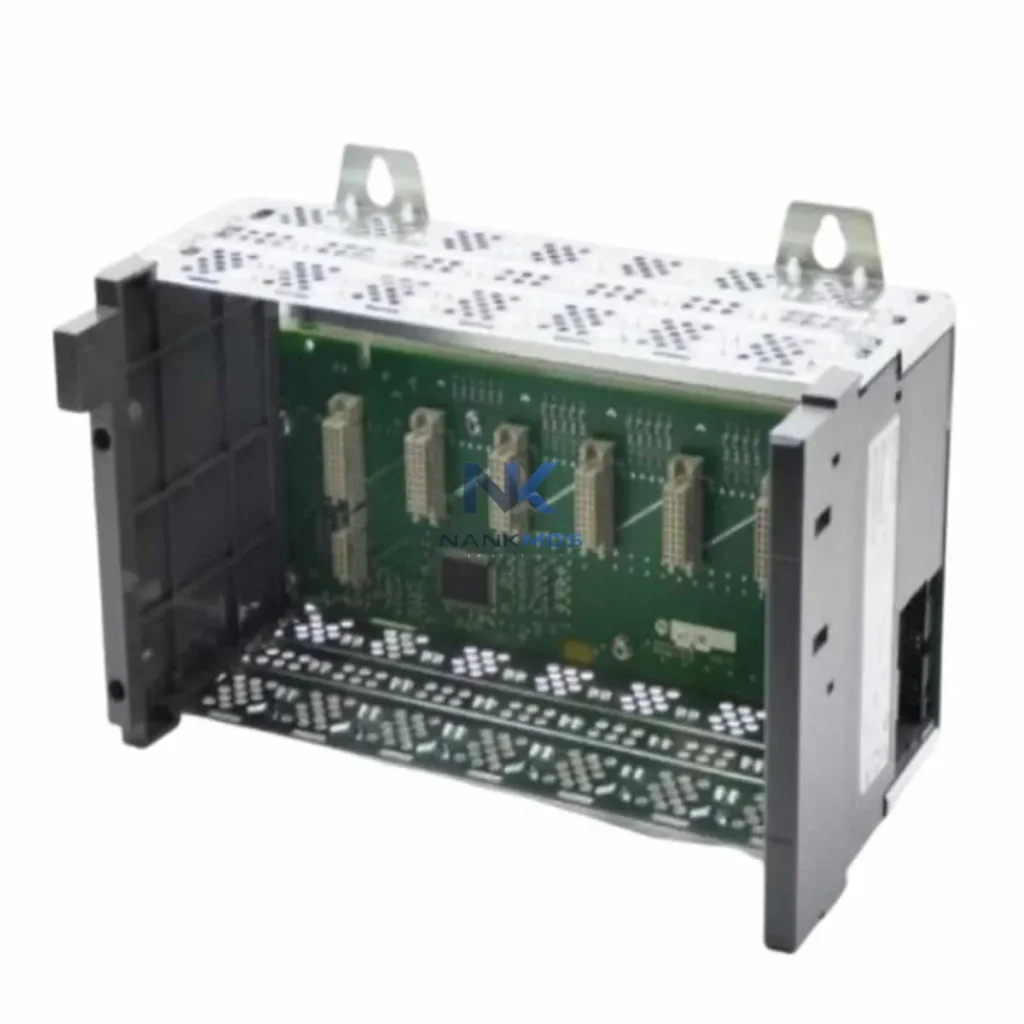

The Allen-Bradley 1746-A7 is a 7-slot I/O chassis engineered for the SLC 500 modular controller platform, purpose-built to serve as the physical and logical backbone of industrial data flow in smart factory environments. As manufacturing sites evolve toward fully connected architectures, the 1746-A7 provides the structural foundation that links field-level devices — sensors, actuators, and transmitters — to PLC processors, remote I/O networks, SCADA systems, and HMI interfaces through a unified, high-integrity backplane. Its role in the data chain extends far beyond passive hardware: it defines how signals are collected, how modules communicate, and how real-time process data reaches supervisory layers for monitoring, diagnostics, and control decisions.

In a typical smart factory deployment, the 1746-A7 chassis houses a combination of SLC 500 processor modules, digital and analog I/O modules, and specialty communication modules that collectively manage the full signal lifecycle — from raw sensor input at the field level to structured data output at the SCADA or MES layer. The chassis backplane supports high-speed inter-module communication, ensuring that process variables such as temperature, pressure, flow rate, and motor speed are captured with minimal latency and forwarded to the control logic without data loss or timing errors. This deterministic data path is critical in applications where millisecond-level response times govern safety interlocks, PID loops, and alarm management.

The 1746-A7 integrates seamlessly with Allen-Bradley's broader SLC 500 ecosystem. When paired with the 1747-L553 or 1747-L543 SLC 5/05 or 5/04 processor modules, the chassis gains native Ethernet/IP or DH+ network connectivity, enabling direct communication with FactoryTalk View SE SCADA platforms, PanelView HMI terminals, and upstream MES or ERP systems. For sites requiring DeviceNet or ControlNet integration, the 1747-SDN DeviceNet Scanner or 1747-KFC15 ControlNet interface modules can be installed in the chassis slots to extend the network reach to distributed I/O nodes, variable frequency drives such as the PowerFlex 40 or PowerFlex 700, and intelligent field devices across the plant floor.

Remote I/O expansion is another key capability enabled by the 1746-A7 platform. Using the 1747-ASB Remote I/O Adapter module, the chassis can function as a remote I/O rack connected to a primary SLC 500 or PLC-5 controller over Allen-Bradley's Remote I/O (RIO) network. This architecture is widely used in large-scale process plants and automotive assembly lines where control logic is centralized but I/O points are distributed across multiple physical zones. The 1746-A7's 7-slot capacity provides sufficient module density to support mixed I/O configurations — combining 1746-IB16 digital input, 1746-OB16 digital output, and 1746-NI4 analog input modules — within a single rack, reducing wiring complexity and cabinet footprint.

From a smart factory data flow perspective, the 1746-A7 chassis sits at the intersection of the OT (Operational Technology) and IT (Information Technology) layers. Field signals enter through I/O modules, are processed by the SLC 500 CPU, and are then transmitted via Ethernet/IP or DH+ to SCADA servers running FactoryTalk Historian or third-party platforms such as Ignition SCADA. This bidirectional data path supports not only real-time monitoring and alarm management but also historical trending, OEE (Overall Equipment Effectiveness) calculation, and predictive maintenance analytics. Edge gateway devices can further aggregate data from multiple 1746-A7 racks and forward structured payloads to cloud-based IIoT platforms for enterprise-level visibility.

Remote diagnostics and predictive maintenance are increasingly important in modern automation sites, and the 1746-A7 supports these use cases through its compatibility with RSLogix 500 and Studio 5000 Logix Designer programming environments. Maintenance engineers can remotely access the SLC 500 processor over Ethernet to monitor I/O module status, review fault codes, adjust program parameters, and perform online edits without interrupting production. This remote access capability reduces mean time to repair (MTTR), minimizes unplanned downtime, and supports condition-based maintenance strategies that rely on continuous data collection from the chassis-mounted modules.

Every 1746-A7 unit supplied by NANKMOS is sourced from verified distribution channels, subjected to functional testing prior to shipment, and backed by a 12-month warranty. In-stock inventory ensures rapid order fulfillment to support urgent project timelines, MRO replacement needs, and system expansion requirements. Whether you are commissioning a new SLC 500 control panel, replacing a failed chassis in an existing installation, or expanding I/O capacity in a running production line, the 1746-A7 delivers the reliability, compatibility, and network-readiness required for connected factory operations.

A complete smart factory data chain built around the 1746-A7 typically begins at the field device layer, where sensors — including proximity switches, thermocouples, pressure transmitters, and photoelectric sensors — feed signals into 1746-IB16 digital input and 1746-NI4 analog input modules installed in the chassis slots. The SLC 5/05 processor (1747-L553) processes these inputs in real time, executing ladder logic programs that govern motor starters, solenoid valves, conveyor drives, and safety interlocks. Output commands are delivered through 1746-OB16 digital output and 1746-NO4I analog output modules to field actuators and PowerFlex 40 variable frequency drives controlling pump and fan speeds.

At the network layer, the SLC 5/05's built-in Ethernet/IP port connects the 1746-A7 rack to the plant LAN, enabling communication with PanelView Plus 6 HMI terminals for operator visualization and alarm acknowledgment. FactoryTalk View SE running on a SCADA server polls the SLC 500 processor at configurable scan rates, collecting tag data for real-time dashboards, historical trending, and production reporting. For sites using DeviceNet, the 1747-SDN scanner module installed in the 1746-A7 chassis manages communication with distributed smart devices — including Bulletin 800F pushbuttons, 1734 POINT I/O adapters, and PowerFlex 700 drives — over a single DeviceNet trunk cable, reducing field wiring by up to 70% compared to conventional hardwired I/O.

In multi-rack configurations, the 1746-A7 can serve as a remote I/O rack via the 1747-ASB adapter, extending the I/O capacity of a central SLC 5/04 or PLC-5 controller across multiple physical zones without additional processors. Edge gateway devices aggregate data from multiple SLC 500 racks and forward structured JSON or OPC-UA payloads to cloud IIoT platforms, enabling enterprise-level asset monitoring, OEE tracking, and predictive maintenance analytics across the entire production line.

Many legacy automation sites face persistent challenges: protocol fragmentation between older DH+ networks and modern Ethernet/IP infrastructure, data silos between PLC islands and SCADA systems, and limited remote visibility into field device status. The 1746-A7 chassis, when equipped with the appropriate SLC 500 processor and communication modules, directly addresses these gaps. The SLC 5/05's dual-port Ethernet/IP capability allows simultaneous connection to both the plant SCADA network and a dedicated programming terminal, eliminating the need for physical presence during routine diagnostics or program modifications.

For sites transitioning from DH+ to Ethernet/IP, the 1746-A7 supports a phased migration strategy: existing SLC 5/04 processors with DH+ connectivity can be retained while 1761-NET-ENI Ethernet interface modules are added to bridge legacy DH+ segments to the Ethernet backbone, preserving existing I/O wiring and program logic while enabling modern SCADA integration. Alarm management is enhanced through FactoryTalk Alarms and Events, which captures fault codes from SLC 500 processors in real time and routes notifications to operator HMI screens and mobile devices, reducing alarm response times and improving production transparency. System expansion is straightforward: additional 1746-A7 racks can be added as remote I/O nodes without modifying the central control program, supporting incremental capacity growth aligned with production scaling requirements.

Q1: What communication protocols does the Allen-Bradley 1746-A7 support?The 1746-A7 chassis itself is protocol-agnostic — it supports whichever protocols are provided by the installed processor and communication modules. With a 1747-L553 SLC 5/05 processor, the system supports Ethernet/IP. With a 1747-L543 SLC 5/04, it supports DH+. Adding a 1747-SDN module enables DeviceNet, and a 1747-KFC15 module adds ControlNet. Remote I/O (RIO) is supported via the 1747-ASB adapter module.

Q2: Can the 1746-A7 integrate with modern SCADA and HMI systems?Yes. When paired with an SLC 5/05 processor, the 1746-A7 system communicates natively over Ethernet/IP with FactoryTalk View SE, PanelView Plus HMI terminals, RSView32, and third-party SCADA platforms such as Ignition. OPC-DA and OPC-UA connectivity is available through RSLinx Classic or RSLinx Enterprise gateway software, enabling integration with virtually any supervisory or MES system.

Q3: How is remote diagnostics performed on a 1746-A7 system?Remote diagnostics are performed via RSLogix 500 or Studio 5000 Logix Designer over an Ethernet/IP connection to the SLC 5/05 processor. Engineers can monitor I/O module status, review processor fault codes, perform online program edits, and force I/O states remotely without interrupting production. FactoryTalk AssetCentre can be used for centralized audit trail logging and remote backup of SLC 500 programs.

Q4: What warranty and testing standards apply to NANKMOS-supplied 1746-A7 units?All 1746-A7 chassis units supplied by NANKMOS are functionally tested prior to shipment to verify backplane integrity, slot connectivity, and power distribution. Each unit is covered by a 12-month warranty from the date of shipment. In-stock inventory is maintained to support urgent MRO replacement and new project commissioning requirements with short lead times.
