Allen-Bradley 1746-IB32/D PLC Digital Input Module

Product Details

1746-IB32/D Product Description

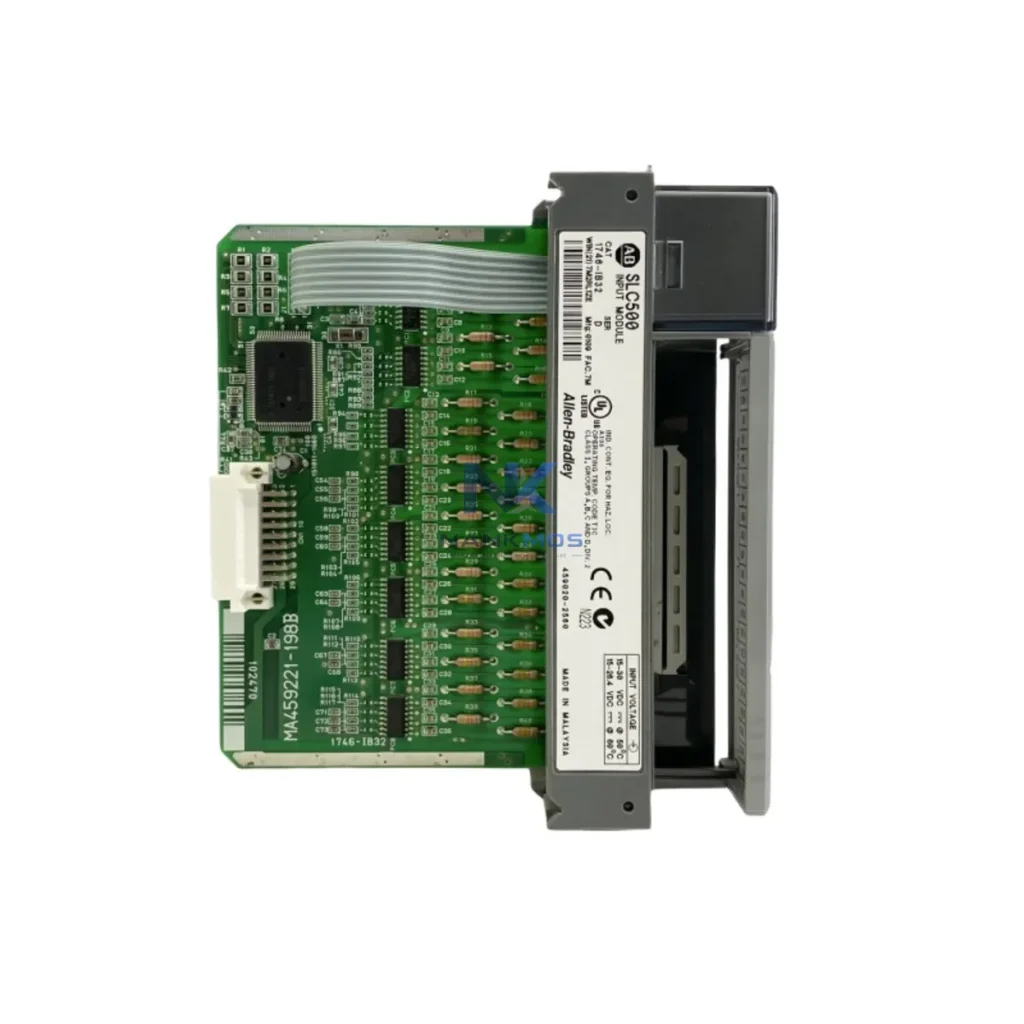

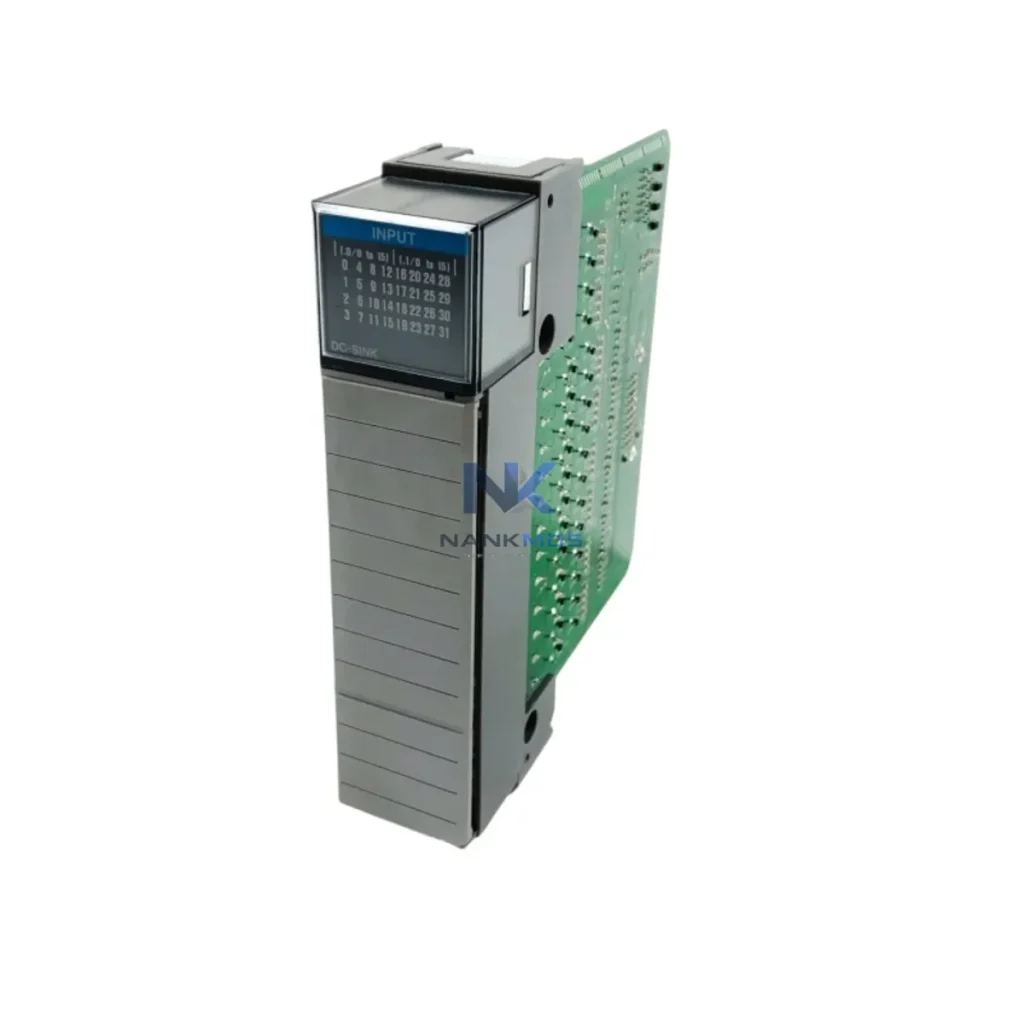

The Allen-Bradley 1746-IB32/D is a 32-point 24V DC digital input module engineered for seamless integration within the SLC 500 modular control platform. Its role in a complete automation architecture extends well beyond simple signal acquisition — it serves as the primary field-signal interface layer that feeds real-time discrete data into the SLC 500 CPU for deterministic ladder-logic execution.

In a fully configured SLC 500 rack, the 1746-IB32/D occupies an I/O slot alongside complementary modules that together form a coherent control layer. The 1747-L553 or 1747-L543 CPU modules serve as the processing core, executing the scan cycle that reads the 1746-IB32/D input image table at every program scan. Power distribution to the chassis is handled by the 1746-P4 or 1746-P7 power supply modules, which deliver regulated 5V DC backplane power and 24V DC field power, ensuring stable operation of all installed I/O modules including the 1746-IB32/D.

On the output side, the 1746-OB32 32-point DC output module mirrors the input density of the 1746-IB32/D, enabling symmetric I/O expansion within a single chassis slot pair. For mixed-signal applications, the 1746-OW16 relay output module provides isolated contact closure for motor starters, solenoids, and pilot devices, while the 1746-NI8 analog input module handles process variables such as temperature, pressure, and flow — all sharing the same SLC 500 backplane and CPU scan cycle.

Network connectivity is extended through the 1747-SDN DeviceNet Scanner module, which bridges the SLC 500 backplane to distributed I/O nodes, remote sensors, and smart actuators on the plant floor. For Ethernet-based supervisory integration, the 1761-NET-ENI Ethernet interface enables EtherNet/IP communication between the SLC 500 platform and SCADA systems, MES layers, or Rockwell FactoryTalk View SE HMI stations. The 2711-T10C8 PanelView 1000 HMI terminal provides operator-level visualization and control, reading input status directly from the SLC 500 data file that the 1746-IB32/D populates in real time.

For applications requiring signal conditioning or galvanic isolation between field devices and the SLC 500 input module, inline signal isolators and terminal block assemblies — such as the 1492-AIFM8-F-5 analog interface module or standard 1492-W4 wiring systems — provide clean, noise-free signal paths. This is particularly important in high-EMI environments such as variable-frequency drive (VFD) panels, where the PowerFlex 40 or PowerFlex 525 drives generate switching noise that can corrupt unshielded discrete input signals.

The 1746-IB32/D's 32-point density maximizes chassis slot utilization, reducing the total number of modules required for large-scale discrete I/O applications and lowering overall panel footprint. Its Series D revision incorporates improved noise immunity and tighter input threshold tolerances compared to earlier revisions, making it the preferred choice for new installations and direct replacement in existing SLC 500 architectures. All units supplied by NANKMOS undergo pre-shipment functional testing and are backed by a 12-Month Warranty, ensuring verified performance from day one of installation.

The 1746-IB32/D is deployed across a broad spectrum of industrial sectors where the SLC 500 platform remains the established control standard:

Discrete Manufacturing & Assembly Lines: In automotive body-in-white and general assembly applications, the 1746-IB32/D monitors proximity sensors, part-present switches, safety gate interlocks, and conveyor position sensors. Its 1 ms hardware response time ensures that high-speed part detection events are captured within a single CPU scan cycle, preventing missed signals on fast-moving production lines.

Water & Wastewater Treatment: Municipal pump stations and filtration plants rely on the 1746-IB32/D to monitor float switches, valve position feedback, motor run/fault contacts, and flow switch signals. The module's wide operating temperature range and humidity tolerance make it suitable for wet, outdoor, and partially conditioned enclosure environments common in water infrastructure.

Power Generation & Electrical Substations: In generator control panels and switchgear automation, the 1746-IB32/D reads breaker status, relay trip signals, and protection device outputs. Its 24V DC input compatibility aligns with standard substation control voltage levels, simplifying wiring and eliminating the need for additional signal converters.

Oil, Gas & Petrochemical Processing: Upstream and midstream facilities use the 1746-IB32/D within SLC 500-based ESD (Emergency Shutdown) and process control panels to monitor pressure switch contacts, level switch outputs, and valve position indicators. The module's CE and CSA certifications support compliance with international installation standards in hazardous-area adjacent control rooms.

Packaging & Material Handling: High-density discrete input requirements in palletizing, labeling, and sortation systems are efficiently addressed by the 1746-IB32/D's 32-point capacity. A single module can monitor an entire conveyor zone's sensor array, reducing chassis slot consumption and simplifying system documentation.

Mining & Metals Processing: Conveyor belt monitoring, crusher control, and ore handling systems in mining operations benefit from the 1746-IB32/D's robust input filtering, which suppresses vibration-induced contact bounce and electrical noise from heavy machinery — ensuring reliable signal acquisition in electrically harsh environments.

Q1: Is the 1746-IB32/D compatible with all SLC 500 chassis and CPU revisions? Yes. The 1746-IB32/D is compatible with all standard 1746 I/O chassis (4-slot through 13-slot configurations) and all SLC 500 CPU families including the 1747-L20, 1747-L30, 1747-L40, 1747-L541, and 1747-L553. No special configuration is required — the module is automatically recognized by RSLogix 500 software during I/O configuration. It occupies one slot and consumes 185 mA from the 5V DC backplane supply, which must be verified against the chassis power supply capacity when designing high-density I/O racks.

Q2: Can the 1746-IB32/D be used in a redundant SLC 500 architecture, and what are the wiring considerations for high-EMI environments? The SLC 500 platform supports hot-backup redundancy configurations using the 1747-BSN Backup Scanner module, where the 1746-IB32/D I/O modules are shared between primary and backup CPU chassis via a common I/O chassis. In high-EMI environments — particularly those with VFDs, large contactors, or welding equipment — it is strongly recommended to use shielded twisted-pair field wiring, ground shields at one end only, and to install the 1746-IB32/D in chassis slots physically separated from high-current output modules. Signal isolators on long cable runs further improve noise immunity and protect input circuitry.

Q3: What does NANKMOS's 12-Month Warranty cover, and how quickly can the 1746-IB32/D be shipped? NANKMOS's 12-Month Warranty covers functional defects in the 1746-IB32/D under normal operating conditions, including backplane communication failures, input point malfunctions, and hardware faults not caused by physical damage or misapplication. Every unit undergoes pre-shipment functional testing to verify all 32 input points, backplane communication integrity, and power consumption within specification. In-stock units are available for same-day or next-business-day dispatch, supporting urgent maintenance, unplanned replacement, and project commissioning timelines globally.
