Allen-Bradley 2711-T10C8 HMI Terminal

Product Details

2711-T10C8 Product Description

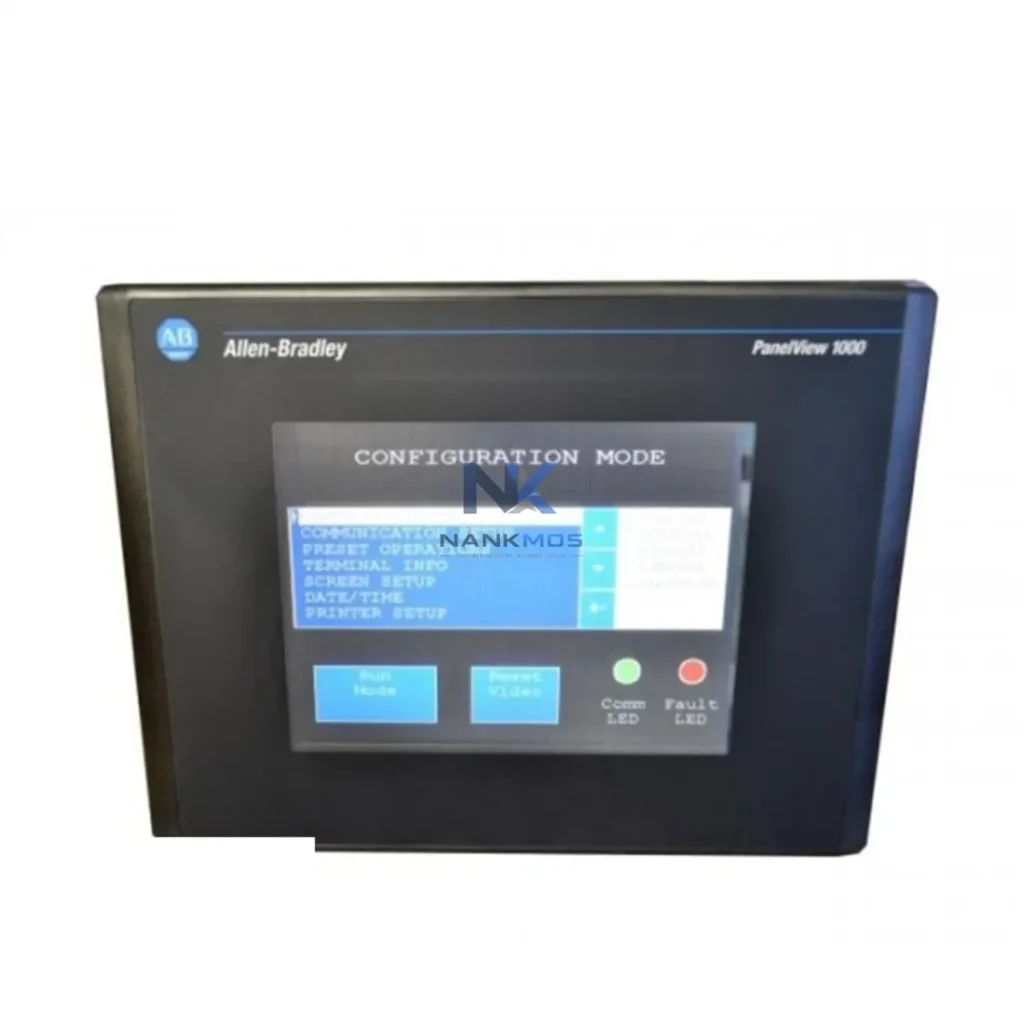

The Allen-Bradley 2711-T10C8 is a 10-inch color touch-screen HMI terminal from the PanelView 1000 series, engineered for real-time operator interaction in energy-intensive industrial environments. Designed to integrate seamlessly with Rockwell Automation control architectures, this unit delivers precise visualization of energy consumption data, drive status, motor load curves, and production throughput — enabling operators to make informed decisions that reduce waste and optimize line efficiency. Whether deployed in discrete manufacturing, process control, or energy management applications, the 2711-T10C8 serves as the critical human-machine interface layer that bridges field-level data with actionable energy intelligence.

In a modern smart production line, the 2711-T10C8 does not operate in isolation — it functions as the visualization and control hub for a tightly integrated energy management ecosystem. When paired with a ControlLogix L6x or CompactLogix L3x PLC, the HMI can display real-time tag data including motor amperage, drive output frequency, and energy accumulation counters, giving operators immediate visibility into load conditions across the line.

For motor-driven applications, the 2711-T10C8 is commonly deployed alongside PowerFlex 40 or PowerFlex 70 variable frequency drives (VFDs), where it surfaces drive fault codes, speed references, and energy consumption trends directly on the operator panel. This eliminates the need for separate drive keypads and reduces the risk of undetected overcurrent or thermal overload conditions that waste energy and shorten motor life.

Integration with PowerMonitor 1000 or PowerMonitor 3000 power monitoring modules allows the HMI to present kWh, kVA, power factor, and demand data in real time. Operators can configure threshold alarms directly from the 2711-T10C8 interface, triggering load-shedding routines or alerting maintenance teams before energy waste escalates into equipment damage.

On the I/O side, the terminal communicates with 1734 POINT I/O or 1756 ControlLogix I/O modules via the host PLC, enabling status feedback from field devices such as pressure transmitters, flow sensors, and temperature probes. This sensor-to-screen data path supports predictive maintenance workflows — operators can monitor degradation trends and schedule interventions during planned downtime rather than reacting to unplanned failures.

For facilities running SCADA platforms such as FactoryTalk View SE or Ignition, the 2711-T10C8 serves as a local operator station that complements the supervisory layer, providing panel-level control without requiring a full PC-based workstation at every machine. This architecture reduces hardware costs and lowers the overall thermal load of the control cabinet.

When communication gateways such as the 1761-NET-AIC or ProSoft MVI56 communication modules are present, the HMI can bridge legacy DH+ or DH-485 networks with modern Ethernet-based control systems, extending the useful life of existing automation assets and deferring costly infrastructure upgrades.

The Allen-Bradley 2711-T10C8 contributes to factory energy optimization at multiple levels. At the machine level, it provides operators with the real-time feedback needed to avoid unnecessary idle running of motors, compressors, and conveyors. By displaying drive output and load percentage directly on the panel face, it enables operators to identify and correct inefficient operating points — for example, reducing conveyor speed during low-throughput periods or shutting down auxiliary equipment during scheduled breaks.

At the line level, the HMI supports production rhythm (takt time) management by displaying cycle time data, alarm histories, and throughput counters. When integrated with a ControlLogix PLC running a line-balancing program, the 2711-T10C8 allows supervisors to visualize bottlenecks and redistribute load across stations, reducing peak demand charges and smoothing energy consumption profiles.

Thermal load management is another key benefit. By surfacing drive temperature readings, motor thermal model data, and cabinet ambient temperature alarms, the HMI helps maintenance teams identify cooling inefficiencies before they cause derating or shutdown events. Reducing thermal stress on drives and motors directly extends equipment service life and lowers the total cost of ownership.

From a maintenance and supply perspective, the 2711-T10C8 is an in-stock, field-proven unit. Each unit undergoes functional testing prior to shipment and is backed by a 12-month warranty, ensuring that replacement deployments do not introduce unverified hardware into critical production environments. Fast availability minimizes unplanned downtime — a key factor in maintaining consistent energy efficiency targets across the facility.

For facilities transitioning toward ISO 50001 energy management compliance or implementing energy KPI dashboards, the 2711-T10C8 provides the operator-facing display layer that makes energy data actionable at the point of production, not just in the back-office reporting system.

Q1: Can the 2711-T10C8 display real-time energy consumption data from connected drives and power monitors? Yes. When the host PLC (such as a ControlLogix or SLC 500) is configured to collect energy tags from PowerFlex VFDs or PowerMonitor modules, the 2711-T10C8 can display those values in real time via its DH+, DH-485, or RS-232 communication links. Custom screens can be configured in PanelBuilder 1400e to show kWh, load percentage, and alarm states.

Q2: Is the 2711-T10C8 compatible with modern Rockwell Automation control platforms? The 2711-T10C8 is natively compatible with SLC 500, PLC-5, and early ControlLogix systems via DH+ and DH-485 protocols. For integration with newer CompactLogix or ControlLogix platforms using EtherNet/IP, a communication gateway such as a ProSoft or 1761-NET-AIC module is recommended. This makes it an effective bridge component for mixed-generation automation environments.

Q3: What is the recommended replacement or upgrade path if the 2711-T10C8 reaches end of service? For direct functional replacement, the 2711-T10C8 can be substituted with other PanelView 1000 series units of equivalent screen size and communication configuration. For facilities planning a platform upgrade, migration to the PanelView Plus 7 or PanelView 5500 series is recommended, as these support EtherNet/IP natively and offer expanded energy dashboard capabilities via FactoryTalk View ME.

Q4: What testing and warranty coverage is provided with each unit? Every 2711-T10C8 unit is functionally tested prior to shipment to verify display operation, touch input response, and communication port integrity. Units are covered by a 12-month warranty from the date of shipment. In the event of a verified hardware defect within the warranty period, a replacement unit will be dispatched from available inventory to minimize production disruption.
