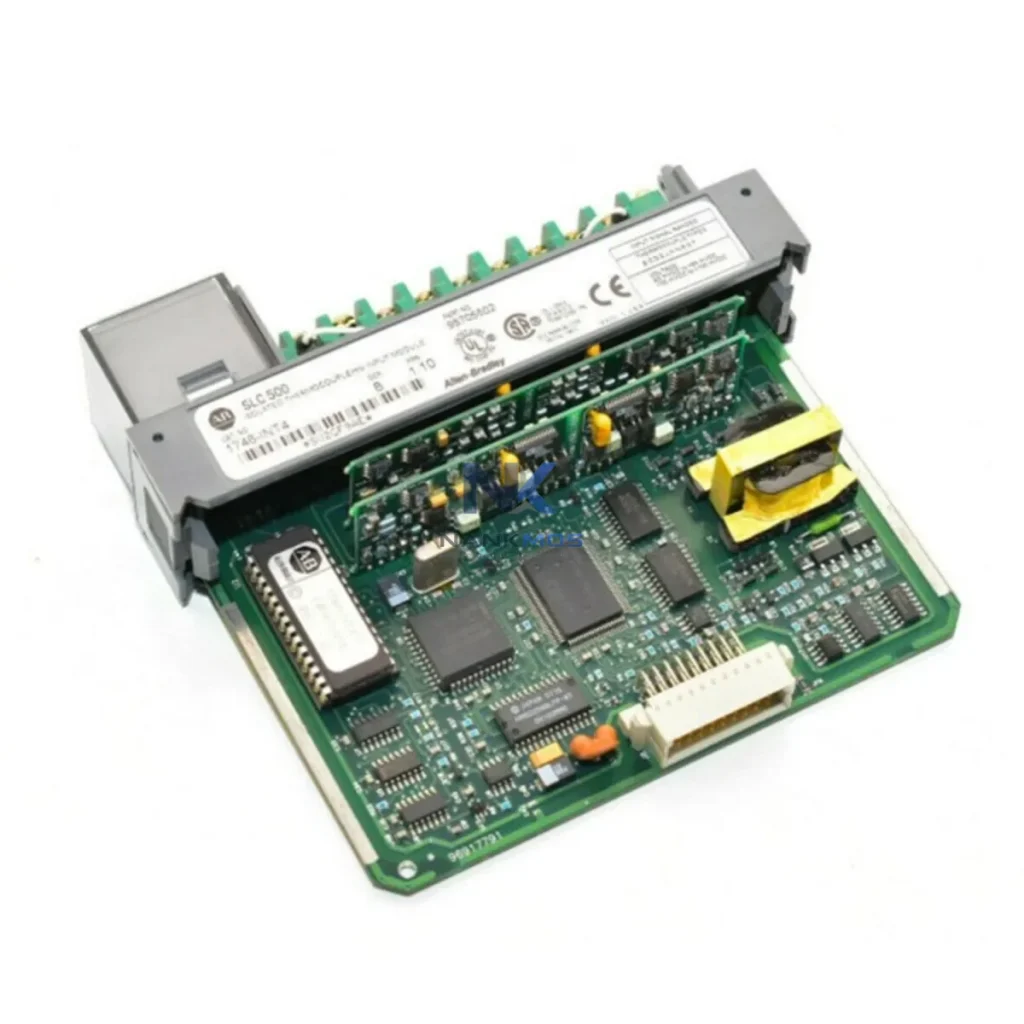

Allen-Bradley 1746-INT4 Thermocouple Input Module

Product Details

1746-INT4 Product Description

The Allen-Bradley 1746-INT4 is a four-channel thermocouple and millivolt input module designed for the SLC 500 modular I/O platform. Engineered for precision thermal sensing in energy-intensive industrial environments, the 1746-INT4 delivers real-time temperature data that drives intelligent load management, motor protection, and energy optimization across automated production lines. By integrating directly into the SLC 500 rack alongside the 1746-OW16 output module and 1746-IB16 digital input module, it enables closed-loop thermal control strategies that reduce unnecessary energy consumption and prevent costly equipment failures.

In modern smart factories, thermal data is one of the most actionable signals for energy management. The 1746-INT4 feeds real-time temperature readings directly into the SLC 5/04 or SLC 5/05 processor, where ladder logic programs can trigger immediate corrective actions — such as reducing drive speed via a PowerFlex 40 variable frequency drive or initiating a controlled shutdown of a high-load motor circuit before thermal runaway occurs. This tight integration between sensing and actuation is the foundation of a power-aware automation strategy.

When paired with a 1746-NI8 analog input module monitoring current and voltage signals, the 1746-INT4 creates a comprehensive energy profile for each production zone. The SLC 500 processor correlates thermal and electrical data, enabling the control program to identify inefficient operating conditions — such as a motor running at elevated temperature under partial load — and adjust the PowerFlex 700 drive output accordingly to minimize reactive power losses.

For facilities using a PanelView 550 or PanelView Plus HMI, the 1746-INT4 channel data is surfaced as real-time temperature trends, giving operators immediate visibility into thermal load distribution across the production floor. Alarm thresholds configured in RSLogix 500 can automatically alert operators when any channel exceeds safe operating limits, preventing unplanned downtime and reducing energy waste from overheated equipment running at degraded efficiency.

The module also integrates seamlessly with 1747-SDN DeviceNet Scanner modules, allowing temperature data to be shared across a DeviceNet network to upstream SCADA systems such as FactoryTalk View SE. This enables plant-wide energy dashboards that correlate thermal performance with production throughput, identifying opportunities for load balancing and shift-level energy scheduling. Combined with a 1756-EN2T EtherNet/IP communication module in a ControlLogix gateway, the 1746-INT4 data can be aggregated into enterprise energy management systems for ISO 50001 compliance reporting.

Uncontrolled thermal loads are among the leading causes of energy waste and unplanned downtime in industrial facilities. Motors, drives, and power distribution equipment operating above optimal temperature consume disproportionately more energy while delivering reduced mechanical output. The 1746-INT4 addresses this directly by providing the SLC 500 control system with the precise thermal intelligence needed to implement proactive energy optimization strategies.

By monitoring up to four independent thermocouple points simultaneously — such as motor winding temperature, drive heatsink temperature, transformer surface temperature, and ambient cabinet temperature — the 1746-INT4 enables the control system to implement dynamic load management. When thermal readings approach critical thresholds, the SLC 500 processor can automatically reduce conveyor belt speed, stagger motor start sequences to prevent inrush current spikes, or activate cooling systems only when genuinely required — eliminating the energy cost of continuous cooling operation.

In process industries such as water treatment and chemical manufacturing, the 1746-INT4 supports temperature-based process optimization. Accurate thermal feedback allows the control system to maintain reaction temperatures within tight tolerances, reducing energy consumption from over-heating or reheating cycles. When integrated with a 1746-HSCE high-speed counter module for flow measurement, the system can calculate real-time thermal efficiency ratios and adjust pump and valve positions to minimize energy input per unit of process output.

Predictive maintenance is another critical energy optimization benefit. By trending thermocouple data over time through FactoryTalk Historian or a third-party SCADA historian, maintenance teams can identify gradual thermal degradation in motors, bearings, and electrical connections before failure occurs. Replacing a failing bearing before it seizes eliminates the energy spike associated with a locked-rotor condition and avoids the production losses and emergency repair costs of an unplanned shutdown. Each 1746-INT4 unit shipped from NANKMOS undergoes full functional testing across all four channels, with calibration verification against NIST-traceable references, ensuring measurement accuracy from day one of installation.

Q1: What energy savings can I expect by integrating the 1746-INT4 into my SLC 500 system? Actual savings depend on your application, but facilities using thermal-triggered load management typically report 8–15% reductions in motor and drive energy consumption by eliminating over-temperature operation and optimizing cooling system duty cycles. The 1746-INT4 provides the sensing foundation; energy savings are realized through the control logic implemented in the SLC 500 processor.

Q2: Is the 1746-INT4 compatible with all SLC 500 processors and chassis? Yes. The 1746-INT4 is compatible with all SLC 500 modular processors including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05, and fits any standard 1746 modular chassis. It occupies one slot and communicates via the SLC 500 backplane. No special firmware is required; configuration is performed through RSLogix 500 software.

Q3: Can the 1746-INT4 replace older thermocouple modules such as the 1746-NT4 or 1746-NT8? The 1746-INT4 is the designated replacement for the discontinued 1746-NT4 in most applications. It supports the same thermocouple types and slot form factor. For applications previously using the 1746-NT8 (8-channel), two 1746-INT4 modules can be used to maintain channel count. NANKMOS can advise on configuration mapping and any ladder logic adjustments required for a seamless migration.

Q4: What is the warranty and testing process for the 1746-INT4? Every 1746-INT4 supplied by NANKMOS carries a 12-Month Warranty covering functional defects under normal industrial operating conditions. Prior to shipment, each unit undergoes a full outgoing quality test including channel-by-channel thermocouple input verification, millivolt range calibration, and backplane communication validation. Units that do not pass all test criteria are not shipped. In-stock units are available for dispatch within 1–3 business days.
