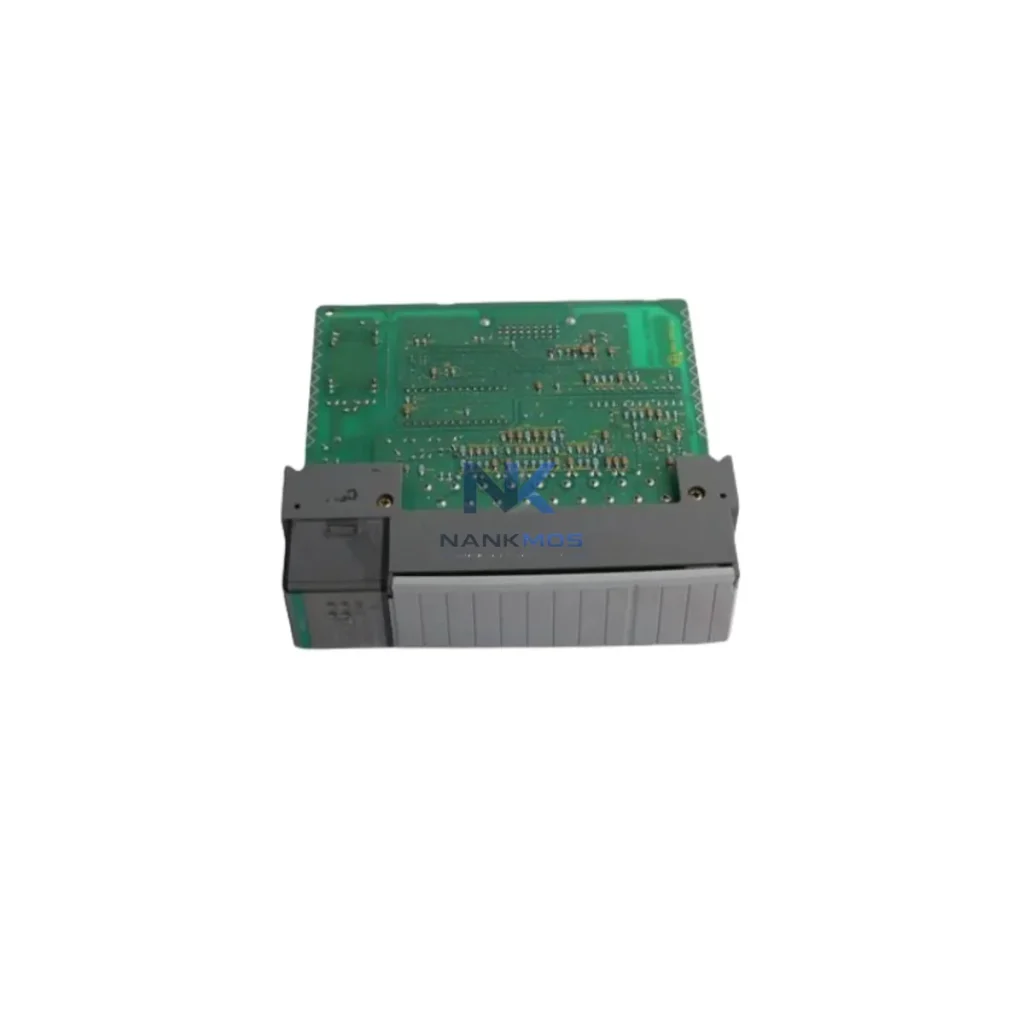

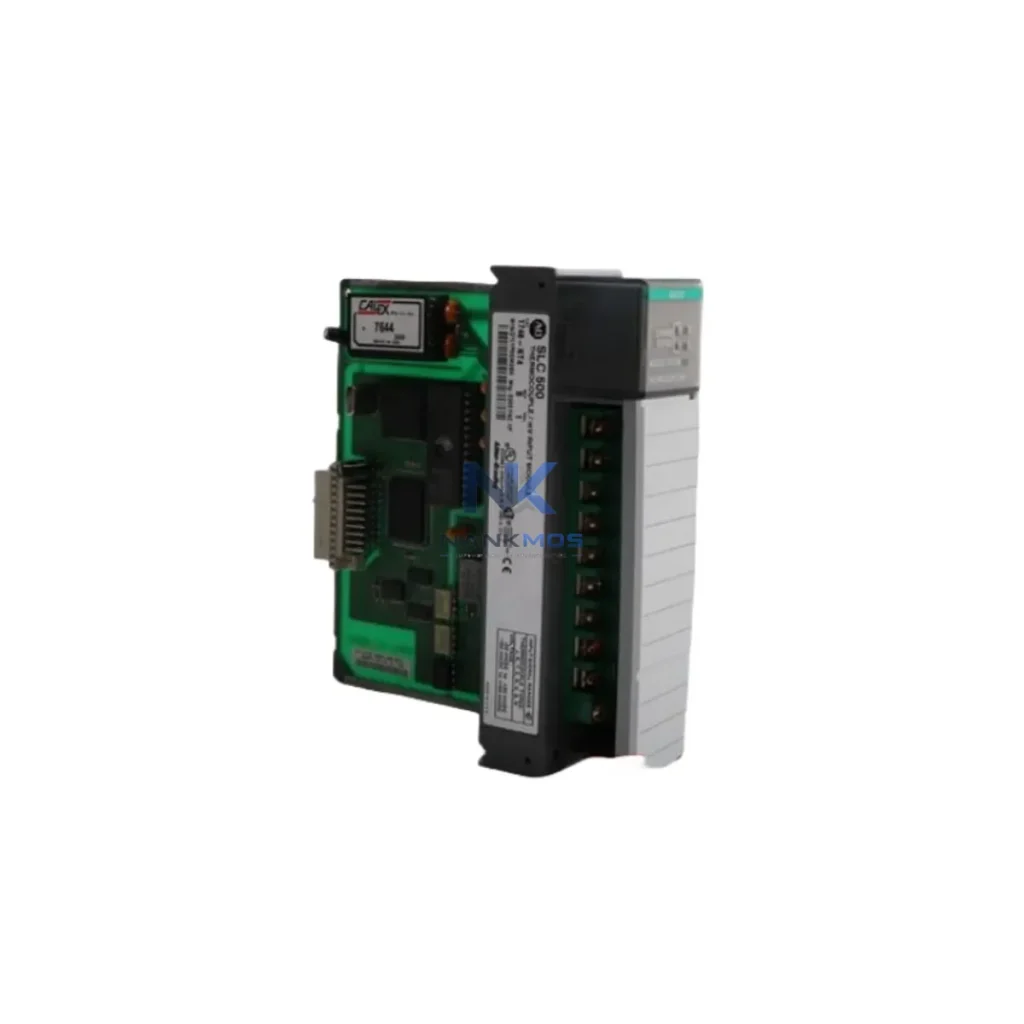

Allen-Bradley 1746-NT4 PLC I/O Module

Product Details

1746-NT4 Product Description

The Allen-Bradley 1746-NT4 is a four-channel thermocouple and millivolt input module engineered for seamless integration within the SLC 500 modular control architecture. Designed to deliver precision temperature measurement across demanding industrial environments, the 1746-NT4 occupies a standard SLC 500 I/O chassis slot and communicates directly with the SLC 5/03, SLC 5/04, and SLC 5/05 processor families via the SLC backplane data highway. Its role within the control hierarchy extends beyond simple signal acquisition — the module serves as a critical data source for closed-loop temperature regulation, process alarming, and multi-zone thermal management strategies that span the full automation stack from field instrumentation through to supervisory control and data acquisition layers.

The 1746-NT4 achieves its full operational value when deployed as part of a cohesive SLC 500 platform architecture rather than as a standalone measurement device. At the processor layer, the SLC 5/05 CPU module provides Ethernet/IP connectivity that enables the temperature data collected by the 1746-NT4 to be transmitted upstream to SCADA systems, historian servers, and MES platforms without additional protocol conversion hardware. When paired with the 1746-NI4 analog voltage/current input module, engineers can simultaneously monitor both thermocouple-based temperature signals and 4–20 mA process variables within the same chassis, creating a unified signal acquisition layer that simplifies ladder logic programming and reduces scan-time overhead.

For applications requiring discrete I/O coordination alongside temperature monitoring — such as activating cooling fans, opening solenoid valves, or triggering alarm relays based on temperature thresholds — the 1746-OB16 digital output module and 1746-IB16 digital input module integrate directly within the same 1746-series chassis. This co-location eliminates inter-chassis communication latency and ensures that temperature-triggered control actions execute within a single processor scan cycle. The 1746-A10 chassis provides ten slot positions, offering sufficient capacity to house the 1746-NT4 alongside power supply modules such as the 1746-P4, processor modules, and additional I/O modules within a single enclosure footprint.

In architectures where DeviceNet field device integration is required — common in packaging lines, conveyor systems, and motor control centers — the 1747-SDN DeviceNet Scanner module can be installed in the same chassis to manage distributed I/O nodes while the 1746-NT4 handles centralized temperature acquisition. For Ethernet-based supervisory integration, the 1761-NET-ENI Ethernet interface adapter provides legacy SLC 500 systems with network connectivity, enabling remote monitoring of 1746-NT4 temperature data through RSLinx Classic or FactoryTalk View SE without requiring a processor upgrade. Panel View 600 and Panel View Plus HMI terminals can be configured to display real-time temperature trends sourced from the 1746-NT4, providing operators with immediate visual feedback on thermal process conditions at the machine level.

Where redundancy and signal isolation are critical — particularly in high-voltage switchgear rooms, chemical processing areas, or offshore platform control rooms — signal isolators and loop-powered barriers installed between field thermocouples and the 1746-NT4 input terminals protect the module from ground loops, common-mode voltage interference, and transient overvoltage events. This layered protection strategy preserves measurement accuracy and extends module service life in electrically noisy environments.

In manufacturing and assembly automation, the 1746-NT4 is widely deployed in heat treatment furnaces, injection molding machines, and extrusion lines where precise zone temperature control directly impacts product quality and cycle time consistency. The module's ability to handle multiple thermocouple types within a single chassis slot allows a single SLC 500 rack to serve multi-zone thermal processes without requiring separate signal conditioning hardware for each zone.

In power generation and electrical substation environments, the 1746-NT4 monitors transformer winding temperatures, switchgear compartment thermal conditions, and generator bearing temperatures. Integration with the SLC 5/05 processor's Ethernet/IP port enables continuous temperature data logging to plant historian systems, supporting predictive maintenance programs that reduce unplanned outages and extend equipment service intervals.

In petrochemical and refinery process control, the module supports temperature monitoring across distillation columns, heat exchangers, and reactor vessels. Its isolated input design prevents ground loop interference that is common in large-scale process plants where field instrumentation spans significant distances and multiple electrical ground references. The 12-Month Warranty coverage provides procurement teams with a defined quality assurance baseline when specifying replacement modules for critical process control loops.

In water and wastewater treatment facilities, the 1746-NT4 monitors process temperatures in biological treatment reactors, UV disinfection systems, and sludge digestion vessels. The module's compatibility with Type K and Type T thermocouples — the most common sensor types in water treatment applications — simplifies sensor standardization across plant-wide control systems.

In mining, metals, and mineral processing operations, the 1746-NT4 is applied in kiln temperature monitoring, ore roasting furnace control, and molten metal temperature measurement. Its robust operating temperature range and chassis-based mounting make it suitable for installation in control rooms adjacent to high-temperature process areas where ambient conditions may approach the upper limits of standard industrial equipment ratings.

Q1: Is the 1746-NT4 compatible with all SLC 500 chassis sizes and processor types?The 1746-NT4 is compatible with all standard 1746-series chassis, including the 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot) configurations. It is supported by SLC 5/03, SLC 5/04, and SLC 5/05 processors running RSLogix 500 programming software. The module is not compatible with the fixed SLC 5/01 or SLC 5/02 processors, which do not support specialty I/O modules. Slot placement within the chassis is flexible, though Rockwell Automation recommends positioning analog and specialty modules away from high-current digital output modules to minimize electrical noise coupling on shared backplane power rails.

Q2: How does the 1746-NT4 support long-term maintenance and module replacement in aging SLC 500 systems?The 1746-NT4 is a direct drop-in replacement for existing installations — no chassis modification, wiring reconfiguration, or processor firmware update is required when substituting a new module for a failed unit. Channel configuration parameters are stored in the SLC processor's data file, meaning that a replacement module automatically inherits the thermocouple type selection, filter frequency settings, and open-circuit detection configuration from the existing program without requiring re-commissioning. Our 12-Month Warranty covers the replacement module from the date of shipment, and pre-shipment functional testing ensures that each unit meets factory performance specifications before dispatch. Stock availability is maintained to support both planned maintenance schedules and emergency replacement requirements.

Q3: What wiring and installation considerations apply when integrating the 1746-NT4 into an existing control cabinet?Thermocouple extension wire must be used between field sensors and the 1746-NT4 terminal block — standard copper wire introduces thermoelectric EMF errors that degrade measurement accuracy. Each of the four input channels is electrically isolated from the backplane and from adjacent channels, which eliminates ground loop interference in multi-sensor installations where thermocouples are grounded at the measurement point. The module's open-circuit detection feature flags broken thermocouple connections in the processor's input data file, enabling ladder logic routines to generate operator alarms without requiring external signal monitoring hardware. Terminal block wiring should follow Rockwell Automation's recommended cable routing practices, keeping thermocouple extension cables separated from AC power wiring and high-frequency drive output cables to maintain signal integrity across the full operating temperature range. Contextual Integration with existing SLC 500 programs requires no additional function block libraries — standard ladder logic instructions access 1746-NT4 data through the module's assigned input data file address.
