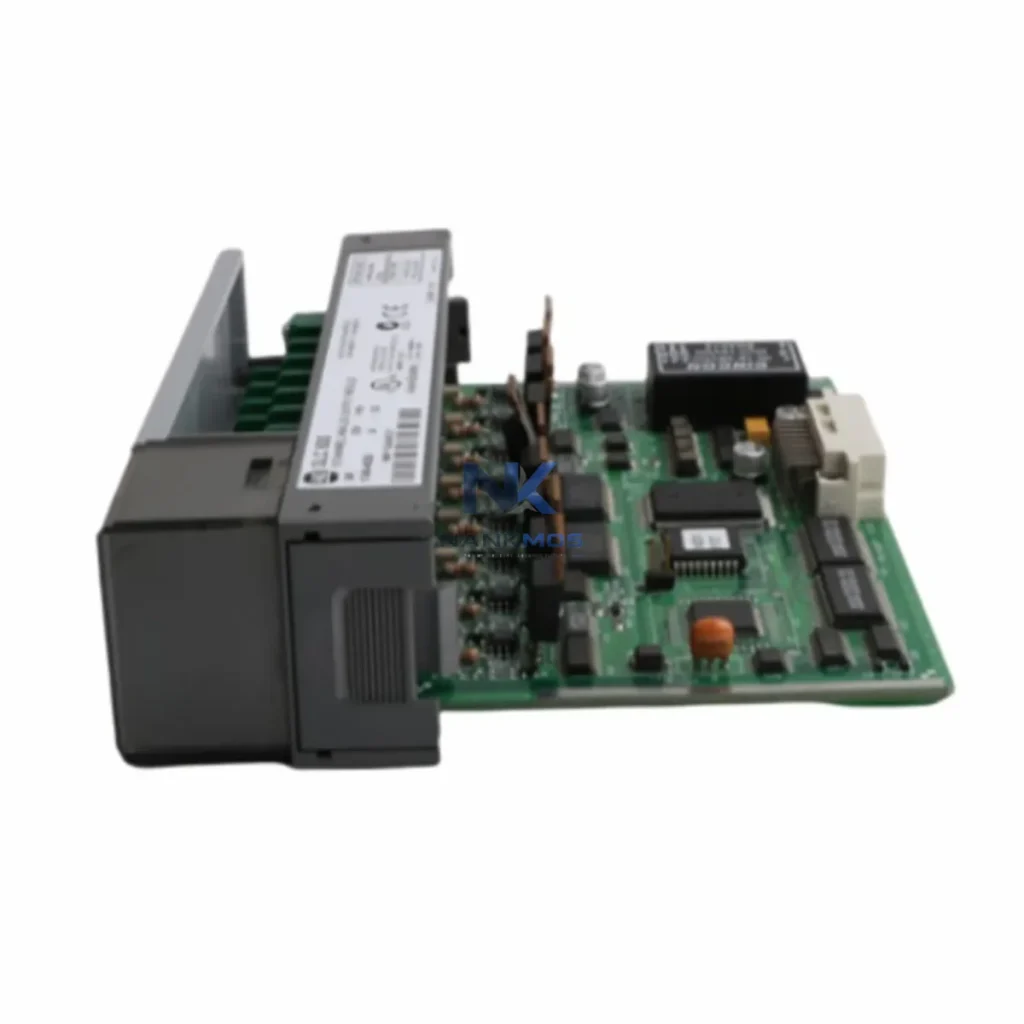

Allen-Bradley 1746-NO8I Analog Output Module

Product Details

1746-NO8I Product Description

In modern smart factory environments, the integrity of the analog data chain determines the reliability of every downstream decision. The Allen-Bradley 1746-NO8I is an 8-channel isolated analog output module engineered for the SLC 500 PLC platform, delivering precision current and voltage signals across the full industrial signal range — 4–20 mA and 0–10 V DC — directly from the SLC 500 backplane to field devices including variable frequency drives, control valves, proportional actuators, and process transmitters. As manufacturing sites evolve toward IIoT-connected architectures, the 1746-NO8I serves as a critical bridge between the PLC control layer and the physical process layer, ensuring that every setpoint command issued by the SLC 500 CPU reaches its destination with accuracy, isolation, and deterministic timing.

The module's per-channel isolation architecture eliminates ground loop interference — a persistent challenge in multi-device industrial panels where sensors, drives, and actuators share common grounding infrastructure. Each of the eight output channels operates independently, allowing simultaneous control of multiple field devices without cross-channel signal contamination. This makes the 1746-NO8I particularly well-suited for applications where a single SLC 500 rack must coordinate flow control valves, pressure regulators, and speed references for variable frequency drives in parallel, all within a single scan cycle.

The 1746-NO8I operates at the output boundary of the SLC 500 control architecture, translating digital register values from the SLC 500 CPU — such as the 1747-L553 or 1747-L543 — into analog field signals that drive physical process equipment. In a typical smart factory data flow, the SLC 500 CPU reads process feedback from analog input modules such as the 1746-NI8 or 1746-NI16V, processes the data through ladder logic, and writes updated setpoints to the 1746-NO8I output registers. These setpoints are then transmitted as 4–20 mA current loops or 0–10 V voltage signals to downstream devices.

In drive control applications, the 1746-NO8I provides speed reference signals to variable frequency drives — including Allen-Bradley PowerFlex 40 and PowerFlex 400 series drives — enabling closed-loop speed regulation without requiring a dedicated fieldbus connection at the drive level. This analog reference architecture remains widely deployed in legacy and hybrid automation sites where Ethernet/IP or DeviceNet connectivity has not yet been extended to every drive cabinet.

For valve and actuator control, the module's current output channels connect directly to electro-pneumatic positioners and proportional control valves, delivering precise positioning commands from the SLC 500 PLC. In process industries, this configuration supports flow control, pressure regulation, and temperature setpoint delivery across multiple process loops simultaneously. The 1746-NO8I's eight isolated channels allow a single module to manage an entire process unit's analog output requirements within one rack slot.

At the SCADA and HMI integration layer, the SLC 500 system — monitored via RSLinx Classic or FactoryTalk View SE — provides operators with real-time visibility into the analog output values written to the 1746-NO8I. Operators can adjust setpoints from the HMI, which propagates changes through the SLC 500 CPU to the module's output channels within a single PLC scan. This closed-loop visibility — from SCADA setpoint entry through PLC processing to analog field output — forms the backbone of process transparency in SLC 500-based smart factory installations.

In remote monitoring and diagnostic scenarios, the SLC 500 system communicates upstream via a 1747-KFC15 Ethernet interface or a 1761-NET-ENI adapter, enabling remote access to output channel status, fault registers, and setpoint values through FactoryTalk Diagnostics or third-party SCADA platforms. This remote diagnostic capability allows maintenance engineers to verify analog output integrity, identify open-circuit faults on 4–20 mA loops, and confirm drive speed references without physical access to the control panel — a critical capability for distributed manufacturing sites and remote process facilities.

For sites integrating the SLC 500 platform with modern IIoT edge infrastructure, protocol gateways such as the ProSoft Technology MVI46-MCM or the Moxa MGate series can bridge SLC 500 backplane data to Modbus TCP or MQTT streams, enabling the 1746-NO8I's output channel data to be published to cloud-based analytics platforms and digital twin environments. This integration path extends the operational life of existing SLC 500 installations while enabling data-driven maintenance and process optimization at the enterprise level.

Many industrial sites operating SLC 500 platforms face a common set of data challenges: analog output channels that lack per-channel isolation cause ground loop interference that corrupts setpoint signals; aging output modules with degraded DAC accuracy introduce process drift that is difficult to diagnose without channel-level diagnostics; and the absence of remote output status visibility forces maintenance teams to perform manual loop checks during planned shutdowns.

The 1746-NO8I addresses these challenges directly. Its per-channel isolation eliminates ground loop interference in multi-device panels, ensuring that a fault on one output channel does not propagate to adjacent channels or corrupt signals on shared grounding infrastructure. The module's 12-bit resolution provides 4096 discrete output steps across the full signal range, delivering the setpoint accuracy required for precision flow control, pressure regulation, and drive speed reference applications.

For sites seeking to eliminate analog data islands, the 1746-NO8I integrates seamlessly with SLC 500 data logging configurations that capture output channel values at configurable intervals, enabling trend analysis and process optimization through FactoryTalk Historian or third-party data historians. This data capture capability transforms the analog output layer from a one-way command interface into a bidirectional data source that contributes to process transparency and continuous improvement programs.

Remote diagnostics are supported through the SLC 500's fault register architecture, which logs output channel faults — including open-circuit conditions on 4–20 mA loops and out-of-range voltage outputs — in the PLC's I/O fault table. These fault records are accessible via SCADA and remote access tools, enabling proactive maintenance scheduling and reducing unplanned downtime caused by analog output failures.

Q1: What communication protocol does the Allen-Bradley 1746-NO8I use to interface with the SLC 500 CPU?The 1746-NO8I communicates with the SLC 500 CPU via the SLC 500 backplane parallel I/O bus. The CPU writes output data to the module's O-file registers during each scan cycle, and the module converts these digital values to analog current or voltage signals. No additional fieldbus configuration is required — the module is recognized automatically by the SLC 500 chassis upon installation.

Q2: Can the 1746-NO8I be used in systems that also include DeviceNet or Ethernet/IP modules in the same SLC 500 rack?Yes. The 1746-NO8I occupies a standard 1746-series I/O slot and coexists with communication modules including the 1747-SDN DeviceNet Scanner and 1747-AENTR Ethernet/IP adapter in the same SLC 500 chassis. The analog output module operates independently of the network communication modules, and its output channel data can be mapped to DeviceNet or Ethernet/IP data tables for upstream SCADA visibility.

Q3: How does the 12-month warranty apply, and is the module tested before shipment?Every 1746-NO8I unit supplied by NANKMOS is functionally tested prior to shipment, verifying output channel accuracy, isolation integrity, and backplane communication. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request, and our technical team provides remote diagnostic support throughout the warranty period.

Q4: What is the recommended approach for remote monitoring of 1746-NO8I output channel status in a distributed manufacturing environment?For remote monitoring, the SLC 500 system should be equipped with an Ethernet interface module — such as the 1747-KFC15 or a 1761-NET-ENI adapter — to enable remote access via RSLinx Classic or FactoryTalk View SE. Output channel values and fault register data are accessible through these interfaces, allowing maintenance engineers to verify analog output integrity, confirm drive speed references, and identify open-circuit faults on 4–20 mA loops without physical panel access. For IIoT integration, protocol gateways can publish this data to MQTT or OPC-UA streams for cloud analytics platforms.
