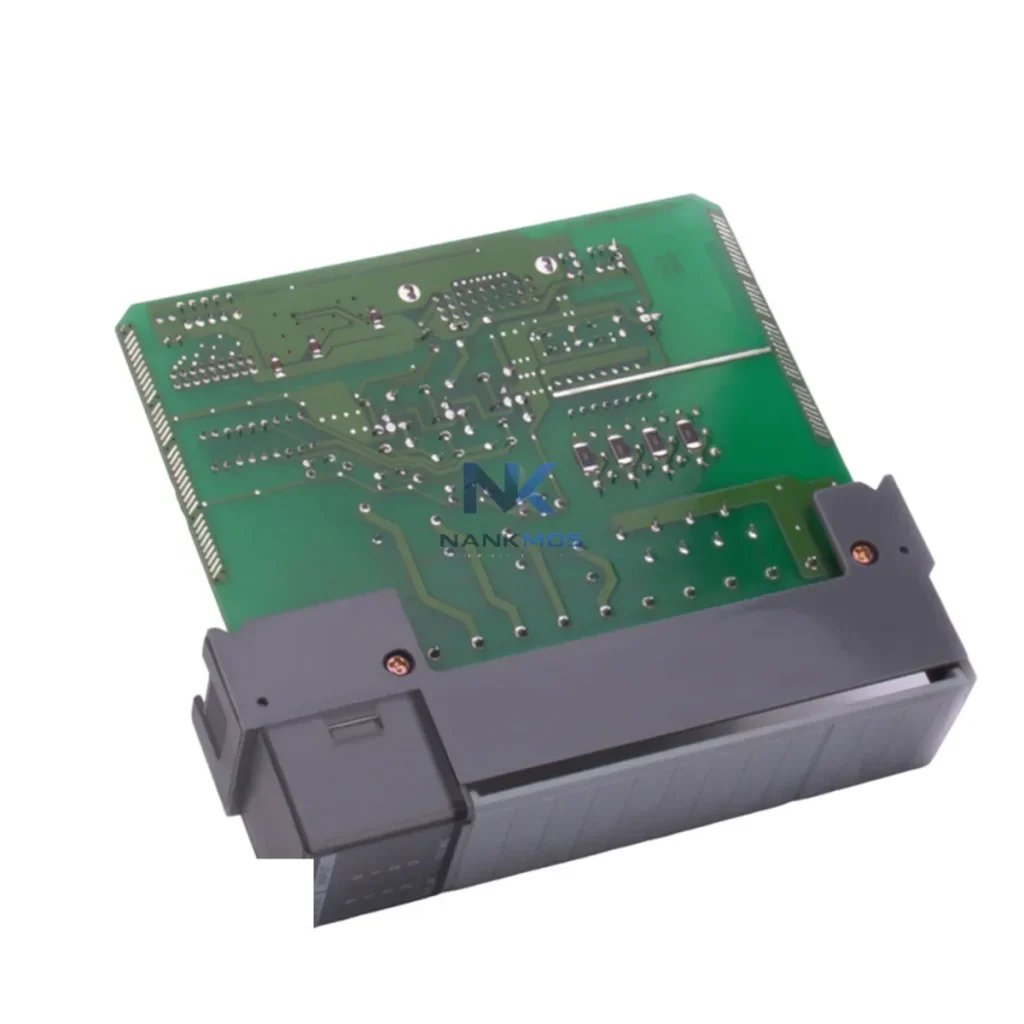

Allen-Bradley 1746-NOI4I Analog Output Module

Product Details

1746-NOI4I Product Description

The Allen-Bradley 1746-NOI4I is a 4-channel analog output module engineered for the SLC 500 modular PLC platform, delivering precision signal control across 4–20mA current loops and 0–10V voltage outputs. In modern smart factory environments, where every field device must participate in a unified data chain, the 1746-NOI4I serves as a critical bridge between the SLC 500 controller's digital logic and the physical actuators, drives, and process instruments that govern production. Its role extends well beyond simple signal conversion — it anchors the analog output layer of a connected automation architecture, enabling real-time command delivery, closed-loop feedback, and seamless integration with supervisory systems.

Deployed across discrete manufacturing, process control, and hybrid automation sites, the 1746-NOI4I operates within the SLC 500 backplane alongside companion modules such as the 1746-NI4 analog input module and 1746-IB16 digital input module, forming a complete I/O subsystem that feeds structured data upward to SCADA platforms and downward to field-level actuators. When paired with a 1747-L553 or 1747-L543 SLC 5/05 processor — which supports Ethernet/IP natively — the 1746-NOI4I's output channels become remotely addressable, allowing operators to issue analog setpoints from HMI terminals or SCADA workstations without physical intervention on the plant floor.

In a fully connected smart factory, the 1746-NOI4I participates in a multi-layer data flow that begins at the sensor level and terminates at enterprise dashboards. Consider a typical process line: a 1746-NI8 analog input module collects 4–20mA signals from pressure transmitters and flow meters installed on the production line. These raw values are processed by the SLC 5/05 CPU, which executes PID control logic and writes corrected output values to the 1746-NOI4I's output registers. The module then drives a PowerFlex 40 variable frequency drive via a 4–20mA speed reference signal, adjusting conveyor or pump speed in real time based on process feedback.

Simultaneously, the SLC 5/05 processor communicates upstream via Ethernet/IP to a FactoryTalk View SE SCADA/HMI server, where operators monitor analog output values, trend historical data, and receive alarm notifications when output signals deviate from setpoint thresholds. A 1783-US5T Stratix unmanaged industrial Ethernet switch provides the network backbone, connecting the SLC rack, HMI terminals, and remote I/O drops within the same plant-floor subnet. For sites requiring protocol translation — such as bridging the SLC 500's DH+ network to a Modbus TCP supervisory system — a 1761-NET-AIC Advanced Interface Converter or a third-party gateway module handles the conversion transparently, ensuring the 1746-NOI4I's output data remains accessible across heterogeneous network architectures.

In distributed control topologies, the 1746-NOI4I may operate within a remote SLC 500 rack connected to a master controller via a 1747-SN Scanner module and 1747-ASB Adapter, extending analog output capability to remote process stations without running dedicated analog wiring back to a central panel. Edge computing nodes — such as compact industrial PCs running FactoryTalk Analytics or third-party MQTT brokers — can subscribe to real-time output data, enabling predictive maintenance models to correlate analog output trends with equipment wear patterns. This architecture supports the full smart factory data chain: signal generation, protocol transport, supervisory visualization, and analytics-driven decision-making, all anchored by the reliable, field-proven performance of the 1746-NOI4I.

Many industrial sites operating legacy SLC 500 infrastructure face a common set of challenges: protocol fragmentation between older DH+ networks and modern Ethernet/IP systems, analog data that never reaches SCADA because it is trapped in isolated backplane registers, and limited remote visibility into output channel status during fault conditions. The 1746-NOI4I addresses these gaps directly when deployed within a properly architected SLC 500 system.

Protocol Unification: By leveraging the SLC 5/05 processor's native Ethernet/IP port, all 1746-NOI4I output data becomes addressable via standard EtherNet/IP messaging, eliminating the need for proprietary DH+ polling tools and enabling integration with modern OPC-UA servers and cloud-connected SCADA platforms.

Eliminating Data Silos: Output channel values, fault flags, and diagnostic bits are mapped directly into the SLC 500's data file structure, making them immediately available to any connected HMI, historian, or analytics platform without custom middleware. Sites that previously had no visibility into analog output behavior can now trend, alarm, and report on every channel in real time.

Remote Monitoring and Diagnostics: When a 4–20mA output drifts or an open-circuit fault occurs, the 1746-NOI4I's status bits propagate through the SLC processor to the SCADA alarm system within one scan cycle. Maintenance teams receive immediate notification via FactoryTalk Alarms or third-party alarm management systems, enabling remote diagnosis before dispatching field technicians — reducing mean time to repair and minimizing unplanned downtime.

Production Line Transparency: Integrating the 1746-NOI4I into a FactoryTalk Historian or equivalent time-series database creates a permanent record of every analog output command issued during production. This data supports OEE analysis, batch traceability, and regulatory compliance reporting, transforming a simple output module into a source of actionable production intelligence.

Scalable Expansion: The SLC 500 modular chassis architecture allows additional 1746-NOI4I modules to be added as production lines expand, with no changes to the network infrastructure. New output channels are simply mapped into the existing data file structure and made available to the SCADA system automatically.

Q1: Does the 1746-NOI4I support Ethernet/IP or Modbus TCP communication directly?The 1746-NOI4I itself communicates via the SLC 500 backplane bus and does not have an independent Ethernet port. Ethernet/IP connectivity is provided by the SLC 5/05 processor (1747-L553/L543), which exposes all backplane module data — including 1746-NOI4I output registers — over Ethernet/IP. For Modbus TCP integration, a protocol gateway such as the ProSoft MVI46-MCM or a third-party OPC server with Modbus TCP driver is required.

Q2: What is the maximum cable length for 4–20mA output wiring from the 1746-NOI4I?The 4–20mA current loop output is inherently noise-resistant and supports cable runs of up to several hundred meters in typical industrial environments, depending on loop resistance and cable gauge. For installations in electrically noisy environments — near VFDs, large motors, or high-voltage switchgear — shielded twisted-pair cable with proper grounding is recommended to maintain signal integrity across long runs.

Q3: Can the 1746-NOI4I be used in a remote I/O rack connected to a ControlLogix or CompactLogix system?Yes. Using a 1747-ASB Adapter module in the remote SLC 500 rack and a compatible scanner in the master ControlLogix or CompactLogix chassis, the 1746-NOI4I can function as a remote analog output node within a larger Logix-based control system. This configuration is common in plant expansions where existing SLC 500 I/O hardware is retained to reduce capital expenditure while migrating the primary controller to a newer platform.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1746-NOI4I?Every 1746-NOI4I unit supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm output channel integrity, backplane communication, and signal accuracy across the full 4–20mA and 0–10V output ranges. In-stock units are available for fast global dispatch, with documentation support available upon request for customs clearance and incoming inspection.
