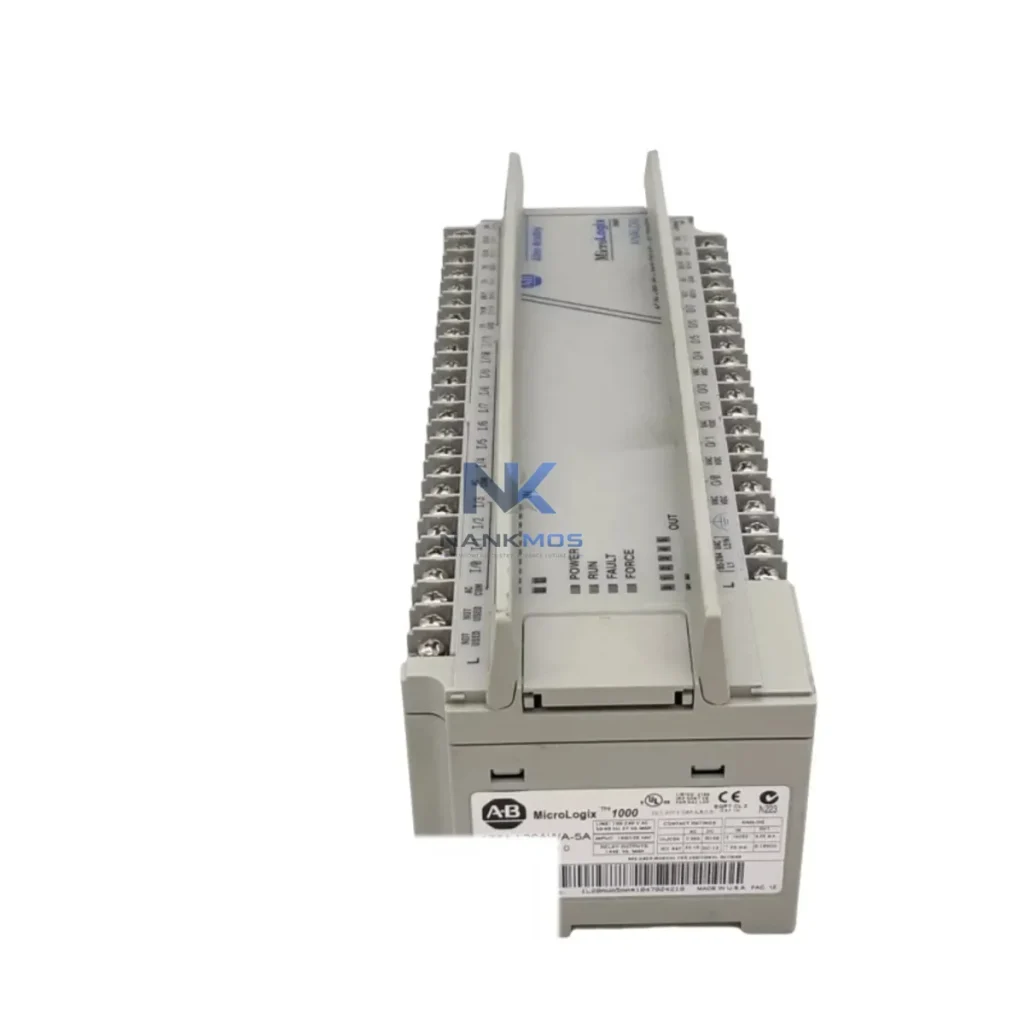

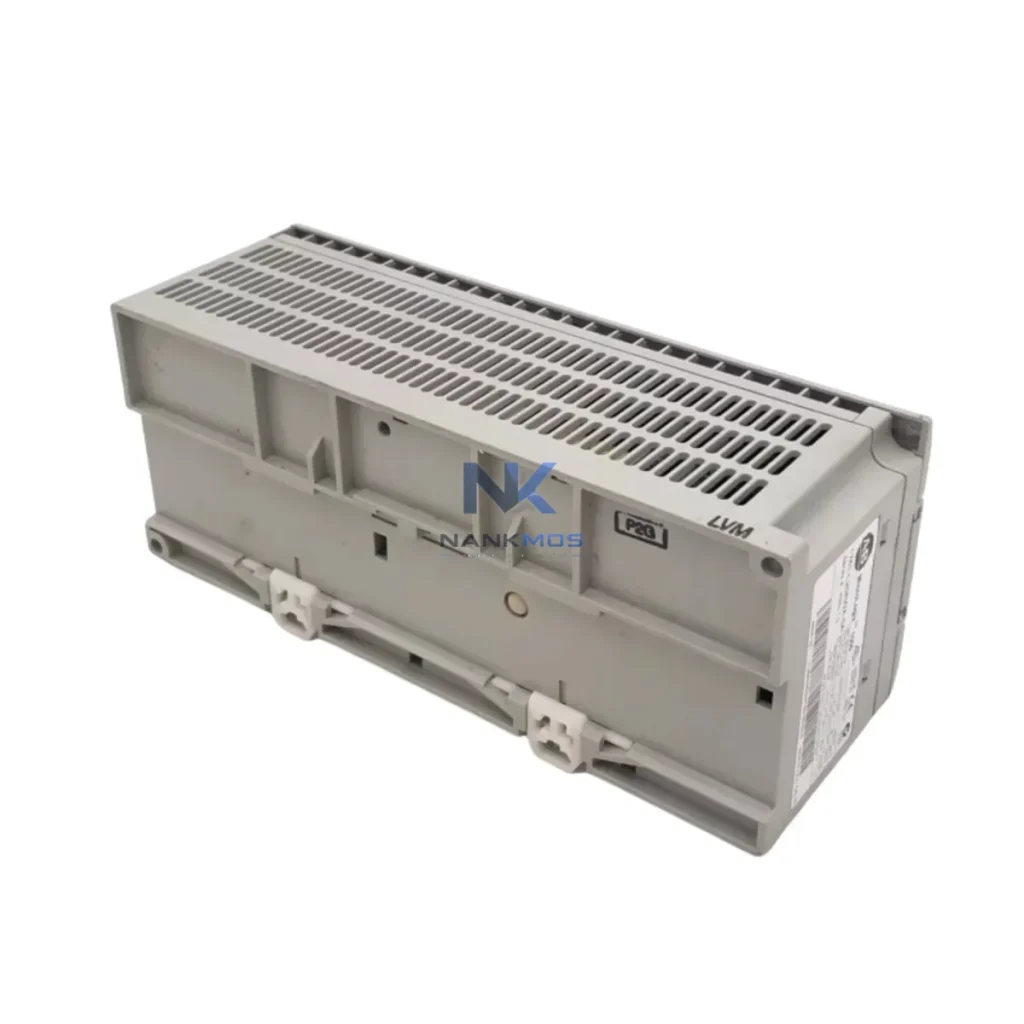

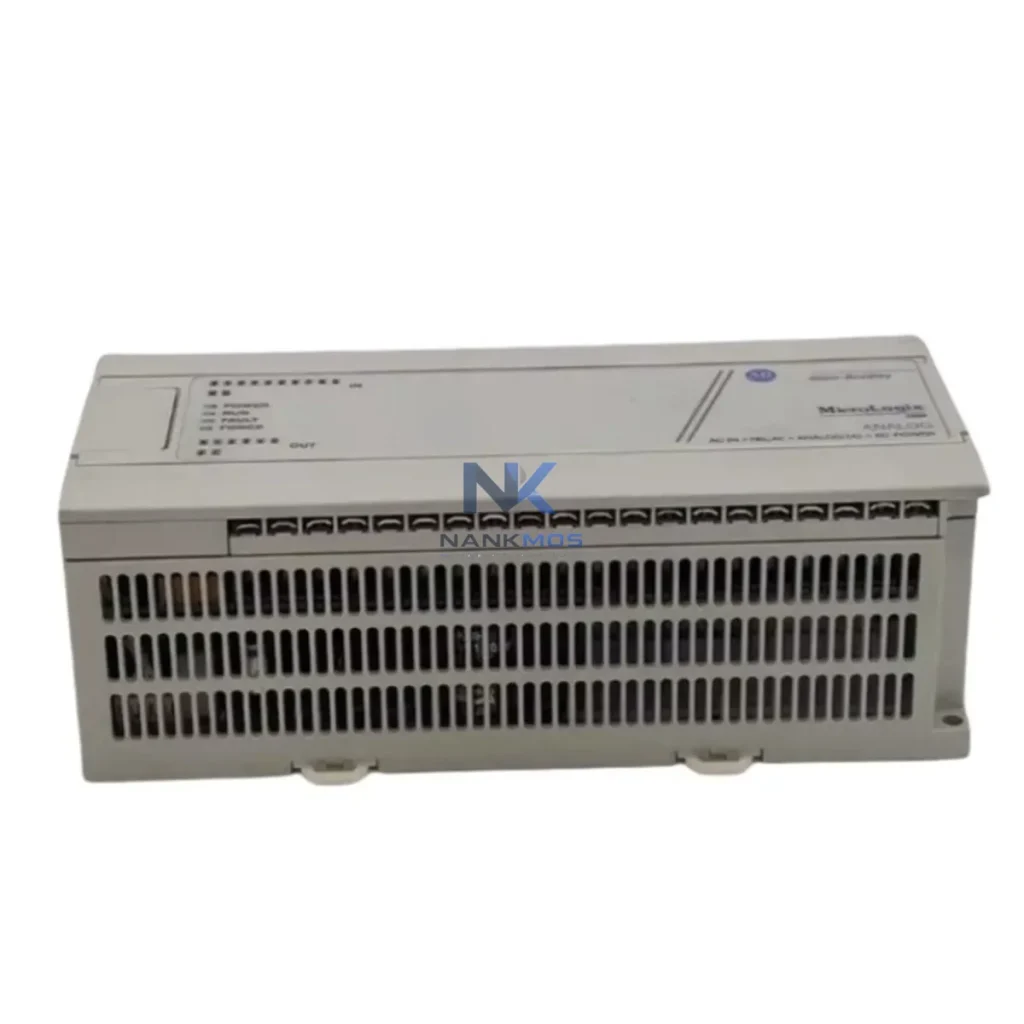

Allen-Bradley 1761-L20AWA-5A Programmable Logic Controller

Product Details

1761-L20AWA-5A Product Description

The Allen-Bradley 1761-L20AWA-5A is a compact, high-reliability Programmable Logic Controller from the MicroLogix 1000 series, engineered to deliver precise energy control and load management across demanding industrial production environments. Designed for integration into smart production lines, this PLC enables manufacturers to reduce unnecessary energy consumption, stabilize equipment cycle times, and maximize asset utilization — all within a rugged, space-efficient form factor.

With 20 I/O points (12 digital inputs, 8 relay outputs) and AC power supply, the 1761-L20AWA-5A is purpose-built for applications where reliable discrete control directly impacts energy efficiency and throughput. Its deterministic scan cycle and low power draw make it an ideal controller for motor starter circuits, conveyor sequencing, pump control, and HVAC load switching — all common sources of energy waste in industrial facilities.

In-stock and pre-shipment tested, the 1761-L20AWA-5A ships with a 12-month warranty, ensuring supply assurance for maintenance teams and system integrators managing critical production assets.

The 1761-L20AWA-5A operates at the heart of a power-aware automation architecture. When paired with a PowerFlex 4M or PowerFlex 40 variable frequency drive, the PLC can issue speed reference commands that eliminate motor over-speed conditions — one of the most common sources of excess energy consumption in pump and fan applications. The relay outputs directly interface with motor starter contactors, enabling the controller to implement load-shedding sequences during peak demand windows without requiring additional relay modules.

For energy monitoring, the 1761-L20AWA-5A integrates seamlessly with power measurement modules such as the PowerMonitor 500 via the DH-485 network, allowing real-time kWh data to feed back into the control logic. This closed-loop approach enables the PLC to adjust equipment duty cycles based on actual power consumption rather than fixed timers — a measurable improvement in energy efficiency for multi-motor production lines.

The controller communicates with upstream SCADA systems through the 1761-NET-AIC Advanced Interface Converter, bridging DH-485 to RS-232 for integration with FactoryTalk View SE or third-party HMI platforms. Operators can monitor energy KPIs, equipment runtime, and fault states from a centralized PanelView terminal, reducing the need for manual floor inspections and the associated energy overhead of unplanned interventions.

On the I/O side, the 1761-L20AWA-5A accepts signals from proximity sensors, pressure transducers, and flow switches — enabling condition-based control logic that only activates equipment when process conditions demand it. This event-driven approach, rather than time-based cycling, is a proven strategy for reducing thermal load on motors and drives. When combined with a 1762-IQ8 MicroLogix 1200 expansion module or a standalone 1762-series I/O block, the system can scale to monitor additional energy points across a production cell without replacing the base controller.

For servo-driven axes, the 1761-L20AWA-5A can coordinate with Kinetix 300 or Kinetix 5100 servo drives via discrete I/O handshaking, managing enable/disable states to prevent unnecessary holding torque during idle periods — a direct reduction in both energy consumption and motor thermal stress.

Industrial production lines lose significant energy through three primary mechanisms: uncontrolled motor starts, idle-state equipment running at full load, and uncoordinated multi-axis motion. The 1761-L20AWA-5A addresses all three through its deterministic ladder logic execution and flexible relay output configuration.

By implementing soft-start sequencing logic within RSLogix 500, engineers can stagger motor start times across a production cell, reducing inrush current peaks that inflate demand charges on utility bills. The PLC's relay outputs support both normally-open and normally-closed configurations, enabling fail-safe de-energization of non-critical loads during scheduled downtime — a simple but effective load management strategy.

The MicroLogix 1000 platform's compact footprint also contributes to panel thermal management. Lower panel heat generation means reduced air conditioning load in control rooms and enclosures, a secondary energy saving that compounds over continuous operation cycles. In facilities running three-shift operations, this thermal efficiency benefit is measurable across monthly utility statements.

Predictive maintenance integration is supported through the PLC's ability to log equipment runtime hours and cycle counts via internal data files. Maintenance teams can use this data — exported via RSLinx Classic to a historian or CMMS — to schedule preventive interventions before equipment degradation causes energy-wasting friction losses or unplanned downtime. Keeping motors and drives operating within their efficiency curves is the most direct path to sustained energy savings on a production line.

All units are pre-shipment tested against Allen-Bradley factory specifications before dispatch, ensuring that the controller arrives ready for immediate commissioning. The included 12-month warranty covers manufacturing defects and provides supply chain assurance for facilities operating under lean inventory policies.

Q1: How does the 1761-L20AWA-5A contribute to measurable energy savings on a production line? The PLC enables event-driven control logic that activates equipment only when process conditions require it, eliminating idle-state energy draw. When integrated with a PowerFlex VFD and a PowerMonitor 500, the system can reduce motor energy consumption by 15–30% compared to fixed-speed, timer-based control schemes.

Q2: Is the 1761-L20AWA-5A compatible with existing Rockwell Automation control platforms and SCADA systems? Yes. The 1761-L20AWA-5A is fully compatible with RSLogix 500 programming software, RSLinx Classic communication middleware, and FactoryTalk View HMI platforms. It connects to DH-485 networks via the onboard port and to RS-232 SCADA hosts through the 1761-NET-AIC interface converter.

Q3: What is the recommended replacement or upgrade path for aging MicroLogix 1000 installations? For applications requiring expanded I/O or Ethernet connectivity, the MicroLogix 1100 (1763-L16AWA) or MicroLogix 1400 (1766-L32AWA) are direct upgrade paths within the same programming environment. Existing RSLogix 500 programs can be migrated with minimal modification, preserving the energy control logic already developed for the 1761-L20AWA-5A.

Q4: What testing and warranty coverage is provided with each unit? Every 1761-L20AWA-5A unit undergoes pre-shipment functional testing to verify I/O operation, communication port integrity, and power supply performance. A 12-month warranty is included, covering manufacturing defects. In-stock availability ensures rapid dispatch for both planned procurement and emergency replacement scenarios.
