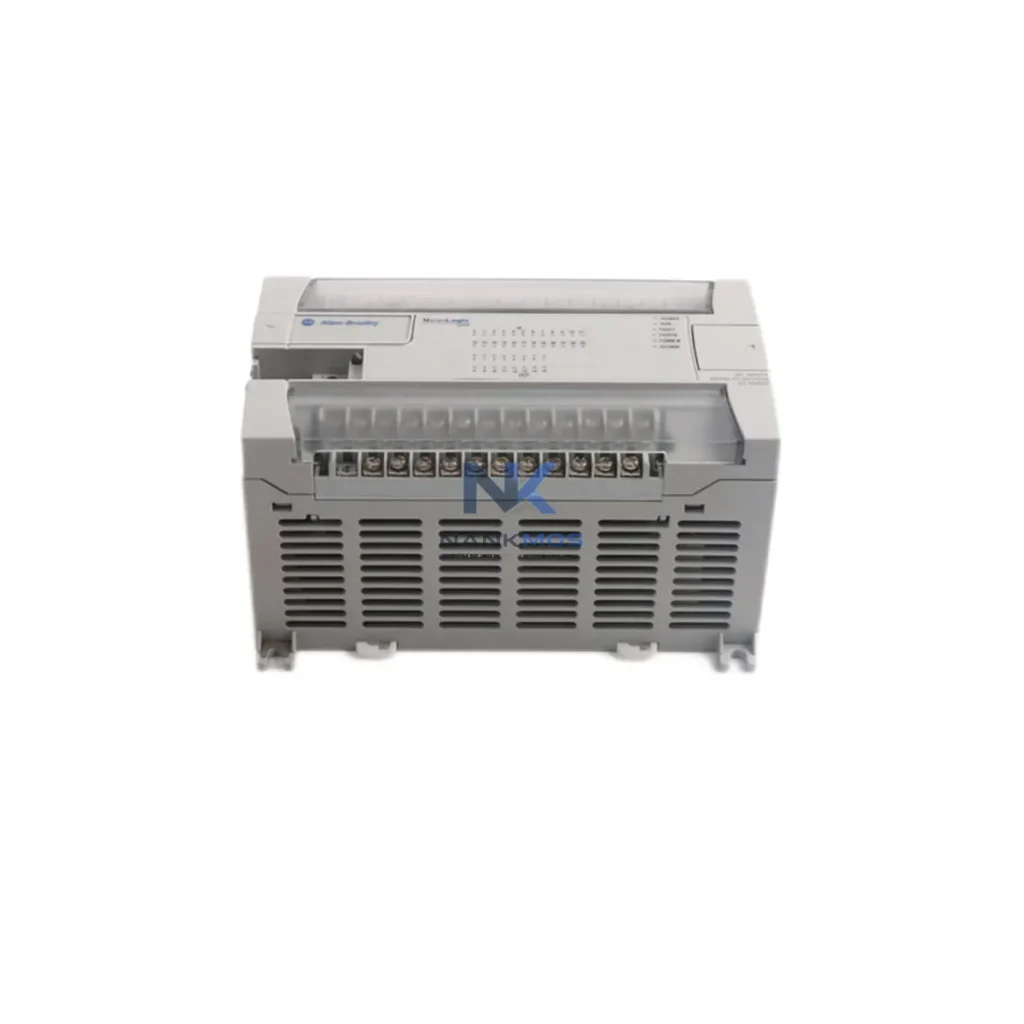

Allen-Bradley 1766-L32AWA PLC Controller

Product Details

1766-L32AWA Product Description

The Allen-Bradley 1766-L32AWA is a MicroLogix 1400 series programmable logic controller engineered for demanding industrial control environments where system consistency, modular scalability, and long-term operational reliability are non-negotiable. Designed as a central processing node within layered automation architectures, the 1766-L32AWA integrates seamlessly across control, I/O, communication, power, HMI, execution, protection, and maintenance layers — delivering a unified platform that reduces engineering overhead and accelerates commissioning timelines across manufacturing, utilities, and process industries.

With 32 onboard I/O points (20 digital inputs, 12 relay outputs), built-in Ethernet/IP and RS-232/RS-485 communication ports, and native support for EtherNet/IP messaging, the 1766-L32AWA serves as a capable standalone controller or as a distributed node within larger Rockwell Automation control architectures. Its AC power supply input (100–240 VAC) and relay output configuration make it particularly well-suited for mixed-signal environments where both digital control and direct load switching are required within a single compact footprint.

Every unit supplied by NANKMOS undergoes pre-shipment functional verification, ensuring that firmware integrity, I/O channel continuity, and communication port responsiveness meet specification prior to dispatch. Backed by a 12-Month Warranty, the 1766-L32AWA represents a dependable procurement option for system integrators, OEM builders, and MRO teams requiring verified stock with documented traceability.

The 1766-L32AWA achieves its full architectural value when deployed within a coordinated MicroLogix or broader Rockwell Automation control platform. In typical system configurations, the controller operates alongside 1762-IQ16 digital input expansion modules and 1762-OW16 relay output modules to extend field I/O capacity beyond the onboard 32-point complement — enabling coverage of larger machine sections without migrating to a higher-tier controller platform.

For analog signal acquisition and process variable monitoring, the 1762-IF4 4-channel analog input module and 1762-OF4 analog output module integrate directly into the 1766-L32AWA expansion bus, supporting 4–20 mA and 0–10 VDC signal ranges commonly encountered in flow, pressure, temperature, and level control loops. This combination is particularly effective in water treatment, HVAC, and light process manufacturing applications where mixed digital and analog I/O coexist within a single control cabinet.

Communication architecture is reinforced through the controller's native EtherNet/IP port, which enables peer-to-peer messaging with other MicroLogix 1400 units, upstream ControlLogix or CompactLogix processors such as the 1769-L33ER or 1756-L71, and SCADA/HMI platforms including the 2711P-T7C22D9P PanelView Plus 7 terminal. This multi-tier communication topology supports distributed architectures where the 1766-L32AWA functions as a remote I/O concentrator or local machine controller reporting to a supervisory ControlLogix system.

For drive integration, the 1766-L32AWA communicates with PowerFlex 40 and PowerFlex 525 variable frequency drives via Modbus RTU over the RS-485 port or EtherNet/IP, enabling coordinated speed reference, run/stop command, and fault status exchange without additional communication gateways. In cabinet-level power distribution, the controller pairs with 1606-XLP72E SMPS power supplies to ensure stable 24 VDC logic power across the I/O expansion bus and field sensor circuits.

For network segmentation and managed Ethernet connectivity within the control cabinet, industrial Ethernet switches such as the Stratix 2000 unmanaged switch provide reliable port aggregation between the 1766-L32AWA, HMI terminals, and upstream network infrastructure — maintaining deterministic EtherNet/IP scan cycles even in electrically noisy industrial environments.

Manufacturing & Assembly Lines: The 1766-L32AWA is widely deployed in discrete manufacturing environments for conveyor sequencing, pick-and-place coordination, and end-of-line testing stations. Its relay output configuration directly drives solenoid valves, motor starters, and indicator lamps without intermediate relay panels, reducing cabinet complexity and wiring labor. Integration with barcode scanners and vision systems via RS-232 enables inline quality inspection loops within the same controller program.

Water & Wastewater Treatment: In municipal and industrial water treatment facilities, the 1766-L32AWA manages pump sequencing, valve actuation, and level control across lift stations and filtration skids. Analog expansion modules support 4–20 mA transmitter inputs from flow meters, turbidity sensors, and pH analyzers, while EtherNet/IP connectivity enables remote monitoring from SCADA platforms. The controller's compact form factor and DIN rail mounting simplify installation in distributed pump station panels.

Oil, Gas & Petrochemical: For wellhead automation, pipeline monitoring, and compressor control applications, the 1766-L32AWA provides reliable discrete and analog I/O management in remote or semi-remote installations. Its wide AC power input range accommodates variable utility power quality common in field installations, and the RS-485 Modbus RTU port enables integration with third-party field instruments and RTUs without protocol conversion hardware.

Packaging & Material Handling: In packaging machinery and palletizing systems, the 1766-L32AWA coordinates servo drive enable signals, pneumatic valve sequencing, and product counting functions. Its fast scan time and deterministic ladder logic execution support high-speed indexing applications where timing precision directly impacts throughput and product quality.

Building Automation & HVAC: The controller's analog I/O expansion capability and Modbus RTU support make it a practical choice for chiller plant control, air handling unit sequencing, and energy monitoring applications where BACnet or Modbus integration with building management systems is required via gateway devices.

Q1: Can the 1766-L32AWA be expanded with additional I/O modules, and what is the maximum expansion capacity? Yes. The 1766-L32AWA supports up to 7 expansion modules from the 1762 MicroLogix expansion family, including digital input, digital output, analog input, analog output, and specialty modules such as thermocouple and RTD inputs. This brings the total system I/O capacity to well over 100 points depending on module selection, making the platform suitable for mid-complexity machine control without requiring migration to a CompactLogix or ControlLogix platform. All 1762-series expansion modules connect directly to the controller's right-side expansion port using the integrated expansion bus — no additional communication hardware or backplane is required.

Q2: Is the 1766-L32AWA compatible with RSLogix 500 programming software, and what communication interface is required for programming? Yes. The 1766-L32AWA is programmed using RSLogix 500 (or the free RSLogix Micro) software from Rockwell Automation. Programming can be performed via the onboard RS-232 CH0 port using a 1761-CBL-PM02 or compatible serial cable, or via the EtherNet/IP port using a standard RJ45 Ethernet connection — the latter being the preferred method for modern engineering workstations without legacy serial ports. The controller also supports online editing, forcing, and data monitoring during live operation, which significantly reduces commissioning and troubleshooting time on the production floor.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS ensure the quality of supplied units? Every 1766-L32AWA unit supplied by NANKMOS is sourced from verified inventory channels and undergoes pre-shipment inspection covering power-on functionality, I/O channel continuity, communication port responsiveness, and firmware version confirmation. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units exhibiting defects within the warranty period are eligible for replacement or repair at NANKMOS's discretion. For time-critical MRO requirements, NANKMOS maintains ready stock of MicroLogix 1400 series controllers to support rapid dispatch and minimize production downtime exposure.
