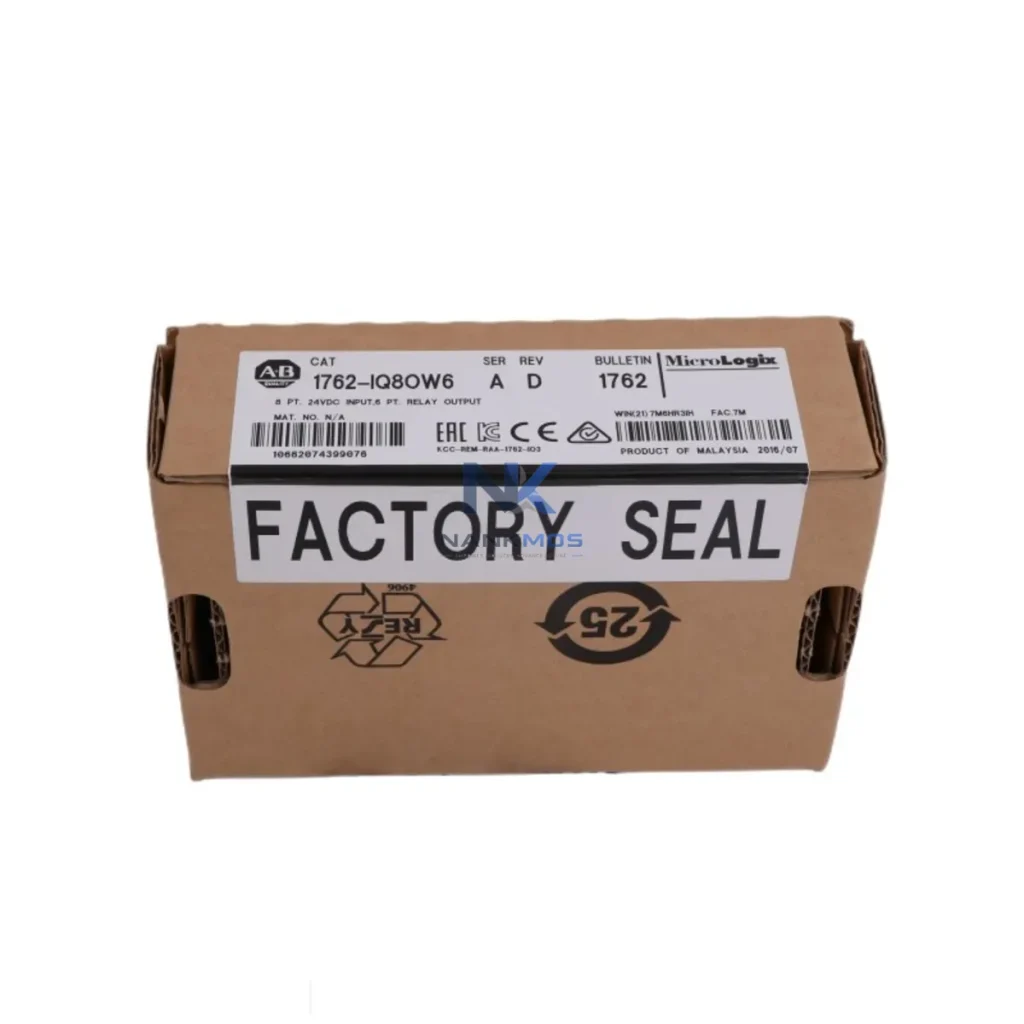

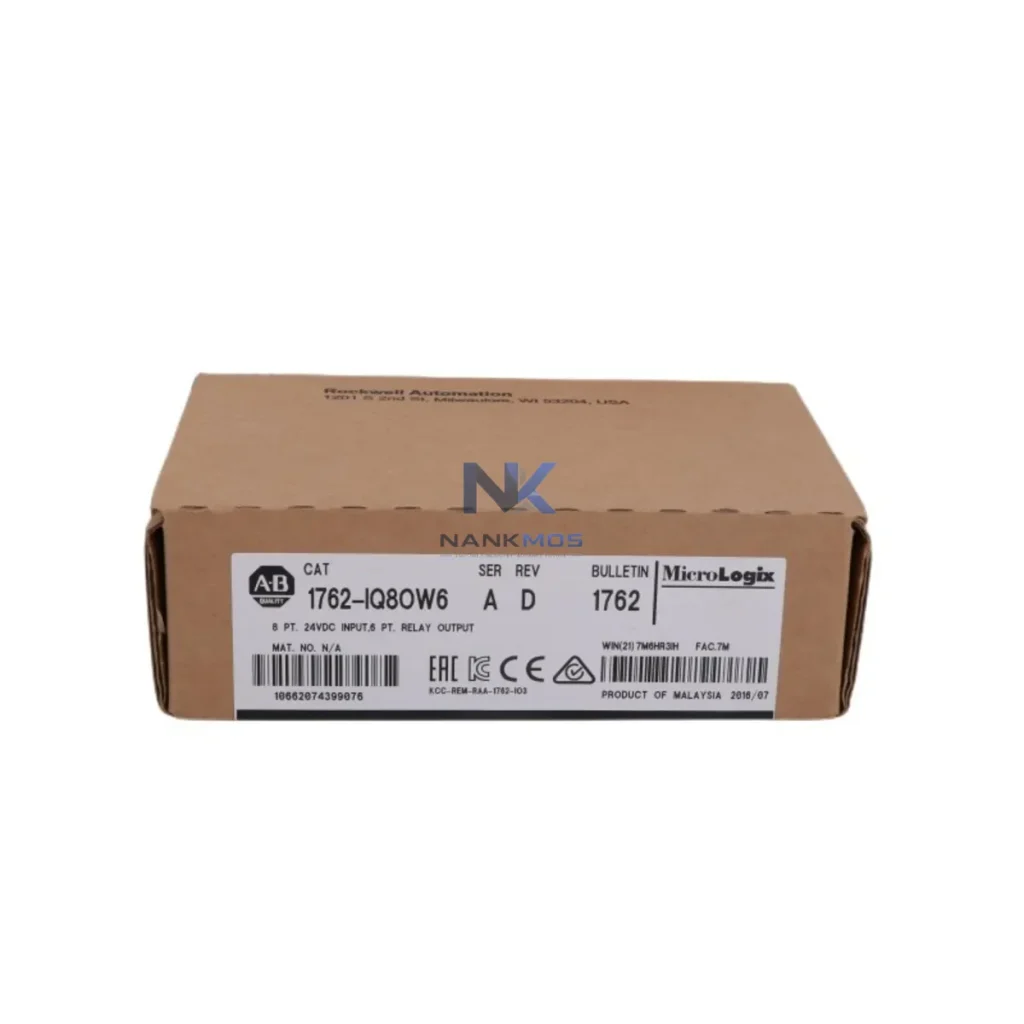

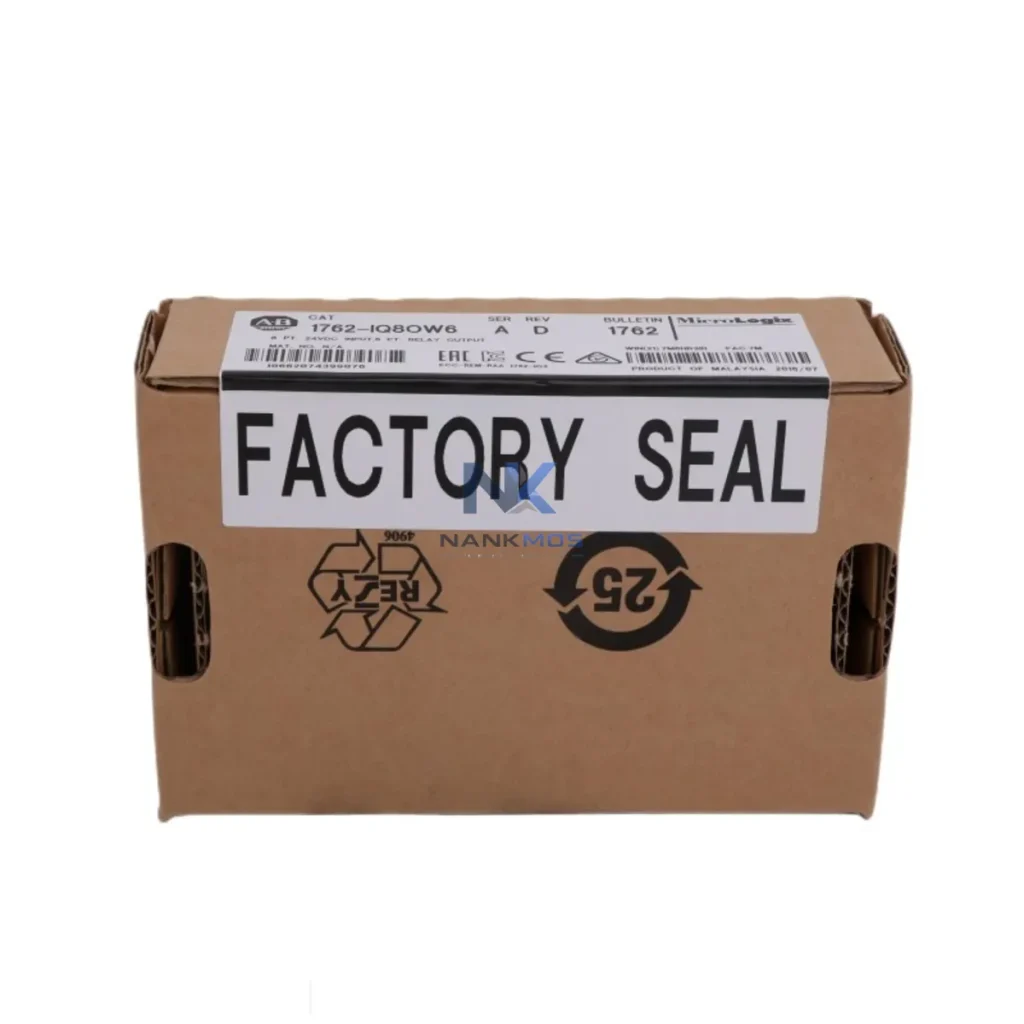

Allen-Bradley 1762-IQ8OW6 PLC I/O Module

Product Details

1762-IQ8OW6 Product Description

The Allen-Bradley 1762-IQ8OW6 is a compact, system-matched combination I/O module engineered for seamless integration within the MicroLogix 1200 control platform. Delivering 8 DC sink/source inputs and 6 relay outputs in a single expansion slot, this module is purpose-built to reduce panel footprint, simplify wiring, and maintain signal integrity across the full automation architecture. Whether deployed in discrete manufacturing, packaging lines, water treatment facilities, or building automation systems, the 1762-IQ8OW6 provides the I/O density and electrical reliability demanded by modern industrial control environments.

As part of the Allen-Bradley 1762 Series expansion family, this module connects directly to the MicroLogix 1200 CPU backplane via the integrated expansion bus, eliminating the need for additional communication wiring between the controller and I/O layer. This native backplane integration ensures deterministic scan-cycle performance, minimizes latency between field signal acquisition and controller logic execution, and supports the modular expansion strategy that defines the MicroLogix 1200 platform architecture.

The 1762-IQ8OW6 achieves its full value when considered within the broader MicroLogix 1200 automation platform rather than as a standalone component. The Allen-Bradley 1762-L24BWA MicroLogix 1200 CPU serves as the central controller, executing ladder logic and managing the expansion bus that the 1762-IQ8OW6 connects to. Power integrity for the entire rack is maintained by the 1762-PA8 power supply module, which delivers regulated 24V DC to the CPU and all expansion modules, ensuring stable operation even under variable load conditions.

For applications requiring analog process variable monitoring alongside discrete I/O, the 1762-IF4 4-channel analog input module and 1762-OF4 4-channel analog output module extend the platform's capability to handle 4–20 mA and 0–10V signals from field transmitters, control valves, and variable-frequency drives. When the application demands communication beyond the local backplane — such as integration with SCADA systems, HMI panels, or upstream PLCs — the 1761-NET-ENI Ethernet interface module provides EtherNet/IP connectivity, enabling the MicroLogix 1200 to participate in plant-wide Ethernet networks without requiring a full ControlLogix migration.

Operator interaction is typically handled by a PanelView Component C400 or C600 HMI terminal, which communicates with the MicroLogix 1200 CPU via DF1 or DH-485 protocol, providing real-time process visualization and alarm management at the machine level. For installations requiring RS-485 multi-drop communication to remote I/O nodes or third-party devices, the 1761-NET-AIC Advanced Interface Converter bridges the MicroLogix 1200's serial port to a DH-485 network, supporting up to 32 nodes on a single segment.

Terminal block wiring for the 1762-IQ8OW6's field connections is typically organized using Allen-Bradley 1492-CABLE series pre-wired interface cables paired with 1492-IFM interface modules, which route I/O signals to standard terminal blocks and significantly reduce field wiring time during commissioning. In safety-critical zones, Allen-Bradley 440R safety relay modules are integrated in parallel with the relay output circuit to provide SIL-rated emergency stop and safety gate monitoring without requiring a separate safety PLC.

This layered architecture — CPU, power supply, combo I/O, analog I/O, communication gateway, HMI, and safety relay — represents the complete MicroLogix 1200 system stack, within which the 1762-IQ8OW6 functions as the primary discrete field interface, handling the majority of sensor inputs and actuator outputs in a single, space-efficient module.

Discrete Manufacturing & Assembly Lines: In automotive component assembly and electronics manufacturing, the 1762-IQ8OW6 interfaces directly with proximity sensors, photoelectric sensors, and pneumatic valve solenoids. Its 8 DC inputs capture part-present and position-confirmed signals, while the 6 relay outputs drive conveyor motor starters, clamp actuators, and indicator lamps. The relay output's wide voltage range (5–265V AC) accommodates both 24V DC solenoids and 120V AC motor contactors within the same module, reducing the number of expansion slots required.

Water & Wastewater Treatment: Pump station control panels frequently deploy the MicroLogix 1200 platform for its compact form factor and robust environmental ratings. The 1762-IQ8OW6 monitors float switch levels, flow switch states, and pressure switch alarms via its DC inputs, while relay outputs control pump motor starters, chemical dosing pump relays, and alarm horn circuits. The module's 0–60°C operating range and CE certification make it suitable for outdoor pump station enclosures in temperate climates.

Packaging & Material Handling: High-speed packaging lines require deterministic I/O response times to maintain synchronization between infeed conveyors, labeling heads, and reject mechanisms. The 1762-IQ8OW6's native backplane connection to the MicroLogix 1200 CPU ensures that input scan and output update occur within the controller's fixed scan cycle, providing the timing consistency required for label registration and product rejection accuracy.

Building Automation & HVAC: Smaller commercial building automation applications — including air handling unit control, chiller sequencing, and lighting management — benefit from the MicroLogix 1200 platform's low cost and compact size. The 1762-IQ8OW6 handles damper end-switch feedback, fan status contacts, and valve position switches on the input side, while relay outputs control contactor coils for fan motors, pump starters, and zone valve actuators.

Mining & Metals Processing: In conveyor drive control panels for mining operations, the relay outputs of the 1762-IQ8OW6 are used to energize motor control center (MCC) pilot relays, providing electrical isolation between the PLC's 24V DC logic circuit and the 120V AC MCC control circuit. This isolation is critical in high-noise environments where ground loops and induced voltages can corrupt digital I/O signals in non-isolated modules.

Q1: How many 1762-IQ8OW6 modules can be connected to a single MicroLogix 1200 CPU, and what are the expansion bus limitations? The MicroLogix 1200 supports up to 6 expansion modules on its integrated expansion bus, with a maximum combined backplane current draw of 800 mA at 5V DC. The 1762-IQ8OW6 draws 150 mA at 5V DC, meaning up to 5 units can theoretically be connected alongside the CPU's own internal I/O, subject to the total backplane current budget. In practice, mixed configurations including analog modules (which draw higher backplane current) will reduce the maximum number of 1762-IQ8OW6 modules. Always verify the total backplane current budget using Rockwell Automation's system sizing tools before finalizing the expansion configuration.

Q2: Is the 1762-IQ8OW6 compatible with MicroLogix 1100 or MicroLogix 1400 controllers, and can it be used in a ControlLogix or CompactLogix system? The 1762-IQ8OW6 is designed exclusively for the MicroLogix 1200 expansion bus and is not compatible with MicroLogix 1100, MicroLogix 1400, ControlLogix, or CompactLogix platforms. MicroLogix 1100 uses the 1762 series modules but has a different expansion bus current budget and connector pinout; compatibility must be verified against Rockwell Automation's product compatibility matrix. For ControlLogix applications, the equivalent discrete I/O functionality is provided by the 1756-IB16 (16-point DC input) and 1756-OW16I (16-point relay output) modules in the 1756 chassis. NANKMOS stocks modules across all these platforms and can assist with cross-platform migration planning.

Q3: What warranty and post-sale support does NANKMOS provide for the 1762-IQ8OW6, and what is the typical lead time for replacement units? NANKMOS provides a 12-Month Warranty on all 1762-IQ8OW6 units, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify input response, relay output continuity, and backplane communication integrity before dispatch. Replacement units are typically available from in-stock inventory with a 3–7 business day global shipping lead time for standard destinations. For critical production environments requiring rapid replacement, NANKMOS recommends maintaining one spare unit on-site as part of a standard MicroLogix 1200 spare parts kit. Contact [email protected] or +86 18359268345 for RFQ, bulk pricing, and expedited shipping inquiries.
