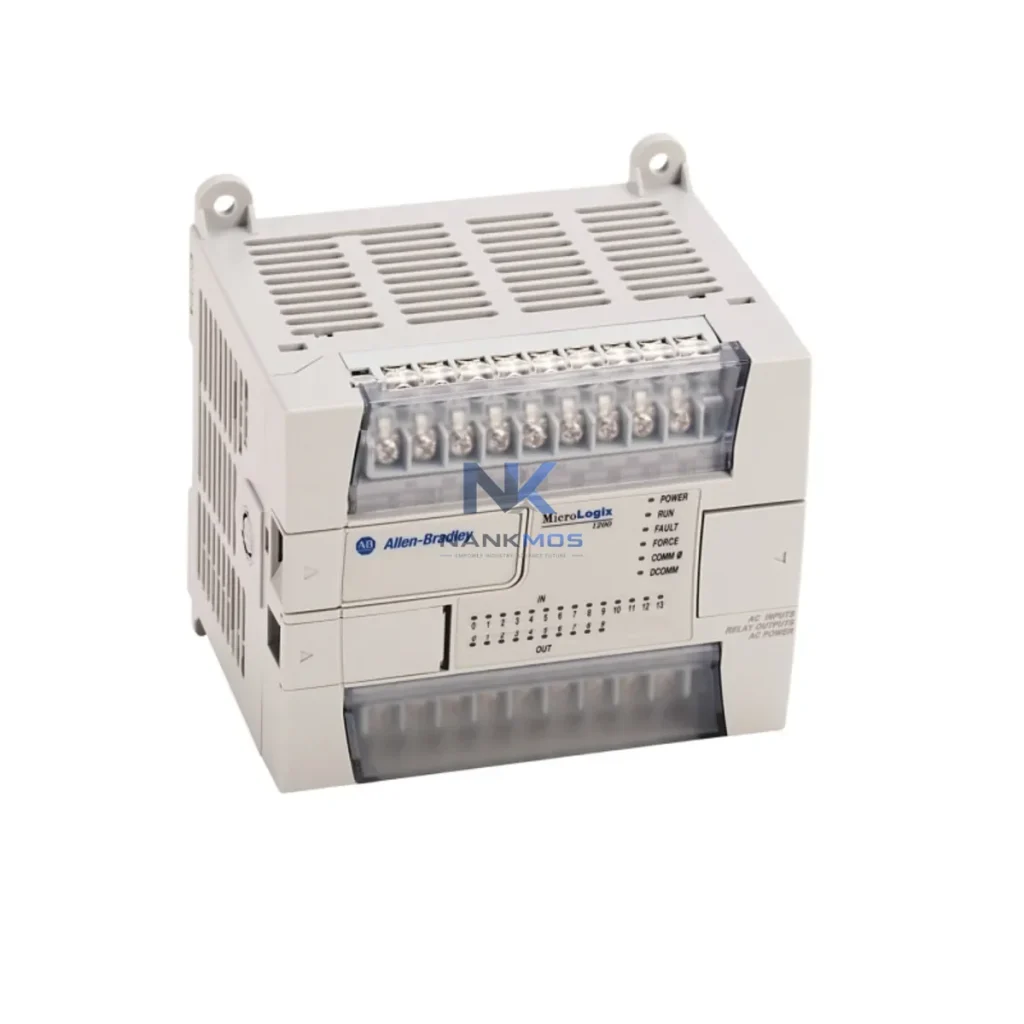

Allen-Bradley 1762-L24BWA PLC Controller

Product Details

1762-L24BWA Product Description

The Allen-Bradley 1762-L24BWA is a MicroLogix 1200 series programmable logic controller engineered for energy-conscious industrial environments where precise load management, motor control, and production-line efficiency are non-negotiable. Designed and manufactured by Rockwell Automation, this compact yet powerful PLC delivers deterministic scan-cycle performance while minimizing idle-state power draw — making it a cornerstone component for factories pursuing measurable energy optimization without sacrificing throughput or reliability.

With 24 I/O points (14 digital inputs, 10 relay outputs), the 1762-L24BWA integrates seamlessly into mixed-signal control architectures. Its relay output configuration supports direct switching of inductive loads such as contactors, solenoid valves, and motor starters, reducing the need for intermediate relay banks and the associated energy overhead. The controller operates on 120/240 VAC power, making it compatible with standard industrial panel infrastructure across North American and international production facilities.

In a fully integrated energy-aware production cell, the 1762-L24BWA operates as the central decision node, coordinating with upstream and downstream components to enforce load discipline and minimize unnecessary energy consumption. When paired with a 1762-IQ16 digital input expansion module, the controller gains additional sensor feedback channels — enabling real-time monitoring of machine states, door interlocks, and process triggers without increasing the base unit's power budget.

For motor-driven applications, the 1762-L24BWA is commonly deployed alongside PowerFlex 40 or PowerFlex 4M variable frequency drives. The PLC issues run/stop and speed-reference commands via discrete outputs or, when extended with a 1761-NET-AIC communication adapter, through DF1 or DH-485 serial links. This arrangement allows the drive to operate at demand-matched speeds rather than fixed full-load RPM — directly reducing motor energy consumption during partial-load production windows.

On the sensing side, integration with Banner Engineering QS18 photoelectric sensors or Turck proximity switches feeds the 1762-L24BWA with accurate part-presence and position data, allowing the controller to gate conveyor motors and actuators only when workpieces are confirmed in position. This event-driven control model eliminates the continuous-run energy waste common in timer-based legacy systems.

For facilities running a distributed energy monitoring strategy, the 1762-L24BWA can be networked with a Schneider Electric PowerLogic PM5000 series power meter or an equivalent Modbus RTU energy monitoring module via a 1761-NET-AIC or third-party Modbus gateway. This configuration allows the PLC to receive real-time kWh and demand data, enabling ladder-logic-based load-shedding routines that automatically defer non-critical loads during peak tariff windows.

HMI visibility is achieved through connection to a PanelView Component C400 or C600 terminal, giving operators a live dashboard of cycle counts, motor run-hours, and energy consumption trends. When combined with a 1762-OW16 relay output expansion module, the system can also drive indicator lights, audible alarms, and contactor coils for multi-zone load management across a production floor.

Factory energy waste most commonly originates from three sources: motors running at fixed speed under variable load, control systems that cannot distinguish idle states from active production, and aging relay logic that lacks the granularity to implement demand-response strategies. The 1762-L24BWA addresses all three vectors through its programmable scan-cycle architecture and flexible I/O topology.

By implementing timed idle-detection rungs in RSLogix 500, maintenance engineers can configure the PLC to issue coast-to-stop commands to connected PowerFlex drives after a defined period of inactivity — a strategy that can reduce motor energy consumption by 15–30% on intermittent-duty conveyor and packaging lines. The same logic can be extended to control pneumatic solenoids, cooling fans, and lighting circuits, consolidating energy management under a single control platform rather than relying on disconnected timers and manual switches.

Thermal load management is another area where the 1762-L24BWA delivers measurable value. By monitoring motor run-hours and ambient temperature inputs from PT100 or thermocouple modules connected via 1762-IT4 analog expansion, the controller can implement predictive cooling strategies — activating panel fans and heat exchangers only when thermal thresholds are approached, rather than running them continuously. This reduces both electrical load and mechanical wear on cooling infrastructure.

Production-line takt time stability is maintained through the controller's deterministic scan cycle, which ensures that I/O updates and ladder-logic execution occur at consistent intervals regardless of network traffic or HMI polling load. This predictability is essential for synchronized multi-axis lines where conveyor speed, robot trigger timing, and inspection gate sequencing must align within millisecond tolerances. The result is a production rhythm that minimizes buffer accumulation, reduces rework from timing-induced defects, and sustains throughput at the designed cycle rate.

All units supplied by NANKMOS undergo pre-shipment functional testing covering power-on self-test, I/O point verification, and communication port integrity checks. Stock is maintained in-warehouse for immediate dispatch, supporting both planned capital projects and urgent replacement scenarios. Each 1762-L24BWA is covered by a 12-Month Warranty, providing procurement teams with the confidence to specify this controller for new installations and retrofit programs alike.

Q1: How does the 1762-L24BWA contribute to measurable energy savings on a production line?The controller enables demand-driven motor control by issuing run/stop and speed commands to connected variable frequency drives based on real process conditions rather than fixed timers. Combined with idle-detection ladder logic and load-shedding routines, facilities typically report 10–30% reductions in motor energy consumption on intermittent-duty applications. Integration with Modbus RTU energy meters further allows the PLC to enforce peak-demand management strategies automatically.

Q2: Is the 1762-L24BWA compatible with existing MicroLogix 1200 expansion modules and communication adapters?Yes. The 1762-L24BWA accepts the full range of 1762 series expansion I/O modules, including the 1762-IQ16 digital input, 1762-OW16 relay output, 1762-IT4 thermocouple/RTD analog, and 1762-IF4 analog input modules. Communication expansion is supported via the 1761-NET-AIC adapter for DF1 and DH-485 protocols, enabling integration with RSLogix 500 programming environments and third-party SCADA systems over serial links.

Q3: What is the recommended replacement or upgrade path if the 1762-L24BWA reaches end-of-service?For applications requiring expanded I/O density or Ethernet/IP connectivity, the MicroLogix 1400 series (e.g., 1766-L32BWA) provides a direct functional upgrade with backward-compatible ladder logic migration via RSLogix 500. For new designs prioritizing EtherNet/IP and Studio 5000 compatibility, the CompactLogix 5370 L1 (1769-L16ER-BB1B) is the recommended platform. NANKMOS maintains stock of both series to support phased migration programs.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?Every 1762-L24BWA unit shipped by NANKMOS is subjected to a pre-shipment test protocol covering power-on self-test, all I/O point activation and verification, RS-232 communication port integrity, and visual inspection for connector and housing integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed directly through NANKMOS with replacement units dispatched from in-warehouse stock to minimize downtime exposure.
